Hey you troops – have a alarm  sensor that only has a NC (Normally closed) output. My DVR alarm inputs are very difficult to understand but have got the NO (Normally open) circuit to work ok.

What sort of relay (or whatever) can I get to take the NC circuit from the sensor to create at NO circuit?!

Thanks

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2

gzt

4628 posts

Uber Geek
+1 received by user: 252

Subscriber

  Reply # 562166 28-Dec-2011 15:44 Send private message

what kind of sensor is it? and what is the output (if known)?



168 posts

Master Geek


  Reply # 562173 28-Dec-2011 16:06 Send private message

Bosch Passive Infrared. 125mA, 28VDC, 3W.
Hope that helps.
Many thanks


gzt

4628 posts

Uber Geek
+1 received by user: 252

Subscriber

  Reply # 562175 28-Dec-2011 16:57 Send private message

got a model number?

870 posts

Ultimate Geek
+1 received by user: 73

Subscriber

  Reply # 562184 28-Dec-2011 17:31 Send private message

stuffed: Hey you troops – have a alarm  sensor that only has a NC (Normally closed) output. My DVR alarm inputs are very difficult to understand but have got the NO (Normally open) circuit to work ok.

What sort of relay (or whatever) can I get to take the NC circuit from the sensor to create at NO circuit?!

Thanks


You need an interposing relay, using the NC contacts from the sensor, use this to keep the replay powered via the power used to run the sensor, you will need to figure out what the voltage is, most alarm systems are 12VDC, but you do need to check this to make sure you get the right voltage relay. Now you have a set of contacts from the relay which are changeover, both NO and NC and you can use this on the input on the DVR

Greg


1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562188 28-Dec-2011 17:38 Send private message

Not my area of expertise BUT it may be possible that the PIR can be made to give a NO contact.

The PIR's we have here at home emit a light clicking sound when activated, I presume that noise is caused by a relay being operated.  Most relays have a change over contacts effectively giving a NC and a NO.  If this is the case you just need to pick up the other contact and use that.  On some relays they are labeled NO or NC

The other way is to use an external relay.  In this situation the relay will be operated until the contact in the PIR operates so you will need to use the NC contact to achieve your aim. There are two downsides to using an external relay, one is the extra power (probably only a few mA) consumed by the external relay being operated for most of the time, the second is a failure of the coil - open circuit - (though unlikely to happen often, or at all) will trigger the alarm

If you choose to use an external relay you will need to choose the relay based on the amount of current that the PIR contacts can handle. i.e the coil resistance will be important.



I see Greg posted while I was replying.  Good point also on the voltage though I thought I saw 28 v mentioned somewhere.




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5

gzt

4628 posts

Uber Geek
+1 received by user: 252

Subscriber

  Reply # 562191 28-Dec-2011 17:51 Send private message

Can you configure your DVR for NO/NC? Many have that option already.

Careful with that voltage difference though.

Consider getting some exact model numbers for your DVR/IR equipment, and posting links to some manuals if you can find them online..



168 posts

Master Geek


  Reply # 562363 29-Dec-2011 08:48 Send private message

Thanks for your help - attached are the details of the IR Detector


1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562380 29-Dec-2011 09:55 Send private message

From the picture you've posted I'm guessing that NC is the industry standard or you buy the PIR's  for NC or NO configuration.

Can you provide more info on your DVR inputs set up, I suspect there will be something there that can be configured to make it all work.  What make/model is it?  Perhaps there is some info on line that may help.

Failing all that, the external relay will need to have a coil of at least 100 ohms (96 to be exact), I would go for around 200 ohms, assuming you use a 12 volt relay since I guess the rest of the system is running on 12 volts.

The best solution will be to get the DVR configured to operate with NC.




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5



168 posts

Master Geek


  Reply # 562388 29-Dec-2011 10:50 Send private message

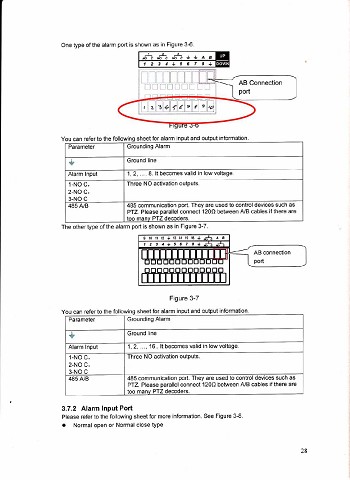

Attached are the DVR input instructions – find them as clear as mud but got the NO circuit working on terminals 1 and 10 (this DVR is a 4 channel one).
Thanks


1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562398 29-Dec-2011 11:26 Send private message

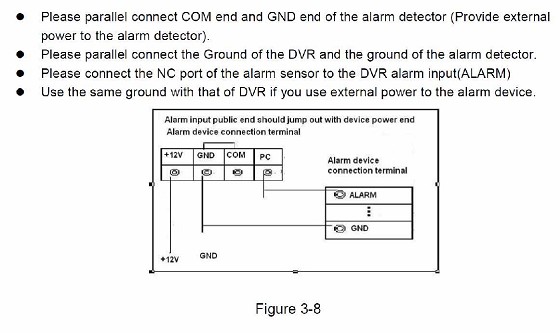

Just reading bottom of that sheet.  It says 3.7.2 Alarm input port.  Please refer to the following sheet for more information. See figure 3.8. Normal open or normal closed type.

I think the next page with fig 3.8 might reveal some useful info. Can you post that?




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5



168 posts

Master Geek


  Reply # 562482 29-Dec-2011 14:48 Send private message

Hope this completes the picture - thanks.


1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562528 29-Dec-2011 16:46 Send private message

Can you provide make and model of the DVR? Is there an on line manual for it?

From a quick look at what you have posted so far, more information is needed to ensure the PIR is connected correctly.  It does appear that NO and NC connections are allowed for, it's just a matter of getting enough information to figure out how and so far it appears you haven't posted enough information to work out how to make the connections.  Admittedly as I said I've only had a very quick look so far.



Would I be correct in saying the DVR is of Asian origin, just looking at some of the info on the pages you have posted would indicate there is some language translation issues.




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5



168 posts

Master Geek


  Reply # 562541 29-Dec-2011 16:57 Send private message

Correct – it Asian – Dahua – excellent product – this one is for home use and have a 32 channel one at a local enforcement agency.

This is their web site: http://www.dahuasecurity.com/index.aspx

Have been told that they have more than 1000 people in their R&D department!

Many thanks

1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562593 29-Dec-2011 18:19 Send private message

What model is it?




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5

1814 posts

Uber Geek
+1 received by user: 108


  Reply # 562625 29-Dec-2011 19:40 Send private message

Right, I think I have it sorted BUT theres no way of knowing until you try it.

I'm assuming negative earth here and that the PIR is powered from the same supply as the DVR.

You need to connect the -ve tag (which will be Earth) on the PIR to one of the relay tag, the other relay tag needs to be wired out to one of the alarm inputs on the DVR.  The PIR of course will also have the +ve tag wire to the power supply.




Nokia N9
Nokia E7
HP Touchpad
Dell Inspiron 14z i5
