Visiting mum, and spark have been doing some work in her rural area on the outskirts of Auckland.



The old modem just blew up, and spark sent her a Huawei 659 , and she is on ADSL2.



Are these stats OK (a bit rusty on what is good/bad)...



Upstream line rate (kbit/s):1197
Downstream line rate (kbit/s):19773
Upstream noise safety coefficient (dB):8
Downstream noise safety coefficient (dB):6.2
Upstream line attenuation (dB):8.4
Downstream line attenuation (dB):16.5
Upstream output power (dBmV):10.1
Downstream output power (dBmV):18.8
Downstream interleave depth:None



The attenuation looks good I think, but , the noise coefficient (is that the SNR??) , is that good or bad?



If bad, could it be the house wiring?  Not sure if she has a splitter or not. Might require crawling under the house to see, not sure.



The reason I ask, is whether it is possible to move to VDSL, maybe not if that noise is too high.


Create new topic
27787 posts

Uber Geek
+1 received by user: 7271

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  # 2137356 30-Nov-2018 15:50
2 people support this post
Send private message

My pick would be VDSL2 would deliver up up to around 70/30 based on those stats.






'That VDSL Cat'
10187 posts

Uber Geek
+1 received by user: 2445

Trusted
Spark
Subscriber

  # 2137357 30-Nov-2018 15:52
Send private message

sbiddle:



My pick would be VDSL2 would deliver up up to around 70/30 based on those stats.









I'd say closer to 50/8...





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.








4523 posts

Uber Geek
+1 received by user: 2629

Trusted
Lifetime subscriber

  # 2137364 30-Nov-2018 16:07
Send private message

Spark wound not be doing the work but Chorus

John



4132 posts

Uber Geek
+1 received by user: 1393


  # 2137366 30-Nov-2018 16:17
Send private message

Cool, thanks, might give vdsl a try then.


27787 posts

Uber Geek
+1 received by user: 7271

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  # 2137367 30-Nov-2018 16:17
Send private message

hio77:



sbiddle:



My pick would be VDSL2 would deliver up up to around 70/30 based on those stats.









I'd say closer to 50/8...





Let's start the bets. smile


'That VDSL Cat'
10187 posts

Uber Geek
+1 received by user: 2445

Trusted
Spark
Subscriber

  # 2137380 30-Nov-2018 16:47
Send private message

sbiddle:



hio77:



sbiddle:



My pick would be VDSL2 would deliver up up to around 70/30 based on those stats.









I'd say closer to 50/8...





Let's start the bets. smile





haha... attenuation is a little on the high side to pull 70s....

pass me the account? i'll make sure i win! :P





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.


5427 posts

Uber Geek
+1 received by user: 2490

Trusted
Lifetime subscriber

  # 2137402 30-Nov-2018 17:52
One person supports this post
Send private message

And if you need a splitter installed, drop me a PM.




Chorus has spent $1.4 billion on making their xDSL broadband network faster and even more now as they are upgrading their rural Conklins. If your still stuck on ADSL or VDSL, why not spend $195 on a master filter install to make sure you are getting the most out of your connection?
I install - Naked DSL, DSL Master Splitters, VoIP, data cabling and general computer support for home and small business.
Rural Broadband RBI installer for Ultimate Broadband and Full Flavour



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com


2069 posts

Uber Geek
+1 received by user: 182

Trusted

  # 2137462 30-Nov-2018 19:34
Send private message

Interesting. My speed is quite close to yours with ADSL2 but my attenuation is a lot higher



Downstream Upstream
Line Coding(Trellis): On On
SNR Margin (0.1 dB): 34 68
Attenuation (0.1 dB): 265 152
Output Power (0.1 dBm): 188 100
Attainable Rate (Kbps): 19192 1293



I'm apparently too far from the exchange for VDSL2.





Generally known online as OpenMedia, now working for Red Hat New Zealand as a Solution Architect for all things Linux, Virtual and of course Cloud. Still playing with MythTV and digital media on the side.

'That VDSL Cat'
10187 posts

Uber Geek
+1 received by user: 2445

Trusted
Spark
Subscriber

  # 2137495 30-Nov-2018 19:48
Send private message

openmedia:



Interesting. My speed is quite close to yours with ADSL2 but my attenuation is a lot higher



Downstream Upstream
Line Coding(Trellis): On On
SNR Margin (0.1 dB): 34 68
Attenuation (0.1 dB): 265 152
Output Power (0.1 dBm): 188 100
Attainable Rate (Kbps): 19192 1293



I'm apparently too far from the exchange for VDSL2.





Your line would be about 16-17mbit if you reboot it.







Downstream snr is running rather low to what your target is.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.


28 posts

Geek
+1 received by user: 1


  # 2137774 1-Dec-2018 14:41
Send private message

I live in Methven Mid Canterbury and been with Spark for about 10 years with good service overall and have been on VDLS  for about the past 6 years and had a master splitter,upgraded Modem and single point installed, about 700m from the cabinet and am getting speeds pretty much as promised give or take.





I'm told we will be getting fiber in 2022 and there is fiber to the cabinet as I understand.

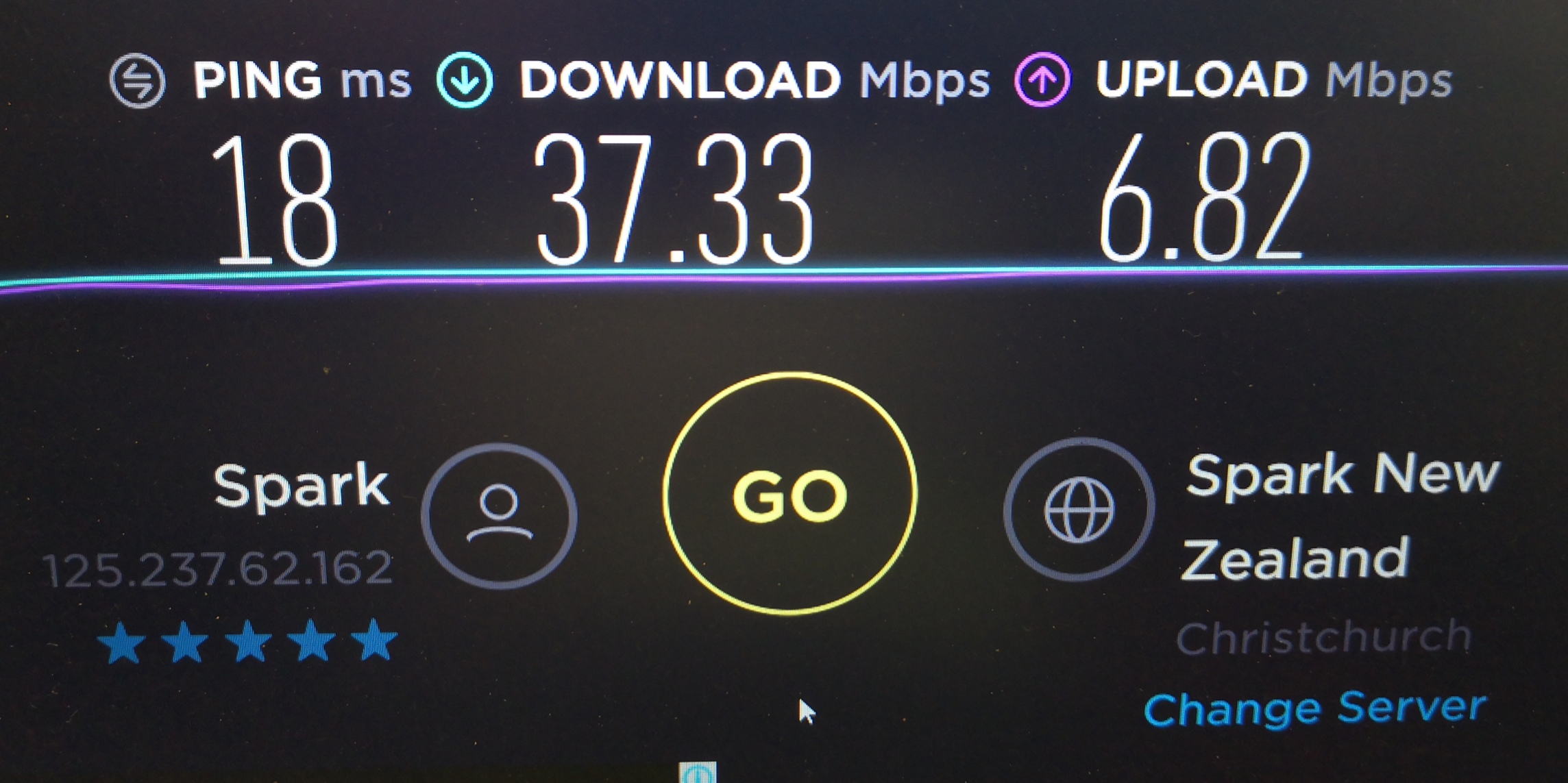

The Problem is  I'm starting to get 'data creep' where the 38 mbs or so down speed is no longer what it used to be with the addition of each new data consuming device. Also I am noticing some US based hi res music streams are now becoming unlistenable due to buffering



DSL Phy Version: A2pvI042j1.d26b Status: Up Mode: VDSL2 Link Power State: L0   UpLink / DownLink SNR Margin (0.1 dBm): 53 / 56 Attenuation (0.1 dBm): 0 / 212 Output Power (0.1 dBm): 67 / 146 Attainable Rate (Kbps): 7288 / 42348 Rate (Kbps):



I have been in touch with spark and been told there is nothing they can do from their end.



Are there any options out there such as switching providers or re configuring my setup to get through the next 4 years.



Any thoughts /suggestions would be much appreciated.


'That VDSL Cat'
10187 posts

Uber Geek
+1 received by user: 2445

Trusted
Spark
Subscriber

  # 2137776 1-Dec-2018 14:49
Send private message

At 21db, that's really not too bad.



specs are close to OP ;)





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.


8441 posts

Uber Geek
+1 received by user: 2889

Lifetime subscriber

  # 2137846 1-Dec-2018 18:01
Send private message

@nickt1 not really you have done about everything you can do.



its just one of those hurry up and wait senarios



also might want to hide your IP address :)


28 posts

Geek
+1 received by user: 1


  # 2137883 1-Dec-2018 19:37
One person supports this post
Send private message

First world problem I guess i have just got to suck it up and dial the resolution back.



Thanks for the replies.



How can I edit my post to get rid of the IP?
