Hi all,

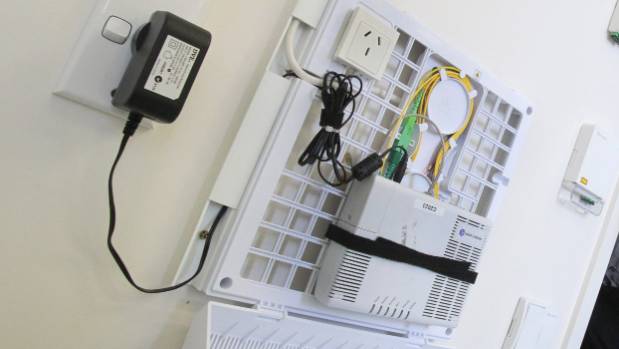

I came across the attached picture in a Stuff article and wondered if anyone knows where I can get an enclosure like this.





I'm after something that will fit an ONT, power socket and ethernet socket (same size wall plate as a power point). I've looked at the clear lockable "Thermostat guards" available from Amazon, but the largest size will fit just the ONT.



Thanks


Create new topic
6749 posts

Uber Geek
+1 received by user: 618

Trusted
Subscriber

  # 2076074 20-Aug-2018 10:32
Send private message

Hi pretty sure that's an NBN ont not a chorus one so maybe look at. aU providers.

Cyril

217 posts

Master Geek
+1 received by user: 160

Trusted
Chorus

  # 2076107 20-Aug-2018 11:14
Send private message

That ONT is not ours/NBN's (We share the same ONT hardware).



Make sure it is vented and there is plenty of airflow around the ONT.  You should also have it in place before we come to scope the install.
I believe these are used commonly:
https://www.pbtech.co.nz/product/ENCDNX1009/Dynamix-HWS-2004V2-20-Network-Enclosure-Recessed-W








199 posts

Master Geek
+1 received by user: 7

Subscriber

  # 2076108 20-Aug-2018 11:21
Send private message

I've seen some Chorus installs in that enclosure, the enclosure is a Huawei one. Unsure if it's techs going off script or if they're available on request.



122 posts

Master Geek
+1 received by user: 9


  # 2076110 20-Aug-2018 11:23
Send private message

BMarquis:



That ONT is not ours/NBN's (We share the same ONT hardware).



Make sure it is vented and there is plenty of airflow around the ONT.  You should also have it in place before we come to scope the install.
I believe these are used commonly:
https://www.pbtech.co.nz/product/ENCDNX1009/Dynamix-HWS-2004V2-20-Network-Enclosure-Recessed-W

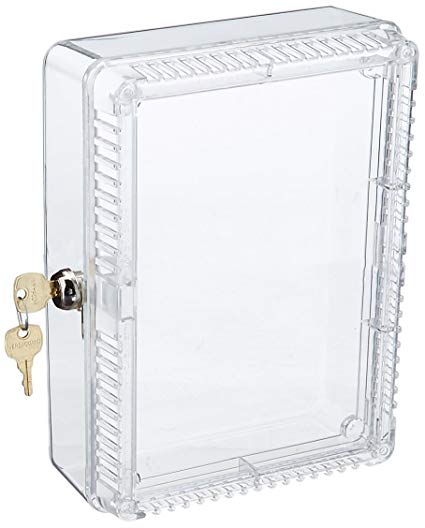

Thanks, but ONT is already in location on the wall. Once a suitable enclosure is sourced, I'll get an electrician to install a power point right next to the ONT.  I was actually considering one of those clear thermostat guards that companies use to stop people adjusting A/C thermostats (more common in the US and UK) - they have an open back so can be installed after the fact, but they don't come big enough to fit ONT and powerpoint inside.


217 posts

Master Geek
+1 received by user: 160

Trusted
Chorus

  # 2076132 20-Aug-2018 11:59
Send private message

bender: I've seen some Chorus installs in that enclosure, the enclosure is a Huawei one. Unsure if it's techs going off script or if they're available on request.







Definitely not available on request from us.  I've never seen that enclosure.
The image has an Alcatel-Lucent ONT in there, but that doesn't mean it isn't a Huawei enclosure.



ElectronicFerret:



Thanks, but ONT is already in location on the wall. Once a suitable enclosure is sourced, I'll get an electrician to install a power point right next to the ONT.  I was actually considering one of those clear thermostat guards that companies use to stop people adjusting A/C thermostats (more common in the US and UK) - they have an open back so can be installed after the fact, but they don't come big enough to fit ONT and powerpoint inside.





If we are thinking about the same thing, they have no ventilation, so wouldn't recommend that.



You're probably better off to get a proper enclosure and have us move the ONT into it?












122 posts

Master Geek
+1 received by user: 9


  # 2076143 20-Aug-2018 12:05
One person supports this post
Send private message

BMarquis:



If we are thinking about the same thing, they have no ventilation, so wouldn't recommend that.





We mustn't be thinking about the same thing.  They're made to prevent people tampering with A/C thermostats, but still need to allow the room temperature air inside for the thermostat to work so need to be very well ventilated.




14873 posts

Uber Geek
+1 received by user: 2790

Trusted
Subscriber

  # 2076157 20-Aug-2018 12:25
Send private message

I have my ONT in a closed cupboard, mounted directly on the wall. It's been there since I had Fiber, which is I guess 2-3 years, it hasn't ever had a problem.








217 posts

Master Geek
+1 received by user: 160

Trusted
Chorus

  # 2076165 20-Aug-2018 12:31
Send private message

ElectronicFerret:



BMarquis:



If we are thinking about the same thing, they have no ventilation, so wouldn't recommend that.





We mustn't be thinking about the same thing.  They're made to prevent people tampering with A/C thermostats, but still need to allow the room temperature air inside for the thermostat to work so need to be very well ventilated.









OK cool, the considerations/install specs for the ONT are:
- Allow a minimum 100 mm clearance above the top cover
- Allow a minimum 50 mm clearance from the side vents
- Do not place any heat source directly above the top cover or below the bottom cover



We also request you consider:



- Future ONTs (which could include a replacement ONT if this one goes faulty) might not be the same size.
- Technician access to remedy faults (only really matters if you do lock it)


1308 posts

Uber Geek
+1 received by user: 279

Subscriber

  # 2076173 20-Aug-2018 12:39
Send private message

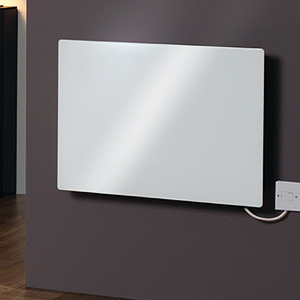

Maybe you could make something like this...





i..e something flat kept away from the wall on posts.





rb99


1 post

Wannabe Geek
+1 received by user: 1


  # 2076367 20-Aug-2018 16:40
One person supports this post
Send private message

Hi,



I haven't installed one of these for quite some time so not sure if they are still available but it is a



Huawei CTB2101-100 Fibre Customer Termination Box


703

72 posts

Master Geek
+1 received by user: 14


  # 2077104 21-Aug-2018 22:21
Send private message

I'm using Hubbell netSelect.



http://ecatalog.hubbell-premise.com/literature/ecatalog/u.pdf



See page 5.
