I have a few home automation sensors which can run on batteries, or permanently powered by 5VDC though USB. I also have a switch which supports PoE af and at, and a few spare ports.



Rather than go and run 240V to each sensor, and then wire that up to some USB power keystones (which I have a bunch of anyway fwiw) I wondered if I could just use up my cat6 roll by running it to each sensor location and use PoE to power them permanently.



Has anyone come across a method to use PoE to get 5VDC at the end of a max. 40m cat6 ethernet run and then terminate it with a female USB? Might this be easier to make something myself?


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
1703 posts

Uber Geek

Subscriber

  # 1571079 13-Jun-2016 15:12
Send private message

I have used a couple of these along with one of these. Not the cheapest option by far, but they work very nicely out-of-the-box. And I don't have a POE switch so these suited me. I am pushing 12VDC down the wires and I guess the longest run is probably close to 30m (hard to tell exactly as the CAT6 is in the walls). Never had any issues. I think you are better off sending higher voltage (i.e. > 5VDC) down the wire and down converting at the sensor since the high voltage allows for longer distances in case there are losses. I am not a V expert however..


263 posts

Ultimate Geek


  # 1571084 13-Jun-2016 15:21
2 people support this post
Send private message

You could try running passive POE, be careful not to plug it into things that aren't passive supporting(Magic smoke)



Or, you can get a POE compliant splitter and then use a buck converter to get the 5v. (<$10 on AliExpress)











543 posts

Ultimate Geek

Subscriber

  # 1571089 13-Jun-2016 15:29
Send private message

You could use something like this http://www.tp-link.com/en/products/details/cat-4794_TL-POE10R.html with a female USB to barrel plug or just solder one together.



You could use Passive POE however it would require a higher voltage to be applied and if it has no voltage regulation on board it could be bad.





Geoff E

22900 posts

Uber Geek

Trusted
Subscriber

  # 1571107 13-Jun-2016 16:08
Send private message

There are PoE regulators sold on aliexpress etc made to drop into an arduino shield etc, I dont know what would happen if you just hooked one up to one pair into each terminal, in theory it should still negotiate and present the correct load resistance to the switch to have it turn on, but I know that one of my switches gets upset and drops the power if there is no link established some time after the power turns on.





Richard rich.ms

28598 posts

Uber Geek

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  # 1571110 13-Jun-2016 16:12
One person supports this post
Send private message

geocom:



You could use something like this http://www.tp-link.com/en/products/details/cat-4794_TL-POE10R.html with a female USB to barrel plug or just solder one together.



You could use Passive POE however it would require a higher voltage to be applied and if it has no voltage regulation on board it could be bad.





I would use a PoE to 5V adapter like the one above. There are a few companies that do similar adapters. I've never seen a premade 2.5mm to USB cable though - but I'm sure the OP has got the skills to make one if they're tinkering with this stuff.






400 posts

Ultimate Geek


  # 1571130 13-Jun-2016 16:18
Send private message

Search Amazon for WT-AF-5v10w










22900 posts

Uber Geek

Trusted
Subscriber

  # 1571149 13-Jun-2016 16:42
Send private message

sbiddle:



geocom:



You could use something like this http://www.tp-link.com/en/products/details/cat-4794_TL-POE10R.html with a female USB to barrel plug or just solder one together.



You could use Passive POE however it would require a higher voltage to be applied and if it has no voltage regulation on board it could be bad.





I would use a PoE to 5V adapter like the one above. There are a few companies that do similar adapters. I've never seen a premade 2.5mm to USB cable though - but I'm sure the OP has got the skills to make one if they're tinkering with this stuff.





These are pretty common but output 12v.



http://www.aliexpress.com/item/48V-input-38-38mm-ip-camera-poe-module-ip-camera-module-board/32650013083.html



Made to go inside an IP cam to add POE, you could then drop a 12v to 5v converter board on that, which are all over aliexpress for about a dollar.



I bought some of these to go into the raspberry pi to take a cable from a tplink POE adapter that outputted 5v. Works fine. Ecxept the round part fouls one of the cases I have.



http://www.aliexpress.com/item/10pcs-DC-5-5mm-x-2-1mm-5-5-2-1mm-DC-Female-to-Micro-USB/32558585832.html













Richard rich.ms









1846 posts

Uber Geek


  # 1571151 13-Jun-2016 16:43
Send private message

chimera:



Search Amazon for WT-AF-5v10w



Thanks. The USB version of this looks like it's pretty much exactly what I want, and not going to add a HUGE amount to an already growing cost...


400 posts

Ultimate Geek


  # 1571159 13-Jun-2016 16:58
Send private message

Disrespective:



chimera:



Search Amazon for WT-AF-5v10w



Thanks. The USB version of this looks like it's pretty much exactly what I want, and not going to add a HUGE amount to an already growing cost...





Yep, specifically this



Its a small price to pay for simplicity really.



If you're in Auckland, order an extra one and I'll come grab it off you and flick you some cash wink














263 posts

Ultimate Geek


  # 1571165 13-Jun-2016 17:07
Send private message

chimera:



Disrespective:



chimera:



Search Amazon for WT-AF-5v10w



Thanks. The USB version of this looks like it's pretty much exactly what I want, and not going to add a HUGE amount to an already growing cost...





Yep, specifically this



Its a small price to pay for simplicity really.



If you're in Auckland, order an extra one and I'll come grab it off you and flick you some cash wink













Here's the direct from china link.





400 posts

Ultimate Geek


  # 1571173 13-Jun-2016 17:25
Send private message

pbgben:



chimera:



Disrespective:



chimera:



Search Amazon for WT-AF-5v10w



Thanks. The USB version of this looks like it's pretty much exactly what I want, and not going to add a HUGE amount to an already growing cost...





Yep, specifically this



Its a small price to pay for simplicity really.



If you're in Auckland, order an extra one and I'll come grab it off you and flick you some cash wink













Here's the direct from china link.





I searched on ali but couldn't find the USB female version. If you find it let me know!














1708 posts

Uber Geek

Subscriber

  # 1571180 13-Jun-2016 17:50
Send private message

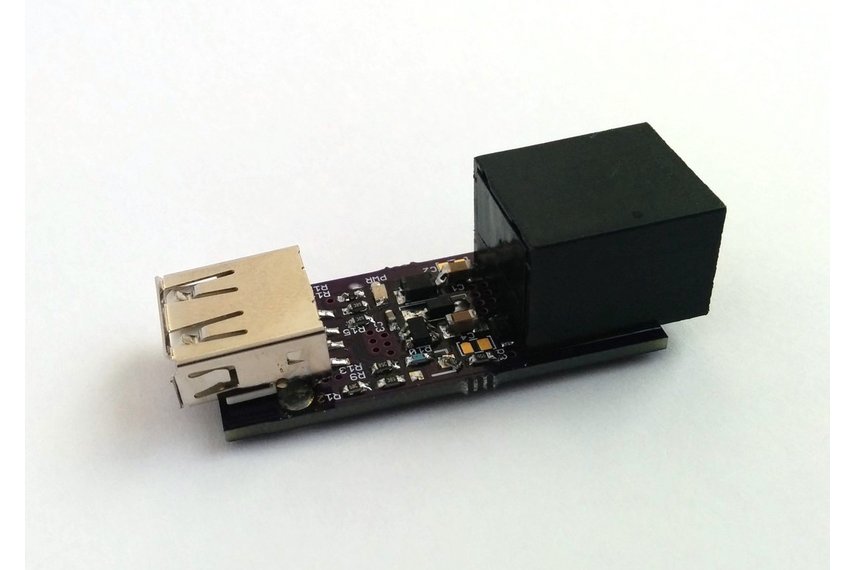

Use these from a guy in the US.  12.50 US each - Tindie


22900 posts

Uber Geek

Trusted
Subscriber

  # 1571181 13-Jun-2016 17:50
Send private message

chimera:



I searched on ali but couldn't find the USB female version. If you find it let me know!





Just add an adapter.



Search http://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20160612214620&SearchText=usb+female+2.1mm has heaps on it, one will do what you want.





Richard rich.ms

22900 posts

Uber Geek

Trusted
Subscriber

  # 1571182 13-Jun-2016 17:52
Send private message

itxtme:





Use these from a guy in the US.  12.50 US each - Tindie





Reading the page its not real POE, passive up to 26 volts :(





Richard rich.ms



1846 posts

Uber Geek


  # 1571490 14-Jun-2016 09:51
Send private message

Yeah, but for my purposes, I don't need real PoE, just some form of stripping out at least 5V from a PoE source.
