Hi,

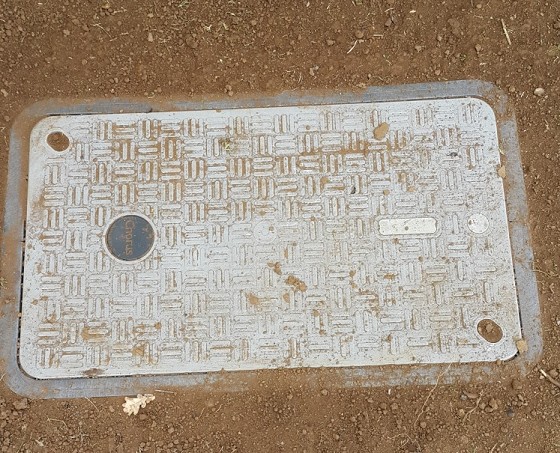

UFB is going into our street at the moment and I'm pretty excited about. I'm trying to get my head around the various components and what goes where. I've read a little about GPON and get the basics.  Today one of these was planted just outside our house.





I was talking to one of the guys and he said that it was fed from a cabinet and that it then fed 52 houses in the area. Is this where the optical splitter lives? My understanding was that the splinter would only feed 16 houses?

















Help me build a better way of doing politics in Aotearoa New Zealand








View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
Sounddude
I fix stuff!
1903 posts

Uber Geek

Trusted
2degrees
Lifetime subscriber

  #1533636 15-Apr-2016 16:26
Send private message

There are multiple splitter boxes in that road side pit. These things have replaced the old school fibre cabinets that were used at the start of the UFB Project.














You will find anything you want at MightyApe (affiliate link).
sbiddle
30853 posts

Uber Geek

Retired Mod
Trusted
Biddle Corp
Lifetime subscriber

  #1533637 15-Apr-2016 16:30
Send private message

Inside that pit will be an ABFAT (air blown fibre access terminal). This if where your house will be connected to. In the early days of UFB they had above ground cabinets however these have now been replaced wither either above ground ABFAT, or underground if possible in newer builds.



Chorus have some fairly good documentation on their site if you look.


jonb
1758 posts

Uber Geek

Trusted

  #1533642 15-Apr-2016 16:52
Send private message

This is a good doc, a couple of years old but still relevent.







https://www.chorus.co.nz/file/48842/Presentation-and-build-update-16-May-2013.pdf












DarthKermit
5346 posts

Uber Geek

Trusted

  #1533652 15-Apr-2016 17:46
Send private message

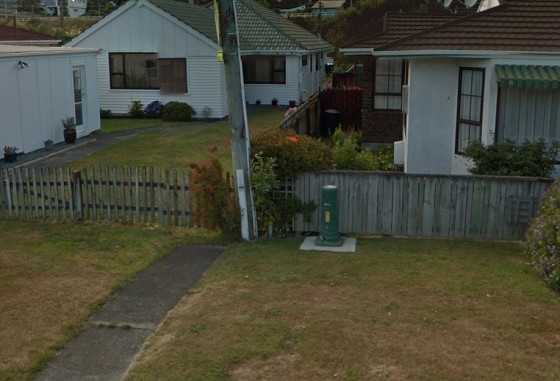

My street/area was done at the end of 2012 so has above ground parts like these:





and:





If I had a dollar for every one of the green plinths with a missing or damaged cover that I've seen around here, I'd be doing very well.



If some drunk idiot took out the type of cabinet in my second pic it'd be a big job to fix it again. These cabinets have up to 300 potential UFB connections.


hio77
'That VDSL Cat'
12999 posts

Uber Geek

ID Verified
Trusted
Voyager
Subscriber

  #1533653 15-Apr-2016 17:56
Send private message

jonb:



This is a good doc, a couple of years old but still relevent.



 https://www.chorus.co.nz/file/48842/Presentation-and-build-update-16-May-2013.pdf





My favourite part of those slides:







#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.






michaelmurfy
meow
12657 posts

Uber Geek

Moderator
ID Verified
Trusted
Lifetime subscriber

  #1533655 15-Apr-2016 18:06
Send private message

hio77:



jonb:



This is a good doc, a couple of years old but still relevent.



 https://www.chorus.co.nz/file/48842/Presentation-and-build-update-16-May-2013.pdf





My favourite part of those slides:







You know how they're currently replacing Alcatel 7300 rural copper fed cabinets and Conklins? It is part of their evil plan to move them to metro "ufb available" areas.



But here is what I am connected to:







Michael Murphy | https://murfy.nz
Referral Links: Octopus Energy ($50 Credit) | Tesla | Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.


hio77
'That VDSL Cat'
12999 posts

Uber Geek

ID Verified
Trusted
Voyager
Subscriber

  #1533656 15-Apr-2016 18:09
Send private message

michaelmurfy:







You know how they're currently replacing Alcatel 7300 rural copper fed cabinets and Conklins? It is part of their evil plan to move them to metro "ufb available" areas.



But here is what I am connected to:









Oh i have known its the intention, i just havent often had directly linkable files stating it. moreso so clearly on the second point.







Reminds me of certain people who have ONTs and still use VDSL because its easy... *cough* @TimA





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.








kiwifidget
"Cookie"
2907 posts

Uber Geek

Lifetime subscriber

  #1533657 15-Apr-2016 18:10
Send private message

I've got one of those pit things on my verge too.



The guy working in it said the fibre would be blown down the tubes, but the tubes were currently empty.



There could have been 50 odd tubes, didnt really take time to count them.



He also mentioned something about green above-ground covers, but ours is still a grey tubey thing.



I do notice some in our street have had their grey tubey ones replaced by the light-green boxy one.



Why just some and not all I do not know.





Delete cookies?! Are you insane?!


michaelmurfy
meow
12657 posts

Uber Geek

Moderator
ID Verified
Trusted
Lifetime subscriber

  #1533658 15-Apr-2016 18:11
Send private message

hio77:







Oh i have known its the intention, i just havent often had directly linkable files stating it. moreso so clearly on the second point.



Reminds me of certain people who have ONTs and still use VDSL because its easy... *cough* @TimA





@TimA was likely on dialup up until he got VDSL and saw the light. He'll be on it for the next 20 years.





Michael Murphy | https://murfy.nz
Referral Links: Octopus Energy ($50 Credit) | Tesla | Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.


sbiddle
30853 posts

Uber Geek

Retired Mod
Trusted
Biddle Corp
Lifetime subscriber

  #1533659 15-Apr-2016 18:13
Send private message

The VDSL2 withdrawal proposal never happened - but IMHO should unless an RSP has a very good reason for needing VDSL2 at a site (and there are plenty).










quickymart
11970 posts

Uber Geek

ID Verified

  #1533676 15-Apr-2016 18:38
Send private message

Are they still extending VDSL? Or is it all fibre build now?


hio77
'That VDSL Cat'
12999 posts

Uber Geek

ID Verified
Trusted
Voyager
Subscriber

  #1533679 15-Apr-2016 18:46
Send private message

sbiddle:



The VDSL2 withdrawal proposal never happened - but IMHO should unless an RSP has a very good reason for needing VDSL2 at a site (and there are plenty).





I agree, there are legimeant situations where VDSL is still reasonable to have.







but people with the @TimA approach, Certainly it should happen.



TimA: Here i still am not getting fibre even tho i have an ONT in my house.

Rather my VDSL get 998 and i can have bragging rights. But my 65/10 is still cheaper than 100/20 or what ever it is now.







quickymart:



Are they still extending VDSL? Or is it all fibre build now?





http://www.geekzone.co.nz/forums.asp?forumid=49&topicid=195172&page_no=1#1528699







See the following thread, Particularly the post linked to.





#include <std_disclaimer>



Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.






InstallerUFB
839 posts

Ultimate Geek


  #1533728 15-Apr-2016 20:47
Send private message

mcraenz:



Hi,



UFB is going into our street at the moment and I'm pretty excited about. I'm trying to get my head around the various components and what goes where. I've read a little about GPON and get the basics.  Today one of these was planted just outside our house.





I was talking to one of the guys and he said that it was fed from a cabinet and that it then fed 52 houses in the area. Is this where the optical splitter lives? My understanding was that the splinter would only feed 16 houses?











That Tub or Manhole will house ether an ABFAT (Air Blown Fibre Access Terminal)-  Which will handle up to 48 Air Blown fibre connections (3 x 16 leg Spliters) or a similar device for feeding 48 connections on to a or multiple FATs that will feed Fixed Fibre Connections from either off poles, below ground terminals or even terminals housed in buildings.







If they have also been installing the large multi-way ducting around it then it will be the former.







As has been mentioned by others older architecture had cabinets and other network devices above ground but these are no longer used on newer builds


InstallerUFB
839 posts

Ultimate Geek


  #1533733 15-Apr-2016 21:00
Send private message

kiwifidget:



<snip>



He also mentioned something about green above-ground covers, but ours is still a grey tubey thing.



I do notice some in our street have had their grey tubey ones replaced by the light-green boxy one.



Why just some and not all I do not know.









On the original builds all the microduct laterals (the single ends) were installed up into the rectangular Green Boxes (known as Pedestals or PEDs).



On later builds only those that would end up in hard surfaces (footpaths etc) were brought up into PEDs and if they were to end in soft surfaces (grassed areas etc) they are buried (mostly right beside the grey terminals used for the copper connections), these are then dug up, when required, joined on and reburied.



Then on even later builds the PEDs have been replaces the Hand Holds (the below ground mini-pit with the round green lid) - those in soft are still buired but are now normal marked with a black Peg plastic peg with the Chorus logo on top to help with locating.










InstallerUFB
839 posts

Ultimate Geek


  #1533735 15-Apr-2016 21:04
Send private message

DarthKermit:



<snip>



If I had a dollar for every one of the green plinths with a missing or damaged cover that I've seen around here, I'd be doing very well.





Keeps me employed putting them back on :-)
