Extreme Xtra data packet shaping last couple of weeks?

Forums › Spark New Zealand (including Skinny and BigPipe) › Extreme Xtra data packet shaping last couple of weeks?

1 | 2 | 3 | 4

BDFL - Memuneh
79253 posts

Uber Geek

Administrator

ID Verified

Trusted

Geekzone

Lifetime subscriber

#682928 7-Sep-2012 20:21

Yes, the OP mention testing with different routers and PCs.

Duane

58 posts

Master Geek

#684001 10-Sep-2012 17:20

I dug out my old faithful DLink DSL-500 and got a G.DMT (ADSL1) 6Mbit link to see if a different connection type changed the profile at all, same pattern just with slower peaks, I expected as much but thought it was worth a try.

Ragnor

8219 posts

Uber Geek

Trusted

#685171 12-Sep-2012 20:21

This server http://zeus.jetstream.co.nz/ should still be well connected to the Telecom core and should be good for ruling out the modem, your network and backhaul as issues:

Rather than the speed test which is over too fast there is a 450MB test file:
http://zeus.jetstream.co.nz/450M.bin

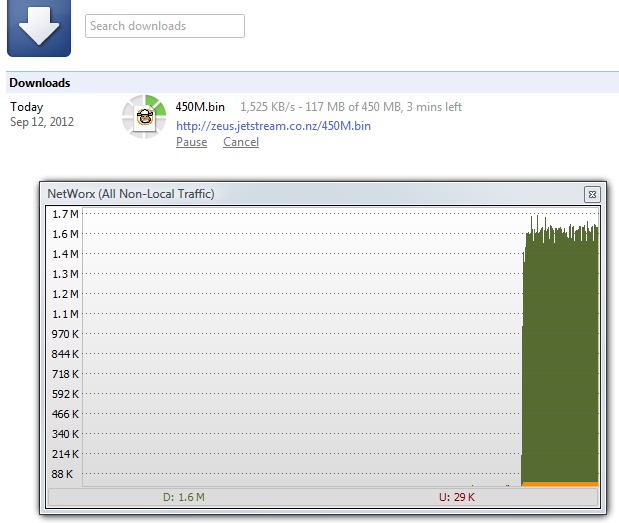

I get near a flat graph when downloading this (single http thread).

JamesL

956 posts

Ultimate Geek
Inactive user

#685181 12-Sep-2012 20:36

What if you try a download test from a https source, to see if its the proxy farm causing your issues

Ragnor

8219 posts

Uber Geek

Trusted

#685261 12-Sep-2012 23:50

defnz: What if you try a download test from a https source, to see if its the proxy farm causing your issues

Don't think domestic goes through the cache/proxy so the zeus link above should be a good test for that too.

plambrechtsen

1948 posts

Uber Geek
Inactive user

#685590 13-Sep-2012 14:01

Ragnor:
defnz: What if you try a download test from a https source, to see if its the proxy farm causing your issues

Don't think domestic goes through the cache/proxy so the zeus link above should be a good test for that too.

Yep... It's directly on the core so would rule out any DSL or backhaul issues.

If it goes without an issue against speedtest.telecom.co.nz then it may be the proxy farm or something upstream from Telecom. If it still runs slowly then it's your DSL connection.

Duane

58 posts

Master Geek

#685726 13-Sep-2012 17:30

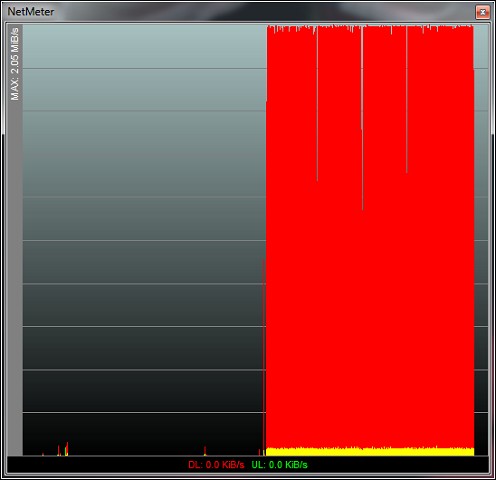

Interesting, that 450MB file with a single thread just downloaded nicely at steady 1.9MB/s.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

Duane

58 posts

Master Geek

#685728 13-Sep-2012 17:38

That said, the actual graph has a couple of breif glitches, I might run it a couple more times to see how consistant it is.

Talkiet

4792 posts

Uber Geek

Trusted

#685733 13-Sep-2012 17:44

Duane: That said, the actual graph has a couple of breif glitches, I might run it a couple more times to see how consistant it is.

Thanks Duane - that's really useful info and I have passed it on. The occasional glitch is expected and is probably TCP backing off as the result of a dropped packet. With a remote end SO close though, the rate climbs up again almost instantly.

Cheers - N

Please note all comments are from my own brain and don't necessarily represent the position or opinions of my employer, previous employers, colleagues, friends or pets.

Duane

58 posts

Master Geek

#685735 13-Sep-2012 17:52

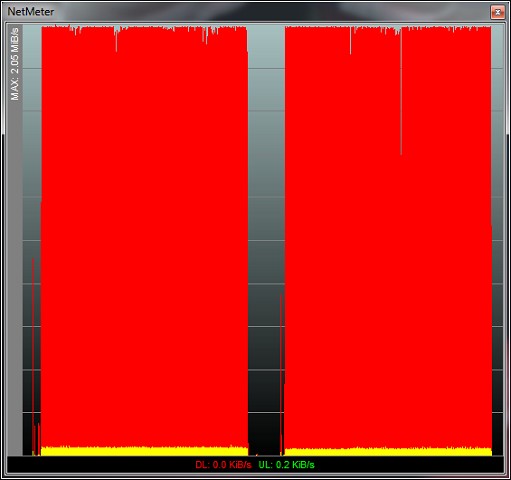

Just for the sake of completeness I ran it a few more times, except for the occasional trival (to be expected) glitch it it was quite consistant.

Left block is six threads, right block single thread again, both looking good to me.

Cheers all for the help so far.

LittleDude

164 posts

Master Geek

Lifetime subscriber

#685769 13-Sep-2012 20:27

I'm sorry if I'm totally off base here because I really don't understand what you guys are discussing but I did catch the part about multi-threaded downloads. For about the last 10 days when I try to download files from Real-Debrid the download manager can not split the file to accelerate the download(Internet Download Manager starts the first part but then fails to connect properly to keep splitting the download). I'm slowly working through a process of elimination to pinpoint the problem(at this stage it's looking like Xtra or my connection). Anyway does this sound like it could be related to what you're discussing?
Thanks

Ragnor

8219 posts

Uber Geek

Trusted

#685985 14-Sep-2012 13:10

LittleDude: I'm sorry if I'm totally off base here because I really don't understand what you guys are discussing but I did catch the part about multi-threaded downloads. For about the last 10 days when I try to download files from Real-Debrid the download manager can not split the file to accelerate the download(Internet Download Manager starts the first part but then fails to connect properly to keep splitting the download). I'm slowly working through a process of elimination to pinpoint the problem(at this stage it's looking like Xtra or my connection). Anyway does this sound like it could be related to what you're discussing?
Thanks

Sounds like a different problem, try https instead of http.

Ragnor

8219 posts

Uber Geek

Trusted

#685986 14-Sep-2012 13:13

Duane: Interesting, that 450MB file with a single thread just downloaded nicely at steady 1.9MB/s.

What about other domestic locations?

Linux mirrors aren't a bad option for these sorts of tests, eg:

http://ucmirror.canterbury.ac.nz/linux/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso
http://mirror.ece.auckland.ac.nz/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso
ftp://ftp.wicks.co.nz/pub/linux/dist/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso

RunningMan

8953 posts

Uber Geek

#686026 14-Sep-2012 14:04

Duane: That said, the actual graph has a couple of breif glitches, I might run it a couple more times to see how consistant it is.

There's several visible glitches there that appear evenly spaced in time - are they at the same intervals as you were seeing before, but just ramping back up very quickly?

Duane

58 posts

Master Geek

#686112 14-Sep-2012 17:45

Ragnor:
Duane: Interesting, that 450MB file with a single thread just downloaded nicely at steady 1.9MB/s.

What about other domestic locations?

Linux mirrors aren't a bad option for these sorts of tests, eg:

http://ucmirror.canterbury.ac.nz/linux/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso
http://mirror.ece.auckland.ac.nz/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso
ftp://ftp.wicks.co.nz/pub/linux/dist/centos/6.3/isos/i386/CentOS-6.3-i386-LiveCD.iso

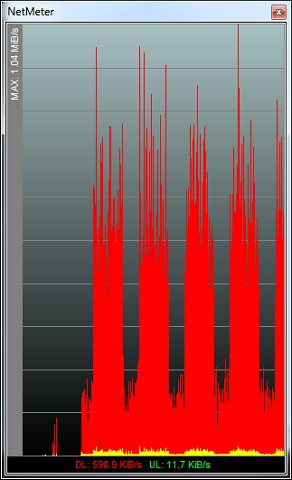

All three of those gave the stepped pattern, the 1st two maxing out the line for the usual 20s then dropping to 40Kb/s to 200Kb/s subject to threads, and the third one much slower but same pattern.
