#837218 15-Jun-2013 12:40

hio77:
HiTM4N:
hio77:
HiTM4N: Just got Naked VDSL from Snap yesterday.
I'm in an old 1957 house with jacks in every room (only got the keys this week).
Haven't got anything plugged into the phone jacks other than the modem, but looks like i might need to disconnect all the other jacks in the house anyway to clean things up.

picture isnt quite right ;)

Updated it ;)

that downstream doesnt look to delightful, whats your bitgraph looking like?

sounds like your dont have a splitter/direct connection.. iver way one of them will need to be done to pull your stats up

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837219 15-Jun-2013 12:41

sidefx:
HiTM4N:
Haven't got anything plugged into the phone jacks other than the modem, but looks like i might need to disconnect all the other jacks in the house anyway to clean things up.

Yup, definitely do this or get a master filter. It sounds like you already know this, but it's worth repeating: You want the pair that ultimately connects to the modem to have absolutely nothing else coming off it (expect if it splits via a master splitter)

How many rooms\jacks does the house have? I suspect you might be looking at a similar before\after picture as in the first post of this thread ;-)

I've counted 5 jacks in the house. 1 in lounge, 1 in dining room and 1 in each of the 3 bedrooms

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#837220 15-Jun-2013 12:41

err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837222 15-Jun-2013 12:43

fellaintga: Never get tired of seeing downloading at this speed.

That looks familiar...Before i moved house and swapped to snap vdsl i was on telstra cable with a 100/10mbps link and could pull the full 12MB/s down from steam servers

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#837223 15-Jun-2013 12:45

HiTM4N:
fellaintga: Never get tired of seeing downloading at this speed.

That looks familiar...Before i moved house and swapped to snap vdsl i was on telstra cable with a 100/10mbps link and could pull the full 12MB/s down from steam servers

heard quite a few horror stories about that same cable..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837224 15-Jun-2013 12:46

hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

Love of all phones, computers and gadgets

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837225 15-Jun-2013 12:48

hio77:
HiTM4N:
fellaintga: Never get tired of seeing downloading at this speed.

That looks familiar...Before i moved house and swapped to snap vdsl i was on telstra cable with a 100/10mbps link and could pull the full 12MB/s down from steam servers

heard quite a few horror stories about that same cable..

Yeah it was also pretty shocking some times, used to get about 99% packet loss from my seedbox, was shocking. so far minimal packet loss to seedbox at new house on snap

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#837226 15-Jun-2013 12:48

HiTM4N:
hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

yep, might want to look at running a fresh wire from the ETP while your at it

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#837227 15-Jun-2013 12:50

HiTM4N:
hio77:
HiTM4N:
fellaintga: Never get tired of seeing downloading at this speed.

That looks familiar...Before i moved house and swapped to snap vdsl i was on telstra cable with a 100/10mbps link and could pull the full 12MB/s down from steam servers

heard quite a few horror stories about that same cable..

Yeah it was also pretty shocking some times, used to get about 99% packet loss from my seedbox, was shocking. so far minimal packet loss to seedbox at new house on snap

packetloss? thats horrid! i dont get any from my NL dedis, line maxes with no effort too.. can almost pull files single threaded (that is with modified tcpip settings however.)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837228 15-Jun-2013 12:50

hio77:
HiTM4N:
hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

yep, might want to look at running a fresh wire from the ETP while your at it

tips on tracking down the demarc/ETP?

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837229 15-Jun-2013 12:51

hio77:
HiTM4N:
hio77:
HiTM4N:
fellaintga: Never get tired of seeing downloading at this speed.

That looks familiar...Before i moved house and swapped to snap vdsl i was on telstra cable with a 100/10mbps link and could pull the full 12MB/s down from steam servers

heard quite a few horror stories about that same cable..

Yeah it was also pretty shocking some times, used to get about 99% packet loss from my seedbox, was shocking. so far minimal packet loss to seedbox at new house on snap

packetloss? thats horrid! i dont get any from my NL dedis, line maxes with no effort too.. can almost pull files single threaded (that is with modified tcpip settings however.)

So far very impressed with VDSL and Snaps customer support :)

Love of all phones, computers and gadgets

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#837230 15-Jun-2013 12:52

HiTM4N:
hio77:
HiTM4N:
hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

yep, might want to look at running a fresh wire from the ETP while your at it

tips on tracking down the demarc/ETP?

hopefully theres a little white ETP box? otherwise your gonna have to take a best guess and trace some cables..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#837233 15-Jun-2013 13:00

@seatil: Sounds like there are still issues on your line. It's possible that your modem is faulty, but it seems unlikely given your symptoms.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837238 15-Jun-2013 13:11

hio77:
HiTM4N:
hio77:
HiTM4N:
hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

yep, might want to look at running a fresh wire from the ETP while your at it

tips on tracking down the demarc/ETP?

hopefully theres a little white ETP box? otherwise your gonna have to take a best guess and trace some cables..

Located outside the house somewhere? or likely to be under the house?

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#837241 15-Jun-2013 13:21

hio77:
HiTM4N:
hio77:
HiTM4N:
hio77: err that looks horrid! first time i have seen RFI lines too, certainly get that line sorted!

Yeah im thinking as much!

So general consensus is to disconnect unused jacks, make sure jack in use is a direct connection? and if planning to have a phone later throw a master filter in?

yep, might want to look at running a fresh wire from the ETP while your at it

tips on tracking down the demarc/ETP?

hopefully theres a little white ETP box? otherwise your gonna have to take a best guess and trace some cables..

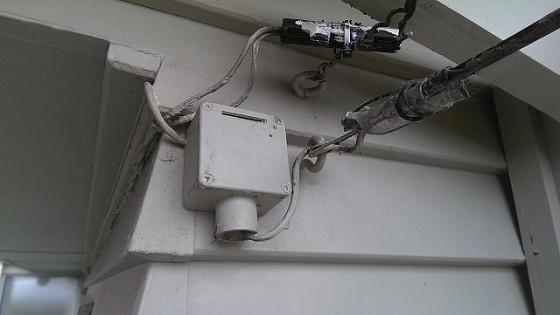

I thinks i has found it

Love of all phones, computers and gadgets
