#840783 21-Jun-2013 09:37

There's not a lot more I can do with my internal wiring. I posted a picture a few pages back of how it is and you said yourself there's not much more that can be done.

SamF

1578 posts

Uber Geek

Trusted

#840787 21-Jun-2013 09:39

Oh, right, sorry, my bad :) We get so many people on here with wiring issues it's hard to keep track :)

Jexlar

41 posts

Geek
Inactive user

#840791 21-Jun-2013 09:42

I understand, it's a lot harder to fix in older houses than it is in mine so many will be reluctant to do anything.
I'm assuming the weather is to blame for the increase in errors, but I wouldn't know 100%.

HiTM4N

256 posts

Ultimate Geek

Trusted

#841219 21-Jun-2013 19:44

hio77:
HiTM4N:
SamF: I believe that 'fast' is the equivalent of DLM-1 on that firmware. What's your latency to stuff.co.nz?

And yeah, you've got some serious issues there mate! :)

Yeah anyone know someone who does master filter installs in CHCH?

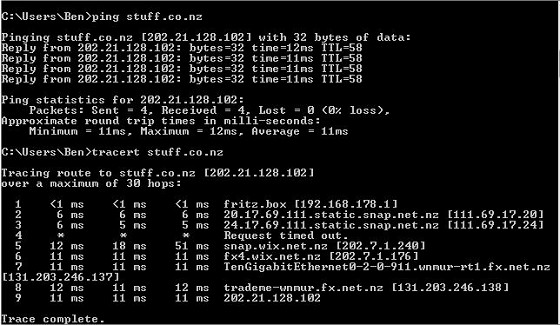

testing over wireless? a loaded link? try a tracert .. something looks iffy about that ping..

Sorry for the late reply!

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek

Trusted

#841221 21-Jun-2013 19:46

Pretty sure my connection is getting worse...
Anyone else experience a high number of DSL reconnections? The IPv6 range kept changing saying it was no longer available.

Love of all phones, computers and gadgets

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#841254 21-Jun-2013 20:11

your ping issues most proberly directly relate to your line being the WORST i have seen yet. your trace would indicate your dealing with DLM2 (fast is rather ambiguous sadly! generally it indicates 1ms but in your case..)

to be fair, ild take your connection over a say 10~14mbit down stream, purely for that lack of upstream congestion but thats a whole new topic ;)

run my tool (http://hio77.com/fritzlog/download/1.1.0.0/fritzboxlog.zip) that will give a little more info about your line, but im sure you answered this already.. is your connection filtered at all?

ild recommend talking to one of the various GZ members that do wiring.. get them in and sort it. otherwise, ring snap, get chorus out to do so.

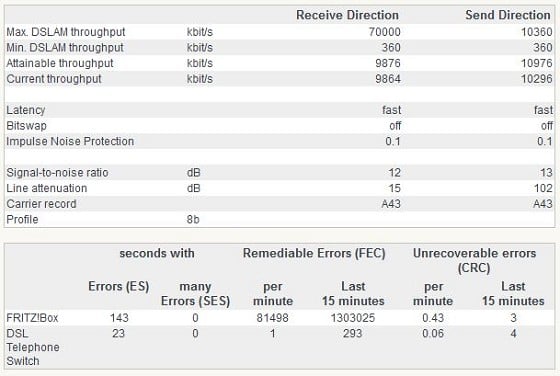

your error counts arent so bad, FECs are remediable, but your poor fritz having to handle all of them!

that many resyncs, iver DLM is jumping around or your line is just plainly.. screwed. right now.

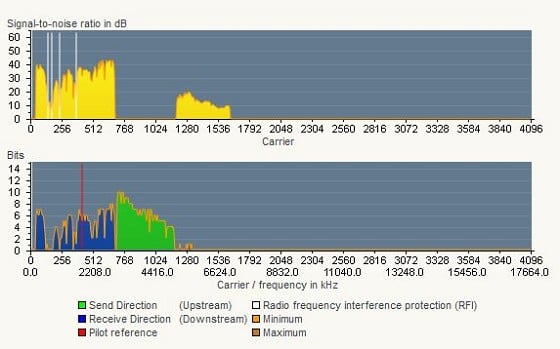

looking at your spectrum, your ADSL experience was probably rather subpar too.

interesting thing though, i guess DLM doesnt take RFI into account? ild expect by now for you to possibly even hit a 16ms profile!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1578 posts

Uber Geek

Trusted

#841255 21-Jun-2013 20:12

Oh man, that is ATROCIOUS!! Remind me what your internal wiring setup is again?

How are you still on DLM-1 with a line & stats like that!? That ping time suggests that you are on DLM-1 but that your line is causing additional delays / loss to packets.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#841256 21-Jun-2013 20:14

oh.. you changed the picture while i was typing, yep thats DLM1..

@Sam, his error rate is oddly rather low..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1578 posts

Uber Geek

Trusted

#841259 21-Jun-2013 20:18

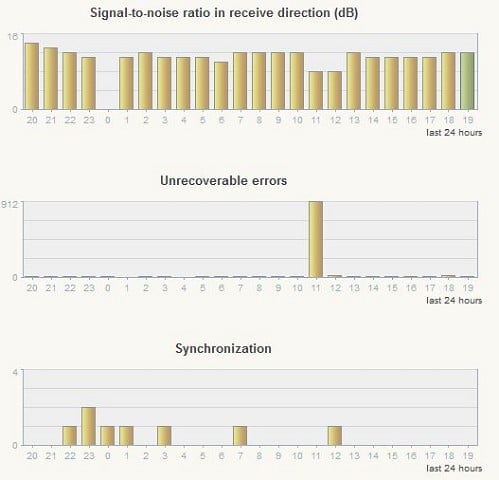

Yeah, it is very oddly low, but then again, so is his downstream sync! It's lower than his upstream!! Even a stoned, drunk, blind driver can drive at 2km/hr without crashing!! :D Note the massive error spike at 11am tho... that's some indication of what's really going on. That and the frequency spectrum graph is BAAAAAD!!

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#841263 21-Jun-2013 20:22

SamF: Yeah, it is very oddly low, but then again, so is his downstream sync! It's lower than his upstream!! Even a stoned, drunk, blind driver can drive at 2km/hr without crashing!! :D Note the massive error spike at 11am tho... that's some indication of what's really going on. That and the frequency spectrum graph is BAAAAAD!!

internet goes through a water pipe and someone clogged it!

jokes aside, it is indeed bad..

another question, do you have your fritz set all the way down to stability mode by any chance? could be why your error rate is rather low..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek

Trusted

#841264 21-Jun-2013 20:23

To all the questions about my wiring...

Its a 1957 house, the wiring is crap, no filters are in place yet. Stand by and I'll post pics of my wiring

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek

Trusted

#841267 21-Jun-2013 20:27

hio77:
SamF: Yeah, it is very oddly low, but then again, so is his downstream sync! It's lower than his upstream!! Even a stoned, drunk, blind driver can drive at 2km/hr without crashing!! :D Note the massive error spike at 11am tho... that's some indication of what's really going on. That and the frequency spectrum graph is BAAAAAD!!

internet goes through a water pipe and someone clogged it!

jokes aside, it is indeed bad..

another question, do you have your fritz set all the way down to stability mode by any chance? could be why your error rate is rather low..

Nope they're at max performance

CurrentThroughputRx: 9864
CurrentThroughputTx: 10296
DslUpTime: 29254
BitPilotReference: 52
LatencyDelayRx: 1
LatencyDelayTx: 1
SignalNoiseRatioRx: 12
SignalNoiseRatioTx: 12
LineAttenuationRx: 15
LineAttenuationTx: 102
DslMode: 7
DslCarrierState: 0
DLM: 0
LatencyRx: False
LatencyTx: False
BitswapRx: False
BitswapTx: False
INPRx: 0.1
INPTx: 0.1
FECPerMinDevice: 1.29
FECPerMinExchange: 82325.3
CRCPerMinDevice: 0.06
CRCPerMinExchange: 0.47
LineProfile: 8b
LocalTime: 20:25:07 21.06.2013
Annex: A
DsINP: 0
RFI_mode: 0
UsNoiseBits: 0
AdvisedDownstreamMarginOffset: 0
AdvisedDsINP: 0
AdvisedRFIMode: 0
AdvisedUsNoiseBits: 0
FritzGuiVersion:
ATCUId: Ikanos
ATCUVendor: 0.1
ATCUHybrid:
DSLAMId: B500494B4E53
DSLAMVersion: 362E342E
DSLAMSerial: 01
DSLVersion: 1.68.22.16
SNRGraph: 0,0,0,0,0,75,79,73,73,79,76,73,73,70,64,52,46,19,25,27,18,11,26,44,49,57,58,55,44,19,47,46,57,66,62,66,43,68,74,72,67,67,67,35,59,56,37,71,74,76,75,75,63,72,71,70,72,72,69,68,67,53,52,60,66,74,69,58,70,81,70,83,76,86,81,56,79,85,80,84,85,85,76,86,83,70,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,28,33,30,37,33,35,31,37,39,36,40,38,41,40,39,35,34,34,31,28,31,30,29,28,25,23,23,23,22,22,20,19,19,18,17,13,15,15,14,14,13,14,14,13,14,15,16,17,18,19,21,23,22,23,18,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
BitLoaderGraph: 0,0,0,0,0,6,7,6,6,7,7,6,6,5,3,0,1,0,0,0,0,0,0,2,3,4,4,3,2,0,2,2,3,5,4,5,1,5,6,6,6,6,5,0,3,3,1,5,5,7,6,6,5,6,6,5,6,6,5,5,5,3,2,2,4,5,5,2,4,7,6,7,7,7,7,2,6,7,7,7,7,8,5,8,7,6,0,0,9,10,10,10,8,10,10,8,9,9,9,9,8,8,8,8,7,7,7,7,7,6,6,7,6,6,7,7,7,6,5,7,7,3,7,7,5,5,6,6,5,6,5,5,5,5,5,5,5,5,2,4,4,4,4,4,4,4,3,0,0,0,0,0,1,0,0,0,0,0,0,1,0,1,1,0,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
DownstreamMarginOffset: 0
Firmware: 99.05.51

Love of all phones, computers and gadgets

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#841268 21-Jun-2013 20:30

well that doesnt look too bad in there.. we shel wait on these pictures.. and maybe find something to get over the horrid sight!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek

Trusted

#841278 21-Jun-2013 20:49

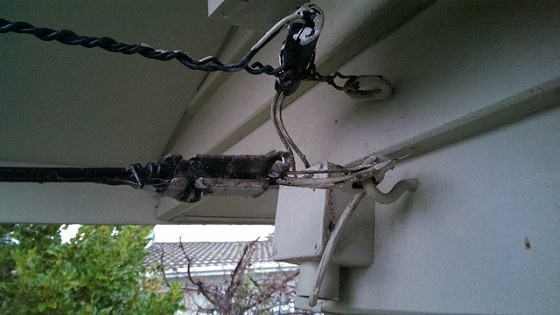

Alright, so outside I have two lines coming in from the street post as seen below.

Both of these head round the house, the one on the bottom that has the ETP disappears under the house beside the dinning room.

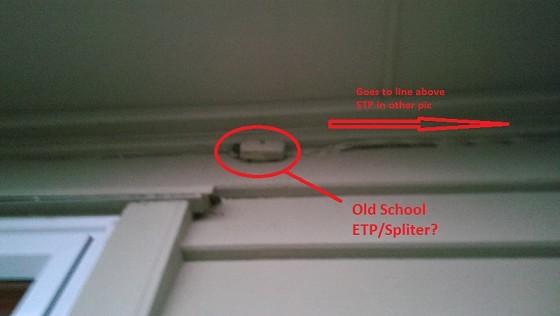

The other continues to the small box below.

After this box it then continues round to the back of the house, i'll get to that soon.

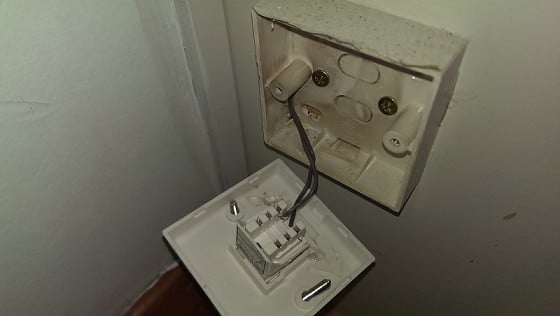

But first, here is the jack in the dinning room which has the fritz!box connected to it.

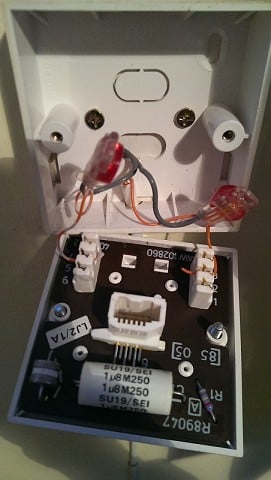

Now moving on to that other line that disappeared behind the house...it looks to go in under the window in the master bedroom (below)

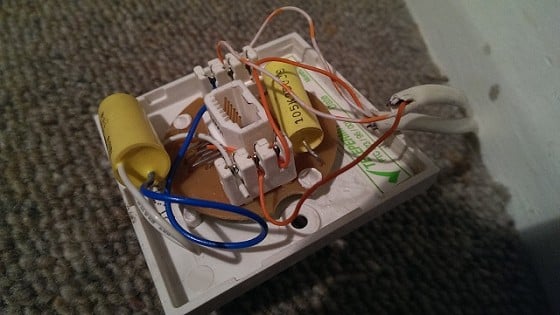

this appears to then split and go into the spare room..

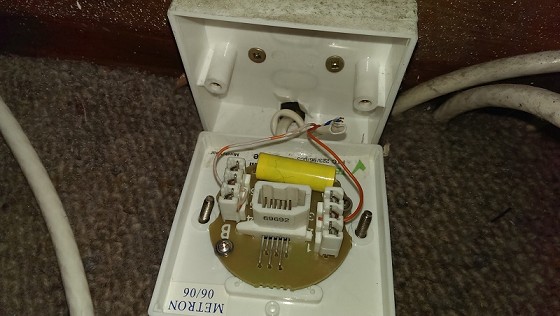

And then back up to the other end of the house to the lounge where the previous owners used to have sky...

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek

Trusted

#841283 21-Jun-2013 20:57

Actually ETP goes under the house but no idea where it goes in the house, just had another look and the line that splits at the weird box before going round the back also goes into the wall and makes up the jack in the dining room lol
I hate my wiring
