VDSL Performance & Tuning

Forums › New Zealand Broadband › VDSL Performance & Tuning

1 | ... | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | ... | 285

4339 posts

Uber Geek
+1 received by user: 2075

#672968 15-Aug-2012 17:53

ok i was switch 45 minutes ago and i cant work it out , i seem to be getting no errors and i have 0 as my Attainable throughput in the send direction . the received current throughput is bad considering i was getting just over 15000 kbit/s on adsl2. my Line attenuation on adsl was 17dB but now its 23dB , im meant to be on voip but when i try my phone i can hear a dial tone but get fax like noises when i dial numbers.

Common sense is not as common as you think.

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#672978 15-Aug-2012 18:24

vexxxboy: ok i was switch 45 minutes ago and i cant work it out , i seem to be getting no errors and i have 0 as my Attainable throughput in the send direction . the received current throughput is bad considering i was getting just over 15000 kbit/s on adsl2. my Line attenuation on adsl was 17dB but now its 23dB , im meant to be on voip but when i try my phone i can hear a dial tone but get fax like noises when i dial numbers.

Ignore the attainable throughput number - it's wrong (at least in the send direction).

Attenuation is typically higher with VDSL than with ADSL. I believe this is because VDSL uses higher frequencies than ADSL - higher frequencies have higher attenuation. Going from 17db on ADSL to 23db on VDSL is not surprising, IMHO. How far are you from the cabinet? You could post a screenshot of the spectrum tab - that is a bit more informative about the line quality.

If you are getting a dial tone on an POTS phone when you are supposed to be naked then you should probably contact Snap to make sure everything has been setup correctly. Do you have a filter? If so then it's probably not an issue, if not then it won't be helping. If you're talking about a VoIP phone then I'm not sure...

Your error rate is low so DLM should eventually try a different configuration for you. This will probably increase your sync speed somewhat. Overall DLM's changes improved the sync speed on my connection by 10-15%.

blair003

557 posts

Ultimate Geek
+1 received by user: 19

#672992 15-Aug-2012 18:46

What stevehode said. The attaintable send throughput will probably go up next time you resync (which will happen automatically early one morning)

While the attention normally increases from ADSL2 to VDSL2, from what I understand the attenuation you had with ADSL2 should have resulted in you being told you can't get VDSL2 after the pre qualification check.

Do you have a splitter/master filter?

vexxxboy

4339 posts

Uber Geek
+1 received by user: 2075

#672997 15-Aug-2012 18:59

blair003: What stevehode said. The attaintable send throughput will probably go up next time you resync (which will happen automatically early one morning)

While the attention normally increases from ADSL2 to VDSL2, from what I understand the attenuation you had with ADSL2 should have resulted in you being told you can't get VDSL2 after the pre qualification check.

Do you have a splitter/master filter?

its strange, i tried VDSL with Pots with a splitter and managed to get speeds of 16000 Mbit/s but now i have switched to Naked VDSl and voip and get even lower download speeds , i did do a pre qualification test and was told i could get speeds of 22000Mbit/s so im well below that and can only recieve incoming calls on VOIP, not going well lol.

Common sense is not as common as you think.

vexxxboy

4339 posts

Uber Geek
+1 received by user: 2075

#673006 15-Aug-2012 19:40

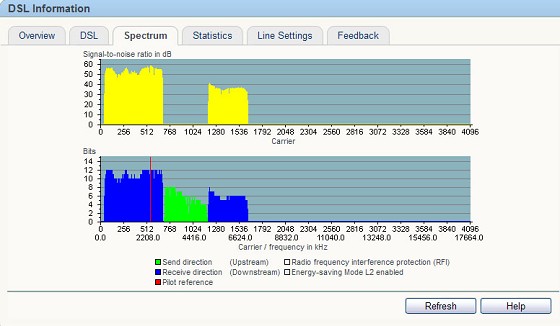

my spectrum results

Common sense is not as common as you think.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#673009 15-Aug-2012 19:51

Hmm, time to call your ISP methinks!!

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

stevehodge

393 posts

Ultimate Geek
+1 received by user: 52

#673015 15-Aug-2012 20:07

Compare your graph to some of the others posted in this thread - you're completely missing one of the downstream frequency blocks. Like Sam says, time to call your ISP!

fellaintga

195 posts

Master Geek
+1 received by user: 5

#673053 15-Aug-2012 22:12

I would try to get them to change your port to a different line card as if there wasn't a problem with your old connection then it could be at the cabinet. If you were getting 15mb down before it was about what I was getting so you should be close enough.

ICT Specialist in the Bay of Plenty and Waikato.

www.melinjo.co.nz

sidefx

3775 posts

Uber Geek
+1 received by user: 1295

Trusted

#673124 16-Aug-2012 08:28

Hmm, still no change on mine and approaching the end of the initial 10 day period. Was hoping it would drop me back down to DLM2, but looks like I'm still on DLM3. Error rate still seems reasonably low (or maybe not? see stats below) and everything else is pretty much the same. no resyncs at all in the last 5 days...

@SKYMAX: Given our sync rates and attenuation look pretty similar, what does your Spectrum tab look like?

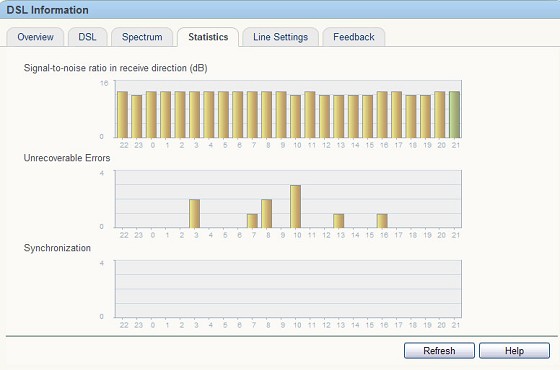

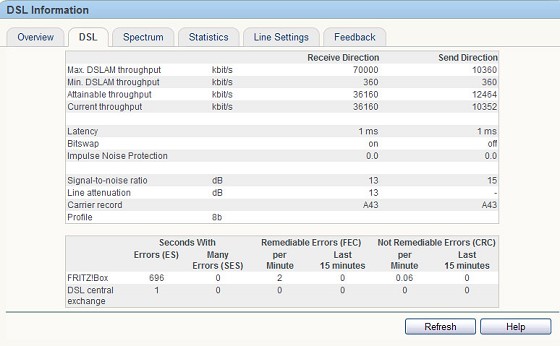

Here are mine:

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

vexxxboy

4339 posts

Uber Geek
+1 received by user: 2075

#673240 16-Aug-2012 11:40

no better this morning so rang Snap and explained and the end result looks like a problem with my wiring and since my speeds are under the 150000 Mbit/s down and 5000Mbit/s up threshold, i dont have to wait the 10 days for them to act so Chorus, who have already been out and installed a splitter, can come back and find out why its so bad .

Common sense is not as common as you think.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#673280 16-Aug-2012 13:08

If I didn't know better, I'd say that DLM isn't working correctly at the moment!!

AliExpress

Shop now on AliExpress (affiliate link).

maxzzz

91 posts

Master Geek
+1 received by user: 27

#673287 16-Aug-2012 13:29

Well for my case DLM chose to set my line back to 1ms even with the snr tweaked after 10 days at 8ms, the number of errors has increased but this did not affect the performance in terms of bandwidth.
However I can see that now the snr goes as low as 4dB sometimes so I will see if I do not get any disconnections in the coming days...

SKYMAX

43 posts

Geek
+1 received by user: 2

#673497 16-Aug-2012 21:40

@ sidefx

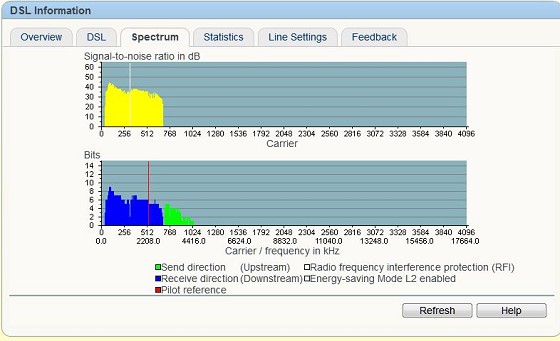

Here is a current snapshot of my status.
It's a bit weird that you would have a dip in your lower frequencies, usually it's the higher frequencies everyone loses.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#673504 16-Aug-2012 21:54

maxzzz: Well for my case DLM chose to set my line back to 1ms even with the snr tweaked after 10 days at 8ms, the number of errors has increased but this did not affect the performance in terms of bandwidth.
However I can see that now the snr goes as low as 4dB sometimes so I will see if I do not get any disconnections in the coming days...

What did you tweak your SNR to?

maxzzz

91 posts

Master Geek
+1 received by user: 27

#673511 16-Aug-2012 22:19

SamF:
What did you tweak your SNR to?

I always try to get my SNR to 6dB, when I was under 8ms of interleaving it used to stay there but now with no interleaving it fluctuates between 4 and 6dB during the day.
