'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416403 29-Oct-2015 20:03

mercutio:
hio77:
mercutio:
Jase2985: i think if you telnet in to the netcomm you should be able to get the DSLAM/MSAN type out of the settings

xdslctl info --vendor

ok that's interesting, one of my dsl connections says "chipset vendor id: ikns:0x0001" and the other says "chipset vendor id: bdcm:0xa3f5". maybe that explains the difference between the two connections.

Exchange fed lines by chance?

nope, cabinet.

Interesting.

Reminds me much of @Lorenceo's lines, Didnt think there was that much mix and matching in cabinets however.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

mercutio

1392 posts

Uber Geek
+1 received by user: 134

#1416405 29-Oct-2015 20:05

hio77:
mercutio:
hio77:
mercutio:
Jase2985: i think if you telnet in to the netcomm you should be able to get the DSLAM/MSAN type out of the settings

xdslctl info --vendor

ok that's interesting, one of my dsl connections says "chipset vendor id: ikns:0x0001" and the other says "chipset vendor id: bdcm:0xa3f5". maybe that explains the difference between the two connections.

Exchange fed lines by chance?

nope, cabinet.

Interesting.

Reminds me much of @Lorenceo's lines, Didnt think there was that much mix and matching in cabinets however.

i didn't even realise, i just thought it was odd that one of them seemed to be better than the other, and put it down to chorus tech doing bad wiring.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416406 29-Oct-2015 20:06

Jase2985: :)

could be, im on ikns too, which is think is not the one you want to be on if you have 17a :(

Dont have old line with 17a handy but this was a snap when it was 8b, 17a coming a few weeks after this shot.

They are more than happy to hand out 17a! ill have to dig up your stats in the other thread out of curiosity now though!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416409 29-Oct-2015 20:07

mercutio:

i didn't even realise, i just thought it was odd that one of them seemed to be better than the other, and put it down to chorus tech doing bad wiring.

The comparison between how the two cards play out always interest me.. would love to see full stats there!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

mercutio

1392 posts

Uber Geek
+1 received by user: 134

#1416410 29-Oct-2015 20:08

hio77:
Jase2985: :)

could be, im on ikns too, which is think is not the one you want to be on if you have 17a :(

Dont have old line with 17a handy but this was a snap when it was 8b, 17a coming a few weeks after this shot.

think he was referring to the ikns 70 megabit cap.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416411 29-Oct-2015 20:09

mercutio:
hio77:
Jase2985: :)

could be, im on ikns too, which is think is not the one you want to be on if you have 17a :(

Dont have old line with 17a handy but this was a snap when it was 8b, 17a coming a few weeks after this shot.

think he was referring to the ikns 70 megabit cap.

Ah right. Well thats another situation where the differance between the two are interesting.

Atlest now we know, it seems to be a thing, the paying the tech off for the broadcom linecard thing will become the new thing to try out! - oh wait, maybe i shouldnt be handing out that idea....

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

AliExpress

Shop now on AliExpress (affiliate link).

Jase2985

13734 posts

Uber Geek
+1 received by user: 6209

ID Verified

Lifetime subscriber

#1416417 29-Oct-2015 20:12

current stats, still on 17a but for some unknown reason it droped from 53 to 41. there was no increase in errors/snr or attenuation

DSLAM/MSAN type:           IKNS:0x0001 / v0x0001
Modem/router firmware:     AnnexA version - A2pv6F039d.d24l
DSL mode:                  VDSL2 Profile 17a
Status:                    Showtime
Uptime:                    31 days 9 hours 36 min 31 sec
Resyncs:                   0 (since 23 Oct 2015 12:57:02)

               Downstream   Upstream
Line attenuation (dB):     8.9       0.0
Signal attenuation (dB):   Not available on VDSL2
Connection speed (kbps):   41437       10351
SNR margin (dB):           12.6       28.4
Power (dBm):               10.6       3.8
Interleave depth:          1       1
INP:                       0       0
G.INP:                     Not enabled

RSCorr/RS (%):             N/A       0.0003
RSUnCorr/RS (%):           N/A       0.0000
ES/hour:                   0.35       0

Jase2985

13734 posts

Uber Geek
+1 received by user: 6209

ID Verified

Lifetime subscriber

#1416419 29-Oct-2015 20:14

i really need to check back in with my bro-in-law, he lives over the road and has VDSL too, his line is about 20m longer than mine. just want to see what card hes on now.

chevrolux

4962 posts

Uber Geek
+1 received by user: 2638
Inactive user

#1416420 29-Oct-2015 20:14

> xdslctl info --vendor
xdslctl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 1
Last initialization procedure status: 0
Max: Upstream rate = 13535 Kbps, Downstream rate = 77450 Kbps
Bearer: 0, Upstream rate = 13470 Kbps, Downstream rate = 77474 Kbps

ChipSet Vendor Id: BDCM:0xa3f5
ChipSet VersionNumber: 0xa3f5
ChipSet SerialNumber:

....just getting that dslstats thing going

mercutio

1392 posts

Uber Geek
+1 received by user: 134

#1416422 29-Oct-2015 20:15

Jase2985: current stats, still on 17a but for some unknown reason it droped from 53 to 41. there was no increase in errors/snr or attenuation

DSLAM/MSAN type:           IKNS:0x0001 / v0x0001
Modem/router firmware:     AnnexA version - A2pv6F039d.d24l
DSL mode:                  VDSL2 Profile 17a
Status:                    Showtime
Uptime:                    31 days 9 hours 36 min 31 sec
Resyncs:                   0 (since 23 Oct 2015 12:57:02)

               Downstream   Upstream
Line attenuation (dB):     8.9       0.0
Signal attenuation (dB):   Not available on VDSL2
Connection speed (kbps):   41437       10351
SNR margin (dB):           12.6       28.4
Power (dBm):               10.6       3.8
Interleave depth:          1       1
INP:                       0       0
G.INP:                     Not enabled

RSCorr/RS (%):             N/A       0.0003
RSUnCorr/RS (%):           N/A       0.0000
ES/hour:                   0.35       0

your power is amazingly low, i bet they reduced the power on the connection because it was doing well.

oh what, that's 17a? it looks like 8b :) 8b has 18.5 and 13.5 dbm for power i think. so often lines will start on the faster sync rate, then immediately resync to a slower sync rate. i think 17a is normally 14.5, but i dunno everything is changing.

Jase2985

13734 posts

Uber Geek
+1 received by user: 6209

ID Verified

Lifetime subscriber

#1416424 29-Oct-2015 20:16

boardcomm card as expected.

with DSL stats i have mine set as Hauwai hg658b for my netcomm nf8ac, seems to work well

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

mercutio

1392 posts

Uber Geek
+1 received by user: 134

#1416428 29-Oct-2015 20:19

chevrolux: > xdslctl info --vendor
xdslctl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 1
Last initialization procedure status: 0
Max: Upstream rate = 13535 Kbps, Downstream rate = 77450 Kbps
Bearer: 0, Upstream rate = 13470 Kbps, Downstream rate = 77474 Kbps

ChipSet Vendor Id: BDCM:0xa3f5
ChipSet VersionNumber: 0xa3f5
ChipSet SerialNumber:

....just getting that dslstats thing going

hmm i have a chipset serialnumber - did you and blank it out?

Jase2985

13734 posts

Uber Geek
+1 received by user: 6209

ID Verified

Lifetime subscriber

#1416429 29-Oct-2015 20:20

mercutio:
your power is amazingly low, i bet they reduced the power on the connection because it was doing well.

oh what, that's 17a? it looks like 8b :) 8b has 18.5 and 13.5 dbm for power i think. so often lines will start on the faster sync rate, then immediately resync to a slower sync rate.

@mercutio def 17a

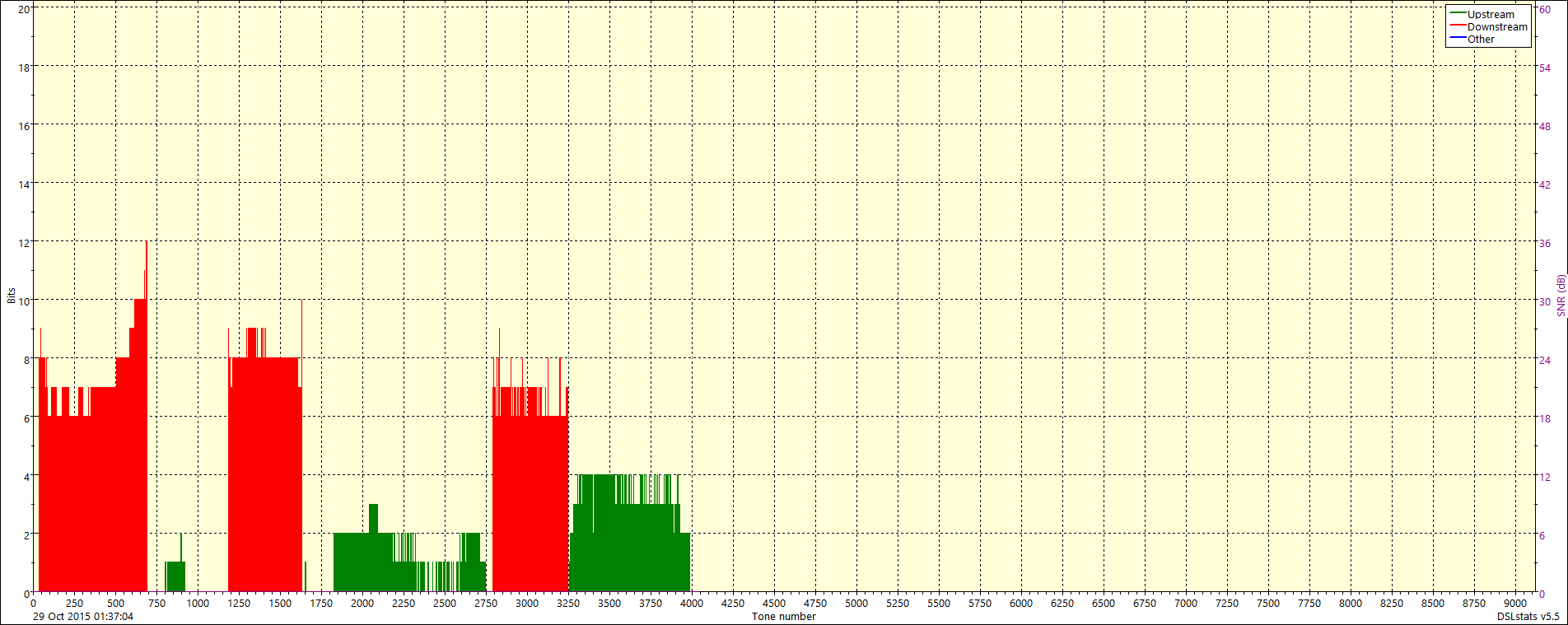

click for bigger image

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416432 29-Oct-2015 20:27

chevrolux: > xdslctl info --vendor
xdslctl: ADSL driver and PHY status
Status: Showtime
Last Retrain Reason: 1
Last initialization procedure status: 0
Max: Upstream rate = 13535 Kbps, Downstream rate = 77450 Kbps
Bearer: 0, Upstream rate = 13470 Kbps, Downstream rate = 77474 Kbps

ChipSet Vendor Id: BDCM:0xa3f5
ChipSet VersionNumber: 0xa3f5
ChipSet SerialNumber:

....just getting that dslstats thing going

So broadcom linecard as suspected, Defiantly looks like its not just a missreading based of those stats, but still...

i need to sit down and do the math, that line must be totally to the walls clean.... it just doesnt make sense at 8b.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1416435 29-Oct-2015 20:32

mercutio:
Jase2985: current stats, still on 17a but for some unknown reason it droped from 53 to 41. there was no increase in errors/snr or attenuation

DSLAM/MSAN type:           IKNS:0x0001 / v0x0001
Modem/router firmware:     AnnexA version - A2pv6F039d.d24l
DSL mode:                  VDSL2 Profile 17a
Status:                    Showtime
Uptime:                    31 days 9 hours 36 min 31 sec
Resyncs:                   0 (since 23 Oct 2015 12:57:02)

               Downstream   Upstream
Line attenuation (dB):     8.9       0.0
Signal attenuation (dB):   Not available on VDSL2
Connection speed (kbps):   41437       10351
SNR margin (dB):           12.6       28.4
Power (dBm):               10.6       3.8
Interleave depth:          1       1
INP:                       0       0
G.INP:                     Not enabled

RSCorr/RS (%):             N/A       0.0003
RSUnCorr/RS (%):           N/A       0.0000
ES/hour:                   0.35       0

your power is amazingly low, i bet they reduced the power on the connection because it was doing well.

oh what, that's 17a? it looks like 8b :) 8b has 18.5 and 13.5 dbm for power i think. so often lines will start on the faster sync rate, then immediately resync to a slower sync rate. i think 17a is normally 14.5, but i dunno everything is changing.

i have seen 10.5dBm pretty commonly on 17a.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.
