'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#933429 13-Nov-2013 18:44

fyi, looks like AVM have changed their support system..

http://service.avm.de/supportformular/en/wsf/FRITZ-Box-7390-int/257:Installing-older-FRITZ-OS-downgrade/cat:49

their ftp is up too.. might grab a mirror of it..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

GoneTomorrow

31 posts

Geek
+1 received by user: 6
Inactive user

#933456 13-Nov-2013 19:45

hio77:
GoneTomorrow:
hio77:
GoneTomorrow:
hio77:
GoneTomorrow: Bugger, want to downgrade to .22, but the AVM FTP site is down. Anyone have any mirrors?

which fritz? i have hard copies of the 7390 firmwares

7390.

https://drive.google.com/file/d/0B5yN7pnNfi5UVHFZRmVaNF9FUTg/edit?usp=sharing

FRITZ.Box_Fon_WLAN_7390.en-de-es-it-fr.84.05.22.image

Cheers.

Since the AVM downgrade instructions are also down, is there anything specific about performing a FW downgrade I need to know about?

basically, install firmware, reconfigure everything..

you might need to get snap to go over your VOIP (assuming you have snap plus), found a few times now, my settings dont align to where they should.. and need snap to magically fix the password.

if you happen to have a old backup, the process is helped a fair bit.

I have Naked.

So AFAIK I just need to take note of my DSL username and password, and the ATM and VLAN settings?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#933458 13-Nov-2013 19:46

GoneTomorrow:

I have Naked.

So AFAIK I just need to take note of my DSL username and password, and the ATM and VLAN settings?

indeed being naked makes it easier, you are correct, check your reboot at 2am or whatever it is, flag isnt set too.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

GoneTomorrow

31 posts

Geek
+1 received by user: 6
Inactive user

#934025 14-Nov-2013 18:16

Netted an extra 2Mbps and lower CRCPM dropping back to .22. Not bad.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#934026 14-Nov-2013 18:19

GoneTomorrow: Netted an extra 2Mbps and lower CRCPM dropping back to .22. Not bad.

not an uncommon result unfortunately..

in my testing, the beta firmware is worse again too.. might not wanna be too quick to upgrade again!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#934057 14-Nov-2013 20:03

One thing I notice with v.51 is that the SNRM is +1 by default, which may account for at least some of the sync speed differences. The problem is that the SNRM isn't adjustable in that version for some reason, even via the GUI. The controls are still there, they just don't do anything apparently.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#934058 14-Nov-2013 20:05

SamF: One thing I notice with v.51 is that the SNRM is +1 by default, which may account for at least some of the sync speed differences. The problem is that the SNRM isn't adjustable in that version for some reason, even via the GUI. The controls are still there, they just don't do anything apparently.

all ill say, is the next one, is even worse...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#934060 14-Nov-2013 20:09

Nice. How did you get onto the beta program?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#934062 14-Nov-2013 20:12

SamF: Nice. How did you get onto the beta program?

my bad line..

the firmware was on my fritz for an hour or so, after the 3rd crash (inwhich is why my profile went off DLM-1 in the first place) i passed on my feedback, dropped back to .22..

hopefully at some point i may get access to one, which fixes everything i complained about.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#935085 17-Nov-2013 04:51

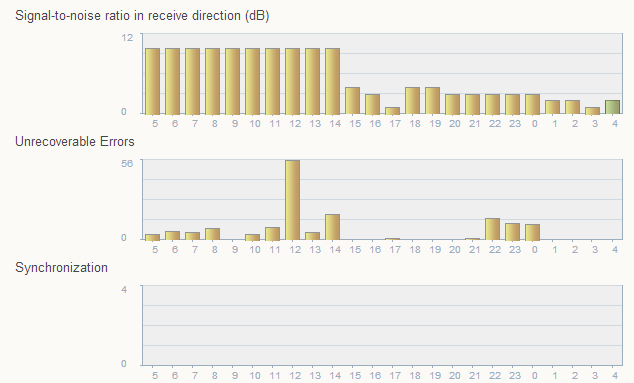

so, interesting development today..

no change of sync rates.. but HUGE change in errors, and SNR..

(1) CRC Downstream:0 Upstream: 0 FEC Downstream: 58 Upstream: 0
(2) CRC Downstream:0 Upstream: 0 FEC Downstream: 209 Upstream: 0
(3) CRC Downstream:0 Upstream: 0 FEC Downstream: 267 Upstream: 0
(4) CRC Downstream:0 Upstream: 0 FEC Downstream: 79 Upstream: 0
(5) CRC Downstream:0 Upstream: 0 FEC Downstream: 34 Upstream: 0

so, whats changed... well... having a lan today, my computer is hard against the incoming dsl line - ild expect this to cause more interference infact, clearly, quite the opposite..

if not that, i suppose it could be the fact that the modem is on the floor rather than the table, maybe internet doesnt like to climb its way all the way up the cable..

im... baffled.. and confused at this development.. surprised DLM didnt freak at the snr drop..

file server lives next to the fritz, maybe it needs to move along the to right next to the jack?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#935106 17-Nov-2013 08:50

Could be a 17a pre-qual test...

AliExpress

Shop now on AliExpress (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#935110 17-Nov-2013 09:31

SamF: Could be a 17a pre-qual test...

considering the timeframe, im pretty sure the extra human interaction with it gave it a hussle..

its been a little warm today too.. first time iv seen such variance in the temperatures

dips and hikes are when temperatures were peaking and doors were open/closed..

had a bit of a play, checking delta total error counts, every min, couldnt cause my old error rates to return... tried removing interference possibilities, adding it.. everything i can think of.. hopefully its to stay!

maybe i knocked a wire into place or something..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#935111 17-Nov-2013 09:37

Well that's some good news!

Is that output from the new version of FritzboxLog you're currently developing?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#935112 17-Nov-2013 09:39

SamF: Well that's some good news!

Is that output from the new version of FritzboxLog you're currently developing?

hio77: so, interesting development today..

no change of sync rates.. but HUGE change in errors, and SNR..

(1) CRC Downstream:0 Upstream: 0 FEC Downstream: 58 Upstream: 0
(2) CRC Downstream:0 Upstream: 0 FEC Downstream: 209 Upstream: 0
(3) CRC Downstream:0 Upstream: 0 FEC Downstream: 267 Upstream: 0
(4) CRC Downstream:0 Upstream: 0 FEC Downstream: 79 Upstream: 0
(5) CRC Downstream:0 Upstream: 0 FEC Downstream: 34 Upstream: 0

you mean this? or the graphs?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

SamF

1598 posts

Uber Geek
+1 received by user: 252

Trusted

#935113 17-Nov-2013 09:40

The graphs.
