#991980 21-Feb-2014 20:24

hio77: certainly not a bad line, your still running that dodgy 0 attenuation firmware though.

DLM-1, 17a with next to no errors. i assume i few days of uptime?

Yeps on same firmware. Ill check with FF re updated firmware. It doesnt even show uptime. I think this isnt the full firmware, it doesnt have options to open a file and run it. but last power cycle was i think Friday so a week ish.

- Telstra HTC Touch Pro2 - Energy ROM WM6.5.5 20 Oct/Cyanogen Mod Froyo 2.2 - R.I.P
- AT&T Galaxy S Captivate 16GB on XT (now with brother)
- Samsung Galaxy S2 on XT- Runs ICS 4.0.3 Resurrection Remix 9.2
- Business Hours - Work In The Electricity Industry, After Hours - DJ/Turntablist - Will Scratch Vinyl For Free'
- What's next??? S3?

mattgreen

133 posts

Master Geek
+1 received by user: 6

#992236 22-Feb-2014 11:01

Well... 5 days an no re-sync.. 37.1Mbps with 8 CRCPM and still on DLM1.. Might be a new record :)

/touchwood

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#992242 22-Feb-2014 11:18

mattgreen: Well... 5 days an no re-sync.. 37.1Mbps with 8 CRCPM and still on DLM1.. Might be a new record :)

/touchwood

boarderline loosing DLM-1 there ild say :/

make sure you touch the right side :)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

nzgeek

619 posts

Ultimate Geek
+1 received by user: 52

#992344 22-Feb-2014 14:58

I think I can pretty conclusively say that having a clean power source makes a huge difference to number of CRC errors.

My UPS, an APC Power-UPS ES 550VA, arrived yesterday. (Big thanks to AquilaTech for sending it out so fast!) I got it installed around 18:45 yesterday, and have been monitoring my stats ever since to see what happened to them.

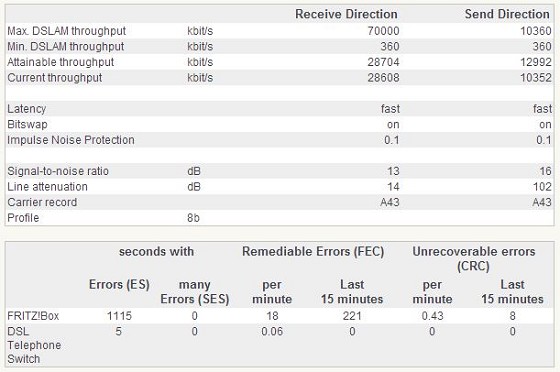

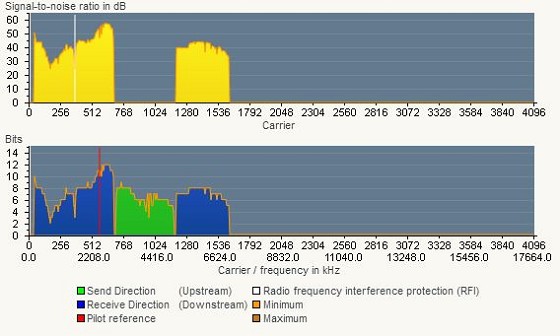

Here's how they look as of about 14:35.

Compare those graphs with these ones, taken a few days ago after a manual re-sync:

In case you can't read it, I was getting 80+ CRC errors per hour after about 19 hours of operation. I've now been online for just under 18 hours and have a max of 6 CRC errors in one hour, with an average of 2.1 per hour.

The only difference here is the power source. The router had been plugged into a 6-way surge-protected power strip (Connexions branded from The Warehouse, bought several years ago). It's now plugged into the UPS.

I'm going to keep monitoring to see if things deteriorate over time like they did before. But at least things are definitely looking a lot better for now!

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#992345 22-Feb-2014 15:00

quite a decent improvement right there, well done on finding your bit the fritz was complaining about!

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#992719 23-Feb-2014 11:54

mainly a question for brent, but someone else might have something to say too..

given this screenshot, https:https://cdn.geekzone.co.nz/imagessubs/b9b34713861427fee086c55f177b26b8.jpg, is their modem miss reporting, or has DLM-8 been changed from our list of it being 16ms/16ms with an INP of 4?

question comes from the guys line posted here, http://www.geekzone.co.nz/forums.asp?forumid=82&topicid=139063&page_no=3#992700

secondly, a question about my own line, does DLM do any moves on profiles that are already on DLM-1, which affects sync rate? (im assuming a chance in power level and such comes into the question a little.)

reason as i ask, is given my line, for its distance, and how after i fixed a fault, it pulled itself back in sync rate. would there be likely a good improvement for dropping back a DLM profile and letting DLM move back to DLM-1 on its own again, or even getting a DLM reset done and waiting for 17a to come back again.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Dyson

Shop now for Dyson appliances (affiliate link).

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#997782 2-Mar-2014 21:05

so, waiting on error rates to settle, but given i was having issues with latencys, thought ild ensure its not my fritz.

perfect timing to drop to 8db looking good so far :D

still waiting on errors to settle in..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#997865 2-Mar-2014 22:42

This is my second line on the property, thanks to the folks over at BigPipe
single jack of course
better line than my primary with Snap, due to the newer wiring on the aerial drop to the house
sadly due to my distance i don't imagine i'll be seeing any higher sync speeds, but interesting, in comparison to the primary line with an old drop lead, this line is 3db lower attenuation.

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#997867 2-Mar-2014 22:44

HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#997869 2-Mar-2014 22:47

hio77:
HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

just updated post
different line ;)
sadly that tinkering only lasted a week then i kicked right back down to 24mbps sync on primary

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#997870 2-Mar-2014 22:49

HiTM4N:
hio77:
HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

just updated post
different line ;)
sadly that tinkering only lasted a week then i kicked right back down to 24mbps sync on primary

not surprised really :L wouldnt have expected DLM to hold it..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Lego

Shop now for Lego sets and other gifts (affiliate link).

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#997872 2-Mar-2014 22:53

hio77:
HiTM4N:
hio77:
HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

just updated post
different line ;)
sadly that tinkering only lasted a week then i kicked right back down to 24mbps sync on primary

not surprised really :L wouldnt have expected DLM to hold it..

i was hopeful lol
nothing else i can do to improve my speeds sadly just because of my distance

Love of all phones, computers and gadgets

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#997873 2-Mar-2014 22:54

HiTM4N:
hio77:
HiTM4N:
hio77:
HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

just updated post
different line ;)
sadly that tinkering only lasted a week then i kicked right back down to 24mbps sync on primary

not surprised really :L wouldnt have expected DLM to hold it..

i was hopeful lol
nothing else i can do to improve my speeds sadly just because of my distance

yeah, i do recall your line being hammered with RFI though..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#997874 2-Mar-2014 22:58

hio77:
HiTM4N:
hio77:
HiTM4N:
hio77:
HiTM4N:

what happened to your line? i thought someone tinkered with it a bit..

error rates are settling in, think i have a bit of leg room still.. :D

just updated post
different line ;)
sadly that tinkering only lasted a week then i kicked right back down to 24mbps sync on primary

not surprised really :L wouldnt have expected DLM to hold it..

i was hopeful lol
nothing else i can do to improve my speeds sadly just because of my distance

yeah, i do recall your line being hammered with RFI though..

installed filter and replaced with cat6 to new rj45 jack, but rfi is still there

Love of all phones, computers and gadgets

HiTM4N

256 posts

Ultimate Geek
+1 received by user: 22

Trusted

#997875 2-Mar-2014 23:00

Love of all phones, computers and gadgets
