Ultimate Geek

#1074464 25-Jun-2014 18:05

neroztatek:
Broadband Link Downstream 79987 kbps
Upstream Connection Speed 20000 kbps

Down / Up
Line Attenuation 12.0 dB / 0.0 dB
Noise Margin 20.4 dB / 18.18 dB

Are the Db ratings ok. i dont understand them really

Something is very wrong there. The noise margin usually sits around 12dB, not the 20.4 you're seeing. And your upstream speed is about double what you should be getting with 12.0dB line attenuation.

I'd recommend rebooting the modem/router and seeing if the numbers change. I'd expect to see numbers more like:
Downstream: 35000 - 40000 Kbps
Upstream: 10000 - 10360 Kbps
Noise Margin: 12dB / 12dB

If the numbers stay wrong, could you please post back with which modem/router you're using. Also make sure that you're on a VDSL connection, not 80/20 UFB (fibre).

neroztatek

3 posts

Wannabe Geek

#1074556 25-Jun-2014 20:48

with SKY FIBEROPTIC PRO with is about 80 mbits. sky router sr102 built in modem.

speedtest average 76mbs . attenuation was 13db then adsl2+ cable from router toi home bt connection fitted so gave 12dB.

from what i understand the lower attenuation dB is the better and the higher noise margin DB is the better.

bigbennyc

22 posts

Geek

#1074559 25-Jun-2014 20:52

neroztatek: with SKY FIBEROPTIC PRO with is about 80 mbits. sky router sr102 built in modem.

speedtest average 76mbs . attenuation was 13db then adsl2+ cable from router toi home bt connection fitted so gave 12dB.

from what i understand the lower attenuation dB is the better and the higher noise margin DB is the better.

So you're obviously not in New Zealand then, hence why your stats are probably a bit different, your plan will be different to what we get in nz plus your obviously on fibre not vdsl

Lorenceo

904 posts

Ultimate Geek

Trusted

#1074574 25-Jun-2014 21:14

The term "fibre" as used in the UK is IMO a bit misleading. Some areas get actual FTTH like in NZ with UFB, where as others get FTTC with VDSL into the property. It's entirely possible that neroztatek is in fact connected through VDSL, and from what he has posted I would say that is indeed the case.

neroztatek: from what i understand the lower attenuation dB is the better and the higher noise margin DB is the better.

That is correct.

neroztatek

3 posts

Wannabe Geek

#1074673 25-Jun-2014 22:14

my apologies. was setting up forums looking for answers and did not pat attention to the .co.nz

sorry for the mistake.

Note: i wish i was in New Zealand and not UK.

stevehodge

393 posts

Ultimate Geek

#1074686 25-Jun-2014 22:28

neroztatek: with SKY FIBEROPTIC PRO with is about 80 mbits. sky router sr102 built in modem.

speedtest average 76mbs . attenuation was 13db then adsl2+ cable from router toi home bt connection fitted so gave 12dB.

from what i understand the lower attenuation dB is the better and the higher noise margin DB is the better.

Lower attenuation is generally better because lower attenuation allows more bandwidth on the line.
You can think of noise margin as spare capacity that protects you from noise spikes. Generally you want this to be at least 5-6 dB, lower than that and you might see reconnects or degraded performance due to high error rates. Higher than that and you're giving up bandwidth you could use.
When you're hitting an artificial limit like you are, it changes a little: attenuation is irrelevant (you're already at max speed) and noise margin just represents capacity you can't use - so long as it's not very low you'll be fine.

MrMistofeles

66 posts

Master Geek

#1078826 2-Jul-2014 19:22

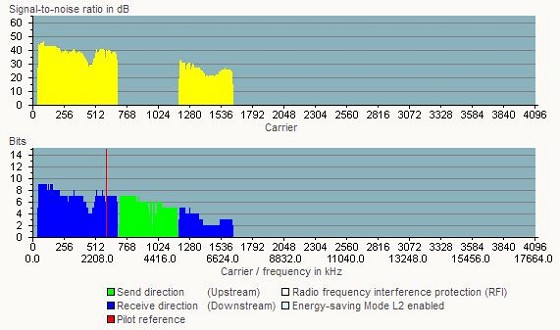

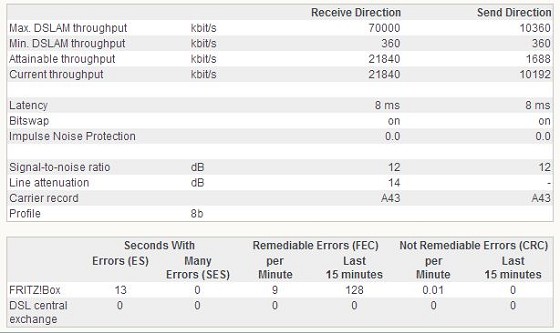

I moved house a few months ago and dropped from 17a profile to 8b. I'm now about 500m from the exchange so I suppose it was reasonable to expected as much.

Wondering what the real world value would be in trying to squeeze a bit more out my connection with the DownstreamMarginOffset tweak (and whether anything else seems unexpected here)?

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Note that to use Quic Broadband you must be comfortable with configuring your own router.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1078830 2-Jul-2014 19:33

ouch.. your line dont look pretty at all!

clearly borderline unfortunately... you could tweak maybe a little, but anything more than maybe 30mbit would be pushing it.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

MrMistofeles

66 posts

Master Geek

#1079620 3-Jul-2014 20:00

hio77: ouch.. your line dont look pretty at all!

clearly borderline unfortunately... you could tweak maybe a little, but anything more than maybe 30mbit would be pushing it.

Yeah not pretty.

I live on the edge of Wellington in a fairly dense residential area but I'm on a tiny little annex street which hasn't seen civil service in a while.

The overhead lines look OKish but the line between the service pole and the edge of my flat is straight out of the 1950s... (from the edge of the house inwards everything is new).

Is there any avenue to get my line quality looked at or will I get a 'within operational bounds' response?

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1079637 3-Jul-2014 20:38

MrMistofeles:
hio77: ouch.. your line dont look pretty at all!

clearly borderline unfortunately... you could tweak maybe a little, but anything more than maybe 30mbit would be pushing it.

Yeah not pretty.

I live on the edge of Wellington in a fairly dense residential area but I'm on a tiny little annex street which hasn't seen civil service in a while.

The overhead lines look OKish but the line between the service pole and the edge of my flat is straight out of the 1950s... (from the edge of the house inwards everything is new).

Is there any avenue to get my line quality looked at or will I get a 'within operational bounds' response?

probably within bounds..

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Jase2985

13461 posts

Uber Geek

ID Verified

Lifetime subscriber

#1081039 4-Jul-2014 15:38

Coming back to my line, its been 21 days now and im sill on DLM-2, im not getting many if any errors on my line but it still hasnt changed. Should i ask telecom to reset my profile?

mikenzb

371 posts

Ultimate Geek

#1081294 5-Jul-2014 05:46

DLM 2? Nah I would probably hold out as last time it took a month to reset from DLM 2 to 1 for me.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1081345 5-Jul-2014 10:59

Jase2985: Coming back to my line, its been 21 days now and im sill on DLM-2, im not getting many if any errors on my line but it still hasnt changed. Should i ask telecom to reset my profile?

took me exactly 30 days IIRC.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

seatil

40 posts

Geek

#1085717 9-Jul-2014 13:51

In the power cut from last night's storm I finally got the chance to see what our VDSL spectrum might look like if there was noone else connected to the cabinet. :)

Our "normal" spectrum, with a sync rate of 43224/10344 (DLM-4):

Our spectrum after a forced resync while running off the UPS during the power cut, with a sync rate of 52512/10344 (DLM-4):

Very pretty without all those ADSL users :)

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1085720 9-Jul-2014 13:53

daaamn that adsl section!

whats your dsl stats looking like? uptime? error rates?
