New fibre connection - LAN only 100mb

Forums › New Zealand Broadband › New fibre connection - LAN only 100mb

1 | 2 | 3

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527442 22-Jul-2020 20:05

Gordy7: 100Mbps on Gbit fibre...
What a pita....
Any chance of re-routing the cable?

Not at this stage. When my son is old enough for me to have the office back if that port connects to 1gb then yeah I'll just cough up the dough and rerout the cable from the ONT to the modem router

Jase2985:

Tell him its his problem to sort as he was paid to provide gigabit connections to each jack point

hes failed to deliver

Not the same guy, our house is 10 years old hes just the guy I called.

PJ48

302 posts

Ultimate Geek
+1 received by user: 106

Lifetime subscriber

#2527473 22-Jul-2020 21:07

waitingforfiber:

Gordy7: 100Mbps on Gbit fibre...
What a pita....
Any chance of re-routing the cable?

Not at this stage. When my son is old enough for me to have the office back if that port connects to 1gb then yeah I'll just cough up the dough and rerout the cable from the ONT to the modem router

Not the same guy, our house is 10 years old hes just the guy I called.

Isn't it most likely that the break is right at the end where the cables are terminated? Is there enough slack in the cables to just cut them shorter and re-terminate?

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527478 22-Jul-2020 21:26

Using the fancy tester the breaks in pair 8 I think it was (both sets) is 11 feet and 14 feet in the 2 cables :(

Gordy7

gordy7
2001 posts

Uber Geek
+1 received by user: 505

ID Verified

Lifetime subscriber

#2527482 22-Jul-2020 21:47

waitingforfiber:

Using the fancy tester the breaks in pair 8 I think it was (both sets) is 11 feet and 14 feet in the 2 cables :(

My thoughts....

- Cable has had pretty bad treatment for one pair to break - possible building mod somewhere damaged cable?

- Bad batch of cable - seems strange that the same pair is bad in two cables?

- Possible hidden cable join?

- Possible bad cable join tucked away in the back of another flush box?

- Some dodgy use of one pair way back before 4 pairs were required in a network?

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527527 23-Jul-2020 05:19

@Gordy7 you are probably right regarding the batch of cable as it was the same pair on both runs.

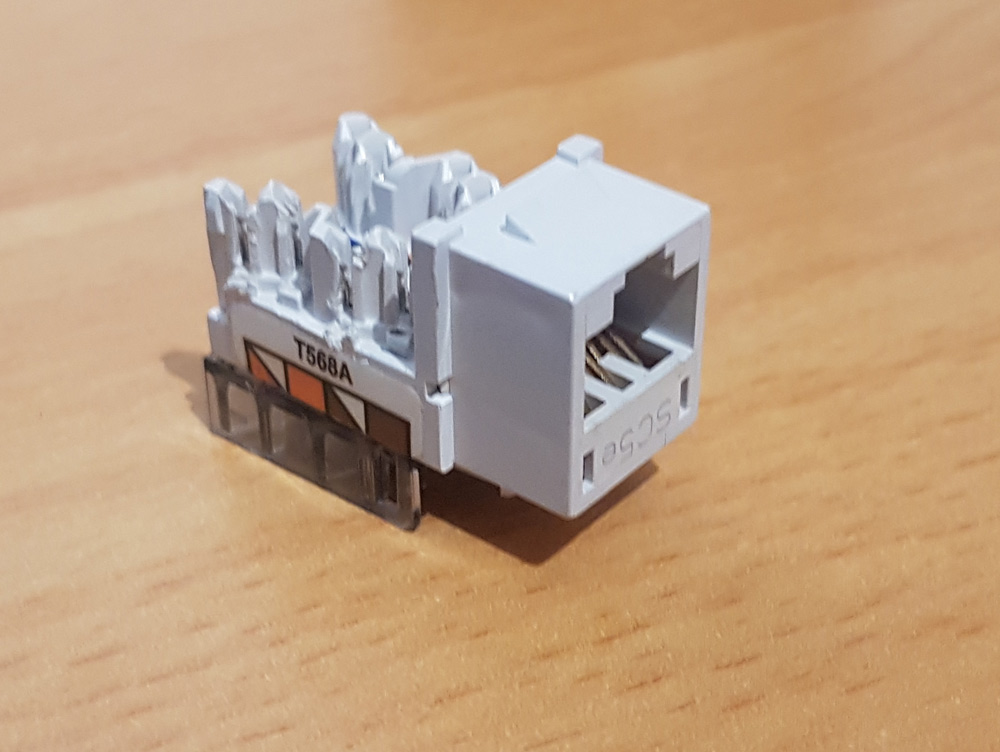

I have other outlets nearby that run at full 1Gb speeds and runs of wire that are cat5e running to phone jacks so I'll splice those and see if I can get it up and running... I've found a punch down tool but what are these called? I've tried searching all the codes printed on the side online but cant seem to find them (or is this them here - https://www.trademe.co.nz/Browse/Listing.aspx?id=2710383515 )

Edit: Also, I will need to run a cable on the outside of my house (between the cladding and the internal framing) should I use STP for that run - approx 5m - or just normal CAT5e will do?

cyril7

9075 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2527530 23-Jul-2020 06:03

Hi if the cable run on the outside is not going to get wet, then standard cat5e or cat6 utp is fine.

Its called an rj45 keystone that trademe one is fine.

Is that photo of one of yours, as the idc headers are mounted.

Cyril

Edit if the cable may get wet then use outdoor gel flooded, not STP

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527548 23-Jul-2020 07:23

cyril7: Hi if the cable run on the outside is not going to get wet, then standard cat5e or cat6 utp is fine.

Its called an rj45 keystone that trademe one is fine.

Is that photo of one of yours, as the idc headers are mounted.

Cyril

Edit if the cable may get wet then use outdoor gel flooded, not STP

Thanks @cyril7

Looks like I can only get that gel stuff in massive runs, I only need 10m...

Yeah its a spare one laying around I had, it wont be used.

cyril7

9075 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2527550 23-Jul-2020 07:46

Hi PM me, I can organise 10m if you want.

Cyril

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527556 23-Jul-2020 08:12

Thank you! I've sent you a PM :)

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2527805 23-Jul-2020 14:09

Looks like Cryil will be sorting me a cable - thank you very much. I've orded the punch down tool and watched some youtube videos on how to do the Keystone bit, I think I can manage that.

My question is can I use the punch down tool that I've ordered on the Hubble "wire board" in my above photo ? (top of page 2, with all the individual wires) I will be connecting a new cable to one of the spare slots.

trig42

5889 posts

Uber Geek
+1 received by user: 2094

ID Verified

#2527807 23-Jul-2020 14:15

waitingforfiber:

Looks like Cryil will be sorting me a cable - thank you very much. I've orded the punch down tool and watched some youtube videos on how to do the Keystone bit, I think I can manage that.

My question is can I use the punch down tool that I've ordered on the Hubble "wire board" in my above photo ? (top of page 2, with all the individual wires) I will be connecting a new cable to one of the spare slots.

Yes.

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2528320 24-Jul-2020 17:59

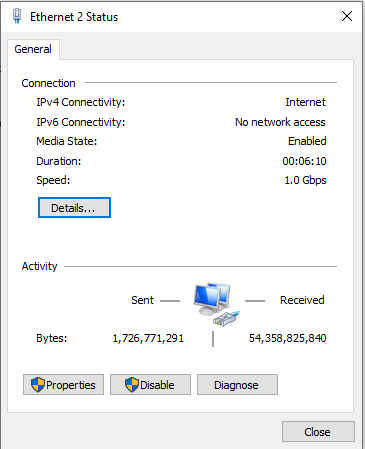

Thanks for everyone's help on the connector side of things, I had a spare phone line that was cat5e next to the dud outlet, I've re terminated it at both ends using Keystones and tadaa....

I just need that cable from Cyril7 now and I will be surfing the web at light speed 😁

waitingforfiber

23 posts

Geek
+1 received by user: 1

#2530888 29-Jul-2020 17:28

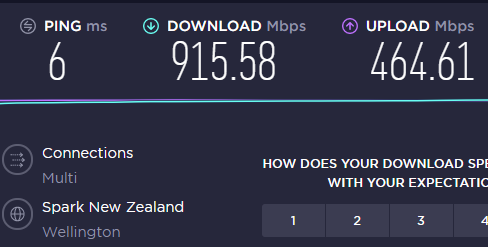

Thank you to everyone for your help, I've gone from a 0.46mb up/down connection from first moving to this home 8 years ago to having normal adsl @ 10/1 up/down for the last 3 years to finally joining the 21st century...

richms

29099 posts

Uber Geek
+1 received by user: 10210

Trusted

Lifetime subscriber

#2531049 29-Jul-2020 20:59

waitingforfiber:

Thank you to everyone for your help, I've gone from a 0.46mb up/down connection from first moving to this home 8 years ago to having normal adsl @ 10/1 up/down for the last 3 years to finally joining the 21st century...

So I guess you need to change your name now?

Richard rich.ms
