#700654 13-Oct-2012 14:14

SamF: Ok, so I'm a glutton for punishment, but my curiosity got the better of me and I tried changing RFI back to 1 on my connection. There was an immediate increase in FECs, but no measurable increase in CRCs. Swapping around different RFI levels made no measurable difference and I'm now back where I started with RFI at 5.

I decided to try changing RFI again on mine to see if it still makes a difference.

CRCPM error rate at 10am this morning was 0.05 (and it has been since last weekend) This is with RFI set at 2 (one left of max performance)

I put it back to RFI 1 at 10am (did the usual unplug line, change setting, soft restart, power cycle, check setting, plug line back in) - errors went straight up to 0.9 CRCPM. 3 hours later at 13:00 they had settled on 0.8. So an order of magnitude greater than they were.

So I put RFI back to 2 at 13:00 and now an hour later they're back at 0.06. Seems quite consistent on my line but either my line is different or my fritzbox is behaving differently. Firmware is 99.05.22 FWIW.

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

richms

28172 posts

Uber Geek

Trusted

Lifetime subscriber

#700756 13-Oct-2012 21:06

middle of a powrr cut running on ups and so I assume not much adsl users causing crosstalk and I am getting 40 megs downstream.

Richard rich.ms

Cadriel

134 posts

Master Geek

#700757 13-Oct-2012 21:07

Yeah, our power just came back up and I synced at 40 down too.. :D

richms

28172 posts

Uber Geek

Trusted

Lifetime subscriber

#700759 13-Oct-2012 21:11

im hoping the second ups battery holds out till its back on to see if it stays higher than 24.

all you rude people on adsl still are costing us speed!

Richard rich.ms

stevehodge

393 posts

Ultimate Geek

#700760 13-Oct-2012 21:21

richms: im hoping the second ups battery holds out till its back on to see if it stays higher than 24.

I suspect what will happen is that it'd stay synced but as the other users come on your error rate will jump.

all you rude people on adsl still are costing us speed!

Might be worse if they were on vdsl.

richms

28172 posts

Uber Geek

Trusted

Lifetime subscriber

#700763 13-Oct-2012 21:32

stevehodge:
richms: im hoping the second ups battery holds out till its back on to see if it stays higher than 24.

I suspect what will happen is that it'd stay synced but as the other users come on your error rate will jump.
all you rude people on adsl still are costing us speed!

Might be worse if they were on vdsl.

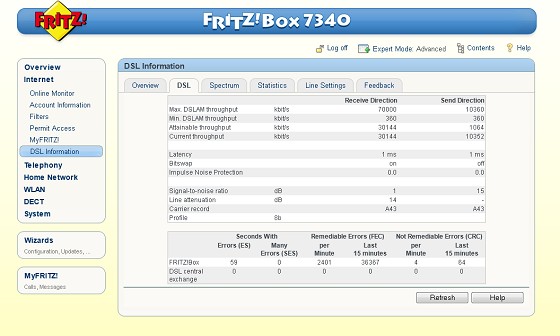

1db SNR now, but still I am at 30 meg down which is 6 more than the best I have seen at normal times.

Hmm, this is ugly tho...

And worse again once the SNR hits 0

Richard rich.ms

richms

28172 posts

Uber Geek

Trusted

Lifetime subscriber

#700768 13-Oct-2012 21:52

Is there any way to make the fritz do a resync without dropping PPP? Everytime it does it gets a new ipv6 prefix and then all my mapped drives stop working for a while.

Or will snap get static prefixes anytime soon?

Richard rich.ms

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

Cadriel

134 posts

Master Geek

#700770 13-Oct-2012 21:56

I believe you can't have a PPP connection without sync. So, no. :)

richms

28172 posts

Uber Geek

Trusted

Lifetime subscriber

#700794 13-Oct-2012 22:55

Back to normal after I rebooted the router.

Bit disappointing in the design of DSL if it can leave the connection in a state with 0 SNR and basically unusable.

I didnt do a grab of trying to play a youtube while it was all dickky, but this is it buffering post re-sync.

If I had not rebooted to force a resync then I assume that DLM would have done something unpleasant at 4am or so?

Richard rich.ms

SamF

1578 posts

Uber Geek

Trusted

#700883 14-Oct-2012 10:20

@Sidefx: Well, I followed your suggestion re the setting change process (unplug line, change setting, soft restart, power cycle, check setting, plug line back in), but no change unfortunately :( I am also running the same firmware as you.

I'm beginning to wonder if the Chorus guys are right and there is something wrong with my router! The errors / lack of errors don't seem to have any rhyme or reason to them; it seems very intermittent! I might try getting a replacement router just to eliminate that possibility.

varix

111 posts

Master Geek

#700885 14-Oct-2012 10:32

I often wondered if there was an issue with my modem, Snap tell me that they have only had a couple of faulty modems out of thousands. I guess yours could be another? Ask them if you can borrow a test unit.

Anyway, I installed a VDSL splitter the other day and resynced my modem. Have had a stable sync ever since. Currently breaking records with nearly 3 days uptime! Either the pairing in the ETM was faulty and repairing it with a splitter fixed it, or the line just needed a splitter. Either way it seems to have given me a perfect sync AND its stable (so far).

I am now wondering if I should ask Snap to reset my DLM since during the first 10 day period I had 57 resyncs due to all my issues. If my line is now stable I should be heading fast for DLM1 not DLM 4 that I am currently on.

Here is a run down of my stats:

SamF

1578 posts

Uber Geek

Trusted

#700900 14-Oct-2012 11:04

Very interesting! I'd say that there was some wiring issue vs the splitter making any difference. AFAIAA the DSL side of the splitter is actually a straight through connection with no circuitry and in addition, you have a naked connection, so in any case there is no analog signal to filter!

I'd definitely do the line/DLM reset as well!

stevehodge

393 posts

Ultimate Geek

#700997 14-Oct-2012 15:23

varix: I am now wondering if I should ask Snap to reset my DLM since during the first 10 day period I had 57 resyncs due to all my issues. If my line is now stable I should be heading fast for DLM1 not DLM 4 that I am currently on.

You're not on DLM-4, you're on DLM-3. I expect that DLM will put you on DLM-6 next (8ms, 2 INP), then DLM-2 (8 ms, 0 INP), then DLM-1 (1ms, 0 INP). If latency is important to you then ask Snap if they can get Chorus to reset DLM for you. If you're not doing a lot of gaming then don't bother - DLM will make the changes eventually anyway and you can't sync much higher in any case.

SamF

1578 posts

Uber Geek

Trusted

#701007 14-Oct-2012 15:37

Yeah, but after the 10 day period DLM only normally changes once a week, if he gets DLM reset he'll be getting changes daily which will speed things up considerably.

stevehodge

393 posts

Ultimate Geek

#701014 14-Oct-2012 16:10

SamF: Yeah, but after the 10 day period DLM only normally changes once a week, if he gets DLM reset he'll be getting changes daily which will speed things up considerably.

I don't think DLM changes once a week - going through all the reported DLM changes in this thread no one has had weekly DLM changes. Monthly changes seem to be the norm when DLM is not in it's rapid change state making changes every 2 days.

However, what does it matter how long it takes if latency is not important to you? He's already syncing at 47mbps. If 50Mbps is the limit on 8b then it can only get 6% faster. So, as I said, if he's not gaming then why bother?
