I would like some NVENC Graphics Card advice please.

Forums › Desktop computing › I would like some NVENC Graphics Card advice please.

1 | 2

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2263162 24-Jun-2019 08:38

@jase2985 Thank you for that link, I have not seen that brochure before, it's much more detailed than anything I've been able to find on the internet.

I did notice a wee 2-pin plug, but it never occurred to me that I could use it with a 6-pin to make an 8-pin! And I'm normally not too bad at maths. :)

Delete cookies?! Are you insane?!

michaelmurfy

meow
13581 posts

Uber Geek
+1 received by user: 10914

Moderator

ID Verified

Trusted

Lifetime subscriber

#2263173 24-Jun-2019 09:07

Here you go: https://www.geekzone.co.nz/forums.asp?forumid=77&topicid=251379

Bare in mind, consumer cards have a video decoding limit. The Quadro here doesn't (ideal for larger Plex servers or multiple transcodes).

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

SpartanVXL

1498 posts

Uber Geek
+1 received by user: 666

#2263216 24-Jun-2019 09:18

I didn’t even realise there was a limit, seems theres a patch for it though to raise it from 2.

Link

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2263234 24-Jun-2019 09:48

Seeing as how I only encode one file at a time, does the limit even matter?

@michaelmurphy , thankyou, I have seen that offer already. A nice card but I need to have another peeky inside my PC to see if it would fit. It may be too tall and not fit under the drive cage. A job for today.

Delete cookies?! Are you insane?!

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2263620 24-Jun-2019 20:15

A new question: how is the height of a graphics card measured? When the specs say a card is xx cm tall, does that include or exclude the bit that goes in the slot?

Delete cookies?! Are you insane?!

Jase2985

13735 posts

Uber Geek
+1 received by user: 6210

ID Verified

Lifetime subscriber

#2263628 24-Jun-2019 20:25

try this: https://rog.asus.com/forum/showthread.php?45543-How-does-Asus-measure-graphics-card-dimensions

Lego

Shop now for Lego sets and other gifts (affiliate link).

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2264060 25-Jun-2019 13:56

hhmmm, a cautionary tale...

https://hardforum.com/threads/what-not-to-do-with-a-shuttle-sz77r5.1753681/

Delete cookies?! Are you insane?!

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2264128 25-Jun-2019 14:36

I am totally unsure whether I can fit a card that requires a power connector. To buy one that does would be a gamble.

I have whittled my choices down to:

A. Any one of 3 GTX1050Ti 4GB Low Profile cards, but preferably the Gigabyte GBTGV-N105TOC-4GL as it has 2*HDMI, but only Mighty Ape seems to have it at $350 - GASP!.

B. GIGABYTE GeForce GTX 1650 OC 4G Graphics Card, 2 x WINDFORCE Fans, 4GB 128-Bit GDDR5, GV-N1650OC-4GD Video Card retailing for around $300.

C. GIGABYTE GeForce® GTX 1650 MINI ITX OC 4G GV-N1650IXOC-4GD retailing for around $290

D. Omnious' Quadro P2000 5GB, slightly used at $500.

I am leaning towards B (2 fans) or C (1 fan); does 2 fans mean twice as noisy? They also have the newer Volta NVENC, but not the Turing one like all the series 16 cards.

Is the P2000 worth $200 more for only an extra GB of RAM, and the previous gen PASCAL NVENC? I would take some convincing on this point I think.

Your thoughts would be appreciated.

And yes, I do realise that a week or two after buying something that a low profile GTX1660Ti will probably hit the market. :)

Delete cookies?! Are you insane?!

Dairyxox

1595 posts

Uber Geek
+1 received by user: 455

#2264190 25-Jun-2019 15:28

1650 cards don't have the latest NVENC ip block. They use the older one.

If you want the latest one, you need at least a 1660 card,

Apparently the older one is still pretty good, just not the best.

EDIT: The quadro isnt worth the extra price. Its still using the old NVENC from the 10XX series cards.

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2264338 25-Jun-2019 18:10

@dairyxox , thanks for the advice.

Here is my understanding of NVENC development.

https://en.wikipedia.org/wiki/Nvidia_NVENC

4th gen = Pascal

5th gen = Volta

6th gen = Turing

All series 16 cards have Turing NVENC except for the 1650 cards which have Volta.

https://www.tomshardware.com/news/nvidia-geforce-gtx-1650-volta-nvenc,39161.html

All the non-1650 series 16 cards require a power connector and as such are off my radar.

If I could find a 1660 card that had no power connector or was low profile that would be ideal, but I don't think they exist.

Does anyone have anything to add regarding whether there is much noise difference between 1 and 2 fan cards?

Delete cookies?! Are you insane?!

Dairyxox

1595 posts

Uber Geek
+1 received by user: 455

#2264780 26-Jun-2019 08:53

Yes, It looks like you've got the right idea.

FYI Nvidia have come out and said that Volta and Pascal NVENC are functionally the same.

It is worth asking you to be more specific about your use case? What are you wanting it to do exactly?

Pascal NVENC is probably fine for most use cases, and you could get by with a GTX 1050 as the bare minimum.

Geekzone support

Support Geekzone with one-off or recurring donations Donate via PressPatron.

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2264799 26-Jun-2019 09:15

@dairyxox , I just want to use NVENC to encode large raw video files down to smaller x265 files. I currently use IntelQSV(x264) but H265 encoding takes forever on my pc. I recently read about NVENC and as I dont currently have a graphics card, thought it would be worth a crack.

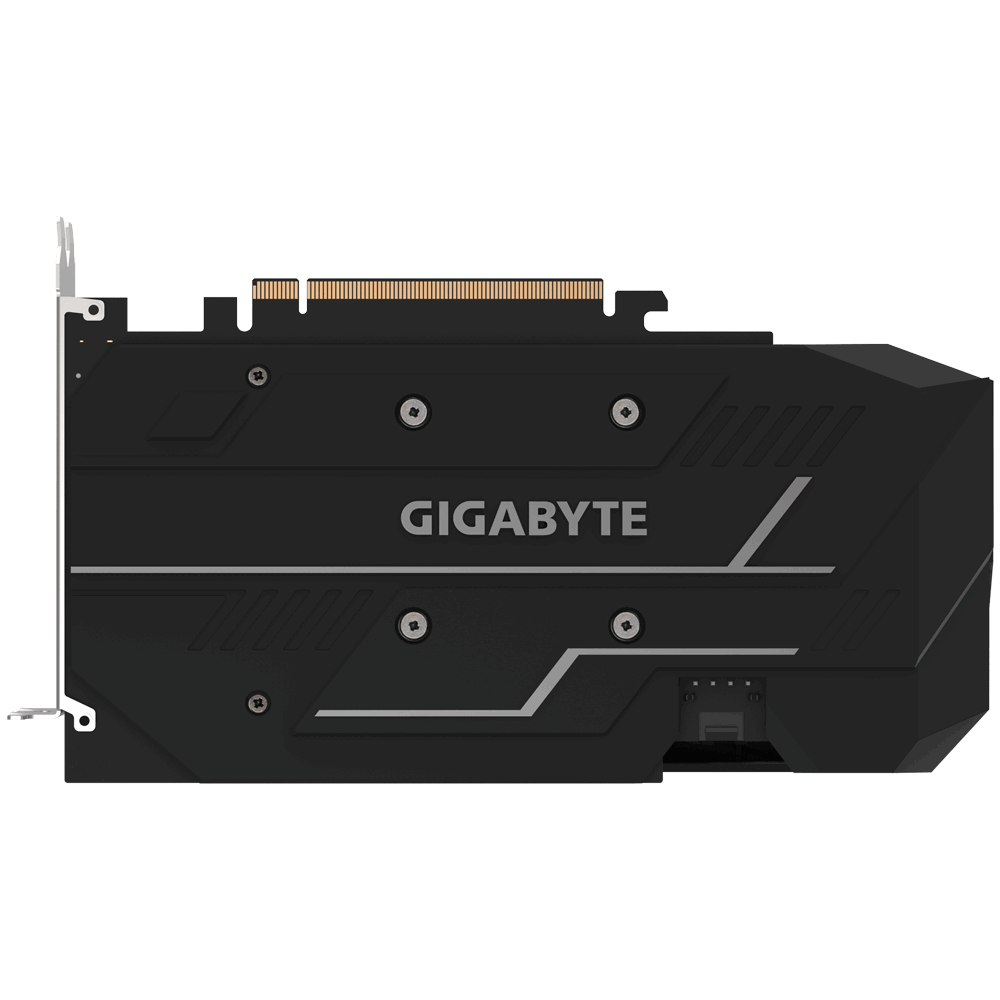

I have just noticed on the Gigabyte GeForce GTX 1660 OC, GV-N1660OC-6GD card that the power connector seems to be quite recessed.

If that were to fit, is it worth paying the $150-200 extra for?

It may be overkill now, but you never know what future requirements you may need.

Delete cookies?! Are you insane?!

Dairyxox

1595 posts

Uber Geek
+1 received by user: 455

#2264801 26-Jun-2019 09:24

What software do you intend use? Do you know if it supports nvenc?

What kind of resolution & bitrate?

What is important to you; speed, quality, compatibility, file size?

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2264809 26-Jun-2019 09:41

I use Handbrake and Vidcoder, both support NVENC. Reading the change-log for Vidcoder was how I found out about NVENC. I haven't tried encoding any 4K source files as of yet, only 1080p, but I just bought a 4K TV and my phone and video camera can produce 4K content, so that day is coming soon.

Speed is probably the most important thing. Followed by quality, then size. But really, all 3 are pretty close in priority. I would expect a decent graphics card would improve all 3 criteria on my existing setup, possibly considerably, which is 6-7 years old.

So I guess a card that wouldn't feel ashamed in my next pc, might be criteria #4.

Delete cookies?! Are you insane?!

kiwifidget

"Cookie"
3640 posts

Uber Geek
+1 received by user: 1969

Lifetime subscriber

#2268527 2-Jul-2019 14:56

MSI and Zotac(?) have just released low-profile GTX1650 cards. Not available in NZ yet, but all I have to do is be patient. Not a quality I am generally known for.

https://www.anandtech.com/show/14585/msi-zotac-low-profile-geforce-gtx-1650

Delete cookies?! Are you insane?!
