Telecom VDSL Setup with ASUS DSL-N55U Router

Forums › LAN (ethernet/Wifi/routers/Bluetooth) › Telecom VDSL Setup with ASUS DSL-N55U Router

1 | 2

vts13th

13 posts

Geek

#870360 1-Aug-2013 22:12

Hi everyone, this is from my Asus N55U, could someone tell me if this is normal?

Aug 1 19:09:19 kernel: RX DESC a6ba2000 size = 2048 Aug 1 19:09:19 kernel: <-- RTMPAllocTxRxRingMemory, Status=0 Aug 1 19:09:19 kernel: Key1Str is Invalid key length(0) or Type(0) Aug 1 19:09:19 kernel: Key2Str is Invalid key length(0) or Type(0) Aug 1 19:09:19 kernel: Key3Str is Invalid key length(0) or Type(0) Aug 1 19:09:19 kernel: Key4Str is Invalid key length(0) or Type(0) Aug 1 19:09:20 kernel: 1. Phy Mode = 8 Aug 1 19:09:20 kernel: 2. Phy Mode = 8 Aug 1 19:09:20 kernel: 3. Phy Mode = 8 Aug 1 19:09:20 kernel: MCS Set = ff ff ff 00 01 Aug 1 19:09:20 kernel: Main bssid = 08:60:6e:8e:53:14 Aug 1 19:09:20 kernel: <==== rt28xx_init, Status=0 Aug 1 19:09:20 kernel: 0x1300 = 00064380 Aug 1 19:09:20 kernel: set watchdog pid as: 468 Aug 1 19:09:20 kernel: set watchdog pid as: 468 Aug 1 19:10:24 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:11:36 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:36:41 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x0 ) Aug 1 19:37:53 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:39:00 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:40:05 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:41:09 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:42:13 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:43:18 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:44:22 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:45:27 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:46:35 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:47:38 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:48:45 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:49:49 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:50:55 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:54:09 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:55:13 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:56:17 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 ) Aug 1 19:57:23 kernel: ACT - SendBSS2040CoexistMgmtAction( BSSCoexist2040 = 0x6 )

Lobster

21 posts

Geek

#871778 5-Aug-2013 00:13

vts13th: Hi everyone, this is from my Asus N55U, could someone tell me if this is normal?

Hey vts13th, sorry i missed all your queries earlier. Is it all functioning ok in bridge now???

I just checked my logs in n55u (presumably that is all from there) but mine shows none of those. Is it having any issues?

vts13th

13 posts

Geek

#872369 5-Aug-2013 21:00

Hi Lobster,

Speed dropped intermittently from 27mbps down & 10mbps up to 2mbps down & 0.5mbps up and last up to about an hour.

Also under (Bridge mode) my Playstation 3 seem like it has been CAP of 10mbps down & 1.4mbps up, when not in bridge mode I can get twice as much that.

vts13th

13 posts

Geek

#872371 5-Aug-2013 21:04

Seem like someone else is having the same issue.

http://www.smallnetbuilder.com/forums/showthread.php?p=67339

vts13th

13 posts

Geek

#872373 5-Aug-2013 21:09

Would bridge mode still work under this Asus official firmware version 3.0.0.4.364?

I'm not worrying about Dual Mode Wifi, Signal Mode will do for me.

BrutusNZ

22 posts

Geek

#875350 11-Aug-2013 13:47

Hi there and thanks for the excellent set-up instructions.

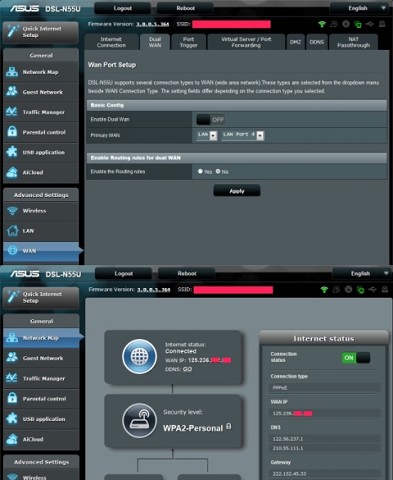

Attached is a picture of a slightly different way to set-up the WAN.
I followed your instructions but instead of setting up as Dual WAN with DSL and LAN, I turned the Dual WAN setting OFF so that only the WAN is provided through the LAN port.

Using this method I don't see errors in the General Log of the DSL-N55U where it is failing to access the DSL connection and the Network MAP > Internet (as shown) looks more like what I expected.

The only downside is I can't browse to the web page (192.168.1.254) of the TG589 any more which I could do using your original method. Any solution for that? FYI my network is on 192.168.0.0
Also for some reason (firmware bug?) every time I go to the WAN page of the DSL-N55U it shows me the Internet Connection settings for the DSL connection and I have to go to the Dual WAN tab (at the top of the page) then back to the Internet Connection Tab for it to show me the PPPoE settings. I should pop into the ASUS forum and tell them about that bug.

Basically this method achieves the same result so I offer it here as an alternative for anyone trying it out.

Cheers,
Bruce

BrutusNZ

22 posts

Geek

#875379 11-Aug-2013 15:15

Doesn't appear I can Edit my post above.

Update: When I went to the ASUS forum to advise of the bug, there had been an update to the Dual WAN firmware. Downloaded and installed the new Firmware 3.0.0.5.374_150 and it has fixed the problems I mentioned above.

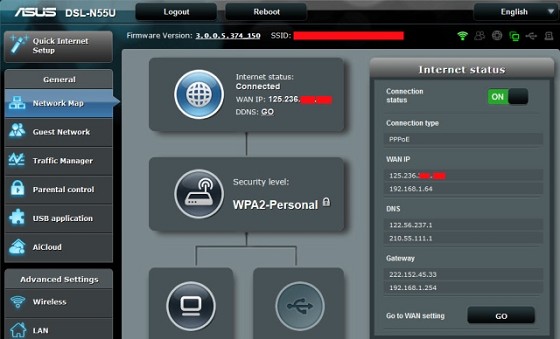

So I can now enter the TG589 web page and the DSL settings do not incorrectly show up in the Internet Connection page of the DSL-N55U. Below is the updated Network MAP > Internet page the Dual WAN page didn't change.

So basically you don't have to set-up the DSL for Fail over in the Dual WAN page as shown by the op.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

Bigfox

54 posts

Master Geek

#878459 14-Aug-2013 23:54

What speed do u get over wi fi?i have some problems with 7 mb over wi fi and 34-36 wired.i don't know why the difference is so huge.please help if u can
