#1950439 2-Feb-2018 08:17

Nice project Nate. I built something similar last year (although a more cut-down version) to integrate my home automation. It alerts me on my iPhone if a PIR sensor gets triggered. Uses Wemos D1 mini and sends via MQTT to OpenHAB.

https://www.instructables.com/id/Alarm-PIR-Movement-to-Home-Automation/

jonherries

1434 posts

Uber Geek
+1 received by user: 316

Trusted

Subscriber

#1978332 15-Mar-2018 21:53

Did anyone order one of these, has it shipped?

Jon

hairy1

3352 posts

Uber Geek
+1 received by user: 644

ID Verified

Trusted

Lifetime subscriber

#1978363 16-Mar-2018 06:14

I have. It hasn't shipped yet (although I did get some stuff through which was peripheral stuff). It is getting very close to shipping. Early bird backers have got their kits. There were issues with fabrication of the boards.

Cheers, Matt

My views (except when I am looking out their windows) are not those of my employer.

konnected

5 posts

Wannabe Geek
+1 received by user: 3

Konnected

#1978364 16-Mar-2018 06:36

We have started shipping! There were a few delays with manufacturing -- but no technical issues. It was all just logistical screwups in getting product materials in time before the China factories shut down for Chinese New Year. It's all good now, and the production units are looking and working great.

Also, we have a working beta with Home Assistant, as I know many New Zealanders were interested in this integration. I can't post links here but you can find Home Assistant setup instructions on help(dot)konnected(dot)io.

hairy1

3352 posts

Uber Geek
+1 received by user: 644

ID Verified

Trusted

Lifetime subscriber

#1978365 16-Mar-2018 06:53

Thanks for the update Nate.

My views (except when I am looking out their windows) are not those of my employer.

Sounddude

I fix stuff!
1935 posts

Uber Geek
+1 received by user: 640

Trusted

2degrees

Lifetime subscriber

#1978463 16-Mar-2018 10:02

I ordered mine as part of the kickstarter.....can't wait for it to arrive :-)

Apple TV

Stream your favourite shows now on Apple TV (affiliate link).

CJC

54 posts

Master Geek
+1 received by user: 8

#2031538 7-Jun-2018 16:00

How's everyone going with their install?

Received my kit a couple of weeks ago and have finally had enough spare time to get it installed. I say 'installed', but what I mean is it's plugged in and has the motion sensors wired up. Waited a little while initially for the Home Assistant update that contained the necessary components, then had to find the old alarm module. Turns out when I first looked in the roof space I placed the access hatch directly on top of it haha.

Install and setup has been pretty painless so far. Testing out Hass Custom Alarm, and once I'm happy with that (plus it has WAF) I'll wire in the siren.

jonherries

1434 posts

Uber Geek
+1 received by user: 316

Trusted

Subscriber

#2031635 7-Jun-2018 18:51

Waiting on mine to ship, expecting it soon.

Jon

hairy1

3352 posts

Uber Geek
+1 received by user: 644

ID Verified

Trusted

Lifetime subscriber

#2031638 7-Jun-2018 19:15

Mine's here. I have been waiting for HASS to get integration which it has now.

WAF is an issue though as we have some great 433 MHz remotes that disarm our alarm from the car and I haven't come up with a strategy to replace this yet. Presence detection with the UNIFI is probably the way to go but I am only going to get one shot at it so need to make sure it is right. I've also got a bunch of Amazon Dash Buttons which might do the trick but will require some testing.

Cheers, Matt.

My views (except when I am looking out their windows) are not those of my employer.

oOo

13 posts

Geek
+1 received by user: 2

#2043282 24-Jun-2018 20:05

I'm really interested in this and have chatted with Nate via Fb about replacing my current monitored Bosch alarms at home and at the holiday house.

Couple of things holding me back that I am working on are:

Good alternative to arm / disarm the system that's fully WAF as cant use existing keypad
- Yale Digital Lock with Z-Wave - pick up door unlocks via code / key etc to disarm system - maybe use Google Assistant to arm (was going to get lock at some point anyway)
- NodeMCU RFID Reader with MQTT - have ordered a kit to have a play - potential option for holiday house as lock is expensive and dont have a google home up there so need something that can do both arm / disarm
- Google Assistant & IFFT - but what if internet is down
- Old tablet running Android MQTT alarm app - but wife didn't like this idea for some reason
Smoke alarms that can integrate with the system (need to replace existing ones as old anyway) - haven't even started looking at this
Activation notifications etc
1. Have been using Pushbullet to test notifications around presence, but find I dont always get notifications
2. Currently using HTML5 notifications for some stuff and this works well, and supports actions also... so could have actions to arm system when I forget via notification etc
3. Twilio to generate a sms / phonecall which I think might be more useful and not overlooked (like some notifications can be)

Interested to hear what others are doing around the above three things....

Forgot to mention I am running HASS using inbuilt SSL which is another thing thats been holding me back as I understand there have been some issues with HASS via HTTPS (using LetsEncrypt certs) and Konnected... I think the latest firmware resolves this but not 100% sure

premiumtouring

357 posts

Ultimate Geek
+1 received by user: 143

#2064766 30-Jul-2018 08:06

Any developments from anyone using this in NZ with Home Assistant? Keen to hear what others are up to / issues they've experienced / cool things they've discovered?

AliExpress

Shop now on AliExpress (affiliate link).

CJC

54 posts

Master Geek
+1 received by user: 8

#2064853 30-Jul-2018 10:40

Life has got in the way of doing much more with my install unfortunately.

Continuing from my previous post, have dealt with the following issues:

- PIRs looked like they were activating on movement, however the status in Hassio wasn't changing. After reading another post about a similar issue I pulled the front covers off and disconnected a resistor in the circuit (on each PIR).

- Getting the Hass-Custom-Alarm panel to work in Fully Kiosk Browser (on a Nexus ROM Amazon Fire 7" tablet) took faaar too long. Kept banging my head on the tablet end, everything else worked! Finally went back to basics and went through the Hassio config, then on a hunch I removed a third party frontend I wasn't using and was obviously interfering with SOMETHING. Success.

- Disconnected the Raspberry Pi running Hassio as it developed a weird noise that changes with the amount of network traffic flowing. Think that's a bad power supply.

So everything works now, but I need to collect a few bits and pieces to finish the install:

- 12V to 5V convertor to charge the tablet, using the keypad feed wires from the Konnected board.

- Picture frame or mount to hold the tablet on the wall.

- Various mounting stuff to give the Konnected board a more 'permanent' home. Kinda need to move it from the roof space (where the old alarm board was) before summer comes along.

jonherries

1434 posts

Uber Geek
+1 received by user: 316

Trusted

Subscriber

#2065289 30-Jul-2018 21:17

Mine is working in HASS - need to add to my config.yaml to group them together, then can trigger some lights to turn off after lack of movement of x time.

Question I have is with an MQTT sensor (have another working fine - my garage door). Have installed the HASS MQTT broker then compiled this:

https://github.com/xlogerais/esp8266-mqtt-sensor-sht30#ota

Although it isn't clear what the topic is, it appears to be maybe this (at the bottom of the main sketch):

sprintf(topic,"%s/%s/%s",MQTT_PREFIX,module_name,"temperature");

which is this:

mm/dd/yyyy/smarthome/mqttsensor/temperature

but that seems a bit weird?

Jon

davidcole

6099 posts

Uber Geek
+1 received by user: 1465

Trusted

#2065383 31-Jul-2018 07:26

jonherries:

Mine is working in HASS - need to add to my config.yaml to group them together, then can trigger some lights to turn off after lack of movement of x time.

Question I have is with an MQTT sensor (have another working fine - my garage door). Have installed the HASS MQTT broker then compiled this:

https://github.com/xlogerais/esp8266-mqtt-sensor-sht30#ota

Although it isn't clear what the topic is, it appears to be maybe this (at the bottom of the main sketch):

sprintf(topic,"%s/%s/%s",MQTT_PREFIX,module_name,"temperature");

which is this:

mm/dd/yyyy/smarthome/mqttsensor/temperature

but that seems a bit weird?

Jon

no it's a format string:

sprintf(topic,"%s/%s/%s",MQTT_PREFIX,module_name,"temperature");

So MQTT_PREFIX/module_name/temperature.

Which resolves to smarthome/mqttsensor/temperature.

Previously known as psycik

Home Assistant: Gigabyte AMD A8 Brix, Home Assistant with Aeotech ZWave Controller, Raspberry PI, Wemos D1 Mini, Zwave, Shelly Humidity and Temperature sensors
Media:Chromecast v2, ATV4 4k, ATV4, HDHomeRun Dual
Server Host Plex Server 3x3TB, 4x4TB using MergerFS, Samsung 850 evo 512 GB SSD, Proxmox Server with 1xW10, 2xUbuntu 22.04 LTS, Backblaze Backups, usenetprime.com fastmail.com Sharesies Trakt.TV Sharesight

kobiak

1615 posts

Uber Geek
+1 received by user: 551

Trusted

#2146536 17-Dec-2018 13:40

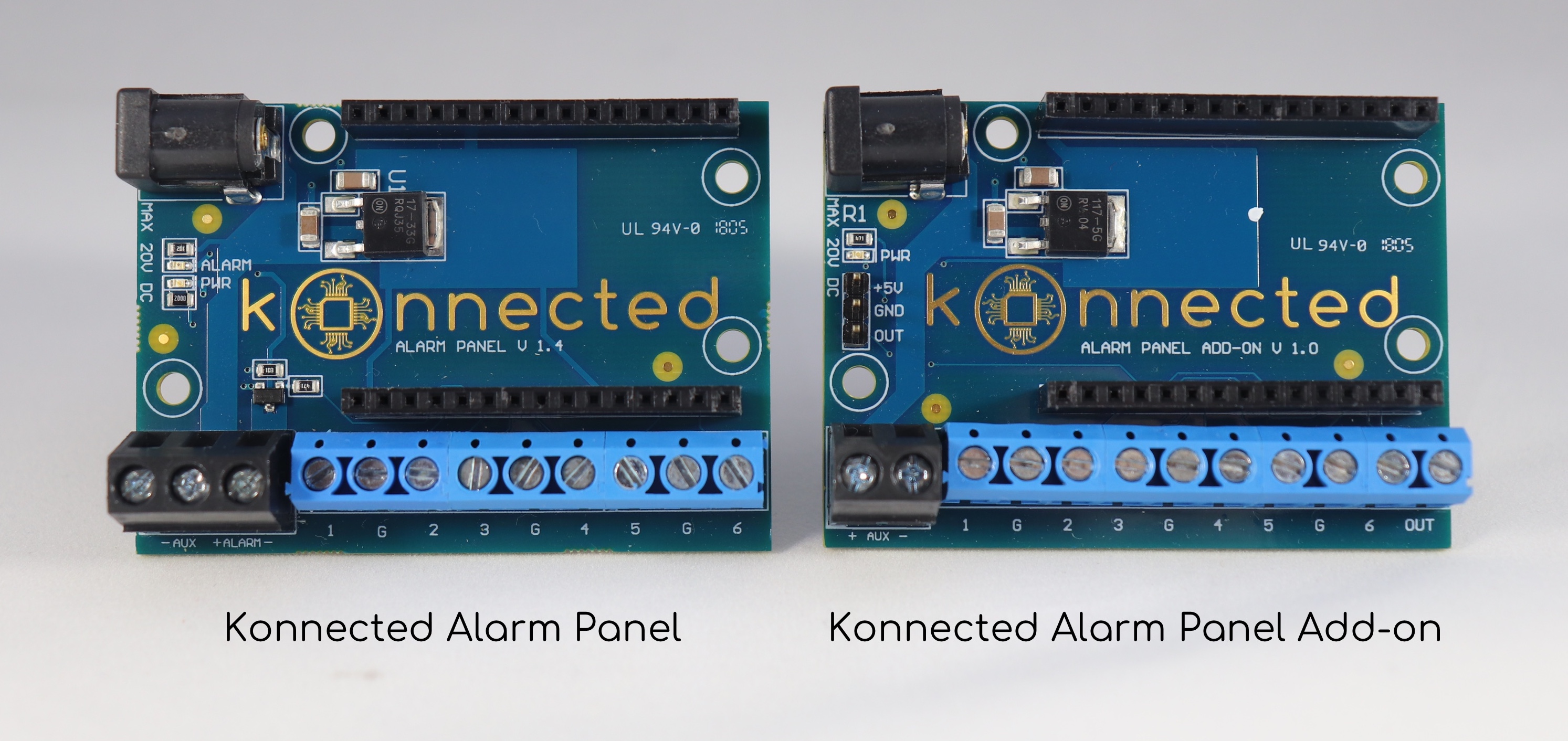

Looks like there's new board available Konnected Alarm Panel INTERFACE

which works in PARALLEL with existing alarm!

anyone ordered yet? keen to pair it with Paradox SP5500 for at least motion/trigger monitoring as of now, it's impossible to remotely arm/disarm current alarm :(

helping others at evgenyk.nz
