Does anyone have a spare Seagate Barracuda LP Drive 7200.12 1GB or 2GB to sell or swap even?

Had a RAID disk array problem (thanks to my cuz the magic blue smoke came out) and I need to recover some data from a couple of drives.

I require either a similar replacement drive or just a drive circuit board will do as long as the board works.

Any of the following models will probably have the right board ST1000DM003, ST2000DL001, ST1000DL002, ST2000DL003, ST2000DM001, ST2000VM002 , ST2000VX002.

Important thing is the drive PCB Number this must be 100617465 Rev A, B or C.

Can you get back to me ASAP if so with a price.

Cheers

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

1 | 2

887 posts

Ultimate Geek
+1 received by user: 460

ID Verified

Lifetime subscriber

#2404896 22-Jan-2020 18:31

I do have a ST2000DM001 which has died - click of death no smoke.

But the PCB has 100664987 Rev B on it.

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2405028 22-Jan-2020 21:23

Thanks anyway but it is incompatible with the mechanism.

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2405034 22-Jan-2020 21:36

Further research at www.hdd-parts.com indicates there are also compatible circuit board numbers as follows:

100603204 100573971 100617465 100591286

The Seagate drive sizes are 500Gb 1000Gb 1500Gb and 2000Gb and marked DL or ST 500, 1500 or 2000 followed by DM or DL plus some additional numbers

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

timtait

133 posts

Master Geek
+1 received by user: 7

#2405044 22-Jan-2020 21:53

I've got a drive which just says Barracuda 1000GB
Model: ST1000DM003

But I'm not sure its the right PCB - 100687658 REV C

richms

29107 posts

Uber Geek
+1 received by user: 10222

Trusted

Lifetime subscriber

#2405068 22-Jan-2020 23:24

What year were these sold new?

Richard rich.ms

SirHumphreyAppleby

2942 posts

Uber Geek
+1 received by user: 1863

#2405105 23-Jan-2020 07:27

ST2000DL003 / 100617465 Rev B

Pulled from my RAID a few weeks ago due to the reconnect count being non-zero (may indicate a potential drive issue, but more of a precaution).

Mighty Ape

Shop now at Mighty Ape (affiliate link).

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2405145 23-Jan-2020 09:08

These drives where manufactured in 2011

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2405147 23-Jan-2020 09:10

SirHumphreyAppleby:

ST2000DL003 / 100617465 Rev B

Pulled from my RAID a few weeks ago due to the reconnect count being non-zero (may indicate a potential drive issue, but more of a precaution).

I'll PM you shortly

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2405586 23-Jan-2020 22:54

Thanks to all responders and SirHumphreyAppleby for helping me out with a drive.

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

K8Toledo

1018 posts

Uber Geek
+1 received by user: 311

#2406318 24-Jan-2020 22:51

huckster:

I do have a ST2000DM001 which has died - click of death no smoke.

But the PCB has 100664987 Rev B on it.

Join the club :D

theibm:

Further research at www.hdd-parts.com indicates there are also compatible circuit board numbers as follows:

100603204 100573971 100617465 100591286

The Seagate drive sizes are 500Gb 1000Gb 1500Gb and 2000Gb and marked DL or ST 500, 1500 or 2000 followed by DM or DL plus some additional numbers

I have ~20 dead or dying Barracuda's sitting in a box collecting dust if required. A quick check turns up 2TB M001's (x3), 500GB M002's (x2) a 1TB M003 & others.

Fwiw this is my goto site for anything HDD. Low level editing tools /FWdownloads/recovery advice & more. Many of the forum members are forensic recovery experts.

It might pay to check there to see if the firmware version matters when swapping out the PCB.....

(P.S - the "ST" stands for Seagate Technologies :))

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2406483 25-Jan-2020 10:25

Thanks for that update. I was aware the ST meant Seagate.

As long as the drive/board currently in transit works I'll be able to reassemble the array as I've got two out of the four drives already operational from stock boards, I just need the one missing board and I can pull off the data or simply rebuild the array with (new) drives. The array had four 2Tb 7200.12 Barracuda and I either didn't notice or factor in they where actually different models with different boards and ironically all my compatible spares are of a single type.

I'll make contact if I run into any problems and I sincerely appreciate the offer.

Regards

Chris

IT Consultant, WISP ISP and specialising in CNC and manufacturing systems

Dunedin

Lego

Shop now for Lego sets and other gifts (affiliate link).

richms

29107 posts

Uber Geek
+1 received by user: 10222

Trusted

Lifetime subscriber

#2407534 27-Jan-2020 14:03

Just looked and all my retired 2tb drives except one are WD, the one I have is a ST2000DM001-9YN1. Is there any way to query the board ID without pulling the drive out and looking? Its still in the case and connected, just with nothing on it till I get some more 10TBs to swap over with in the machine.

Richard rich.ms

1024kb

1197 posts

Uber Geek
+1 received by user: 519

ID Verified

Lifetime subscriber

#2407537 27-Jan-2020 14:10

Seagate have a utility that'll do that for you. SeaTools for Windows. It's freeware, if you can't find it then message me back & I'll upload the 18mb portable version I've got.

Megabyte - so geek it megahertz

richms

29107 posts

Uber Geek
+1 received by user: 10222

Trusted

Lifetime subscriber

#2407546 27-Jan-2020 14:40

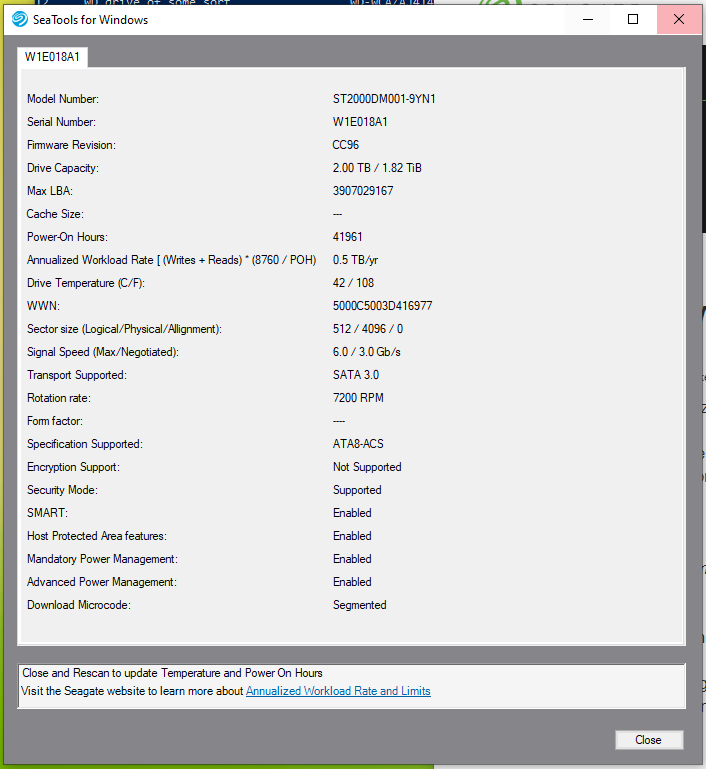

Nothing about the board in there at all it seems -

If you think it will help I can remove it next time I am out in the shed and have a better look.

Richard rich.ms

theibm

33 posts

Geek
+1 received by user: 18

ID Verified

#2407895 28-Jan-2020 08:12

As long as you use the full ST2000DM001 9YN1 part number during a lookup at www.hdd-parts.com that ought to give you the exact board number and revision in most cases.

However looking up ST2000DM001 9YN1 gave hundreds of possible matches as there are differing board revisions for ST2000DM001 9YN1XX-XXX (X signifying the specific model of drive) the good news is that

www.harddriveparts.com and www.hddzone.com report the boards are interchangeable.

richms:

Just looked and all my retired 2tb drives except one are WD, the one I have is a ST2000DM001-9YN1. Is there any way to query the board ID without pulling the drive out and looking? Its still in the case and connected, just with nothing on it till I get some more 10TBs to swap over with in the machine.
