#1000838 7-Mar-2014 15:50

I dont have a screwdriver that will easily undo these screws. The indented lines are wide and long. I damaged enough screw heads using incrorrect tools in my lifetime to know when its a good idea or not. I think ill regret it less if i waited ^^".
Its this kinda pattern. But much larger than youd expect.

RunningMan

8954 posts

Uber Geek

#1000859 7-Mar-2014 16:01

That's the normal screws for the ETP.

xxguestxx

30 posts

Geek

#1000888 7-Mar-2014 16:51

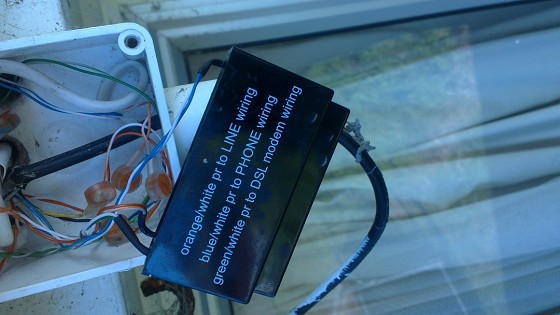

Ok i got in there in the end. Heres the pics:

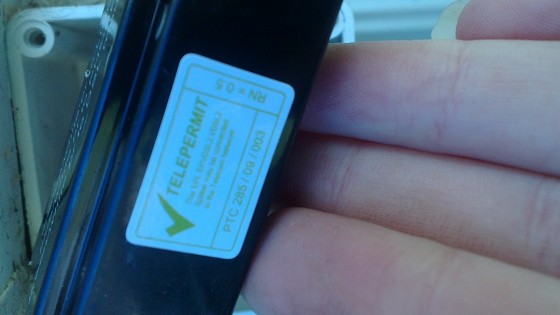

Thats all the writing i could find on it.
Whats the verdict guys =o

RunningMan

8954 posts

Uber Geek

#1000890 7-Mar-2014 16:53

That's a VDSL rated master splitter, and looks to be installed correctly, but can't quite see where all the pairs go from the photo.

xxguestxx

30 posts

Geek

#1000898 7-Mar-2014 17:10

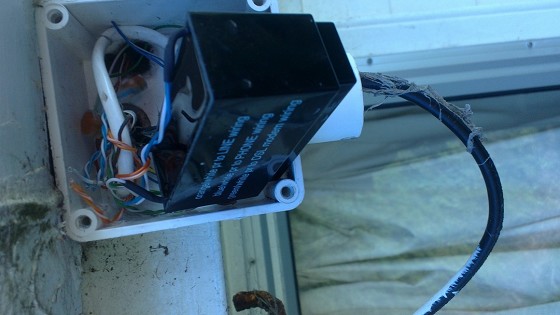

Yea sorry about that the only other image i took was:

So with that image, to me, its saying that the orange/white are not connected to anything. Unsure if those Orange/white ends are from the Cat5 or the Splitter. Regardless of which ends its from, to me, it still equates to the fact that orange/white is unused whether inside or outside. Because as we saw in my earler images inside the jackpoint, only 2 conductors are used, blue/white which the Master Splitter says is used for the Phone. Master splitter also says green/white is used for dsl modem. Yet in the jackpoint there is no green/white conductors terminated.

Could that be a point?

xxguestxx

30 posts

Geek

#1000901 7-Mar-2014 17:26

Heres a link to a diagram i found in which the green/white pair are also used(bottom of page) . Not sure if same should apply in my case because of how Orcon sets their system up...
http://marque-magnetics.com/store/vdsl-splitter.html

FireEngine

1223 posts

Uber Geek

Trusted

#1000910 7-Mar-2014 17:40

xxguestxx: Not sure if same should apply in my case because of how Orcon sets their system up...

This is physical layer stuff, we reply on Chorus to set every ETP/cable/splitter up the right and same way every time.

You couldn't have different ISPs working on a different physical setup, no-one would be able to move suppliers and Chorus wouldn't have a known setup to troubleshoot...

Regards FireEngine

Sharesies

Trade NZ and US shares and funds with Sharesies (affiliate link).

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1000914 7-Mar-2014 17:51

kinda looks like its been installed correctly.

looks like the tech has taken the easy route, and skipped the installation of the POTS side, since orcons install is naked dsl.

to double check, was this a fresh cable the tech installed there? just doesnt quite make sense, if the cables were all there and waiting, why the tech didnt connect the rest of it.. seems lazy for all of another 5 seconds of putting joiners in.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

xxguestxx

30 posts

Geek

#1000915 7-Mar-2014 17:56

Yea i watched him run a new cable from the jackpoint to the ETP. If only there were another jackpoint on Orcon VDSL to compare mine to. Just to confirm that only 2 conductors need termination inside =/ . Cant quite shake that part out of my mind ^^". Im probably wrong tho ^^

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1000923 7-Mar-2014 18:02

xxguestxx: Yea i watched him run a new cable from the jackpoint to the ETP. If only there were another jackpoint on Orcon VDSL to compare mine to. Just to confirm that only 2 conductors need termination inside =/ . Cant quite shake that part out of my mind ^^". Im probably wrong tho ^^

it should have been connected, but long as im not mixing up the sides of the filter, it will do no harm to your vdsl connection being unconnected. simply means if someone goes to setup POTS, they will have to iver connect it themselves or get another tech in.. so kinda not the state you want techs to leave their work in really.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

FireEngine

1223 posts

Uber Geek

Trusted

#1000927 7-Mar-2014 18:10

hio77: kinda looks like its been installed correctly.

looks like the tech has taken the easy route, and skipped the installation of the POTS side, since orcons install is naked dsl.

to double check, was this a fresh cable the tech installed there? just doesnt quite make sense, if the cables were all there and waiting, why the tech didnt connect the rest of it.. seems lazy for all of another 5 seconds of putting joiners in.

Be "interesting" if the occupier ever goes back to a POTS service. As I said this isn't under our direction or control. Any shortcuts are entirely of Chorus' own making....

Regards FireEngine

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#1000948 7-Mar-2014 18:25

FireEngine:
hio77: kinda looks like its been installed correctly.

looks like the tech has taken the easy route, and skipped the installation of the POTS side, since orcons install is naked dsl.

to double check, was this a fresh cable the tech installed there? just doesnt quite make sense, if the cables were all there and waiting, why the tech didnt connect the rest of it.. seems lazy for all of another 5 seconds of putting joiners in.

Be "interesting" if the occupier ever goes back to a POTS service. As I said this isn't under our direction or control. Any shortcuts are entirely of Chorus' own making....

it would be.. techs really need to stop taking shortcuts.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

RunningMan

8954 posts

Uber Geek

#1000952 7-Mar-2014 18:32

xxguestxx: Yea sorry about that the only other image i took was:

So with that image, to me, its saying that the orange/white are not connected to anything. Unsure if those Orange/white ends are from the Cat5 or the Splitter. Regardless of which ends its from, to me, it still equates to the fact that orange/white is unused whether inside or outside. Because as we saw in my earler images inside the jackpoint, only 2 conductors are used, blue/white which the Master Splitter says is used for the Phone. Master splitter also says green/white is used for dsl modem. Yet in the jackpoint there is no green/white conductors terminated.

Could that be a point?

1) The orange pair from the splitter should connect to the incoming line from the street.

2) The green pair from the splitter will connect to the xDSL jackpoint - in your case it looks like the installer has used the blue pair in the cat5 cable to the jack - that's fine, as the blue pair is normally connected to those pins in the jackpoint. You should see scotchlocks joining the green and blue pair at the ETP

3) Blue pair from the splitter connect to the POTS (normal phone outlets). If you have no outlets, this may not be connected.

4) It's likely the disconnected orange pair you can see in the photo is one of the 3 unused pairs from the cat5 (orange, green, brown) - nothing to worry about.

On the face of, the install looks like a good one - not to say there isn't a loose connection somewhere, but visually everything looks OK.

RunningMan

8954 posts

Uber Geek

#1000954 7-Mar-2014 18:34

xxguestxx: Yea i watched him run a new cable from the jackpoint to the ETP. If only there were another jackpoint on Orcon VDSL to compare mine to. Just to confirm that only 2 conductors need termination inside =/ . Cant quite shake that part out of my mind ^^". Im probably wrong tho ^^

Yes, only two conductors (1 pair) are needed for the VDSL signal in that dedicated jack. If it was wired as part of a structured cabling system then all four pairs should be connected, but in this case as a dedicated xDSL jack, only the 1 pair is required.

RunningMan

8954 posts

Uber Geek

#1000956 7-Mar-2014 18:44

hio77: kinda looks like its been installed correctly.

looks like the tech has taken the easy route, and skipped the installation of the POTS side, since orcons install is naked dsl.

to double check, was this a fresh cable the tech installed there? just doesnt quite make sense, if the cables were all there and waiting, why the tech didnt connect the rest of it.. seems lazy for all of another 5 seconds of putting joiners in.

Difficult to tell if the POTS side has been connected when looking at those photos. Pretty unlikely it hasn't been given the rest looks good, but really need the OP to confirm if the blue/white pair from the splitter is connected to the original house wiring.
