Signal transparent Home Distribution Box

Forums › Home Workshop DIY › Signal transparent Home Distribution Box

Oncop53

273 posts

Ultimate Geek
+1 received by user: 24

#136657 4-Dec-2013 19:10

I will be getting UFB and putting in structured cabling into a 1960’s house. I think Snap is a good option, and their FritzBox has an integrated DECT base station for phones, which is cool.

But if I have the FritzBox in the Home Distribution Box along with the ONT, Switch, etc. won't the wifi and DECT signals be blocked (or at least severely attenuated) by the steel cabinet door? Can you get plastic boxes that let the signal pass through, or is there another way?

Thanks

Zeon

3926 posts

Uber Geek
+1 received by user: 759

Trusted

#945588 4-Dec-2013 19:13

I have our wireless AP in a metal cabinet and the signal works perfectly through our house. The phone struggles for wifi a bit on the deck which is about 4 walls away though. Using mikrotik

Speedtest 2019-10-14

cyril7

9075 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#945592 4-Dec-2013 19:17

Would the fritz not be better sited in a prime coverage location like the top of the pantry or similar. Just ensure you have two to,s to that location to both deliver the UFB wan and return the LAN to the switch in. The cabinet.

Cyril

chevrolux

4962 posts

Uber Geek
+1 received by user: 2638
Inactive user

#945603 4-Dec-2013 19:51

By yourself a Unifi and put that a decent location.
Spend some dollars now and save yourself the hassle of crappy wifi.

Oncop53

273 posts

Ultimate Geek
+1 received by user: 24

#945700 4-Dec-2013 21:41

Thanks for the suggestions, if it was just WiFi then I could get another AP, but I really want that DECT signal too.

I guess i will just have to try and see what the signal strength is.

chevrolux

4962 posts

Uber Geek
+1 received by user: 2638
Inactive user

#945715 4-Dec-2013 22:05

DECT is surprisingly resilient. I think you will find it will be sweet.

I think the main thing that makes have better coverage is that is is quite high powered a there is less congestion up on 5.8GHz.

webwat

2036 posts

Uber Geek
+1 received by user: 145

Trusted

#955801 21-Dec-2013 13:32

You might be able to get an external antenna for it with a long enough cable to mount it outside the cabinet.

Time to find a new industry!

AliExpress

Shop now on AliExpress (affiliate link).

andrewNZ

2487 posts

Uber Geek
+1 received by user: 1461
Inactive user

#955804 21-Dec-2013 13:38

You can definitely get plastic in-wall data cabinets. I think the last one I saw was at Ideal electrical, I forget what brand it was.

Oncop53

273 posts

Ultimate Geek
+1 received by user: 24

#956313 22-Dec-2013 21:08

OK, I thought i would test how much the wifi signal is attenuated by a metal enclosure, so I set up this experiment:

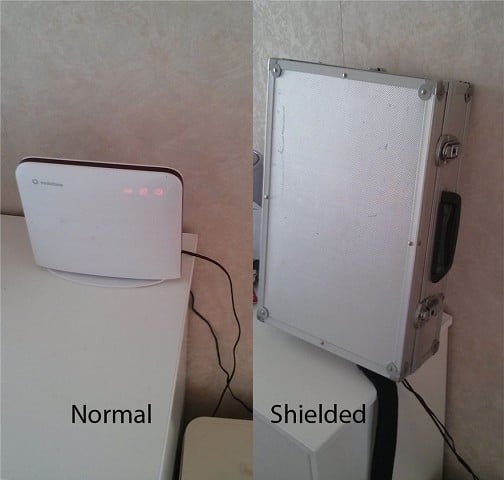

WiFi router with signal attenuated by a metal briefcase

WiFi router with signal attenuated by a metal briefcase

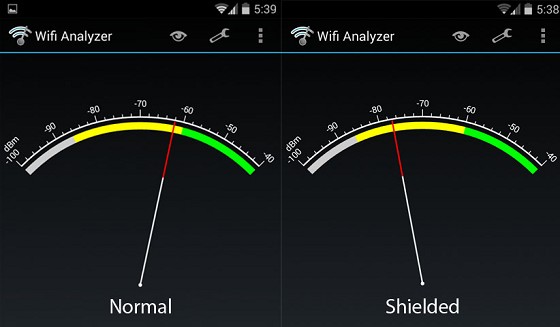

And the results at the far end of the house through two internal walls:

Relative WiFi signal strength

It definitely has a noticeable effect, so I'll try one of the suggestions above.

RunningMan

9185 posts

Uber Geek
+1 received by user: 4838

#956317 22-Dec-2013 21:29

Depending on your enclosure, it may have a glass door or ventilation holes etc which may let more signal through.

Oncop53

273 posts

Ultimate Geek
+1 received by user: 24

#989729 18-Feb-2014 15:57

Just an update on this, I decided to get a steel distribution box (Dynamix 28" Wall Mount Enclosure HWS-2803V_2) in the basement, and put the WiFi router up in the house as cyril7 suggested.

BTW when I did have the router in the box for the first few weeks before I completed by cabling, the WiFi was very weak as expected, but the DECT powered though and I got full signal upstairs.
