So I have a internal hard drive that I'm trying to turn into an external hard drive.

Its a Seagate hard drive:

http://www.impactcomputers.com/418264-001.html

I purchased a 2.5" sata external case but the ports don't match up with my hard drive so I can't plug it in. This is my first time trying this and I don't really know all the technical terms so I am pretty confused!

Please help!

1 | 2

1396 posts

Uber Geek
+1 received by user: 415

Trusted

Reply # 1022310 9-Apr-2014 17:41

One person supports this post

how you mean they dont match up?

cheap secure seedboxes

hio77

'That VDSL Cat'
6155 posts

Uber Geek
+1 received by user: 1153

Trusted

Spark

Subscriber

Reply # 1022311 9-Apr-2014 17:42

are you sure the enclosure you bought is a SATA enclosure and not an IDE?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

timmmay

12726 posts

Uber Geek
+1 received by user: 2056

Trusted

Subscriber

Reply # 1022312 9-Apr-2014 17:45

Check the hard drive height - 9.5mm vs 7mm. 80GB is a really small old drive, that could be part of the problem. This enclosure explicitly says it supports 7mm to 12mm drives, so should be ok. Though you can get a 500GB USB 3.0 drive for about $80 so honestly I don't think it's worth the money.

AWS Certified Solution Architect Professional, Sysop Administrator Associate, and Developer Associate
TOGAF certified enterprise architect
Professional photographer

jandals

10 posts

Wannabe Geek

Reply # 1022325 9-Apr-2014 17:58

I'm converting it because my laptop no longer works but I want to get the data off the hard drive.

Basically the part that connects the enclosure to the hard drive doesn't match up. I don't know what the technical term is sorry!

timmmay

12726 posts

Uber Geek
+1 received by user: 2056

Trusted

Subscriber

Reply # 1022330 9-Apr-2014 18:01

One person supports this post

There are better products for that. I can't remember the name of it, but I have a little kit that lets me plug into any SATA/IDE drive into a USB port. That's what would be more useful, enclosure size doesn't matter. Someone else can probably think of the name of that sort of product.

Google "SATA port" and "IDE port" and look at the images - sata is couple cm long, ide is more like 4cm long and is a lot larger in general. Let us know which one your drive looks like.

AWS Certified Solution Architect Professional, Sysop Administrator Associate, and Developer Associate
TOGAF certified enterprise architect
Professional photographer

hio77

'That VDSL Cat'
6155 posts

Uber Geek
+1 received by user: 1153

Trusted

Spark

Subscriber

Reply # 1022331 9-Apr-2014 18:03

jandals: I'm converting it because my laptop no longer works but I want to get the data off the hard drive.

Basically the part that connects the enclosure to the hard drive doesn't match up. I don't know what the technical term is sorry!

take a photo please :)

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

jandals

10 posts

Wannabe Geek

Reply # 1022337 9-Apr-2014 18:10

hio77: are you sure the enclosure you bought is a SATA enclosure and not an IDE?

Its definitely SATA. I looked up the code on the hard drive - it says its SATA in the link I posted.

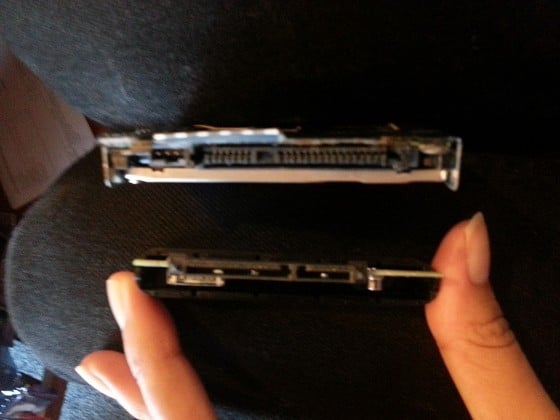

Here is a picture of what I was trying to say.

jandals

10 posts

Wannabe Geek

Reply # 1022351 9-Apr-2014 18:12

I'll try and take a better picture..

timmmay

12726 posts

Uber Geek
+1 received by user: 2056

Trusted

Subscriber

Reply # 1022358 9-Apr-2014 18:22

Please link to the case you purchased.

AWS Certified Solution Architect Professional, Sysop Administrator Associate, and Developer Associate
TOGAF certified enterprise architect
Professional photographer

jandals

10 posts

Wannabe Geek

Reply # 1022359 9-Apr-2014 18:24

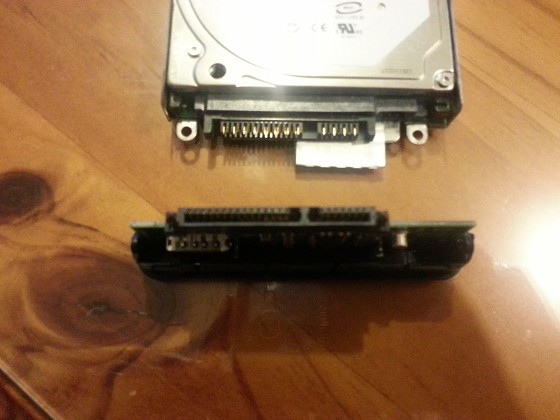

So the plugs/ports (whatever they are called) don't match up. Two of them look like they would fit but its slightly too big. The other plug/port is on the opposite side.

I don't have it upside down or anything - it just does not fit :(

l43a2

1396 posts

Uber Geek
+1 received by user: 415

Trusted

Reply # 1022361 9-Apr-2014 18:26

3 people support this post

it looks like the hard drive you have has some kind of adapter on it you may need to remove this.

cheap secure seedboxes

jandals

10 posts

Wannabe Geek

Reply # 1022362 9-Apr-2014 18:26

http://www.trademe.co.nz/computers/external-storage/external-hard-drives/auction-715733200.htm

Probably should have gone for a better quality one but I don't want to buy another and then have the same problem.

andrewNZ

1649 posts

Uber Geek
+1 received by user: 785

Reply # 1022363 9-Apr-2014 18:27

One person supports this post

Take the disk out of the caddy, I think it could have an adapter on it with real SATA connections behind.

Location: Dunedin

lxsw20

1989 posts

Uber Geek
+1 received by user: 579

Subscriber

Reply # 1022370 9-Apr-2014 18:42

One person supports this post

l43a2: it looks like the hard drive you have has some kind of adapter on it you may need to remove this.

Exactly, pull the adapter off the HDD, assuming you are putting a new HDD on the laptop you will need to put the adapter on the replacement HDD.

jandals

10 posts

Wannabe Geek

Reply # 1022374 9-Apr-2014 18:47

lxsw20:
l43a2: it looks like the hard drive you have has some kind of adapter on it you may need to remove this.

Exactly, pull the adapter off the HDD, assuming you are putting a new HDD on the laptop you will need to put the adapter on the replacement HDD.

Thanks! You were right there was an adapter on it - it fits in now. Hopefully it works!
