Any electricians around please?

Forums › Home Workshop DIY › Any electricians around please?

DarthKermit

5346 posts

Uber Geek
+1 received by user: 3317

Trusted

#146614 23-May-2014 17:56

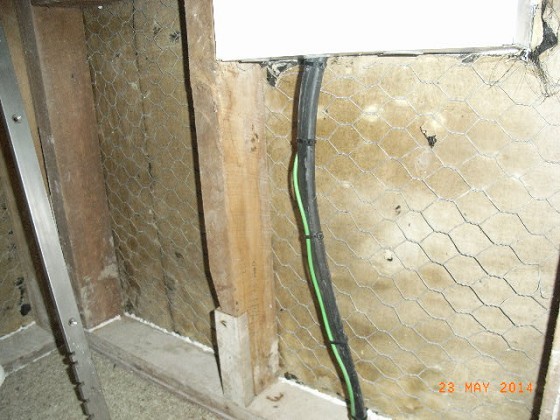

I'm installing insulation in a wall presently. The mains cable rises up and into the meter box as seen in the pic. I was wondering if I should leave a gap for heat dissipation around the cable? It's a standard 16mm2 type mains cable.

Whatifthespacekeyhadneverbeeninvented?

floydie

474 posts

Ultimate Geek
+1 received by user: 49

#1051850 23-May-2014 18:23

insulate right up to it. itll be fine

PhantomNVD

2619 posts

Uber Geek
+1 received by user: 759
Inactive user

#1051854 23-May-2014 18:41

Yup, any heat production on a 16mm cable means you have REALLY serious issues, and would be extremely rare... Fully insulate, you'll provide it more protection from your external heart than risk heat from the wire itself.

gzt

18672 posts

Uber Geek
+1 received by user: 7808

Lifetime subscriber

#1051884 23-May-2014 20:14

Depends what kind of insulation. If polystyrene - then you need a gap. Polystyrene reacts slowly with the cable insulation and eventually degrades and destroys it leading to fire etc.

Imho rockwool and glass fibre type insulation is chemically inert and not a problem afaik. Polyester? Don't know. I'm not an electrician so take that as imho.

DarthKermit

5346 posts

Uber Geek
+1 received by user: 3317

Trusted

#1051890 23-May-2014 20:23

I'm installing earth wool, which is similar to batts but not as itchy.

Whatifthespacekeyhadneverbeeninvented?

gzt

18672 posts

Uber Geek
+1 received by user: 7808

Lifetime subscriber

#1051899 23-May-2014 20:32

Combination rock and glass.
