Had this lying around for awhile not really sure how to assemble 100%

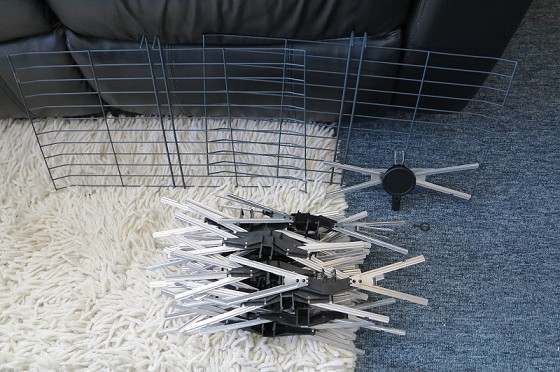

I have 22x elements and 1x element/balun.

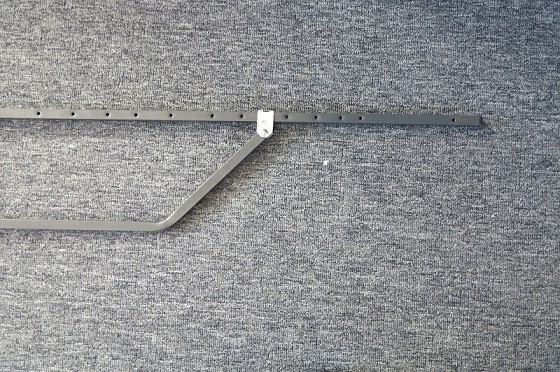

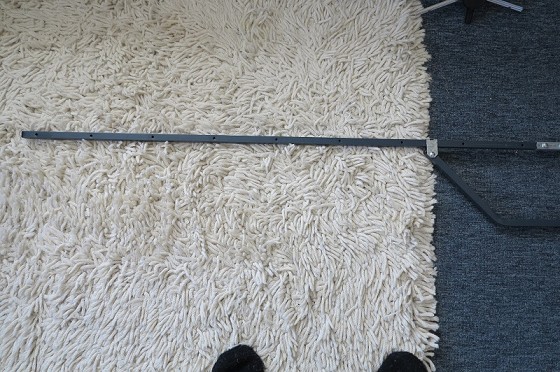

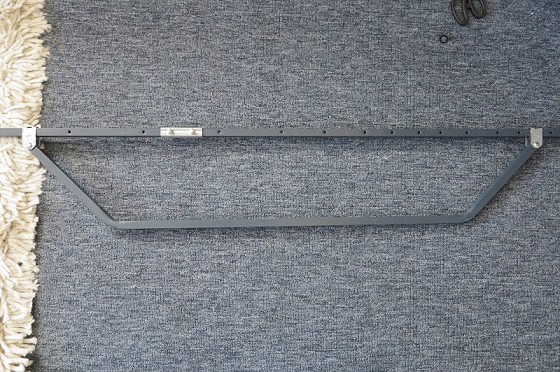

It's my best guess how I've connected it so far is correct although that bent bar could be more centred (I assume it doesn't matter where it's connecte) I know the elements simply snap in and the balun should be on the end that has the most holes (to the right) I have 24 holes so I'm unsure if I'm missing an element or not.. I also have a little black rubbery circle that can be seen beside the balun, no idea what that's for.
I'm also unsure how these reflectors are supposed to connect on the the shaft 'cos they just have hooks.
If anyone could advise or even send instructions for this it would be great, otherwise I guess I'll have to bin it.
I was told it was complete when I got it but it would seem at the very least I'm missing a screw and nut to hold the balun element in place.
Pics below. Thanks for any help you can give.
