Topic # 224383 15-Nov-2017 15:22
Send private message quote this post

I've recently replaced the towel rails in the bathrooms (see: Cowboy builders, previous messages), and in one of them need to put screws through the grout, which is backed by gib. Problem is I want to avoid drilling out a huge amount of grout to fix a wall anchor, I've got the screws into a stud on one side but the other side of the rail is nowhere near a stud. Before I resort to drilling a huge hole for an anchor, does anyone know of any anchorless screw attachment techniques? The universal advice is "use an anchor", but this is a situation where it's not terribly practical to put one in without drilling out an excessive amount of grout.





My ad hoc solution, which no doubt will be decried as cowboy work by the next owner, is to squirt in some silicone filler to hold the edges of the gib together and then put the screw through that, but I'm wondering if there's a better option.





Oh, it doesn't have to carry a large weight, the side that's screwed into the stud takes care of that, just not wobble or feel loose.

Create new topic

neb



417 posts

Ultimate Geek
+1 received by user: 54

Subscriber

  Reply # 1901355 15-Nov-2017 15:35
Send private message quote this post

Replying to my own question as a sample answer, the Cobra Triple Grip anchors are one example of a works-but-doesn't-work solution, you need to drill a 6.5mm hole for a 3.5mm screw. It's also not clear from the specs whether the depth of up to 16mm will deal with 10-13mm gib + tile/grout thickness.

2725 posts

Uber Geek
+1 received by user: 556


  Reply # 1901357 15-Nov-2017 15:39
Send private message quote this post

The side that is not going in to the stud will eventually become loose,  and the screw will probably work its way out,



- This could take years,  or if there are kids or other unforeseen pulls on the rail much, much quicker,



Tou can get some pretty low profile anchors these days,



Surely the fitting on the rail will cover any screw holes?
















neb



417 posts

Ultimate Geek
+1 received by user: 54

Subscriber

  Reply # 1901361 15-Nov-2017 15:43
Send private message quote this post

wellygary:

Surely the fitting on the rail will cover any screw holes?





Sure, there's enough coverage that I could probably put a dynabolt in it, however it's really flaky grout (cowboys again, I think they just mixed up a bag of sand and cement and went at it), and the bigger the hole, the more of it flakes and falls away. So it's not a visual problem, it's a structural one, I want to minimise the amount of grou^H^H^Hmortar I drill out.

2725 posts

Uber Geek
+1 received by user: 556


  Reply # 1901364 15-Nov-2017 15:52
Send private message quote this post

neb:
wellygary:



Surely the fitting on the rail will cover any screw holes?



Sure, there's enough coverage that I could probably put a dynabolt in it, however it's really flaky grout (cowboys again, I think they just mixed up a bag of sand and cement and went at it), and the bigger the hole, the more of it flakes and falls away. So it's not a visual problem, it's a structural one, I want to minimise the amount of grou^H^H^Hmortar I drill out.



Try to move the hole at the other 1-2cm ( and remain on the stud) and drill the tile?


neb



417 posts

Ultimate Geek
+1 received by user: 54

Subscriber

  Reply # 1901367 15-Nov-2017 15:58
Send private message quote this post

wellygary:

Try to move the hole at the other 1-2cm ( and remain on the stud) and drill the tile?





It's a complex mosaic, not fixed, flat tiles. Drilling into the mosaic fragments isn't an option...

mdf

1556 posts

Uber Geek
+1 received by user: 401

Trusted
Subscriber

  Reply # 1901455 15-Nov-2017 20:55
Send private message quote this post

Any chance you can make a hole on the other side of the wall? Say it's in a wardrobe or something?



Only other option that occurs to me is one of the 3M command range of products; I've been surprised at how much some of these hold.


Aussie
3961 posts

Uber Geek
+1 received by user: 1044

Trusted
Subscriber

  Reply # 1902467 15-Nov-2017 21:45
One person supports this post
Send private message quote this post

What about toggles?



(not these ones as they're countersunk, but you get the idea)



https://www.bunnings.co.nz/ramset-spring-toggle-countersunk-1-8-x-50mm-20pk_p00207454






1592 posts

Uber Geek
+1 received by user: 258

Trusted

  Reply # 1903171 17-Nov-2017 11:24
Send private message quote this post

Thought about using an epoxy based fastening ? Some like Selleys Knead-it  ?



Roughen up the tiles and grout - even some good deep scratches or holes on the tiles that will be covered by the rail fitting - you will need a good purchase for the epoxy to really adhere.





My thoughts are no longer my own and is probably representative of our media-controlled government


neb



417 posts

Ultimate Geek
+1 received by user: 54

Subscriber

  Reply # 1903232 17-Nov-2017 14:10
Send private message quote this post

SepticSceptic:

Thought about using an epoxy based fastening ? Some like Selleys Knead-it  ?

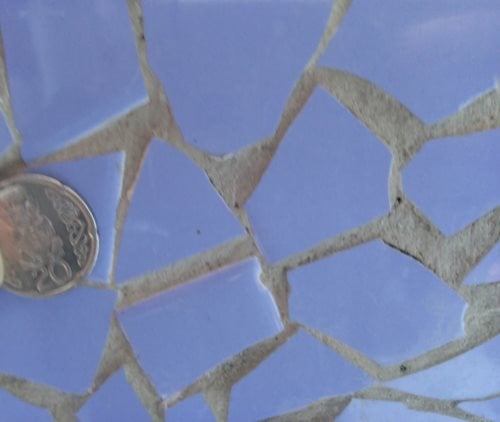

That was the thinking behind my silicone filler kludge, only the silicone is soft enough that I'm not driving the screw through epoxy. Here's a photo to provide a bit more perspective (note the tiny size of each fragment).









At the moment I'm leaning towards trying to drill the holes out a bit larger to fit the thinnest wall anchor I can find.

2261 posts

Uber Geek
+1 received by user: 225


  Reply # 1903329 17-Nov-2017 16:00
Send private message quote this post

If your preferred hole location coincides with a piece of tile you can get diamond core drills eg 6,8,10mm <$20 that would cut through the tile.

1592 posts

Uber Geek
+1 received by user: 258

Trusted

  Reply # 1903415 17-Nov-2017 19:12
Send private message quote this post

neb:
SepticSceptic:



Thought about using an epoxy based fastening ? Some like Selleys Knead-it  ?



That was the thinking behind my silicone filler kludge, only the silicone is soft enough that I'm not driving the screw through epoxy. Here's a photo to provide a bit more perspective (note the tiny size of each fragment).



At the moment I'm leaning towards trying to drill the holes out a bit larger to fit the thinnest wall anchor I can find.



If you squeeze epoxy into some drilled holes, say 50% larger than your fastening screws, you can easily drill into the set epoxy with your standard rail mounting fancy screws.



Quite a standard procedure for fastening boat decking accessories into wood / fibreglass.









My thoughts are no longer my own and is probably representative of our media-controlled government


neb



417 posts

Ultimate Geek
+1 received by user: 54

Subscriber

  Reply # 1903505 17-Nov-2017 22:58
One person supports this post
Send private message quote this post

SepticSceptic:

Quite a standard procedure for fastening boat decking accessories into wood / fibreglass.





Ah, interesting, didn't know about bonding fasteners... so it looks like a female threaded collar epoxied into the gib could do the trick, and I'll just put a machine screw into that.
