Question for those who know about ventilation systems (including pictures)

Forums › Home Workshop DIY › Question for those who know about ventilation systems (including pictures)

eon31337

20 posts

Geek

#243514 15-Dec-2018 13:15

We recently bought a 2 storey house with a DVS ventilation system in the roof, with piping down into the bottom floor.

The system appears to be defunct. I've tested all the temperature settings, and used a multimeter within the timer panel and it shows 240v so it looks like the system is powered.

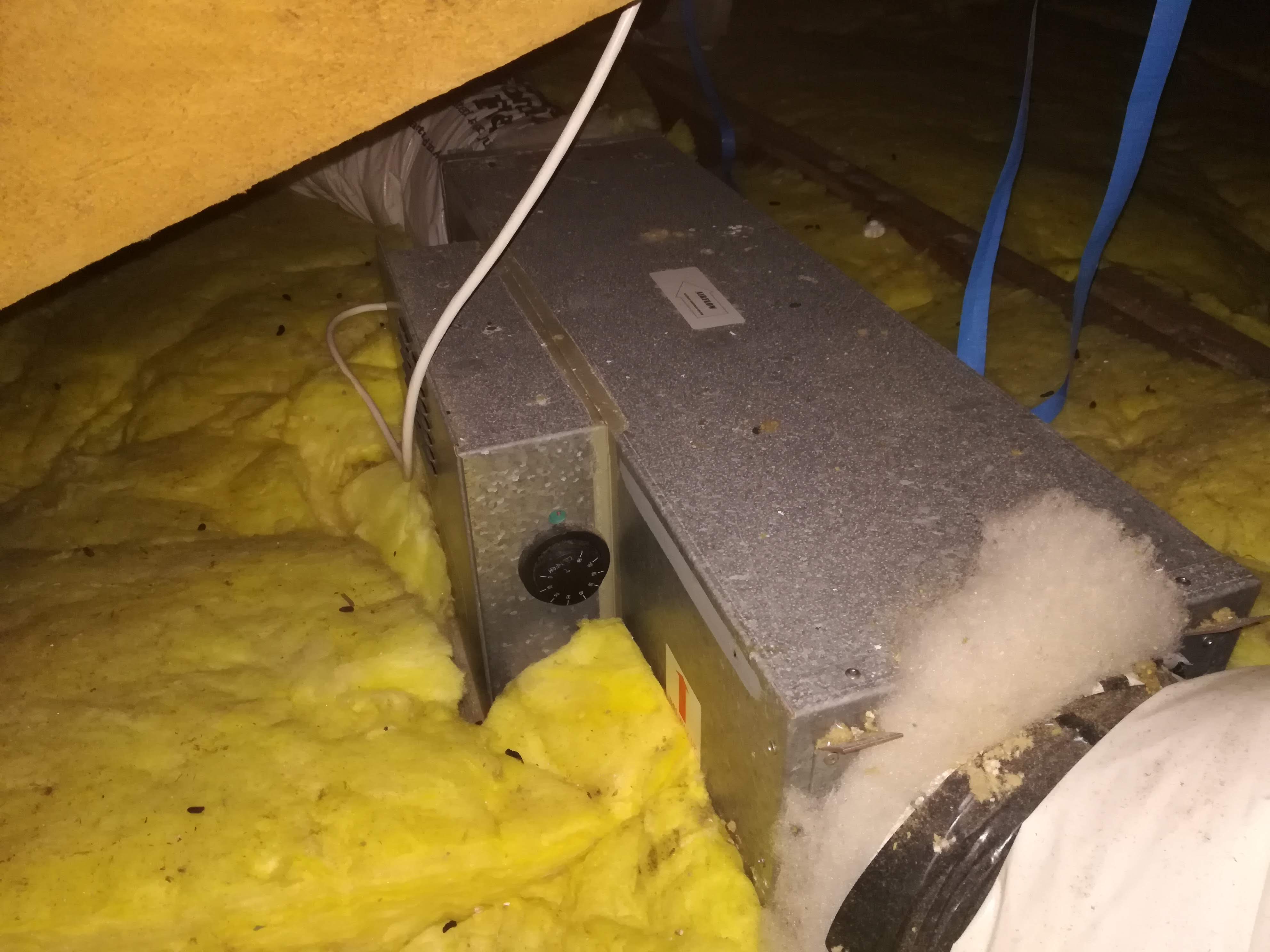

I've climbed up into the ceiling and everything appears to be in order. Although there is a fair amount of rat droppings.

It was installed by a company called In-Home Ventilation Ltd in Wellington, which appears to no longer exist.

Anyone have any ideas? Or is it best to get it checked by a specialist?

Any ideas appreciated.

nickb800

2735 posts

Uber Geek
+1 received by user: 829

Trusted

#2145755 15-Dec-2018 13:45

Have you switched the timer switch to 'manual'? (You probably have, but I have to ask...)

With a non-contact voltage detector, can you detect any voltage in the cable to the fan?

Final step would be to disconnect the fan cable and put a 3pin plug on it, then test with an extension lead (only if you're confident doing electrical work)

Assuming that you've found all of it, it's a pretty basic system - no thermostat - you have to manually flick the switch when the roof cools down

RunningMan

9184 posts

Uber Geek
+1 received by user: 4833

#2145771 15-Dec-2018 14:37

Sure it's not DVS? https://dvs.co.nz/ The sticker says DVS...

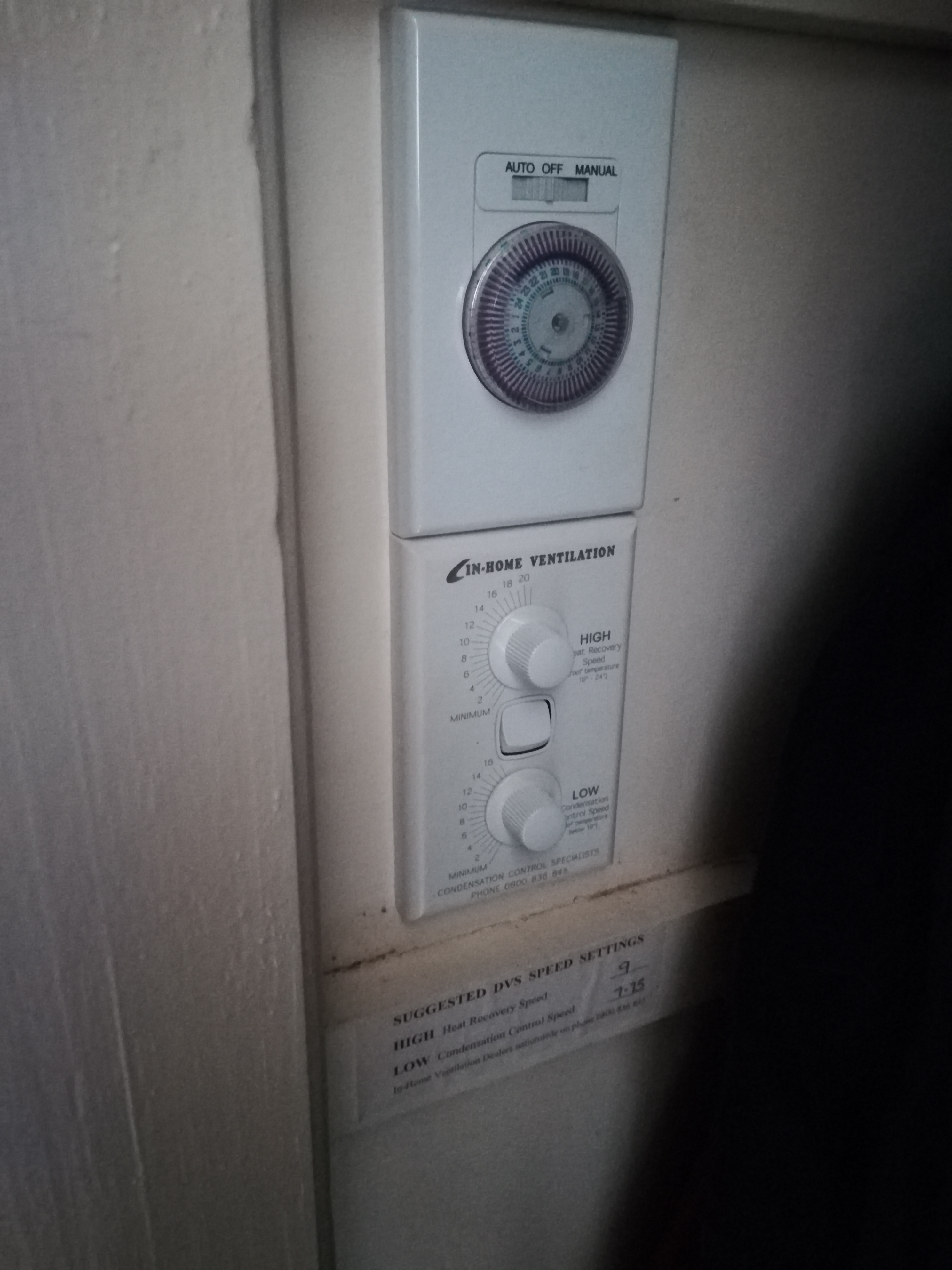

The top thing is a timer to set when the fan comes on and off - switching to manual should override so the fan is always on.

The bottom one seems to be two speed controls for the fan - unsure what the switch between them does - maybe switches between the two speeds?

Is there a thermal cutout or resettable breaker on the fan unit?

Hammerer

2480 posts

Uber Geek
+1 received by user: 802

Lifetime subscriber

#2145773 15-Dec-2018 14:52

"In-Home Ventilation" became DVS https://dvs.co.nz/ as shown here https://nz.linkedin.com/in/rebecca-shepherd-73010b18

eon31337

20 posts

Geek

#2145824 15-Dec-2018 15:15

Yes I've tryed all the different possibilities on the panels, plus the other panels in the ceiling, including the "therm" on the back of the unit. Seems to make no difference though.

I don't have a non-contact voltage detector unfortunately but that is a good idea. I'll ask around at work, possibly I can borrow one.

Also good point on a potential breaker. Haven't seen any obvious ones, but there could be. Would it be on the main unit?

sparkz25

750 posts

Ultimate Geek
+1 received by user: 284
Inactive user

#2145839 15-Dec-2018 16:05

flick it on to manual and check the voltage at the fan or the PCU, that will tell you if its the timer or any of that other stuff before the fan make sure you crank up the speed settings too, if theres no power are the fan, check the voltage going in to the speed control and out of the speed control

Gemini

429 posts

Ultimate Geek
+1 received by user: 23

#2145943 16-Dec-2018 07:23

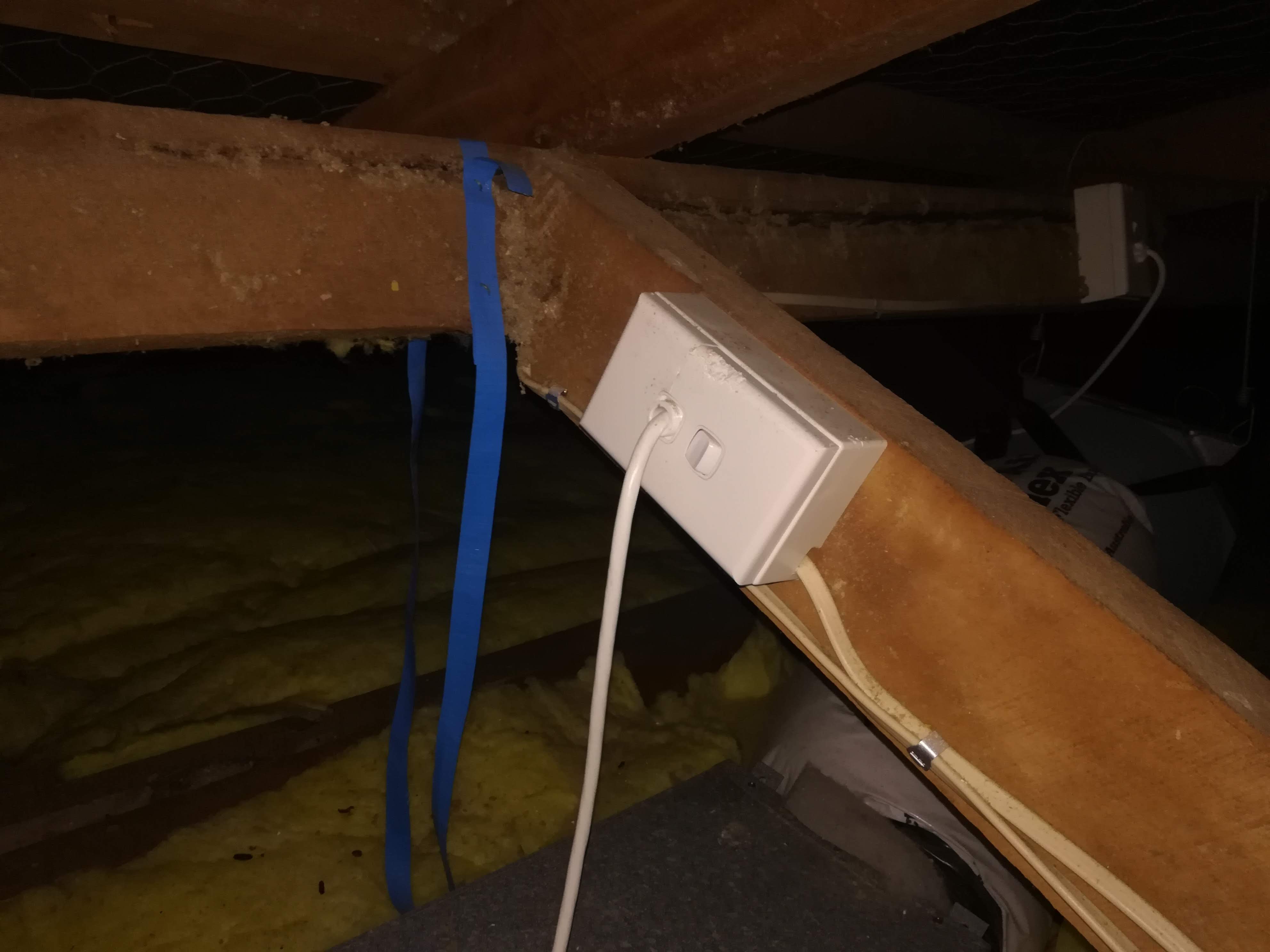

Hope the rat/s are gone as they've been chewing the top of the powerpoints!
You need to trap them as poison makes them thirsty and they'll gnaw through water pipes

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

andrewNZ

2487 posts

Uber Geek
+1 received by user: 1461
Inactive user

#2145991 16-Dec-2018 09:16

The fan will be stuffed.
