Just noticed we had an lpg leak last night, so I've turned off both our 45kg cylinders. We use gas for stove top and hot water.

The leak became apparent when the bottle selector switched over to the other bottle.

I'm not sure why it has occurred, if it was damaged with the bottle change or what?

Photos to follow. Just wondering if someone can tell me the replacement part. The fault is in the end of the hose that screws into the bottle. I swapped the bottles over and the fault moved to the new bottle so it's a problem with the hose connector not the bottle.

Photos to follow

HTPC / Home automation (home assistant) enthusiast.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267688 1-Jul-2019 10:43

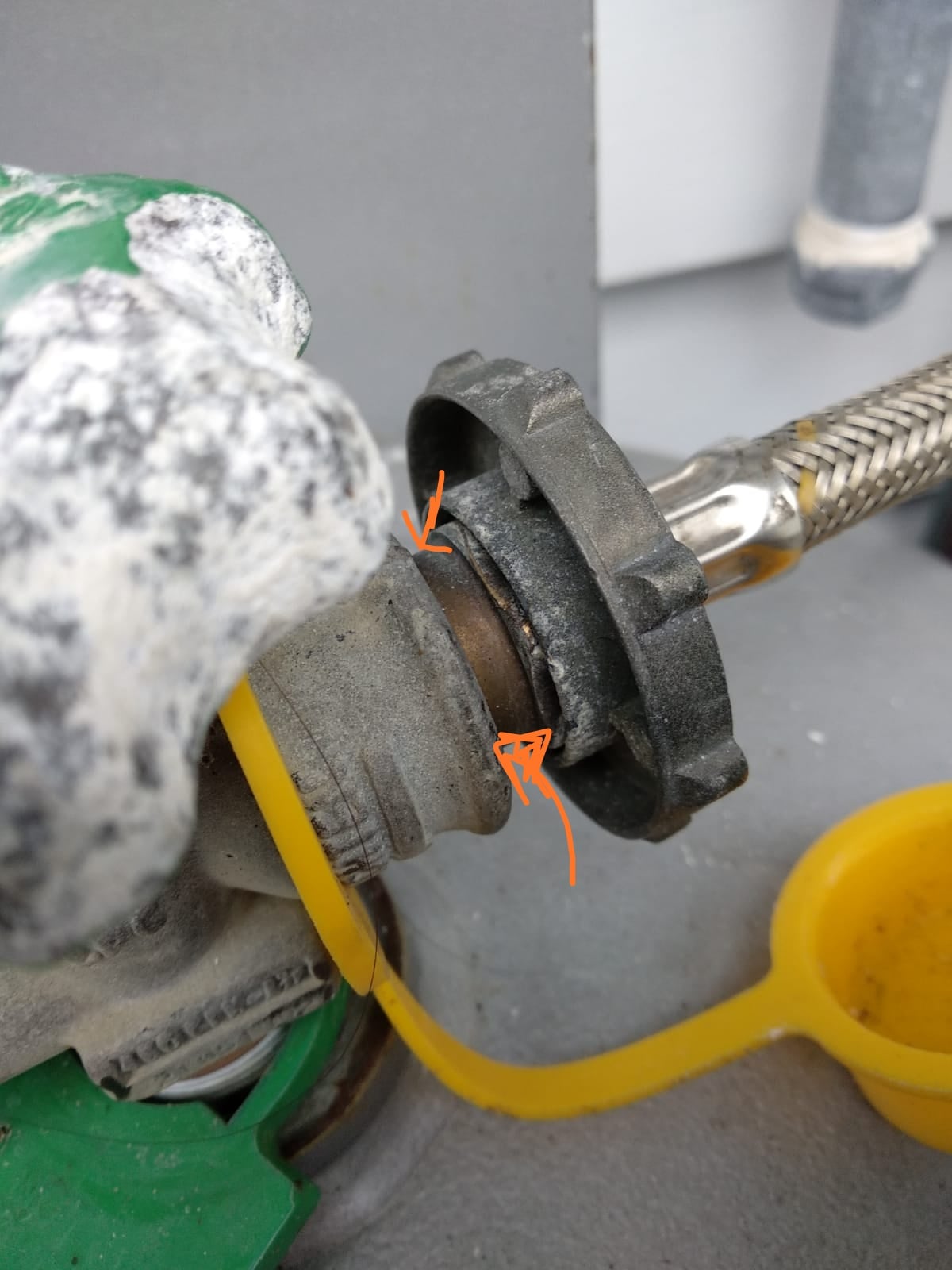

Gas leaking from where the screw in thread is. Haven't had time to have a good look for debri in the connection but seemed ok when had a quick look earlier.

HTPC / Home automation (home assistant) enthusiast.

Beccara

1473 posts

Uber Geek
+1 received by user: 517

ID Verified

#2267691 1-Jul-2019 10:46

Pigtail plug sounds iffy, I'd call a gasfitter in to look/replace. It shouldn't be too bad $$$ wise as pigtails aren't super pricey

Most problems are the result of previous solutions...

All comment's I make are my own personal opinion and do not in any way, shape or form reflect the views of current or former employers unless specifically stated

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267692 1-Jul-2019 10:46

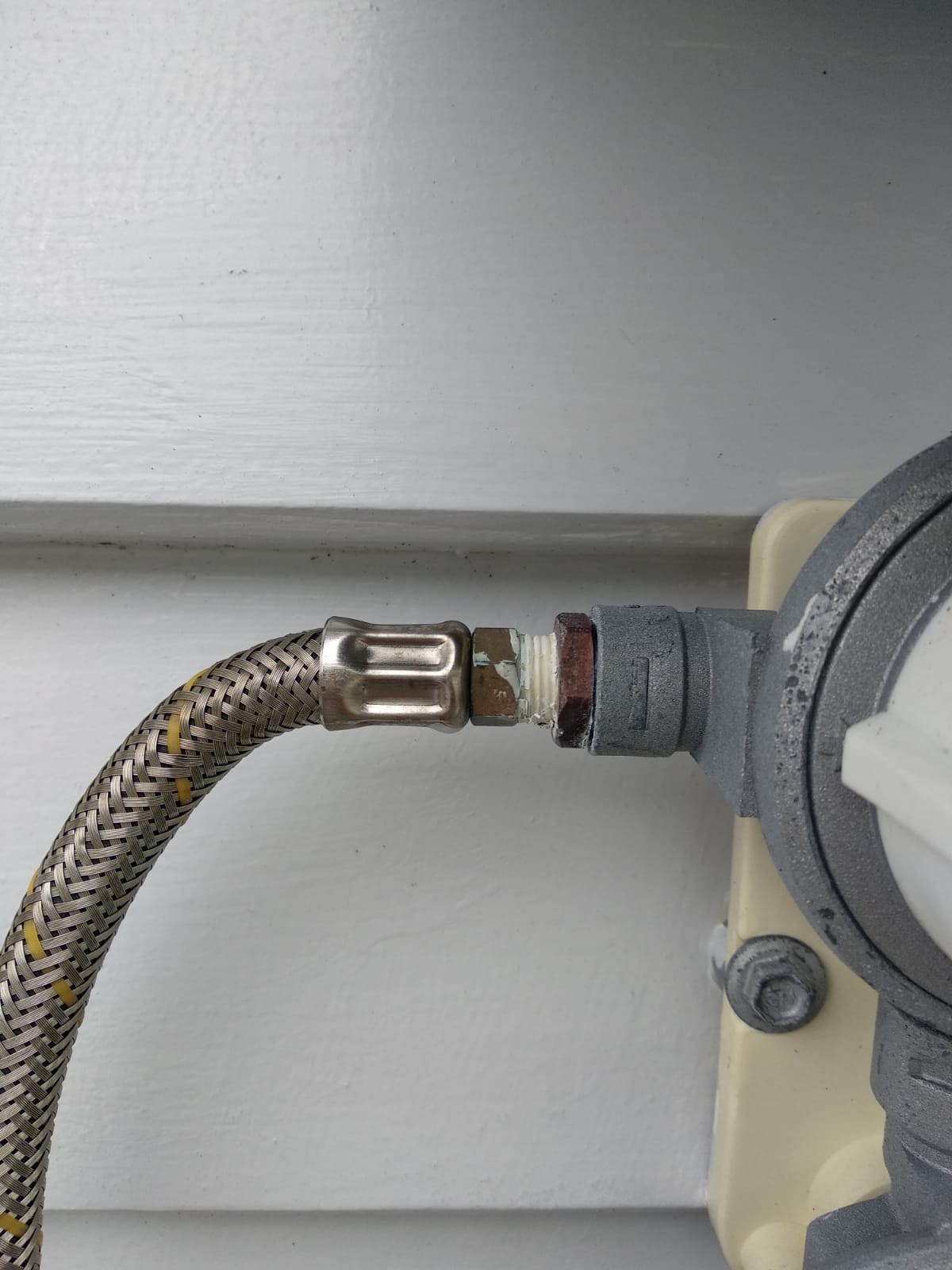

This is the other end of the hose.

HTPC / Home automation (home assistant) enthusiast.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267693 1-Jul-2019 10:48

Also does my bottle switcher function correctly.

This is the situation.

Left bottle full
Right bottle empty
Dial of automatic switcher pointing to left bottle.

Have a leak at the right empty bottle with the faulty pigtail.

HTPC / Home automation (home assistant) enthusiast.

outdoorsnz

694 posts

Ultimate Geek
+1 received by user: 303

ID Verified

#2267699 1-Jul-2019 11:14

Use soapy spray to be 100% sure where the leak is coming from.

But from your picture and arrow marks, it appears from the connection into the 45kg cylinder.

Then that would be a simple case of replacing the O-rings which are either perished or missing. When you screw the connection out, there is one on the end. Would pay to replace both connection O-rings. Left and right.

If in doubt, best bet to consult a gas fitter...

Aredwood

3885 posts

Uber Geek
+1 received by user: 1749

#2267702 1-Jul-2019 11:17

Turn off the gas, disconnect the hose. The O ring on the end of the pigtail will be damaged or missing.

Check that the pigtails are nice and flexible. If not, get a gasfitter to replace them.

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267756 1-Jul-2019 13:26

Thanks good idea.

I'll inspect each of pig tail and see if that faulty one is missing something.

HTPC / Home automation (home assistant) enthusiast.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267757 1-Jul-2019 13:30

I know where the leak was as when I put the bad connector on the filled bottle it's a really strong fast leak.

Are the bottle guys supposed to check there is no leak when they connect the bottles because the leak was really obvious and loud and blowing really hard.

HTPC / Home automation (home assistant) enthusiast.

Yogi02

241 posts

Master Geek
+1 received by user: 52

#2267766 1-Jul-2019 13:44

The only problem I have had has been with the spring ball valve thingy at the end of the screw thread on pigtail. The bit that goes into gas bottle.

I would disconnect the pigtail from the right/empty bottle - Is gas leaking from the end of pigtail?

Is the ball valve on tip stuck in/open or is it protruding/sealed. - Could be some crap or condensate holding it open?

Not a gas tech or anything, just things i have had to check before.

Good Luck

pinkydot

247 posts

Master Geek
+1 received by user: 38

#2267787 1-Jul-2019 14:45

I had mine changed recently about 2-3 months ago, ask a gas fitter to change pigtails.
The old pigtails been using for more than 10 year plus, the gas fitter said its wear & tear & old.
Even just one of the pigtails leak so decided to just change both so don't have to deal with the other one in the future.

It such a simple thing to do, get it connect and use soapy spray at the end & make sure no more leaks.
Since that's what the gas fitter do when he changed the old ones out. Too bad can't DIY.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267925 1-Jul-2019 19:50

How quickly is the gas regulator selector supposed to change from red to green when you change bottle?

HTPC / Home automation (home assistant) enthusiast.

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

Jase2985

13734 posts

Uber Geek
+1 received by user: 6209

ID Verified

Lifetime subscriber

#2267987 1-Jul-2019 20:36

you still havent told us how the o-ring is.

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2267998 1-Jul-2019 20:56

Only just got home now.

The o ring looks ok and the pig tail looks identical to the not leaking one. Have our plumber coming over Tuesday/Wednesday to check it over +- replacement.

HTPC / Home automation (home assistant) enthusiast.

FIFO

30 posts

Geek
+1 received by user: 6

#2271887 8-Jul-2019 15:15

I also need to replace a pigtail. Where can these be bought from?

kiwijunglist

2983 posts

Uber Geek
+1 received by user: 135

ID Verified

#2271901 8-Jul-2019 15:30

plumbing shops probably.
