Is this a car or bicycle tyre valve? Trying to work out how to inflate hand truck tyre

Forums › Home Workshop DIY › Is this a car or bicycle tyre valve? Trying to work out how to inflate hand truck tyre

timmmay

20858 posts

Uber Geek
+1 received by user: 5350

Trusted

Lifetime subscriber

#252924 17-Jul-2019 11:13

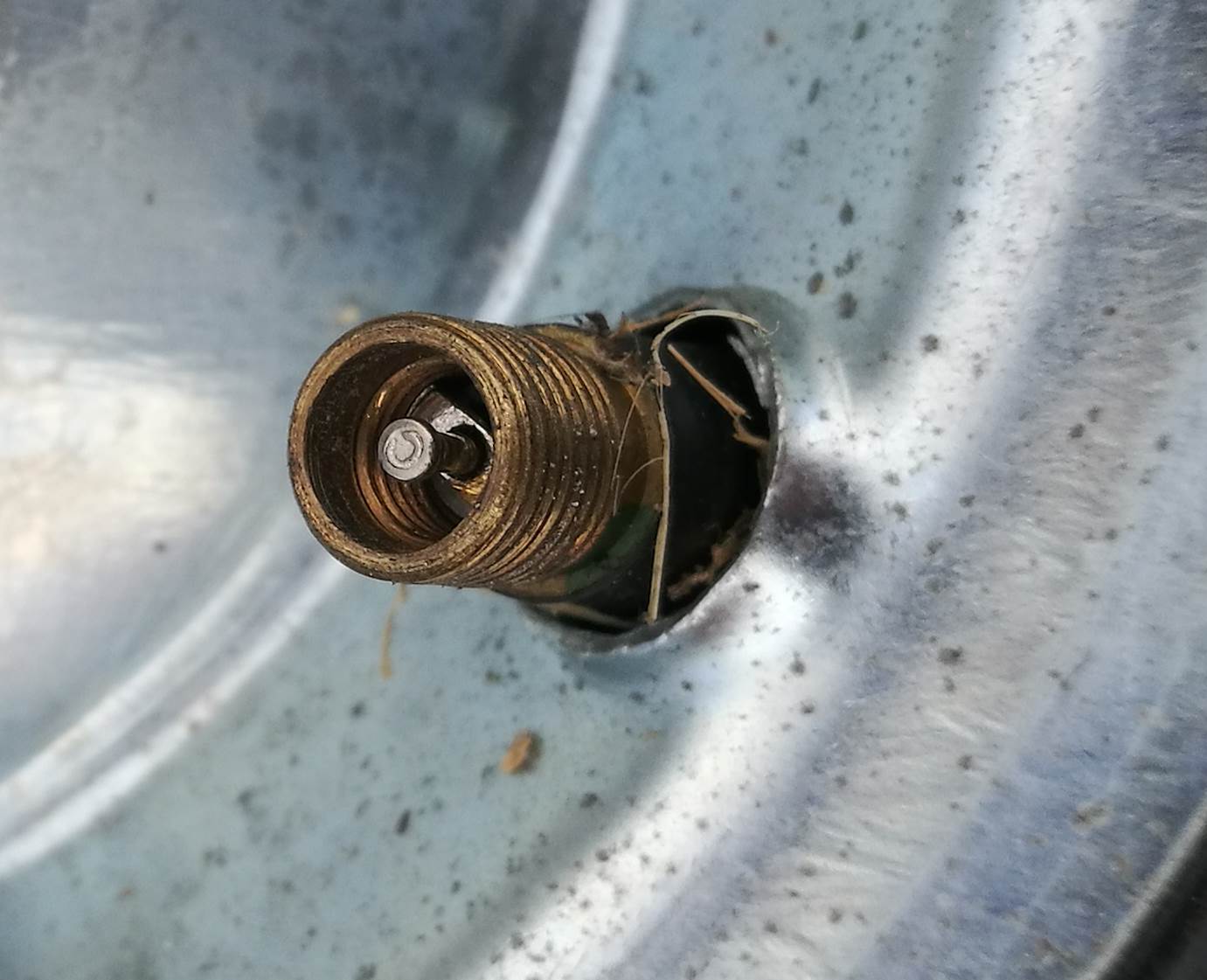

I got a Jobmate hand truck from Mitre 10. It works well, but the tyres are flat. I'm not sure if I can take it to a petrol station and inflate the tyres with their pump or if I need a bicycle pump. Pics below.

Anyone know? I googled it but couldn't find a way to tell the two apart. I know they're slightly different as you can't pump up bike tyres at the petrol station without an adapter.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2278202 17-Jul-2019 11:15

Its a normal car valve,

Cyril

Technofreak

6656 posts

Uber Geek
+1 received by user: 3474

Trusted

#2278205 17-Jul-2019 11:20

Looks like a car valve to me

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

timmmay

20858 posts

Uber Geek
+1 received by user: 5350

Trusted

Lifetime subscriber

#2278209 17-Jul-2019 11:26

Thanks! I'll take it over to the service station :)

Hammerer

2480 posts

Uber Geek
+1 received by user: 802

Lifetime subscriber

#2278281 17-Jul-2019 13:48

timmmay:

Anyone know? I googled it but couldn't find a way to tell the two apart. I know they're slightly different as you can't pump up bike tyres at the petrol station without an adapter.

It's a Schrader (lower pressure) valve which is the same on all my bicycles, my hand trucks/trolleys and my automobiles. No additional adapter is normally needed unless you have a Presta valve (high-pressure on racing bikes) or a Dunlop valve (the old ones we used last century).

timmmay

20858 posts

Uber Geek
+1 received by user: 5350

Trusted

Lifetime subscriber

#2278290 17-Jul-2019 13:50

Thanks - it's been a while but I found some things I pump up with a hand pump (which I don't have any more) don't work with a service station pump. Maybe things have changed, or I haven't recalled correctly.

cyril7

9073 posts

Uber Geek
+1 received by user: 2499

ID Verified

Trusted

Subscriber

#2278294 17-Jul-2019 13:56

Hi, that valve will most certainly work with a car pump at the garage, however if due to deflation, it has regressed into the rim then you may have trouble getting enough of the valve into the pump dispensing wand, you may need to pull it out of the hole somewhat. Also its possible that the tyre is flat is that there is a significant hole in the tube, and its letting air out as fast as you can get it in.

Cyril

Samsung

Shop now on Samsung phones, tablets, TVs and more (affiliate link).

Dial111

979 posts

Ultimate Geek
+1 received by user: 656

#2278297 17-Jul-2019 14:00

That's a TR13 rubber valve which is the most common valve, all threads are the same (universal) so any pump will do.

Dial111

979 posts

Ultimate Geek
+1 received by user: 656

#2278304 17-Jul-2019 14:07

cyril7:

Hi, that valve will most certainly work with a car pump at the garage, however if due to deflation, it has regressed into the rim then you may have trouble getting enough of the valve into the pump dispensing wand, you may need to pull it out of the hole somewhat. Also its possible that the tyre is flat is that there is a significant hole in the tube, and its letting air out as fast as you can get it in.

Cyril

Pliers to pull on the stem just to get enough bite for the clip-on chuck on the pump should suffice, either that or a cheap plastic valve extension from BNT will sort it out.

If the tube is punctured then I would recommend replacing with a bent metal valve, that valve hole on the rim looks like it needs a clean too.

timmmay

20858 posts

Uber Geek
+1 received by user: 5350

Trusted

Lifetime subscriber

#2278316 17-Jul-2019 14:44

All done, worked fine at the service station. Yes it was very flat, I had to push my thumb against the base of the valve from the other side of the tyre so I could get enough pressure to inflate it. Next time I won't let them get quite so low before I pump them up!

Bung

6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

#2278428 17-Jul-2019 16:01

Some garage air pumps squirt air in then adjust down to setting. Small capacity tubes can be popped.

Doghouse

1 post

Wannabe Geek

#2278812 18-Jul-2019 11:32

Use a lower PSI with these, otherwise you could find the tire pops off the bead.

Also, if you can not get a service station connection into the wheel you have to use the old school hand pump (with flexible connector). It’s a pain - they should install valves that have a bend so they are easy to get to.

Quic Broadband

Move to New Zealand's best fibre broadband service (affiliate link). Free setup code: R587125ERQ6VE. Note that to use Quic Broadband you must be comfortable with configuring your own router.

timmmay

20858 posts

Uber Geek
+1 received by user: 5350

Trusted

Lifetime subscriber

#2278892 18-Jul-2019 12:51

24psi at the service station worked fine thanks Doghouse. The tyres were marked 25psi max.
