I am running out of power plugs in my bedroom.



How hard is it to buy a 4 way room wall socket and replace the existing 2 way?



PS, can't use BBCode to save myself...


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3 | 4
354 posts

Ultimate Geek

Lifetime subscriber

  #2520601 10-Jul-2020 10:15
Send private message quote this post

Just pickup a 4 socket power extension lead from your nearest hardware store.


1427 posts

Uber Geek

Trusted

  #2520606 10-Jul-2020 10:24
Send private message quote this post

it's easy, but I guess it won't fit in the existing space, so you'll need to cut gib/wall anything else that is there and so on.





helping others at evgenyk.nz








2203 posts

Uber Geek


  #2520614 10-Jul-2020 10:36
Send private message quote this post

kobiak:



it's easy, but I guess it won't fit in the existing space, so you'll need to cut gib/wall anything else that is there and so on.









I did this some years back. It did fit , as is .
The extra length was external to the gib/wall .


4782 posts

Uber Geek


  #2520617 10-Jul-2020 10:43
Send private message quote this post

Just be aware, its fine if you are running phones chargers, radios etc,



Don't expect to be able to run another 2 2400W fan heaters, :),






1004 posts

Uber Geek


  #2520621 10-Jul-2020 10:50
Send private message quote this post

Yep, and you are even allowed to do this yourself as long as you own and live in the house - you should know what you are doing though of course. If you aren't sure, don't touch it.







Just get the suitable orientation power point - if your current one is vertical, then you want to get a vertical 4 way board, if it's horizontal, then get a horizontal one. It should be a straight swap that way.

One of these.



https://www.electricaldirectltd.co.nz/product/2275-HPM-Excel-Life-4-Gang-Powerpoint-10A



https://www.electricaldirectltd.co.nz/product/2006-PDL-Quad-Horizontal-10Amp-Switched-Socket



https://www.electricaldirectltd.co.nz/product/2003-PDL-Quad-Vertical-10Amp-Switched-Socket


















23463 posts

Uber Geek

Trusted
Subscriber

  #2520654 10-Jul-2020 11:41
Send private message quote this post

Depends on how the old double is mounted. If its got a flushbox or C clip then youre fine. If its direct fixed to the wall then you may have to sort out new fastenings for the new 4/5 way powerpoint. I have replaced most in my garage with 5 way deta ones from bunnings over the worksurfaces because its neater than mounting powerstrips with the resulting cable they have. All good sofar.





Richard rich.ms

111 posts

Master Geek


  #2520715 10-Jul-2020 12:51
Send private message quote this post

rogercruse:



Just pickup a 4 socket power extension lead from your nearest hardware store.









100% this. If you run out again you can even buy a 6 way board. As mentioned above though, don't overload it. It's still only rated to what, like 2400W?










107 posts

Master Geek


  #2520724 10-Jul-2020 13:05
Send private message quote this post

Not keen on external power strip. I want it to look tidy. I appreciate that the load will be restricted to about 2,000 watts
















1004 posts

Uber Geek


  #2520729 10-Jul-2020 13:09
Send private message quote this post

I don't think there is an Iconic surface mount, pretty sure they are all flush. Unsure how this mounts with a flush box attached next to a stud.

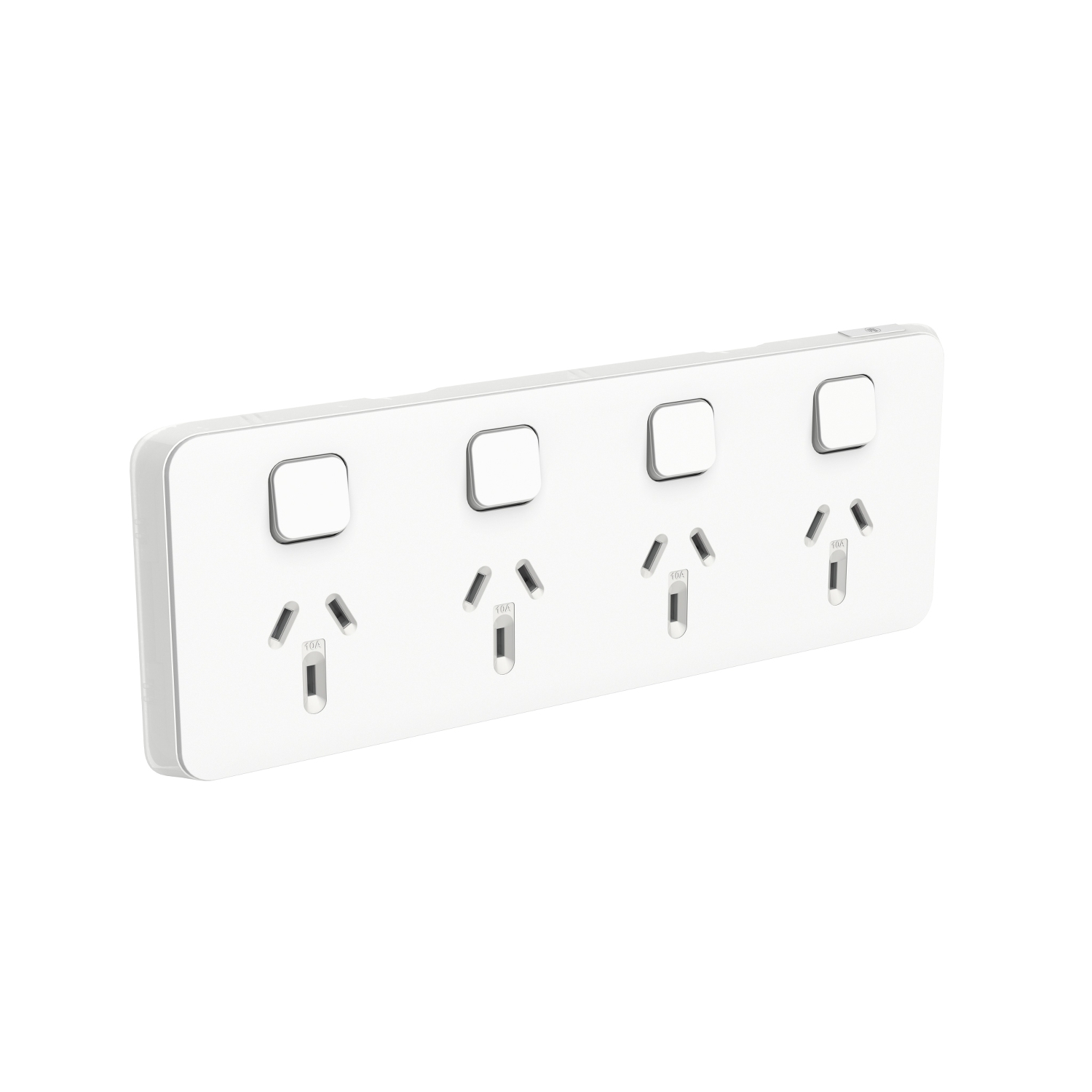

https://eref.se.com/au/en/pdl/product-pdf/PDL395H4-VW



https://download.schneider-electric.com/files?p_Doc_Ref=PDL395H4-VW&p_File_Type=rendition_1500_jpg











Found this image - so looks like it won't mount in a normal flush box at all. Not actually sure how you are supposed to mount that really?



https://cdn.shopify.com/s/files/1/0063/3287/4804/products/PDL395H4_2048x2048.jpg?v=1527297802







Edit again - here you go







https://www.se.com/nz/en/faqs/FA305634/













Depending on which side of the stud that current one is mounted to, you might not have enough room there?
























107 posts

Master Geek


  #2520731 10-Jul-2020 13:14
Send private message quote this post

The fittings are part of the pdl iconic range...



Looks like I have to buy the front piece and a backing piece and perhaps hack a bigger hole in the wall.




1004 posts

Uber Geek


  #2520735 10-Jul-2020 13:18
Send private message quote this post

Yes. But check my above post edit in regards to mounting.







I did just find a mounting block for these.

https://www.se.com/nz/en/product/PDL395H4MB-VW/mounting-block-iconic-quad-socket%2C-push-in-function%2C-white/







But that's not an awesome solution as you'd still have one end only screwed into gib.






3114 posts

Uber Geek


  #2520758 10-Jul-2020 13:42
Send private message quote this post

This one https://www.bunnings.co.nz/deta-white-quad-outlet-powerpoint_p0310450
Is a 4 port outlet that goes over a regular sized flush box.
So you won't have to change the box bit in the wall.




Nothing is impossible for the man who doesn't have to do it himself - A. H. Weiler


111 posts

Master Geek


  #2520788 10-Jul-2020 14:07
Send private message quote this post

Stick with Clipsal / PDL and not Bunnings spec stuff.



That trademe link looks what you need. As mentioned one screw will just have to go into gib. So just use a suitable screw in wall anchor. Not a major as unless you have off the socket, it will hold solid.




107 posts

Master Geek


  #2520790 10-Jul-2020 14:11
Send private message quote this post

OP here.







I will have a good prod at the fitting tonight. The cover is supposed to come off these PDL iconic range sockets as far as i can see.



Hopefully all I then needs are these two parts







PDL395H4-VW



PDL395H4XXUAG







...and bob's my uncle.







PS, in the garage I have 2 * 6 way extension plug things mounted above the workbench (with 3d printed retaining fittings). It's amazing how many plugs you need.



Thanks everyone for the help.







Next project, add some bluetooth dimmers.
