Which adaptor/coupler to buy to connect an existing garden hose to a pressure washer/water blaster

Forums › Home Workshop DIY › Which adaptor/coupler to buy to connect an existing garden hose to a pressure washer/water blaster

billgates

4705 posts

Uber Geek

Trusted

#280086 25-Nov-2020 14:13

Hello folks,

I have purchased a pressure washer/water blaster locally. I am trying to connect the pressure washer with our existing garden hose. I have had this garden hose for few months purchased from Amazon US. The hose has 2 different connections on each end. The photos of hose's connection is below. The female end fits the outside tap on house wall fine directly but I am using these quick disconnect adaptors in front of it to quickly remove the hose and move it to another outside tap if need be.

Fittings specs for host is listed as 3/4 in. - 11 1/2 GHT

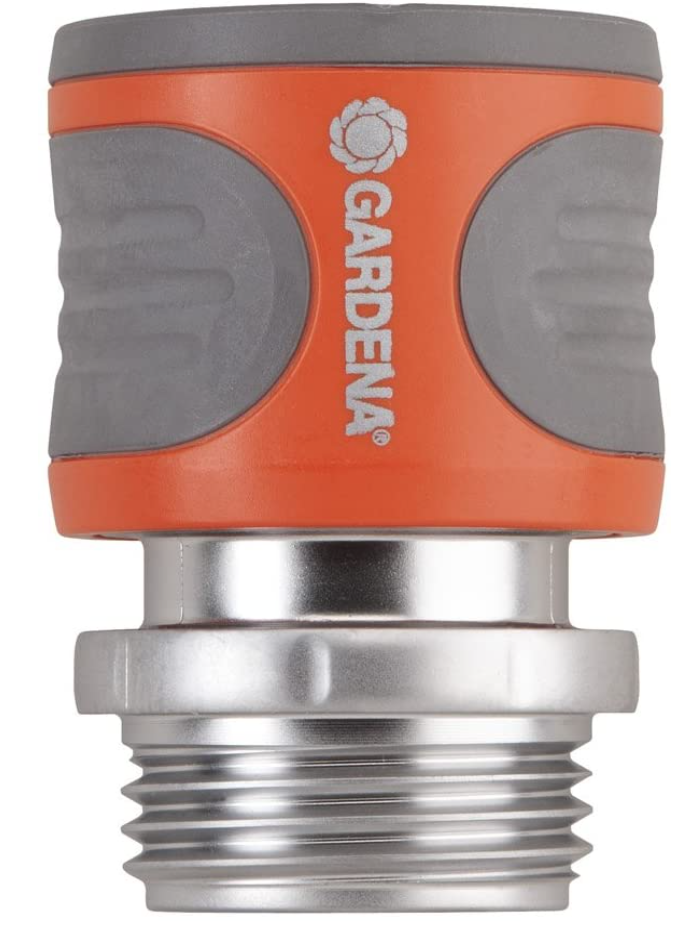

The adaptor below is what I connect to tap first.

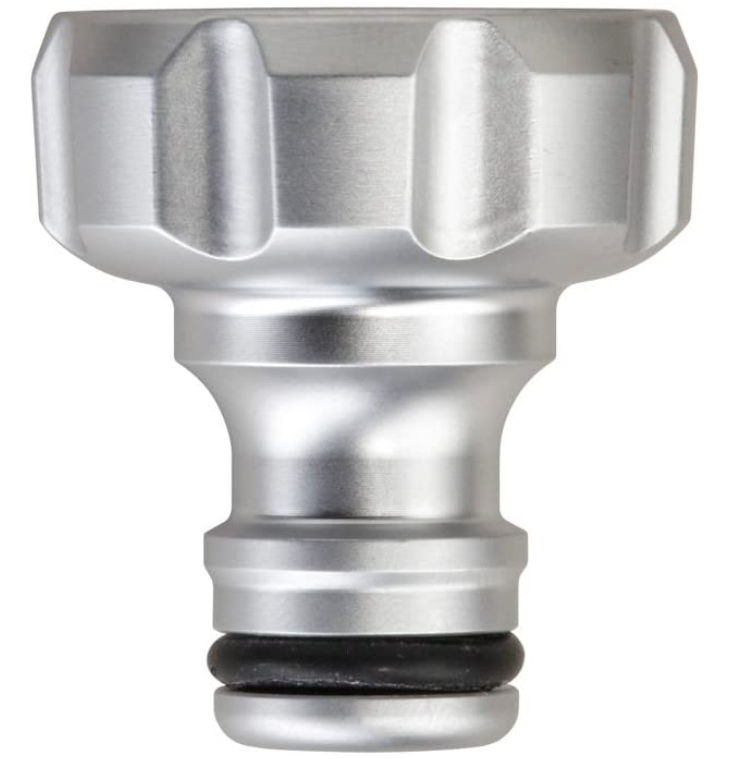

The quick release adaptor below is what I then connect to above adaptor and then screw in the female end of hose above into other end of this adaptor.

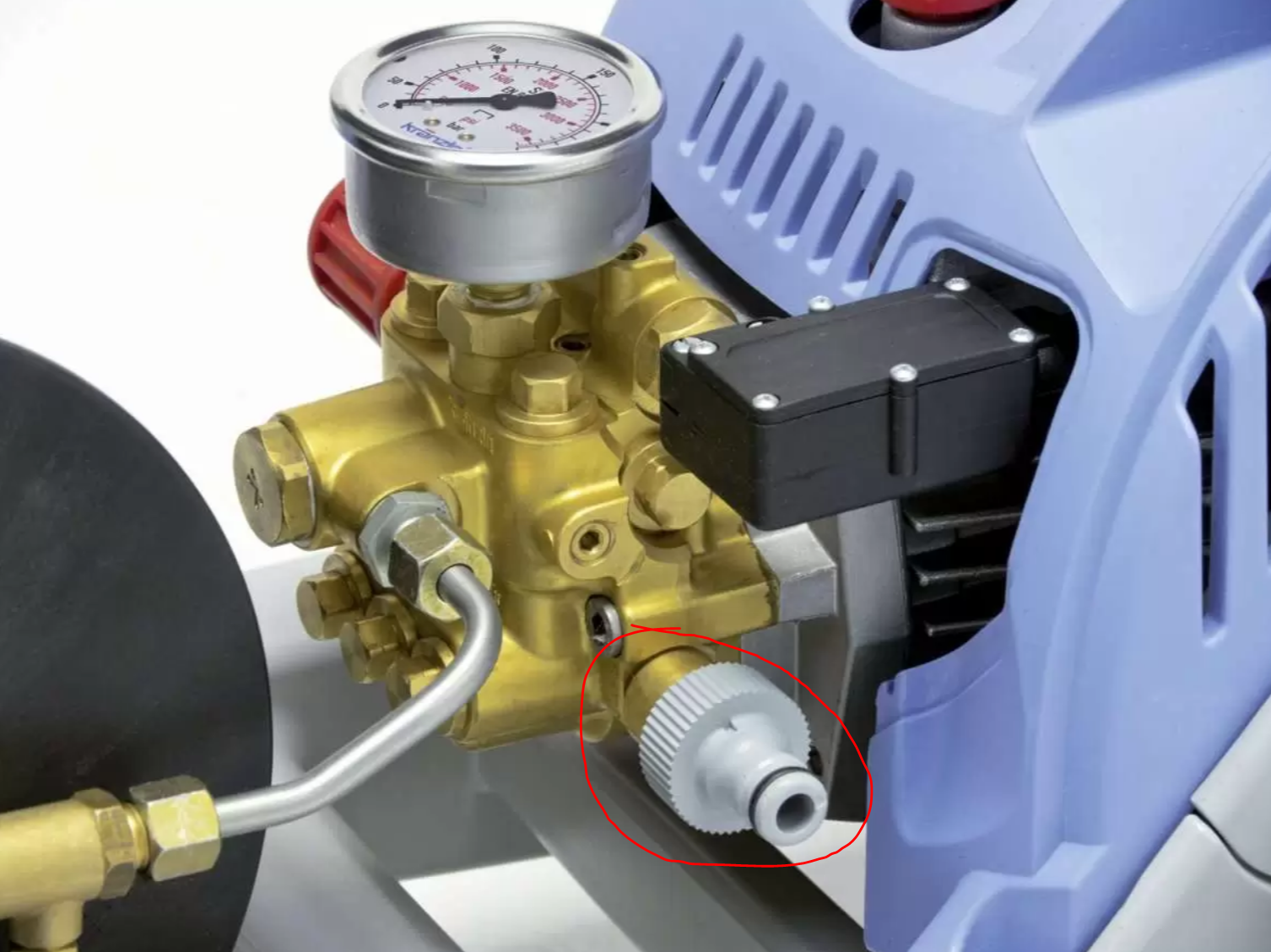

The problem is the other end of the hose which has the male connection. The end of the pressure washer for water inlet connection is also a male connection. I can fit the quick release adaptor to the water inlet connection on the pressure washer ok. Issue is no connectivity between the quick release adaptor 'pointy' end and the male end of the hose. Below is the photo that shows the quick release adaptor screwed into the male end of the water inlet on the pressure washer.

I went down to the local Mitre10 with the quick release adaptor as the male end of this adaptor is same size as male end of the hose and I would have thought you can buy a female to female coupler but nope nothing like this exists in Mitre10 and they were also stumped.

Any adaptors or couplers or other suggestions that you can provide besides buying a new hose? I have 4 of these same hoses so I really do not want to ditch them because they are good quality that do not kink or tangle on me.

Do whatever you want to do man.

nitro

656 posts

Ultimate Geek

#2610547 25-Nov-2020 14:22

what is your water blaster?

the karchaer i have has the 'tap adapter' (your 2nd photo) connected to its water inlet, which means the garden hose adapter (your 3rd photo) just snaps on to it... i connect a normal hose sprayer when i'm not using the water blaster.

perhaps you just need to remove that 'male' connector at the other end of your hose and replace it with the female/quick-release one. that's what i have on both ends of the hose.

ghettomaster

387 posts

Ultimate Geek

#2610560 25-Nov-2020 14:31

A double ended hose connector is what you want. Something like this.

https://www.bunnings.co.nz/holman-12mm-double-ended-hose-end-connector_p3130593

There’s a few other options around if you google it. Unfortunately I can’t vouch for the quality of the brands I saw. Maybe give Gardena a call if that’s what you’re after. Otherwise Placemakers and Bunnings seem to have them.

The other options is just to get a short bit of hose and put two female adapters on it.

larknz

1688 posts

Uber Geek

ID Verified

Lifetime subscriber

#2610562 25-Nov-2020 14:32

How about trying something like this

https://www.mitre10.com.au/garden-maintenance/hose-fittings-accessories/hose-fittings-connectors/neta-plastic-hose-reel-connector-set-12mm

billgates

4705 posts

Uber Geek

Trusted

#2610571 25-Nov-2020 14:49

nitro:
what is your water blaster?

the karchaer i have has the 'tap adapter' (your 2nd photo) connected to its water inlet, which means the garden hose adapter (your 3rd photo) just snaps on to it... i connect a normal hose sprayer when i'm not using the water blaster.

perhaps you just need to remove that 'male' connector at the other end of your hose and replace it with the female/quick-release one. that's what i have on both ends of the hose.

Hi. It is Kranzle 2160TST linked below. The end connectors on the hoses are permanently installed. I guess one option is for me to cut the hose where the male connector on the hose ends and attach one of those female quick release one's.

Can you please link me the female quick release adaptor in question as I also have a hose sprayer (female end) that I currently have the male end of the hose connected into it's bottom and I would like to continue using the hose sprayer when need be.

https://www.kranzle.co.nz/shop/High+Pressure+Cleaning/High-Pressure+Cleaner-4.html

Do whatever you want to do man.

billgates

4705 posts

Uber Geek

Trusted

#2610578 25-Nov-2020 14:55

ghettomaster: A double ended hose connector is what you want. Something like this.

https://www.bunnings.co.nz/holman-12mm-double-ended-hose-end-connector_p3130593

There’s a few other options around if you google it. Unfortunately I can’t vouch for the quality of the brands I saw. Maybe give Gardena a call if that’s what you’re after. Otherwise Placemakers and Bunnings seem to have them.

The other options is just to get a short bit of hose and put two female adapters on it.

Thanks. This certainly is an option and should work. The male end of the hose threads into the adaptor in my 1st photo ok and I have a spare one of this adaptor so I can use the double ended hose end connector you have linked between the pressure washer's 'pointy' end and the other end of the double ended adaptor. I swear I did not find this in Mitre10 so bunnings it is.

Do whatever you want to do man.

billgates

4705 posts

Uber Geek

Trusted

#2610580 25-Nov-2020 15:00

larknz:
How about trying something like this

https://www.mitre10.com.au/garden-maintenance/hose-fittings-accessories/hose-fittings-connectors/neta-plastic-hose-reel-connector-set-12mm

Thanks. This will work too. I tried to search for this in Mitre10 NZ website but nothing found. The double ended quick release coupler linked above sounds like is best solution and reasonably priced.

Do whatever you want to do man.

compound

88 posts

Master Geek

#2610822 25-Nov-2020 20:52

Just as a note, the hoses you bought are 3/4 in. - 11 1/2 GHT which is not 3/4" BSP (or NPT) as commonly found on garden hose fittings in NZ. Though the thread diameter is the same the pitch is different so any NZ purchased fittings will bind up early before bottoming out on the seal. The quick coupling side is compatible though. I do supply some GHT fittings in NZ but not the one I think you would need for your hose setup to work easily.

Equinox IT

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

Technofreak

6530 posts

Uber Geek

Trusted

#2610833 25-Nov-2020 21:53

compound:

Just as a note, the hoses you bought are 3/4 in. - 11 1/2 GHT which is not 3/4" BSP (or NPT) as commonly found on garden hose fittings in NZ. Though the thread diameter is the same the pitch is different so any NZ purchased fittings will bind up early before bottoming out on the seal. The quick coupling side is compatible though. I do supply some GHT fittings in NZ but not the one I think you would need for your hose setup to work easily.

Ahhh the pit falls of buying some stuff on the internet. It's all the same but then not quite.

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

billgates

4705 posts

Uber Geek

Trusted

#2610835 25-Nov-2020 22:05

compound:

Just as a note, the hoses you bought are 3/4 in. - 11 1/2 GHT which is not 3/4" BSP (or NPT) as commonly found on garden hose fittings in NZ. Though the thread diameter is the same the pitch is different so any NZ purchased fittings will bind up early before bottoming out on the seal. The quick coupling side is compatible though. I do supply some GHT fittings in NZ but not the one I think you would need for your hose setup to work easily.

Thanks for this information. I was unaware of the pitch being different. I did also purchase the metal Gardena fittings that I showed in photos above from Amazon US as well at same time as the hose so guessing long term these should work ok without wearing out quick but yeah I will be buying that double quick coupling fitting from Bunnings tomorrow and give the cars, deck and concrete driveway incl footpath a good clean.

Do whatever you want to do man.

Technofreak

6530 posts

Uber Geek

Trusted

#2610842 25-Nov-2020 22:26

High pressure cleaners are good, BUT they can do some damage if you're not careful. I've seen them blast the sand out of concrete leaving a rough surface where there was a smooth surface beforehand and seen them roughen up a timber deck surface if too much pressure is used.

On a building they can force water into places water wouldn't normally get to.

I don't know what your experience is with a water blaster but care is needed with them otherwise you may damage the surface you're trying to clean, but then you may know all about that and I'm telling you how to suck eggs.

Sony Xperia XA2 running Sailfish OS. https://sailfishos.org The true independent open source mobile OS
Samsung Galaxy Tab S6
Dell Inspiron 14z i5

billgates

4705 posts

Uber Geek

Trusted

#2610850 25-Nov-2020 22:50

I appreciate the advice and yep I have watched number of videos in past 2 weeks that I have to be careful on the deck (expensive timber), car (paint), outside wall cladding (bricks have vent gaps at bottom) and driveway (sealed plain concrete). You can adjust the pressure on this specific pressure washer as well as use different style of lances with different swappable nozzles that also control the pressure.

Do whatever you want to do man.

Jase2985

13457 posts

Uber Geek

ID Verified

Lifetime subscriber

#2610871 26-Nov-2020 06:51

you have brought a non standard hose.

pretty much everything in NZ is designed to be Female to Female (each end of the hose) and all the fittings (tap end and attachments) are male.
