I have had a camera mounted outside for a long time and recently decided to get it going with the new Synology Surveillance Station included in SynOS7

It's mounted on the overhang of our roof (real term escapes me) and the entire picture seems like it's rotated 90 degrees the wrong way. I can't see anyway to get the live play back the right way up. Also, I thought it was colour, but it's only displaying in B&W

The model is IPC-HDBW2421R-ZS/VFS

I thought I'd also fimwware update it, but there are two on offer;

DH_IPC-HX1X2X-Themis_EngSpn_N_Market_V2.620.0000004.0.R.191130

DH_IPC-HX1X2X-Themis_Eng_P_Market_V2.620.0000004.0.R.191130

Lastly, is it usual to set up to record for 1 minute or something from motion detection to save space?

Thanks for any tips or tricks.

Oblivian

7345 posts

Uber Geek
+1 received by user: 2117

ID Verified

#2744222 14-Jul-2021 18:22

Soffit :P

If it's anything like the other backdoor manufacturers. Some come with international (english) firmware, and then chinese. And often the backdoor ones are chinese, hacked up to be english and can brick if you use the factory ones.

User be warned if it was an import model :)

You should be able to remote config it via browser/IP or using a onvif app to do rotation/adjustments

Jiriteach

1139 posts

Uber Geek
+1 received by user: 373

ID Verified

Trusted

Lifetime subscriber

#2744223 14-Jul-2021 18:26

You'll be able to rotate the picture ones you are in to the admin interface.
Can you bring up the web admin interface? From there you should be able to see the exact version of installed firmware as well.

-- opinions expressed by me are solely my own. ie - personal

networkn

Networkn
32876 posts

Uber Geek
+1 received by user: 15477

ID Verified

Trusted

Lifetime subscriber

#2744236 14-Jul-2021 18:54

Device Type IPC-HDBW2421R-ZS
Software Version 2.600.0005.0.R, Build Date: 2016-12-19
WEB Version 3.2.1.407703

I got it from a NZ Distributor (CDL) a few years ago.

I guess its a case of working out what region falls under, P or N

Jiriteach

1139 posts

Uber Geek
+1 received by user: 373

ID Verified

Trusted

Lifetime subscriber

#2744238 14-Jul-2021 18:58

networkn:

Device Type IPC-HDBW2421R-ZS
Software Version 2.600.0005.0.R, Build Date: 2016-12-19
WEB Version 3.2.1.407703

I got it from a NZ Distributor (CDL) a few years ago.

I guess its a case of working out what region falls under, P or N

Difference in firmware is NTSC vs PAL since this camera comes in NTSC and PAL versions. Once would think you have the PAL version so -

DH_IPC-HX1X2X-Themis_Eng_P_Market_V2.620.0000004.0.R.191130

-- opinions expressed by me are solely my own. ie - personal

clinty

1201 posts

Uber Geek
+1 received by user: 402

Lifetime subscriber

#2744240 14-Jul-2021 19:04

Jiriteach:

networkn:

Device Type IPC-HDBW2421R-ZS
Software Version 2.600.0005.0.R, Build Date: 2016-12-19
WEB Version 3.2.1.407703

I got it from a NZ Distributor (CDL) a few years ago.

I guess its a case of working out what region falls under, P or N

Difference in firmware is NTSC vs PAL since this camera comes in NTSC and PAL versions. Once would think you have the PAL version so -

DH_IPC-HX1X2X-Themis_Eng_P_Market_V2.620.0000004.0.R.191130

That makes sense - i just did a quick search and found i have only ever download the P version of Dahua - couldn't tell you why tho lol

Clint

Gordy7

gordy7
2001 posts

Uber Geek
+1 received by user: 505

ID Verified

Lifetime subscriber

#2744247 14-Jul-2021 19:27

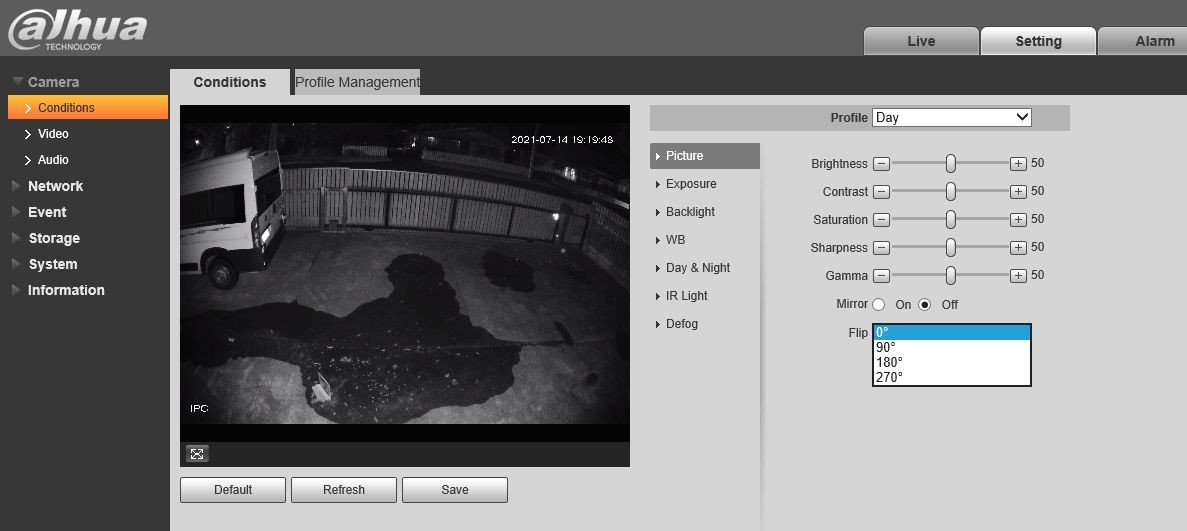

Check out Dahua camera - conditions, setting.... The Flip drop down on my camera allows 90 degree settings...

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.

Mighty Ape

Shop now at Mighty Ape (affiliate link).

networkn

Networkn
32876 posts

Uber Geek
+1 received by user: 15477

ID Verified

Trusted

Lifetime subscriber

#2744877 15-Jul-2021 22:54

Gordy7:

Check out Dahua camera - conditions, setting.... The Flip drop down on my camera allows 90 degree settings...

Thanks. Mine has 0 and 180? I think the specs above indicate I should be able to rotate it 0-355 degrees, but wondering why I can't from either the camera Web interface or Synology Station either....
