#290162 25-Oct-2021 08:07
Send private message

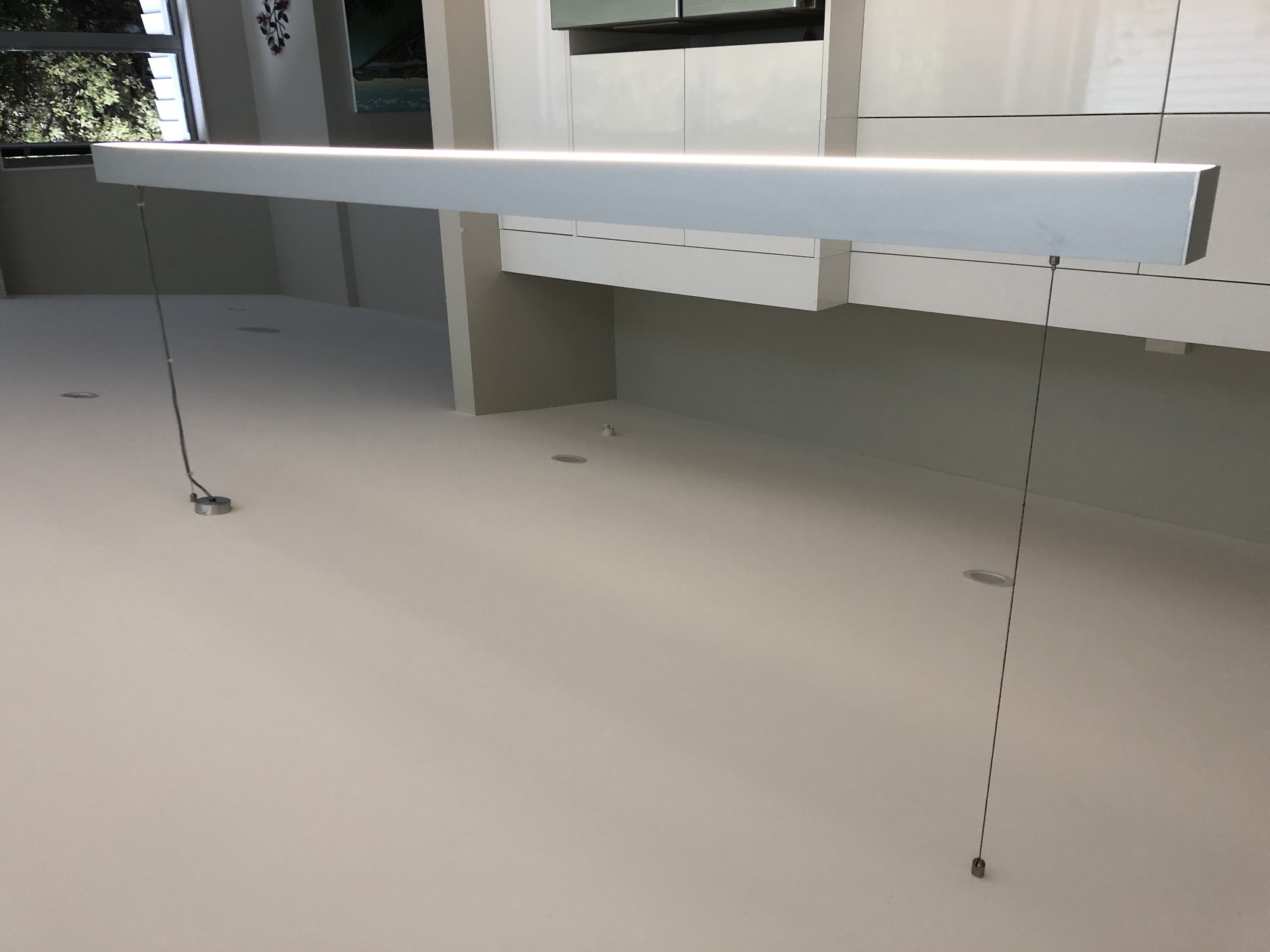

We have a 2.3m LED pendant light bar over an island bench in our kitchen. It’s six years old and is not heavily used - average about an hour once or twice a week - under 1,000 hours in total.



A week or so ago it just went off and wouldn’t respond to the wall switch. Then it suddenly came on the next morning. It did the same thing last night and this morning. It’s currently working but unreliable and clearly faulty.



I would be grateful for comment and advice on diagnosing and fixing it. I’m hoping the LEDs themselves are OK and there’s a problem with the driver. Is that likely? I have googled without success for info on all this.



I’m guessing that the driver is likely to be the ceiling - accessible via the circular ceiling boss visible on RH side of the photo. i.e. in the ceiling rather than inside the square casing of the light itself?



If it’s the driver, am I likely to be able to buy a replacement? Not necessarily an original part - but one with the same specs read from the case of the original.



I haven’t got the ladder out and investigated yet - was hoping to get some comments here first. This may be simple or obvious to some but it's not something I'm familiar with.



Thanks.











Sometimes I just sit and think. Other times I just sit.


Create new topic
timmmay
20857 posts

Uber Geek
+1 received by user: 5349

Trusted
Lifetime subscriber

  #2800577 25-Oct-2021 08:29
Send private message

I've had a bunch of LEDs stop working at 8-10 years old recently, in each case it was the driver. Either get up into the ceiling or look in that hatch, take a photo of the driver, find the specs, and see if you can get a replacement driver. If so it's an easy fix, if not you'll have to replace the light. In my case the LED strip used a common driver and was easily replaced, the downlights which were from the early days of LEDs used an odd voltage and couldn't be replaced so I had to replace five downlights. LED lights are heaps cheaper than they used to be, with good warranties. Brands like Switch and Halcyon.




gregmcc
2173 posts

Uber Geek
+1 received by user: 836

ID Verified
Trusted
Lifetime subscriber

  #2800631 25-Oct-2021 10:16
Send private message

Would bet the driver is in the fitting, not in the ceiling. There should be a name plate on the top of the fitting that should give you a clue on the details.


Daynger
444 posts

Ultimate Geek
+1 received by user: 313


  #2800632 25-Oct-2021 10:18
Send private message

I can guarantee the driver will be in the fitting, thats a 230v connection on the ceiling.



Also the driver is the most likely cause of the fault.




SomeoneSomewhere
1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

  #2800745 25-Oct-2021 13:28
Send private message

Honestly it could be either, but I would guess fitting based on the size of it.







You should be able to pull an end cap off and remove the diffuser.


eracode

Smpl Mnmlst
9331 posts

Uber Geek
+1 received by user: 6198

ID Verified
Trusted
Lifetime subscriber

  #2800746 25-Oct-2021 13:41
Send private message

Thanks all - appreciated. Tomorrow morning's task - no need to rush these things in lockdown.





Sometimes I just sit and think. Other times I just sit.


robbyp
1199 posts

Uber Geek
+1 received by user: 8


  #2800933 25-Oct-2021 17:56

I have something that looks similar and the driver is in the fitting (down the extruded aluminum bar). Hopefully it will just be a simple driver replacement, they are quite pricey. I would go back to retailer too about it as it shouldn't have failed after that amount of time with such little use. At that length I am guessing it was between $500-1000







Shop now on Samsung phones, tablets, TVs and more (affiliate link).
richms
29097 posts

Uber Geek
+1 received by user: 10205

Trusted
Lifetime subscriber

  #2800938 25-Oct-2021 18:10
Send private message

It will be in the fitting for sure. Non standard connections like drivers in cieling space etc are a no-deal for most builders since they're commiting to the light type before lining the place, and when people build off the plans and then bail on it they have to change the design to be more marketable if the first buyer has made any changes.





Richard rich.ms

robbyp
1199 posts

Uber Geek
+1 received by user: 8


  #2800948 25-Oct-2021 18:57

richms:



It will be in the fitting for sure. Non standard connections like drivers in cieling space etc are a no-deal for most builders since they're commiting to the light type before lining the place, and when people build off the plans and then bail on it they have to change the design to be more marketable if the first buyer has made any changes.









Some of the thinner fittings have the driver as an ugly  box sitting on the ceiling, like this one https://lightingdirect.co.nz/termini-1200-led-pendant-blk/ . .
But I am 100% sure this is the same or very similar fitting to the one I have and it is in the fitting, which is one reason I specified it.


MadEngineer
4591 posts

Uber Geek
+1 received by user: 2570

Trusted

  #2800961 25-Oct-2021 19:44
Send private message

Looks like SPEND40-600 or SPEND40-1500




You're not on Atlantis anymore, Duncan Idaho.

pipe60
129 posts

Master Geek
+1 received by user: 33


  #2801015 25-Oct-2021 20:00
Send private message

Worth checking for a loose wire as well.


mattwnz
20515 posts

Uber Geek
+1 received by user: 4795


  #2801069 25-Oct-2021 20:44
Send private message

MadEngineer: Looks like SPEND40-600 or SPEND40-1500


I think it is wider than that. Looks very similar the ones sold by Lightplan.co.nz
