Hi -

Ive installed a gas stovetop with a 9kg LPG bottle. All gaswork done by licensed gasfitter. I am told the outside gas bottle needs weather protection for the sign-off - has anyone DIY'ed this (or repurposed something else)? The specifically designed ones look lovely but cost $$$ - the gas bottle isnt very visible so I'd prefer a cheaper solution.

Create new topic
dimsim
867 posts

Ultimate Geek
+1 received by user: 151

Trusted
Lifetime subscriber

  #3102723 11-Jul-2023 13:18
Send private message

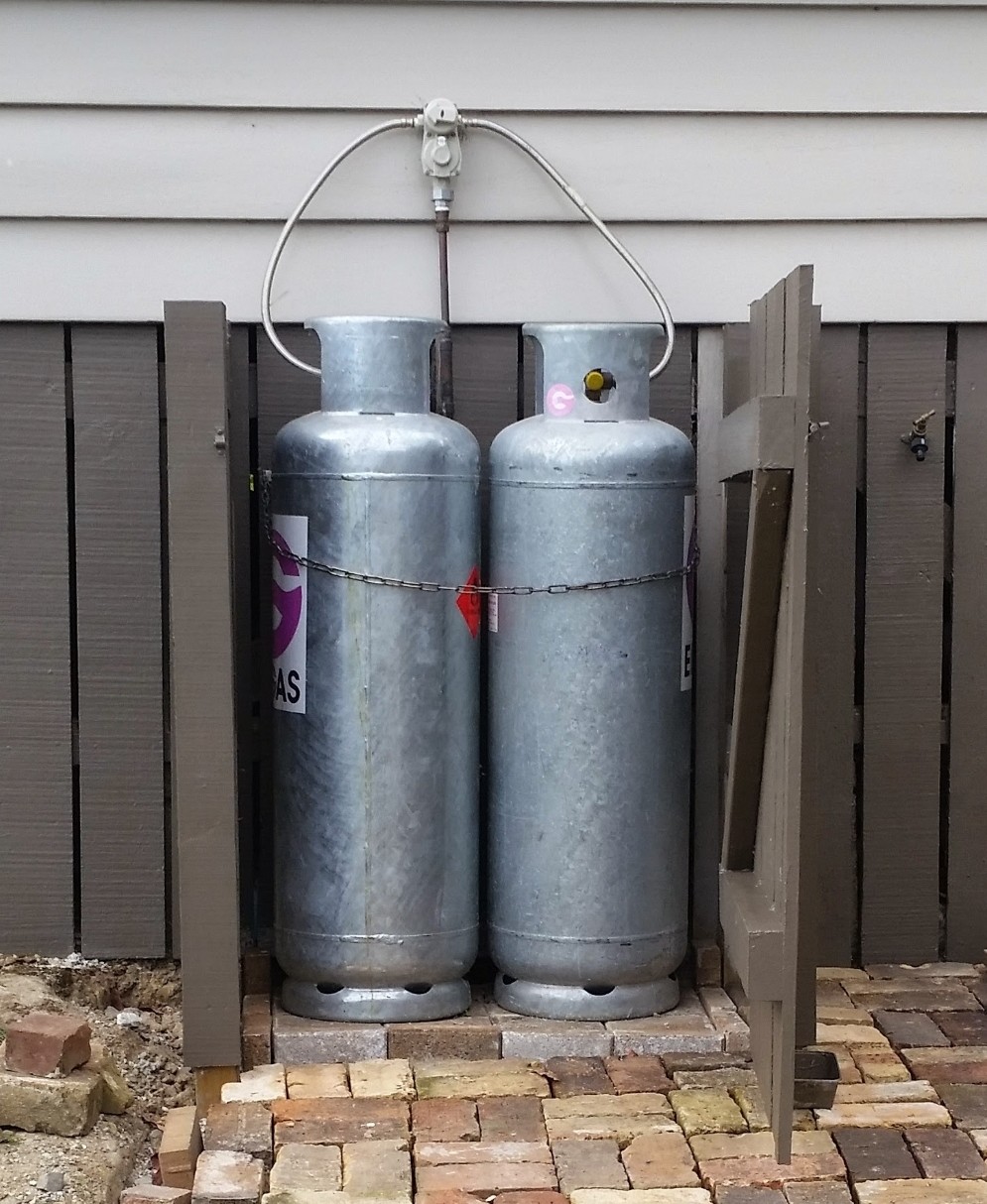

I have a twin pack of 45kg Cyclinders which dont have any weather protection, other than the regulator/tank switch thing which has a very basic rain shield. This is the way all twin pack cylinder that i have seen are installed. I dont see why a 9kg bottle would require weather protection but I may be wrong. The installation was re-certified maybe 18 months ago also. Only the adjacent underhouse vents needed to be sealed as part of that certification.






SATTV
1670 posts

Uber Geek
+1 received by user: 657

ID Verified

  #3102724 11-Jul-2023 13:22
Send private message

My inlaws just have a plywood box to cover theirs, I dont even think they have any vent holes.



I will check next time I am over.



Put the vent holes at the bottom as the gas is heavier than air if there is a leak.



John





I know enough to be dangerous


Rikkitic
Awrrr
19062 posts

Uber Geek
+1 received by user: 16302

Lifetime subscriber

  #3102730 11-Jul-2023 13:56
Send private message

I don't know if the law has changed in this regard. Our 9kg cooking gas was also installed by a licensed fitter several years ago and is outside near the wall with no protection. I didn't know it was supposed to have any.













Plesse igmore amd axxept applogies in adbance fir anu typos









panther2
385 posts

Ultimate Geek
+1 received by user: 143


  #3102786 11-Jul-2023 16:02
Send private message

We also have 2 45kg tanks no weather protection. Only think we've done is enclose them as we get insitu refill and they said they wouldn't do swappa bottle to to uneven ground

Maybe 9kg tanks will rust? The 45kg ones look like the are galvanised


xpd

xpd
Geek of Coastguard
14115 posts

Uber Geek
+1 received by user: 4574

Retired Mod
ID Verified
Trusted
Lifetime subscriber

  #3102804 11-Jul-2023 16:44
Send private message

My parents just one gas installed, no protection on theirs.





XPD / Gavin



LinkTree








dimsim
867 posts

Ultimate Geek
+1 received by user: 151

Trusted
Lifetime subscriber

  #3102814 11-Jul-2023 16:53
Send private message

panther2: We also have 2 45kg tanks no weather protection. Only think we've done is enclose them as we get insitu refill and they said they wouldn't do swappa bottle to to uneven ground

Maybe 9kg tanks will rust? The 45kg ones look like the are galvanised







all bottles need to be installed on a solid platform and in-situ installs apparently need to have line of sight to the filling truck.



https://www.elgas.co.nz/resources/elgas-blog/184-nz-lpg-gas-bottle-installation-regulations-location-clearances/














Stream your favourite shows now on Apple TV (affiliate link).
wellygary
8810 posts

Uber Geek
+1 received by user: 5287


  #3102840 11-Jul-2023 18:50
Send private message

nickreno: Hi -

Ive installed a gas stovetop with a 9kg LPG bottle. All gaswork done by licensed gasfitter. I am told the outside gas bottle needs weather protection for the sign-off - has anyone DIY'ed this (or repurposed something else)? The specifically designed ones look lovely but cost $$$ - the gas bottle isnt very visible so I'd prefer a cheaper solution.



We've got a 9kg outside at our bach its under one of these upside down with a hole cut in the side to allow the regulator through along with the ability to turn the tap on and off....



$16 bucks from bunnings









https://www.bunnings.co.nz/morgan-45l-black-rubbish-bin_p0327928?store=9489&gclid=CjwKCAjw2K6lBhBXEiwA5RjtCeVF9lJXbkycnKOxGN_TZ_tNX_5WX0Ym9_bTrKkilcqBgIA2vX4fuRoChasQAvD_BwE&gclsrc=aw.ds


tdgeek
30048 posts

Uber Geek
+1 received by user: 9455

Trusted
Lifetime subscriber

  #3102844 11-Jul-2023 19:01
Send private message

dimsim:



I have a twin pack of 45kg Cyclinders which dont have any weather protection, other than the regulator/tank switch thing which has a very basic rain shield. This is the way all twin pack cylinder that i have seen are installed. I dont see why a 9kg bottle would require weather protection but I may be wrong. The installation was re-certified maybe 18 months ago also. Only the adjacent underhouse vents needed to be sealed as part of that certification.







We have one 45kg outside cylinder, not our problem. We have a BBQ, new 9kg, but outside it got some minor surface rust. If you go to exchange it as is common, rust is an issue, so its our problem. So I got a new 9kg, its in the garage.The issue is the 9kg is MINE, the 45kg ISN'T


Wheelbarrow01
1784 posts

Uber Geek
+1 received by user: 2638

Trusted
Chorus

  #3102947 11-Jul-2023 23:30
Send private message

dimsim:



I have a twin pack of 45kg Cyclinders which dont have any weather protection, other than the regulator/tank switch thing which has a very basic rain shield. This is the way all twin pack cylinder that i have seen are installed. I dont see why a 9kg bottle would require weather protection but I may be wrong. The installation was re-certified maybe 18 months ago also. Only the adjacent underhouse vents needed to be sealed as part of that certification.







My setup is pretty much identical to this and it was installed by a gas fitter in 2018 so unless the rules have changed in the last 5 years, this is obviously an acceptable setup.



The caveat is whether a different standard applies to 9kg bottles - because as someone else mentioned, the 45kg bottles all appear galvanised whereas the 9kg ones are painted.



The upside down plastic garbage pail cover looks like a solid and cheap DIY option though!


dimsim
867 posts

Ultimate Geek
+1 received by user: 151

Trusted
Lifetime subscriber

  #3102950 12-Jul-2023 00:04
Send private message

tdgeek:



We have one 45kg outside cylinder, not our problem. We have a BBQ, new 9kg, but outside it got some minor surface rust. If you go to exchange it as is common, rust is an issue, so its our problem. So I got a new 9kg, its in the garage.The issue is the 9kg is MINE, the 45kg ISN'T





I've never run into a problem exchanging any 9kg cylinders at BP. They dont check anything when being exchanged. Old for new :)


Eva888
2761 posts

Uber Geek
+1 received by user: 2422

Lifetime subscriber

  #3102991 12-Jul-2023 09:01
Send private message

Thanks @wellygary you’ve just solved my problem of sea spray rusting ours all the time. I was thinking plastic wraps etc but this is far better.






Shop now for Lenovo laptops and other devices (affiliate link).
nickreno

28 posts

Geek
+1 received by user: 3


  #3103049 12-Jul-2023 09:37
Send private message

thank you @wellygary too - will give this a go

hsvhel
1273 posts

Uber Geek
+1 received by user: 596

ID Verified

  #3103050 12-Jul-2023 09:49
Send private message

My twin 45's are out in the open with 600x600 pavers leveled



No probs with sign off, 9Kg maybe a weight issue for protection?







Referral Link Quic



Free Setup use R502152EQH6OK on check out






Froglotion
208 posts

Master Geek
+1 received by user: 78


  #3103675 13-Jul-2023 15:26
Send private message

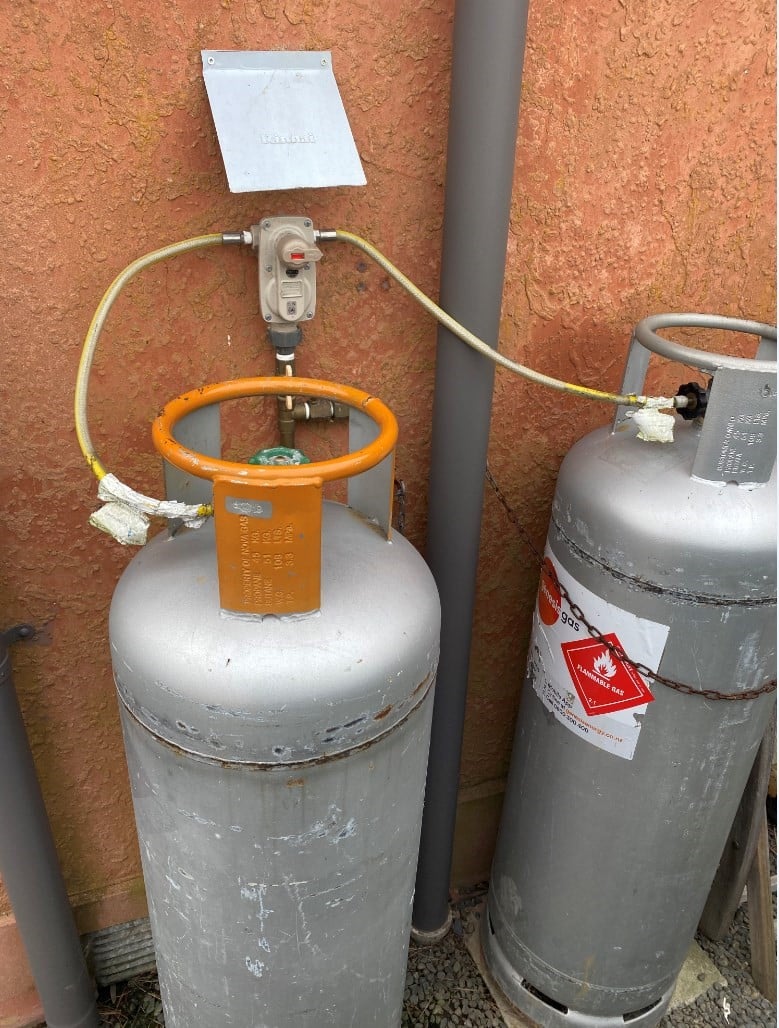

It will be protection from weather for the regulator. If you have a plumbing world store nearby they often have folded galv sheet hoods on the shelf. Failing that just get a bit of tin with a fold in it and make a hood to cover regulator. Shouldn't really matter what it's made from, it's literally to stop rain getting to regulator.

Odd the installer didn't fit one. We used to fit them at every install, otherwise, it isn't compliant...
