Connecting New LED Light

Forums › Home Workshop DIY › Connecting New LED Light

networkn

Networkn
32862 posts

Uber Geek
+1 received by user: 15453

ID Verified

Trusted

Lifetime subscriber

#311585 28-Jan-2024 22:12

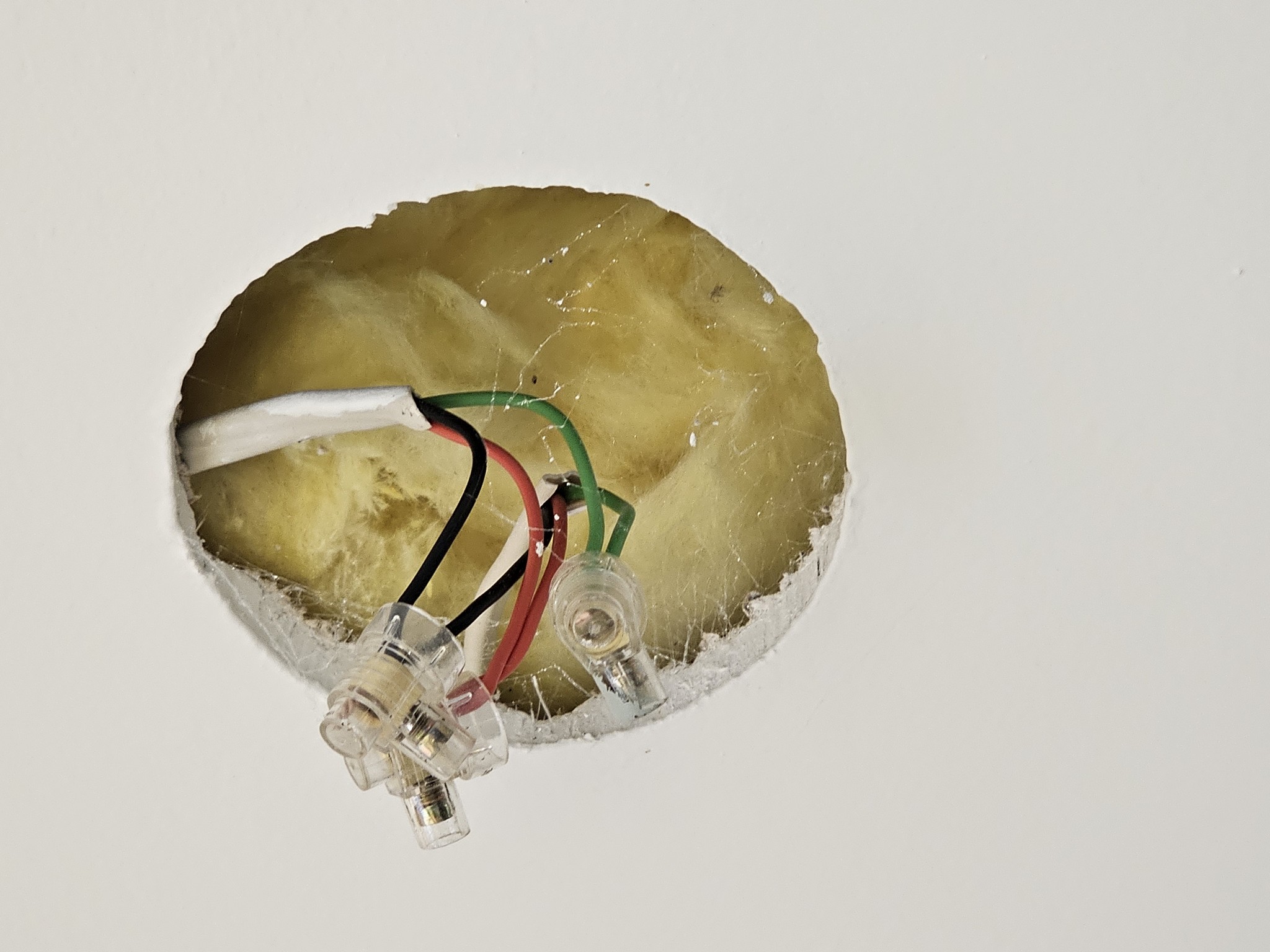

The Sparky has been and set up for the new LED going into our kitchen.

The LED arrived a month Later.

I assume both of each of these 3 pairs of cables go into the LED transformer?

Black for (N)eutral

Red for (L)ive

Green for (E)arth/Ground)

Power off at the mains first of course (Because I know someone will comment :) )

lxsw20

3689 posts

Uber Geek
+1 received by user: 2174

Subscriber

#3187817 28-Jan-2024 22:17

That is correct.

networkn

Networkn
32862 posts

Uber Geek
+1 received by user: 15453

ID Verified

Trusted

Lifetime subscriber

#3187825 28-Jan-2024 22:53

lxsw20:

That is correct.

Thanks, hopefully (for me) this won't be my last post :)

SomeoneSomewhere

1882 posts

Uber Geek
+1 received by user: 1086

Lifetime subscriber

#3187839 28-Jan-2024 23:57

The LED transformer might not have a terminal for the earth (double insulated). If not, then the earth can stay in the connector, either inside the transformer terminal compartment if there is room, or outside the light.

The outer sheath of the cable (white) needs to go into the transformer and be captured by the cable clamp.

The inner red/black cores need to be completely enclosed so that they cannot be seen without removing covers.
