Hi,



I have a 2 gang switch being used as a one way. So 1 switch operates 1 light and the other switch, a different light.

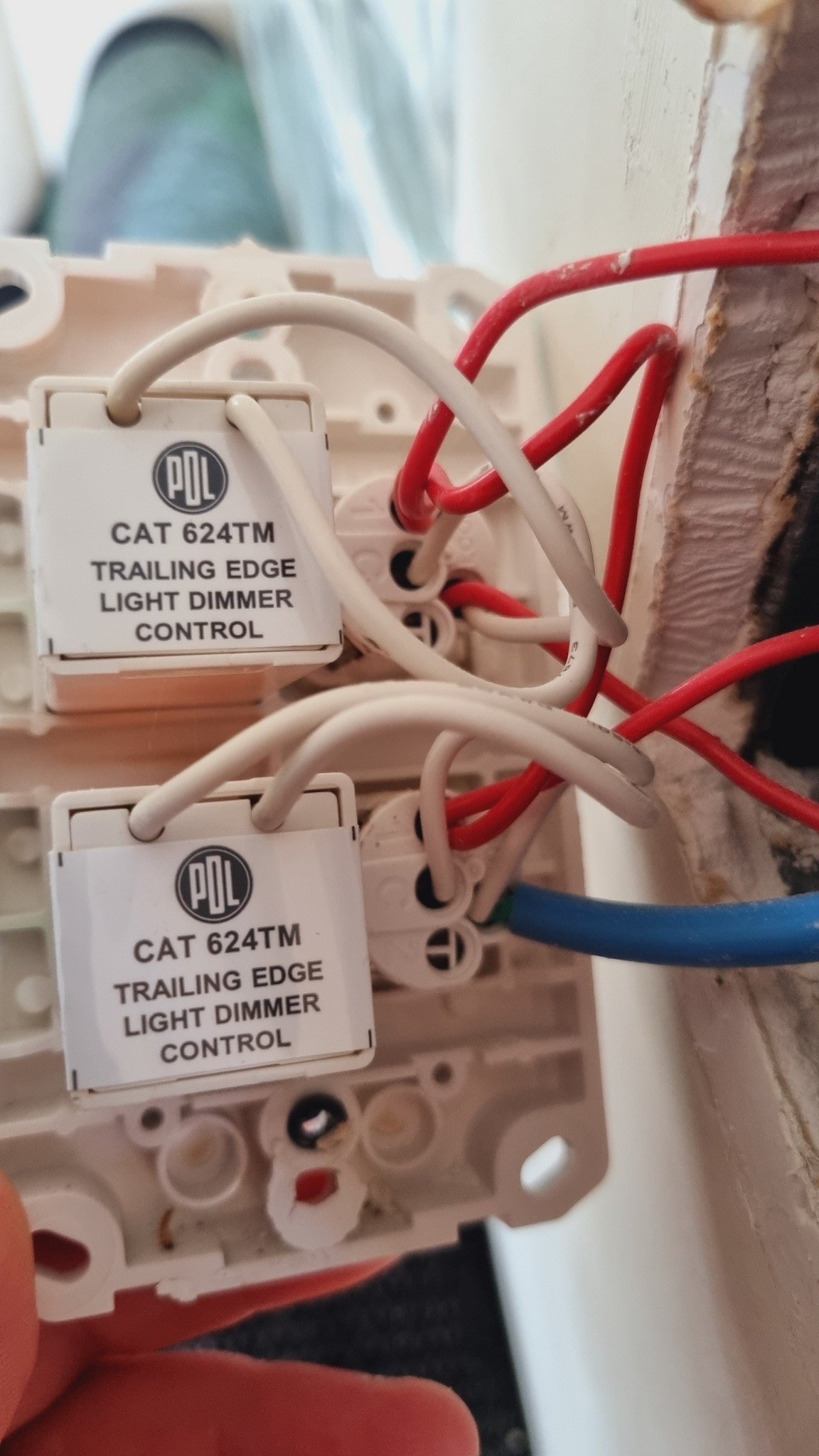

I have replaced the switch as the old one had a redundant dimmer dial per switch.



I wired it the same but removing the dimmer connections, however that has not worked.



There are no live feeds going into the common but then there wasn't previous.



Any help appreciated.



Thank you.






Create new topic
Nate001
677 posts

Ultimate Geek
+1 received by user: 465


  #3374313 18-May-2025 13:05
Send private message

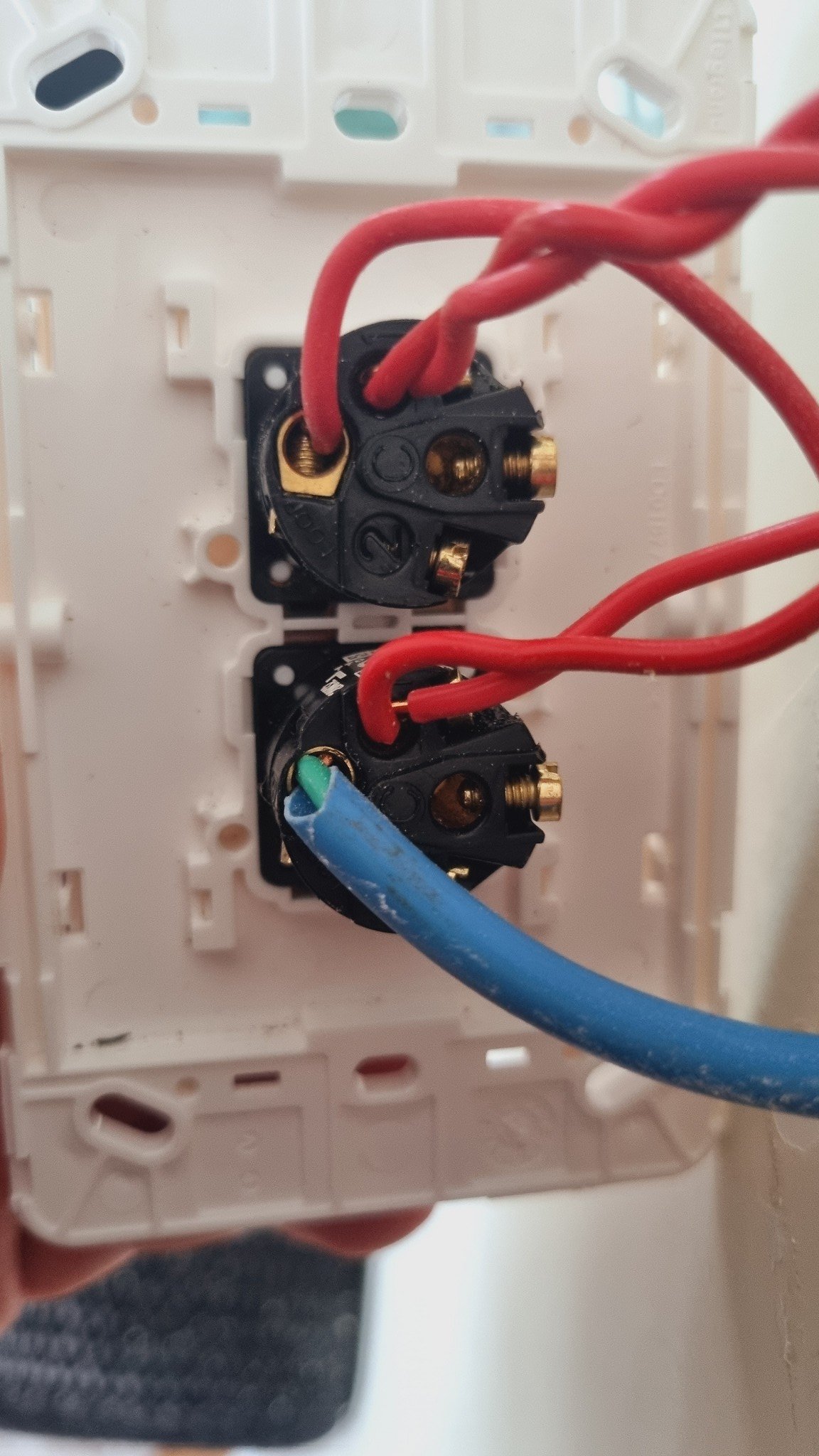

If you are unsure, get an electrician in. You need to move the wires from "loop" to "C" in the centre.




Bung
6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

  #3374316 18-May-2025 13:44
Send private message

@gregmcc looks like dodgy sleeving?


richms
29099 posts

Uber Geek
+1 received by user: 10210

Trusted
Lifetime subscriber

  #3374317 18-May-2025 14:01
Send private message

Bung:



@gregmcc looks like dodgy sleeving?





At one time it was legal to re-identify the green. Actually has sleeving which is more than most 80s houses had on the cable. Possibly added by whoever put the dimmers in.





Richard rich.ms



gregmcc
2173 posts

Uber Geek
+1 received by user: 836

ID Verified
Trusted
Lifetime subscriber

  #3374330 18-May-2025 15:14
Send private message

This is a classic example of why home owners should not do electrical work, as far as the sleeving goes, yes at one stage it was legal to sleeve a green another colour, but no way to identify from the picture when the work was originally done.....






Bung
6733 posts

Uber Geek
+1 received by user: 2926

Subscriber

  #3374332 18-May-2025 15:26
Send private message

No telling who did it but it doesn't look that old. I've found the same thing done in 1990s in our house but sleeving was red.


gregmcc
2173 posts

Uber Geek
+1 received by user: 836

ID Verified
Trusted
Lifetime subscriber

  #3374514 19-May-2025 07:53
Send private message

it may have been around 2003 that the green sleeving was made illegal......
