Topic # 196132 20-May-2016 11:55
Send private message

I have surplus of High Voltage Copper Insultaed DC cables with eye-round type connectors. Different length. Cables are rated for about 280-400V 150A from different Toyota Prius Hybrid Cars. Also copper bus-bars. Heaps.



Any use for EV DIY or Boaties? i.e. should I be bothered of listing those on Trademe or just dump at the scrap yard?


View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2

gzt

9740 posts

Uber Geek
+1 received by user: 1452


  Reply # 1556178 20-May-2016 12:18
Send private message

Wonder what the scap price is maybe $8 kilo?



1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1556257 20-May-2016 13:28
Send private message

gzt: Wonder what the scap price is maybe $8 kilo?



$6.8 clean copper more or less.



But if you try and buy that kind of cable online - you'll be looking at something like $25/ short pigtail.


368 posts

Ultimate Geek
+1 received by user: 160


  Reply # 1558980 24-May-2016 22:04
Send private message

Boats with electric bow thrusters or big anchor winches (typically at 12V, sometimes at 24V) always seem to be having issues with burnt out cables or switch gear. No idea if your cables would be the right length (often boats with bow thrusters will sometimes have a bow mounted battery or battery bank to avoid issues with long distance high current wiring runs), No idea how you would contact boaties looking for High current DC cables.



Would the cables be usefully for the DC wiring in a solar PV system?


641 posts

Ultimate Geek
+1 received by user: 261

Subscriber

  Reply # 1559025 24-May-2016 23:13
One person supports this post
Send private message

Any idea of Gauge or mm size?



I've just finished wiring up an HD electric recovery winch. Had to purchase welding cable to do the job as standard auto gauges of DC cable were too light.



Try selling them on Trademe. They may be just what someone needs.


46 posts

Geek
+1 received by user: 4


  Reply # 1559628 25-May-2016 20:29
One person supports this post
Send private message

Got a photo? what sort of length range? looking to wire up a dual battery in the 4wd so possibly overkill but could work.


2484 posts

Uber Geek
+1 received by user: 535
Inactive user


  Reply # 1559770 26-May-2016 06:07
Send private message

Maybe car audio.



I used to use welders flex in mine.




1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1559851 26-May-2016 10:11
Send private message





Scott3:



…Would the cables be usefully for the DC wiring in a solar PV system?





My Solar install is scheduled for the next week - I will be able to see what are they using...



Sidestep:



Any idea of Gauge or mm size? …





Will check - I'll cut one and measure it.



icekayak:



Got a photo? what sort of length range? looking to wire up a dual battery in the 4wd so possibly overkill but could work.





Planning to measure all of them, make photos and a list.. From memory (was working on 15 Land Cruisers a while ago) - should be be perfect. And if length is OK, then no need to redo the end points..


423 posts

Ultimate Geek
+1 received by user: 79


  Reply # 1559854 26-May-2016 10:16
Send private message

I am another winch/dual battery installer who could be keen dependent on size and length and price.







Cheers



Matt.




1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1563268 31-May-2016 19:36
Send private message

Scott3:.....



Would the cables be usefully for the DC wiring in a solar PV system?





Just observed what the Vector installers use: DC 4mm Square which are much smaller cables.


4183 posts

Uber Geek
+1 received by user: 1660


  Reply # 1563650 1-Jun-2016 13:42
Send private message

Boat cabling should be fully tinned (will eventually corrode internally otherwise).



Bus bars should tinned for marine use also otherwise you can end up with corrosion between terminals and bar - which is a nuisance and on a negative bus can cause equipment failure due to voltage spikes.









Mike



1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1567422 7-Jun-2016 19:49
Send private message

MikeAqua:



Boat cabling should be fully tinned (will eventually corrode internally otherwise).



Bus bars should tinned for marine use also otherwise you can end up with corrosion between terminals and bar - which is a nuisance and on a negative bus can cause equipment failure due to voltage spikes.

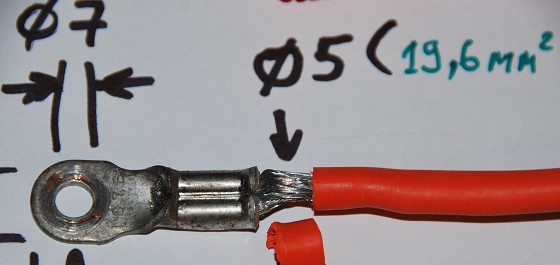

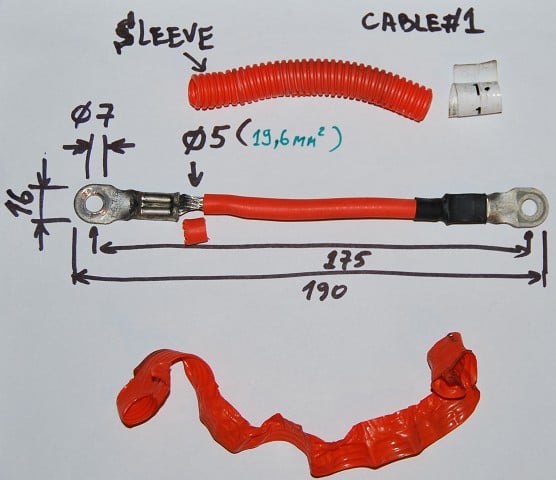

Very busy lately - got to check just one - the shortest pigtail (#1). It is fully tinned.



Cable without insulation is 5mm diameter - but very flexible as it is multi-thread.



Other cables are longer than those #1.


















1704 posts

Uber Geek
+1 received by user: 329

Trusted

  Reply # 1599421 27-Jul-2016 11:06
Send private message

Are these cables still available ?



Anything around 3 meters in length ?



For an electric start 50Hp outboard motor  ..







Cheers









My thoughts are no longer my own and is probably representative of our media-controlled government




1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1600024 28-Jul-2016 09:27
Send private message

SepticSceptic:



Are these cables still available? Anything around 3 meters in length? For an electric start 50Hp outboard motor  ..





Sorry for not updating the post. Did not have time to dig into boxes and compile a list of those.



Cables I have are less than 3 m. Would need junction boxes for that length. I do not know the maximum length, a meter maybe more or less.



In EVs like Leaf (2013) main cables going from on-board charger to the battery are short - 1/2 meter See on my video here: Nissan Leaf Charger - dismantling



In Prius/Camry hybrid two main wires which are going from Invertor to the battery in the back are the longest ones you can source from the wrecks.



They will still be less than 3 meters each. And I do not have those invertor-battery ones.








1072 posts

Uber Geek
+1 received by user: 237


  Reply # 1674824 21-Nov-2016 10:35
Send private message

Finally got my hands on cables - all sorted on the floor. Will measure and make photos tonight. Design as in the photo above. Copper. Tinned. Isolated. Rated for 100A 500V. The length is different.



There are also few Automotive 125A 500V DC fuses with enclosure (made by Littelfuse Inc for Toyota):




4183 posts

Uber Geek
+1 received by user: 1660


  Reply # 1674866 21-Nov-2016 11:11
Send private message

SepticSceptic:



Are these cables still available ?



Anything around 3 meters in length ?



For an electric start 50Hp outboard motor  ..





Just be sure you are getting suitable cable.  Marine cable is supposed to meet requirements for tolerance of petroleum, heat and movement.   Permeability of the insulation to moisture is an importunate consideration as well.  They way the terminal have been crimped is important - ideally a compressive crimp, rather than a punch crimp.



IMHO it's worth buying certified marine cable.



As an example the winch cable on my boat is 28 years old and still absolutely fine.  If I was to replace it all with certified marine cable it would cost me about $200.





Mike
