Under the passengers seat in my car is this plug... can anyone tell me what type of plug it is please? Thank you!




View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
7043 posts

Uber Geek

Trusted
Lifetime subscriber

  #2500479 8-Jun-2020 11:55
Send private message quote this post

It looks a bit like an old iPhone 30-pin connector.


106 posts

Master Geek


  #2500481 8-Jun-2020 12:00
Send private message quote this post

What's the car make/model/year?



Does that cable join into a wiring loom under the seat?



Some older cars had CD stackers mounted under the passenger seat, but usually the connectors were much bulkier for those.












xpd

Budget Gamer
10599 posts

Uber Geek

Mod Emeritus
Trusted
Lifetime subscriber

  #2500491 8-Jun-2020 12:05
Send private message quote this post

Behodar:



It looks a bit like an old iPhone 30-pin connector.





My thoughts also....







Do you have a screen in the car ? ANy other plugs etc under the seat ?



I just ripped out the TV system that was in my fathers car, not usable for anything anymore - was amazing how many plugs the thing had....









XPD^ / DemiseNZ



Blog         Free Games        Twitter



My TradeMe Goodies



Disclaimer - It wasn't me, the dog ate my keyboard, my account was hacked, I was drunk, ALIENS.


9714 posts

Uber Geek

Lifetime subscriber

  #2500502 8-Jun-2020 12:13
Send private message quote this post

Jap Import?



its likely for one of their automatic toll system components and its been removed


18 posts

Geek


  #2500518 8-Jun-2020 12:27
Send private message quote this post

That looks like old iPhone 30pin connection.
Had that in my jap import Mazda. Came out the back of the Japanese language radio/screen into the dash.

If you have old iphone or iPad touch, give it a go.



4 posts

Wannabe Geek


  #2500524 8-Jun-2020 12:37
Send private message quote this post

Hey thanks for all the replies, appreciate it!
What's the car make/model/year?



It's an 05 Mazda Axela.



Does that cable join into a wiring loom under the seat?



No hopefully this pic shows it better





Do you have a screen in the car ? ANy other plugs etc under the seat ?



No and no. :)



Dumb question probably but if it is an iPhone 30-pin connector, would there be any adapters for them?! (to be able to charge my phone via micro usb perhaps?)



Unfortunately don't have an iphone to try it!


2435 posts

Uber Geek


  #2500527 8-Jun-2020 12:40
Send private message quote this post

iPod/iPhone 30 pin is most likley. You could get an adapter that would trick the stero into thinking it was playing from a CD Stacker, but was really an iPod. Probably what this is.








1078 posts

Uber Geek


  #2500572 8-Jun-2020 13:01
Send private message quote this post

Looks more like an old charger for Korean phones / mp3 players (might well have been for Japanese as well)



https://www.amazon.com/Charger-Data-Cable-iRiver-Player/dp/B017GUAC90



https://www.aliexpress.com/item/32768933704.html







Had them when I lived in korea for the pre smart phone phones and mp3 players such as iriver.  Around 2010









1177 posts

Uber Geek

Subscriber

  #2500602 8-Jun-2020 13:34
Send private message quote this post

I cant find the YouTube video, but earlier this year I watched how a company crushes cars that have been involved in accidents.

They connected a computer to a connector similar to the one you found but instead of it being under the passenger seat it was more tucked under the passenger side of the centre console, then lowered a massive air curtain around the car that was vented, then the computer automatically explodes all the airbags inside the car.i think the car was a BMW though.

Summary, the connector was used to explode all airbags before the car went to be crushed.






4 posts

Wannabe Geek


  #2500621 8-Jun-2020 14:02
Send private message quote this post

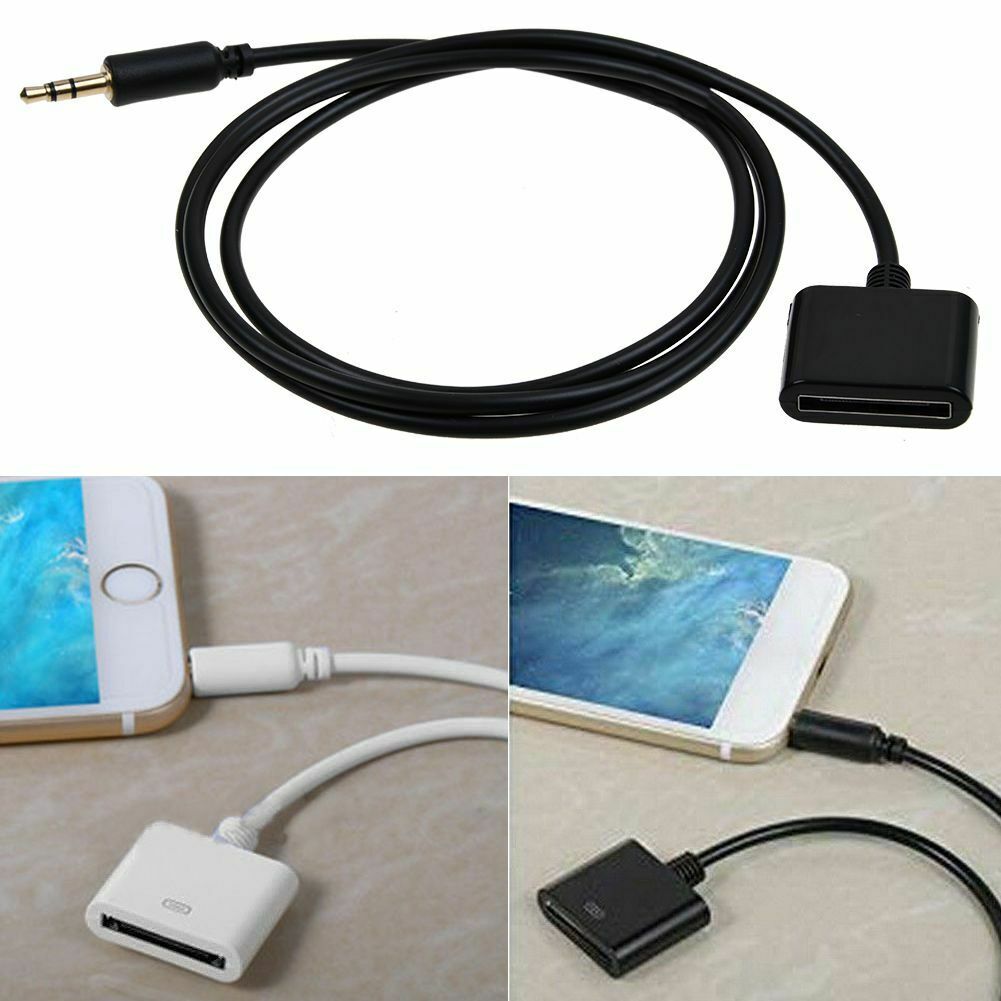

3.5mm AUX Male to 30-pin Female Audio Adapter Cable



One of these should be ok to see if it works eh?



Thanks again!


2435 posts

Uber Geek


  #2500634 8-Jun-2020 14:14
Send private message quote this post

jjnz1: I cant find the YouTube video, but earlier this year I watched how a company crushes cars that have been involved in accidents.

They connected a computer to a connector similar to the one you found but instead of it being under the passenger seat it was more tucked under the passenger side of the centre console, then lowered a massive air curtain around the car that was vented, then the computer automatically explodes all the airbags inside the car.i think the car was a BMW though.

Summary, the connector was used to explode all airbags before the car went to be crushed.









The OBD2 connector? it's much bigger than that, usually found under the dash somewhere.







kevinr123:





3.5mm AUX Male to 30-pin Female Audio Adapter Cable



One of these should be ok to see if it works eh?



Thanks again!









If it's what i think it is, then i think it needs to detect their is an iPod plugged in, so may not work with a straight aux adapter. Get a cheap ipod off trademe and fill it with music might be your best bet if you want to use it.


1177 posts

Uber Geek

Subscriber

  #2500748 8-Jun-2020 17:49
Send private message quote this post

Na it wasn't an obd2 connector. You had to cut open (destroy) the carpet from memory to access it.

But yes, that does not look like an automotive connector.

374 posts

Ultimate Geek

Trusted

  #2500765 8-Jun-2020 18:40
Send private message quote this post

Definitely an iPod/iPhone 30 Pin Dock Connector


81 posts

Master Geek


  #2500790 8-Jun-2020 19:39
Send private message quote this post

I got one of these years ago from a local seller when I was in the UK to convert an old iPod dock to Bluetooth for my android phone.

https://m.aliexpress.com/item/32624196086.html?

If you need Bluetooth adding to your car or night be worth a try. It sometimes had some funny behaviour with some docks where it would shut off as if it wasn't connected but it was very hit and miss what docks it worked consistently with.



4 posts

Wannabe Geek


  #2501007 8-Jun-2020 21:23
Send private message quote this post

everettpsycho: I got one of these years ago from a local seller when I was in the UK to convert an old iPod dock to Bluetooth for my android phone.

https://m.aliexpress.com/item/32624196086.html?

If you need Bluetooth adding to your car or night be worth a try. It sometimes had some funny behaviour with some docks where it would shut off as if it wasn't connected but it was very hit and miss what docks it worked consistently with.



Hey that's a great idea, thanks!
Is that more likely to work than the 30pin to aux cable as above? as lxsw20 said "it needs to detect their is an iPod plugged in, so may not work with a straight aux adapter".... so I spose that would do the job?
