android head unit help please

Forums › Transport (cars, bikes and boats) › android head unit help please

xmanz

57 posts

Master Geek
+1 received by user: 1

#315930 30-Aug-2024 17:42

Hi there i bought a sinosmart for my quashqai its actually a very good setup lots of benefits over nissans, but the only thing that id love to solve is the fact if your parked up you cant use it unless the ignition is on,

or running engine. is there any way around this? the old head used to run on acces but not this its just annoying. thanx for any help :)

allan

2073 posts

Uber Geek
+1 received by user: 899

ID Verified

Lifetime subscriber

#3277327 30-Aug-2024 23:33

Well a trick I use in my Honda Jazz (Android Auto), is to move the gear selector to neutral instead of park. That way when I push the ignition button, it kills the engine and turns everything off except for the head unit. It does beep at me, so obviously doing it under protest. The only downside is, to then turn everything off, I need to select park, push the ignition button twice - once will light up the dashboard. Second push turns everything off. It's not as complicated as it sounds - but no idea if it will work for you.

xmanz

57 posts

Master Geek
+1 received by user: 1

#3277336 31-Aug-2024 07:12

Thank you ill try this morning :)

Senecio

2851 posts

Uber Geek
+1 received by user: 3159

ID Verified

Lifetime subscriber

#3277350 31-Aug-2024 09:09

Who installed it? It hasn't been installed properly if it won't turn on on accessories. There's normally a red wire that should be connected to accessories and a yellow wire that is connected to a constant power source to maintain settings.

xmanz

57 posts

Master Geek
+1 received by user: 1

#3277374 31-Aug-2024 13:13

Ok thanx ill pop it back out and take a few shots :)

Handle9

11923 posts

Uber Geek
+1 received by user: 9674

Trusted

Lifetime subscriber

#3277503 31-Aug-2024 17:08

Senecio:
Who installed it? It hasn't been installed properly if it won't turn on on accessories. There's normally a red wire that should be connected to accessories and a yellow wire that is connected to a constant power source to maintain settings.

Yip. We’ve got Android head units in both our cars and they work on accessory power.

xmanz

57 posts

Master Geek
+1 received by user: 1

#3278627 3-Sep-2024 19:36

Handle9:
Senecio:

Who installed it? It hasn't been installed properly if it won't turn on on accessories. There's normally a red wire that should be connected to accessories and a yellow wire that is connected to a constant power source to maintain settings.

Yip. We’ve got Android head units in both our cars and they work on accessory power.

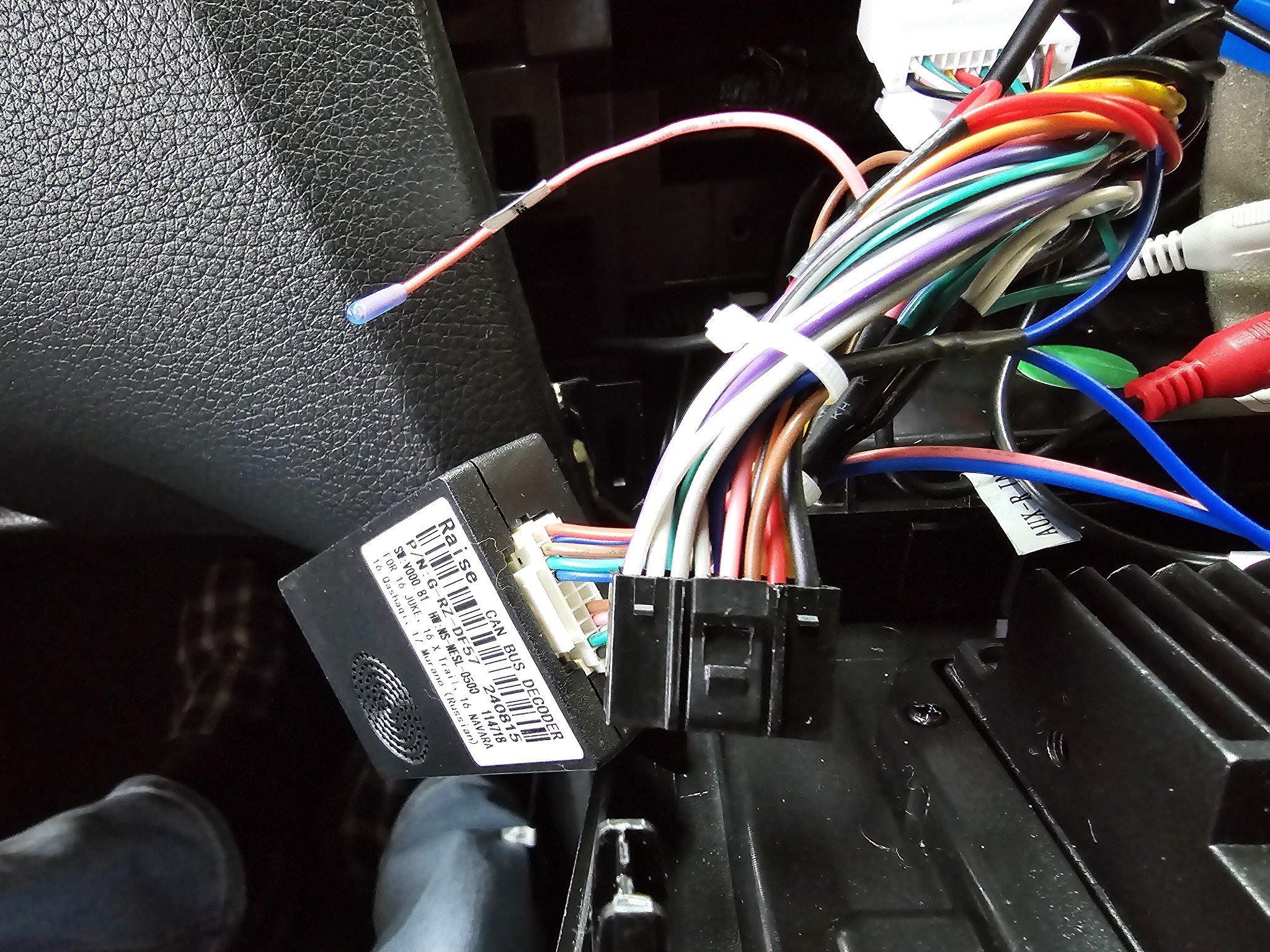

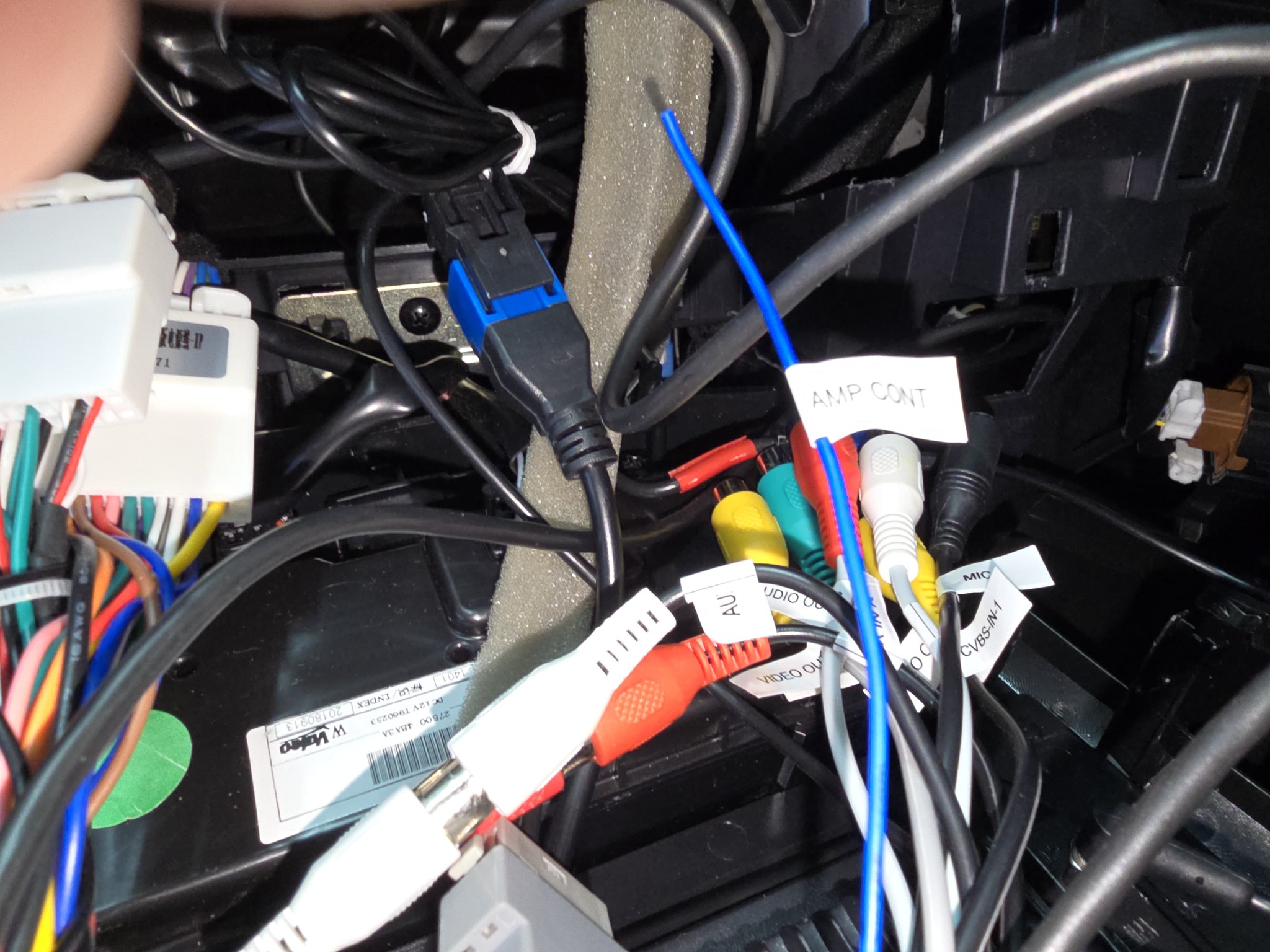

theres no spare red or yellow wires ive upload couple of pix it must have power to remember settings as it doesnt boot from scatch each time it has a canbus

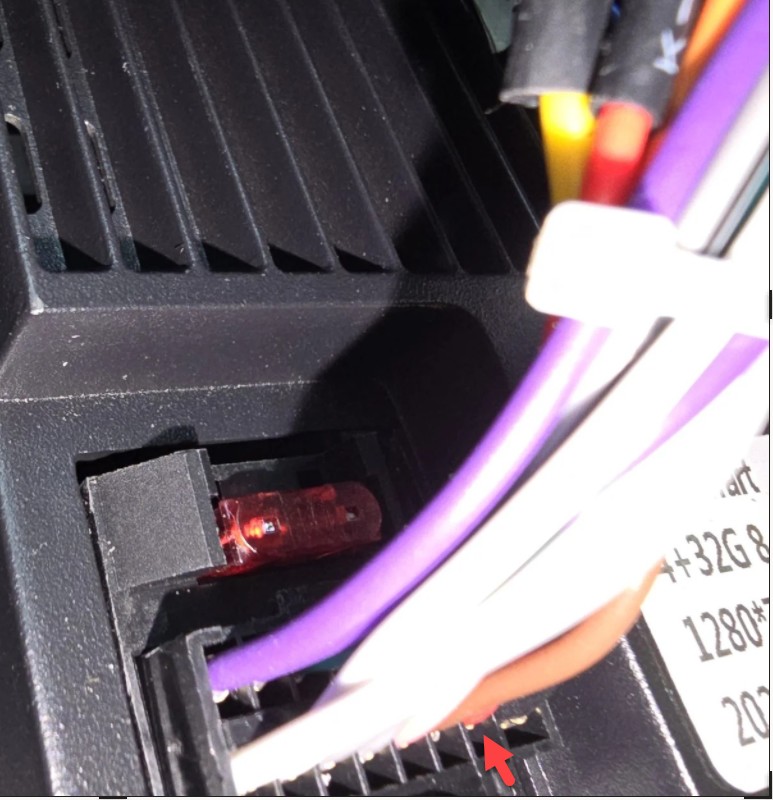

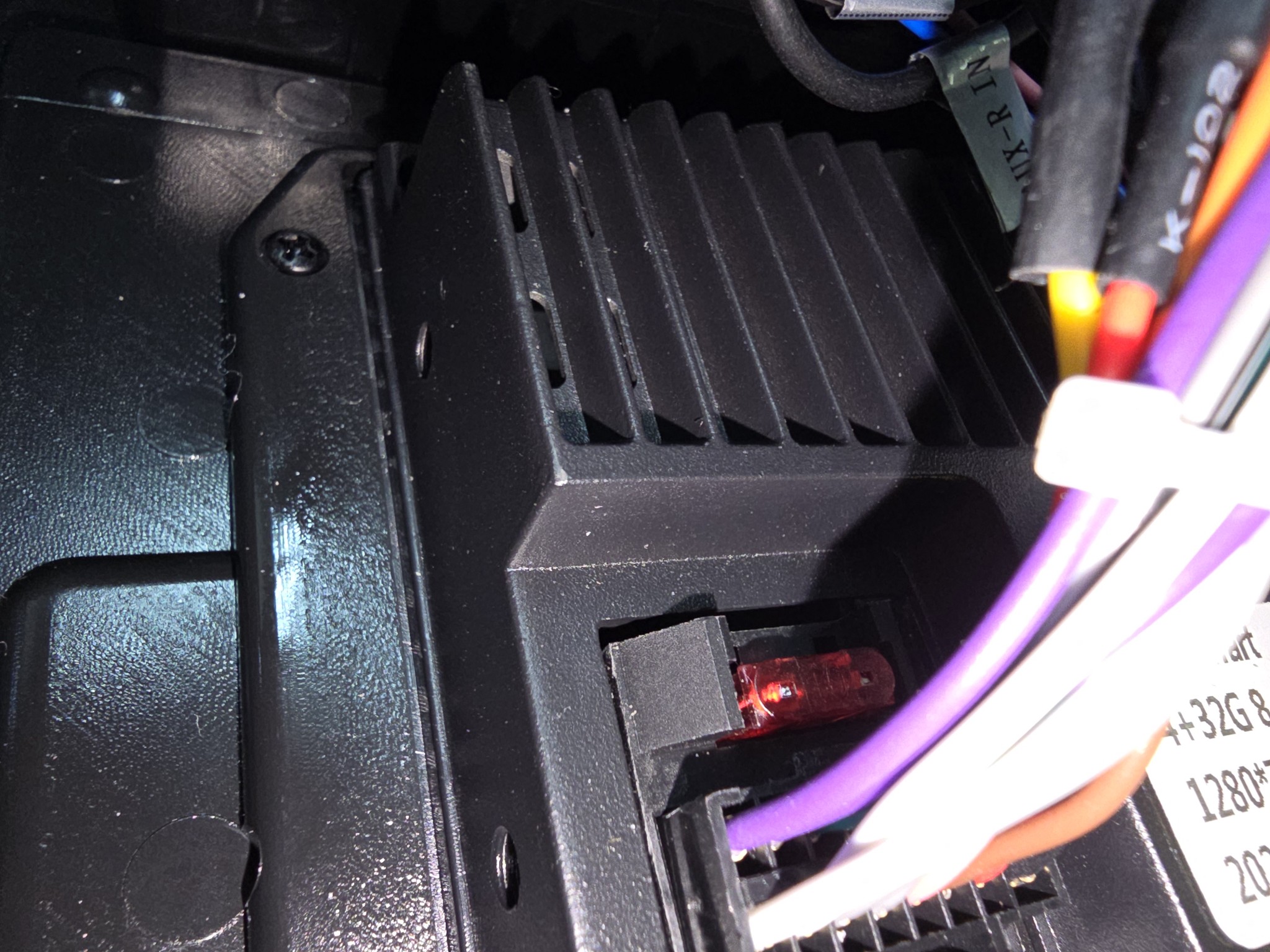

i was wondering in the pic showing the fuse what would happen with a 12v into the fuse holder? ..something to chew on thnx

Lenovo

Shop now for Lenovo laptops and other devices (affiliate link).

Ruphus

469 posts

Ultimate Geek
+1 received by user: 181

#3278653 3-Sep-2024 20:50

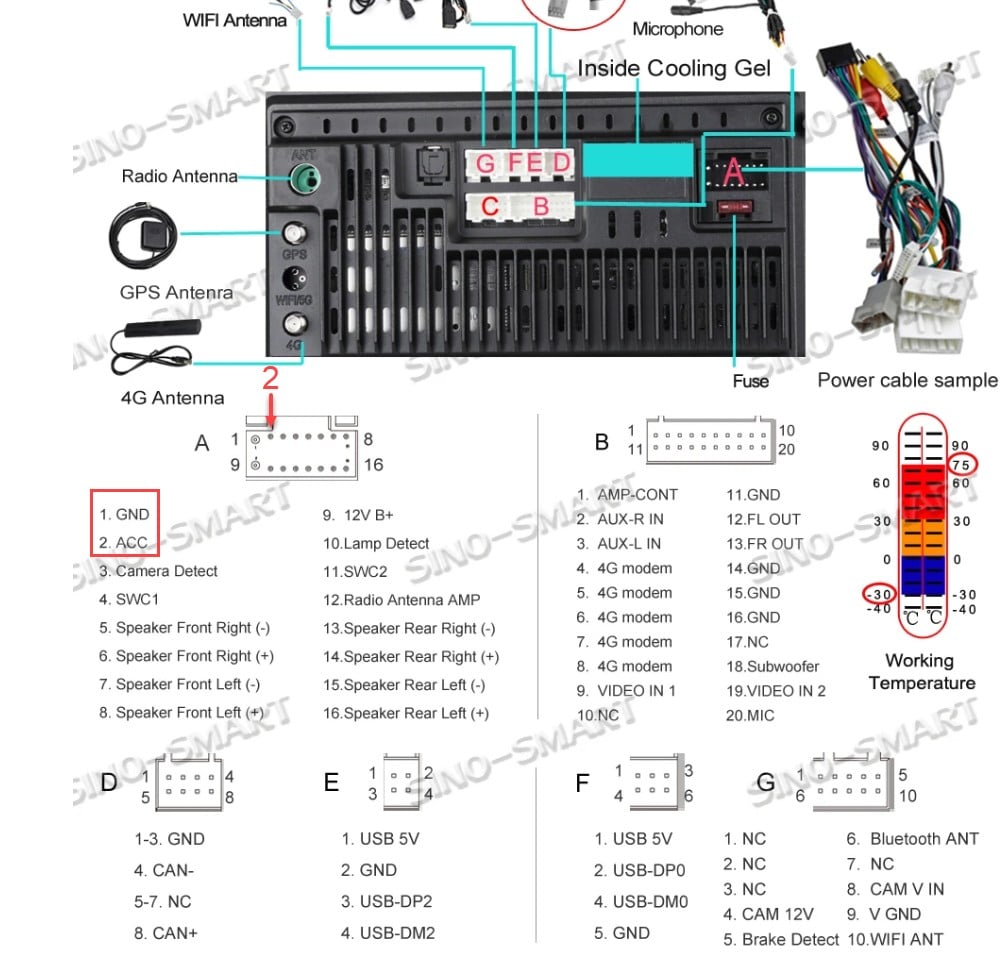

Based on the pinout diagram, this wire is for ACC (accessories) power.

The black cable to the right of it is GND (ground) and above that is the PWR (power) cable, possibly yellow. Would need a photo from the other side of the connector to confirm. I suggest unplugging the black connector and then using a multimeter (if you have one), probe the red and black cables to confirm there is actually power on that pin when the car is turned on to ACC.

I found this installation video on Youtube. I'm not sure if this is the same model Qashqai etc, but I noticed the headunit only turned on when the dash and climate control turned on. Which to me, means the car is not in ACC, but ON.

https://youtu.be/p-zvaShG2FY?si=3qRNmvbSXZoZW21F&t=732

xmanz

57 posts

Master Geek
+1 received by user: 1

#3278771 4-Sep-2024 11:51

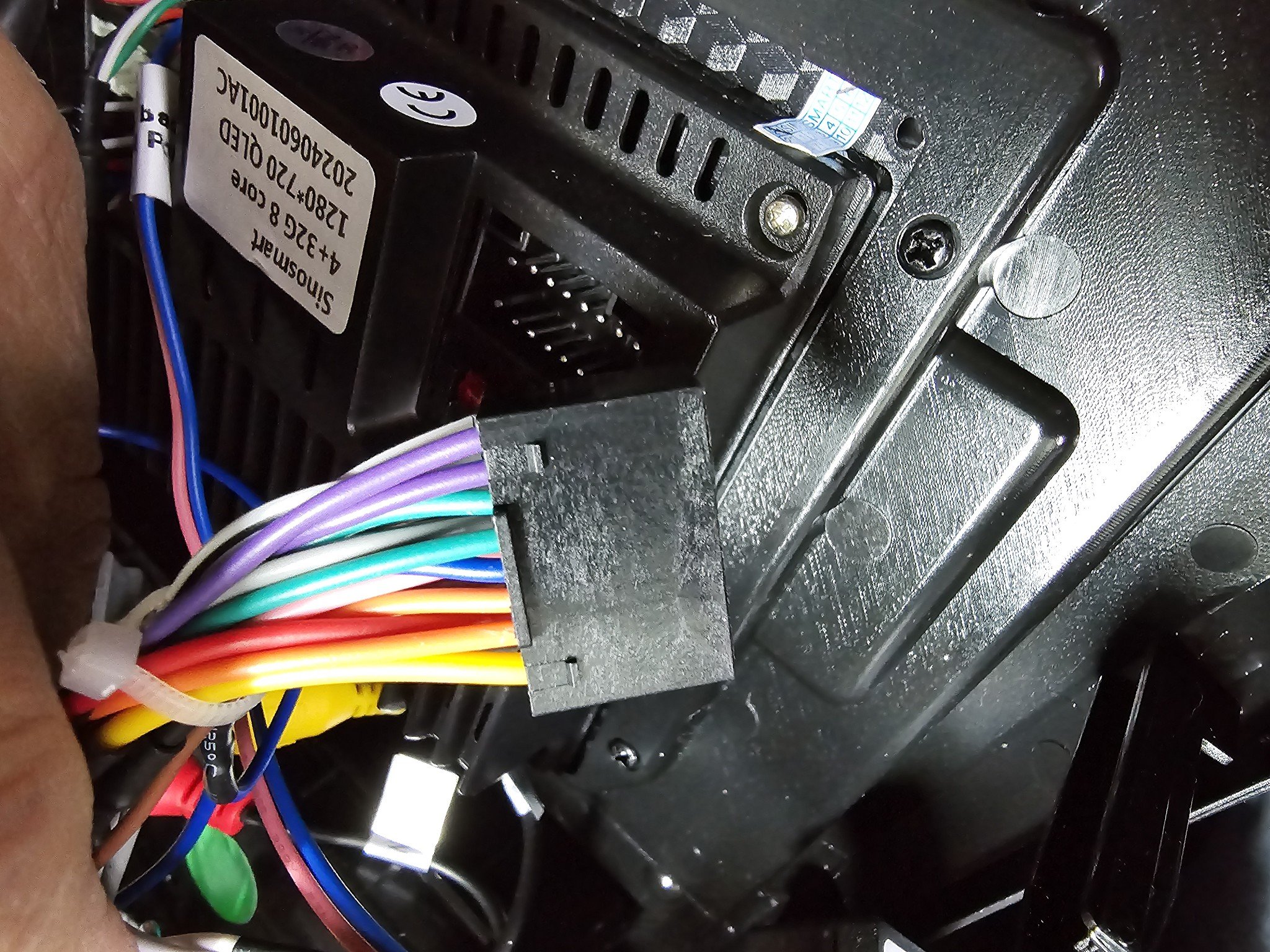

Thank you here are a few pics of that connector i probeb red pos and orange on back but could only get 12 vols not on acc

ck but could only get 12 vols not on acc

Ruphus

469 posts

Ultimate Geek
+1 received by user: 181

#3279645 7-Sep-2024 11:16

The orange wire is the lamp detect wire so the stereo goes into dark mode when the headlights are turned on.

If you're not getting voltage on the red ACC wire then this will be the issue. You can check the connections at the white plugs to make sure the pins are seated correctly, and a pin isn't pushed back into the connector or is misaligned. You could also probe the pins on the white plug to find the ACC wire. It might mean you need to re-pin one of the connectors to move the ACC (red) wire to the correct location. You could simply tap into the red wire and run a line to the fuse box, then use a fuse tap on the ACC fuse.

If this all sounds too difficult, take your car to a car stereo installer or auto electrician and they'll easily fix it for you.

xmanz

57 posts

Master Geek
+1 received by user: 1

#3279671 7-Sep-2024 13:07

Hi and thanx

What I did do was with ignition off was u gave it 12
v to red pin and yes stero comes on but
it put ignition on as well,closer inspection
I find the red wire splices off to the loom..
Yea ill go auto guy..thanx for the help.
