Mum in laws CD player has died.



It's part of an old Sony system (HDC-A17K).



It's important for her to be able to listen to radio, CD and vinyl (and no, she would prefer not to buy a new one, not even 2nd hand).



She's got a 2nd stereo where CD and radio works just fine.



Is it possible to connect the vinyl player to this one?



On the Sony stereo, where it's currently connected, it's plugged into phono at the back.



Can it be connected to Line In on the other stereo?



If so, is there a converter from phono (2 cables) to Line In (which is one cable)?














Create new topic
3343 posts

Uber Geek
+1 received by user: 1089

Trusted
Vocus

  Reply # 1565535 4-Jun-2016 09:43
Send private message

Yes, what you need is a phono pre-amplifier.



eg.



Behringer Ultra Compact Phono Preamp PP400



Stereo Mini Kit Phono Turntable RIAA



You then need 2xRCA to 3.5mm adapter to plug it in



3.5mm to 1.8 stereo female to 2 male RCA








252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1565537 4-Jun-2016 09:47
Send private message

OK, thanks.
Might be better to find a 2nd hand stereo after all, as I can get it for same price as the pre amp

3343 posts

Uber Geek
+1 received by user: 1089

Trusted
Vocus

  Reply # 1565570 4-Jun-2016 10:29
One person supports this post
Send private message

Good luck finding something of that vintage where everything works properly, CD players have a habit of dying.


20 posts

Geek


  Reply # 1570389 12-Jun-2016 11:04
Send private message


252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1570392 12-Jun-2016 11:15
Send private message

Thanks

7334 posts

Uber Geek
+1 received by user: 3438

Subscriber

  Reply # 1570434 12-Jun-2016 12:41
Send private message

I did this for an older family friend by joining the phono from an old broken Philips to a more modern Sony. I used the $30 Jaycar pre-amp and the sound quality was surprisingly good. Not difficult to do at all.









I reject your reality and substitute my own. - Adam Savage





252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1592344 14-Jul-2016 10:23
Send private message

Hi,

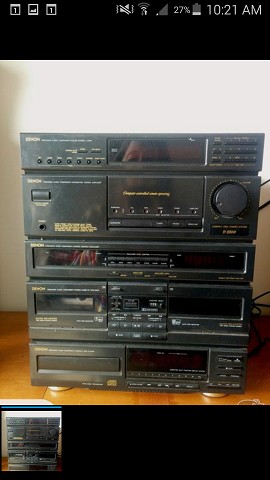

Would the record player work with a Denon Model D-5500?


2866 posts

Uber Geek
+1 received by user: 697


  Reply # 1592369 14-Jul-2016 10:42
Send private message

danepak: Hi,

Would the record player work with a Denon Model D-5500?



Well, googling that model came up with the very listing you've pulled that image from!



Looking at that photo up-close shows there's a "phono" input, which would totally indicate this unit has a built-in pre-amp. This is even stated in the auction's description.




252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1592715 14-Jul-2016 18:51
Send private message

Thanks mate.



I don't know a lot about this, which is why I'm asking here.
Wasn't sure if the built in pre-amp still would be good enough for her existing record player.
I would hate her to go and spend the money, if the stuff didn't work.




252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1601237 30-Jul-2016 10:29
Send private message

Got the Denon stereo. Works well, but can't connect record player. There's a tiny power cable, which went into the old Sony stereo. There's nowhere to power the Sony record player on the Denon, from what I can see.

Images attached of cable from Sony record player and back of Denon stereo.

Click to see full size

 Click to see full size

 Click to see full size

2160 posts

Uber Geek
+1 received by user: 653

Subscriber

  Reply # 1601239 30-Jul-2016 10:33
Send private message

Looks specific to the Sony. Either find out what voltage it is and make an adapter, or buy a generic record deck that uses it's own power supply.




252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1601240 30-Jul-2016 10:39
Send private message

Thanks for your reply.
This is the model.
Is it easy to make an adapter for a newbie/clueless person?

http://www.radiomuseum.org/r/sony_stereo_turntable_system_ps_lx52p.html

2160 posts

Uber Geek
+1 received by user: 653

Subscriber

  Reply # 1601248 30-Jul-2016 10:47
Send private message

Looks like it just needs a 12V DC power supply. Jaycar should be able to supply, but you'll need to come up with an adapter. Personally I'd cut the end off both and solder, but you could get away with a chocolate block (also available from jaycar).




252 posts

Ultimate Geek
+1 received by user: 9


  Reply # 1601349 30-Jul-2016 13:44
Send private message

It worked!!!



Thanks for your help. Did the chocolate block thing!
