One of our beloved but aged Lenovo G570 laptops has got a "funny screen".



Everything is readable but the colours are all over the place, and there are swirly sort of patterns which should not be there.



An external VGA connected monitor displays perfectly.



A local laptop repairer (who kindly donated the M2.5x8mm screws requested in a previous post) reckoned it was a driver issue.



Uninstalling and reinstalling the driver made no difference.



Replacing the missing 6 screws also made no difference.



But upon reflection, I can state that the display looks odd in BIOS during bootup as well.



So that would rule out drivers and point to hardware, yes or no?









Life is too short to remove USB safely.


Create new topic
4970 posts

Uber Geek
+1 received by user: 1584


  Reply # 1599659 27-Jul-2016 18:56
Send private message

Photo?




1429 posts

Uber Geek
+1 received by user: 315

Subscriber

  Reply # 1599660 27-Jul-2016 18:58
Send private message

RunningMan:



Photo?





After dinner I will take a photo, though photos of laptop screens look odd anyway.





Life is too short to remove USB safely.


Doesn't know what he doin
2881 posts

Uber Geek
+1 received by user: 374

Subscriber

  Reply # 1599676 27-Jul-2016 19:29
One person supports this post
Send private message

I'd say definitely yes to being hardware if the BIOS is showing the same issue.



It could be something super simple like a loose cable but laptops would be tricky to troubleshoot in that sense since you probably don't have a spare compatible display to rig up and test it with.





Bachelor of Computing Systems (2015)



--



Late 2013 MacBook Pro with Retina Display (4GB/2.4GHz i5/128GB SSD) - HP DV6 (8GB/2.8GHz i7/120GB SSD + 750GB HDD)
iPhone 6S + (64GB/Gold/Vodafone NZ) - Xperia Z C6603 (16GB/White/Spark NZ)

Sam, Auckland




1429 posts

Uber Geek
+1 received by user: 315

Subscriber

  Reply # 1599726 27-Jul-2016 20:27
Send private message

OK, I have to retract an earlier statement.

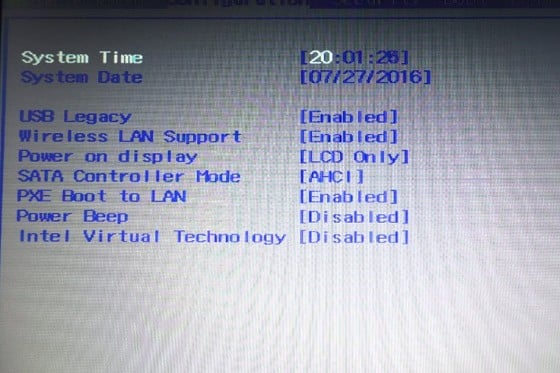

It actually looks OK once you hit F2 and go into BIOS settings.

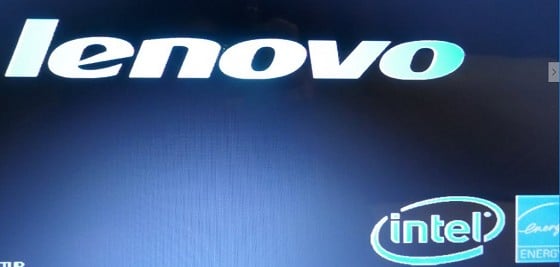

But the initial startup logo

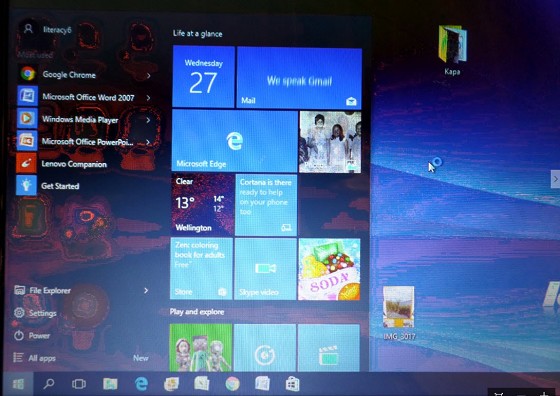

and Windows desktop look odd.















Life is too short to remove USB safely.


Doesn't know what he doin
2881 posts

Uber Geek
+1 received by user: 374

Subscriber

  Reply # 1599728 27-Jul-2016 20:30
2 people support this post
Send private message

What happens if you start in Safe Mode, or boot from some super super basic linux distro? I'm not 100% sure but I don't think this should be happening on the boot screen (where it shows Lenovo) if it were a driver issue, as that part of the boot process is still before the OS is even loaded.



Possibly because the BIOS screen has a very basic colour scheme the distortion issue isn't obvious there?





Bachelor of Computing Systems (2015)



--



Late 2013 MacBook Pro with Retina Display (4GB/2.4GHz i5/128GB SSD) - HP DV6 (8GB/2.8GHz i7/120GB SSD + 750GB HDD)
iPhone 6S + (64GB/Gold/Vodafone NZ) - Xperia Z C6603 (16GB/White/Spark NZ)

Sam, Auckland




1429 posts

Uber Geek
+1 received by user: 315

Subscriber

  Reply # 1599745 27-Jul-2016 21:21
Send private message

Safe mode is affected by the issue.



I dont have another OS to boot from.



So starting to look a lot like a hardware issue.





Life is too short to remove USB safely.


Aussie
4213 posts

Uber Geek
+1 received by user: 1195

Trusted
Subscriber

  Reply # 1599760 27-Jul-2016 22:08
Send private message

Daughters laptop had the same issue. Then it started to come up with IRQ(?) errors at boot! In our case, video hardware is dying.


5236 posts

Uber Geek
+1 received by user: 2256

Trusted
Lifetime subscriber

  Reply # 1599761 27-Jul-2016 22:11
Send private message

Can sometimes be bad memory modules.




Chorus has spent $1.4 billion on making their xDSL broadband network faster. If your still stuck on ADSL or VDSL, why not spend from $150 on a master filter install to make sure you are getting the most out of your connection?
I install - Naked DSL, DSL Master Splitters, VoIP, data cabling and general computer support for home and small business.
Rural Broadband RBI installer for Ultimate Broadband and Full Flavour



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com


Aussie
4213 posts

Uber Geek
+1 received by user: 1195

Trusted
Subscriber

  Reply # 1599774 27-Jul-2016 22:17
Send private message

coffeebaron: Can sometimes be bad memory modules.







Good point! (Though in my case that was one one of the things I tried... swapped with another laptop and it made no difference, and memory was fine in the other.)


21296 posts

Uber Geek
+1 received by user: 4297

Trusted
Subscriber

  Reply # 1599844 27-Jul-2016 22:57
Send private message

Had weird colours as the flex thru the hinge was on its way out on an old laptop. Not worth fixing as it was 5 years old when it failed so it ended up stuck somewhere as a computer to RDP into to do things.





Richard rich.ms

935 posts

Ultimate Geek
+1 received by user: 189


  Reply # 1599935 28-Jul-2016 01:06
Send private message

Either screen or GPU (if it has a dedicated GPU that is), more likely the screen.







They go for about $110 on trademe, make sure the one you get is the correct one in terms of part number.


1513 posts

Uber Geek
+1 received by user: 212


  Reply # 1600006 28-Jul-2016 08:56
Send private message

My guess is the same as richms's.

530 posts

Ultimate Geek
+1 received by user: 42

Trusted
Lifetime subscriber

  Reply # 1600035 28-Jul-2016 09:50
Send private message

The distortion/artefacts look organic to me



Have you tried http://www.passmark.com/products/monitortest.htm



Download and boot from an Win7/8 PE boot disk or an Ubuntu live disk and see if the problem still exists.



Does adjusting the angle of the screen help or worsen the problem? (dodgy cable)


1497 posts

Uber Geek
+1 received by user: 338


  Reply # 1602876 2-Aug-2016 13:16
Send private message

kiwifidget:



An external VGA connected monitor displays perfectly.





so it will be the display panel (or the cable)
It wont be a driver, RAM or anything else if its OK on an external monitor.



The backlight looks full on it the middle, or is that just the camera flash ?
