Seeking advice on new VDSL connection

Forums › Spark New Zealand (including Skinny and BigPipe) › Seeking advice on new VDSL connection

phatypus

2 posts

Wannabe Geek

#226034 17-Dec-2017 20:33

Hello,

Earlier this week, Chrous setup Spark VDSL (unlimited) at my home in Three Kings. Prior to that I had Spark ADSL (unlimited). I have a phone line too, so it's not a naked connection.

Since getting VDSL I have noticed Netflix freezing much more often than before.

In the past for ADSL, I used a Draytek Vigor 120; I cannot recall connection speeds as I never really had concern to check. Now for VDSL, I use a Draytek Vigor 130 and it looks like my VDSL connection speeds are approximately 17M (down)/1M (up).

Two things concern me a little:
1. My VDSL connection seems more unstable than my old ADSL connection.
2. I was hoping for faster download speeds on VDSL.

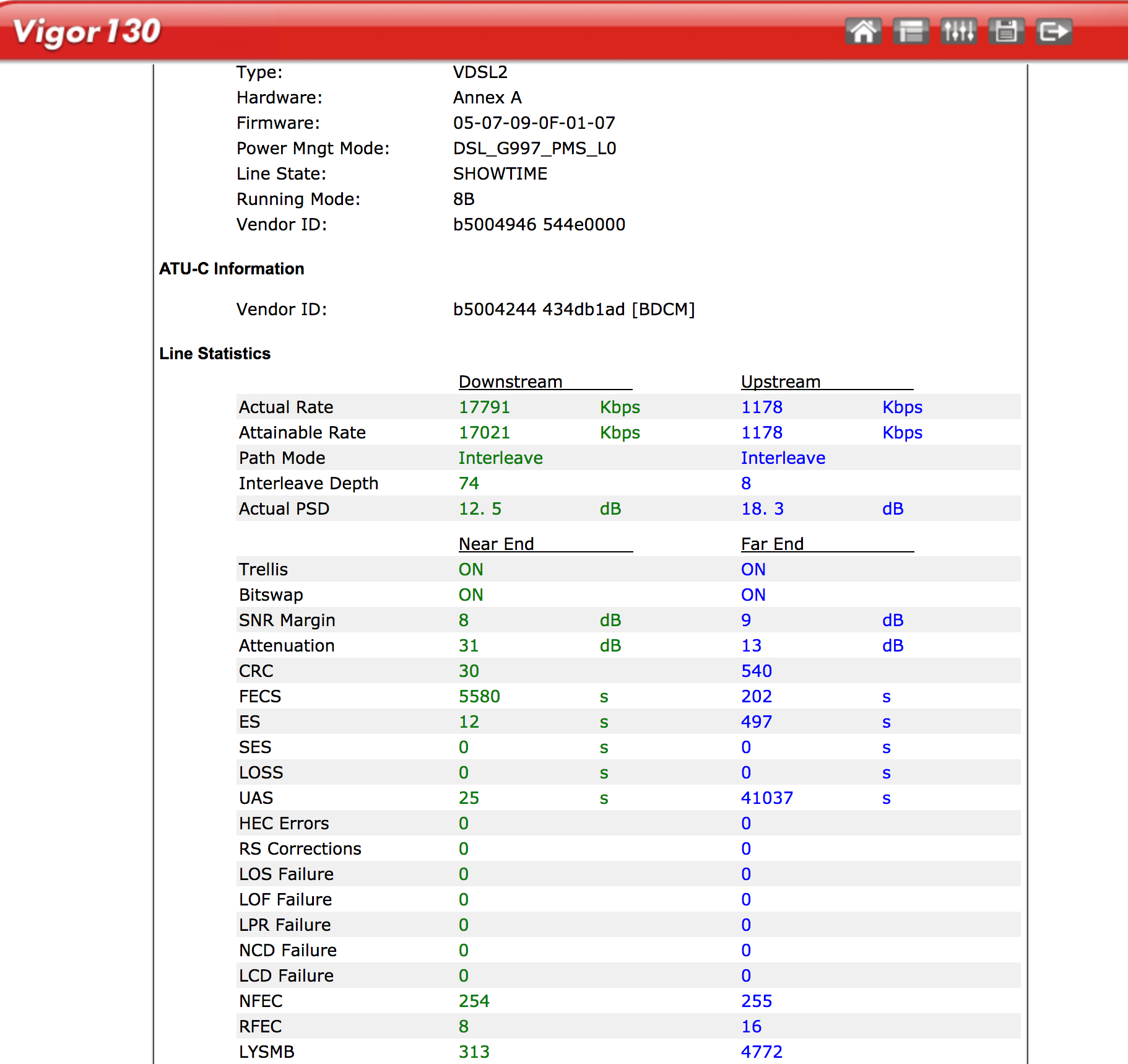

Here is some info from my Draytek Vigor 130 VDSL modem (taken a few hours after a power outage in the area):

I live directly east of Big King reserve in Three Kings, relatively close to the cabinet on Duke Street and Mount Eden Road: https://gis.geek.nz/chorus/@-36.9018863,174.7488878,15z

I don't know enough to assume that there is a problem or if it's just tough luck; can someone with an understanding of the information above please advise?

sbiddle

30853 posts

Uber Geek
+1 received by user: 9996

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#1920864 17-Dec-2017 20:36

Do you have a master filter?

phatypus

2 posts

Wannabe Geek

#1920866 17-Dec-2017 20:39

I don't know if I have a master filter. Is that something that Chorus would have installed during the VDSL install? What does it look like and I'll try take a photo of the cabinet in my house.

Jase2985

13730 posts

Uber Geek
+1 received by user: 6202

ID Verified

Lifetime subscriber

#1920867 17-Dec-2017 20:52

unless you paid for it and they visited your house (inside) then linke you dont.

what were your connection stats with ADSL?

you have rather high downstream attenuation

michaelmurfy

meow
13579 posts

Uber Geek
+1 received by user: 10910

Moderator

ID Verified

Trusted

Lifetime subscriber

#1920871 17-Dec-2017 21:27

Ping @coffeebaron - looks like you need a master filter installed.

Michael Murphy | https://murfy.nz
Referral Links: Quic Broadband (use R122101E7CV7Q for free setup)

Are you happy with what you get from Geekzone? Please consider supporting us by subscribing.
Opinions are my own and not the views of my employer.

Sideface

9649 posts

Uber Geek
+1 received by user: 15598

Trusted

Lifetime subscriber

#1920872 17-Dec-2017 21:34

Jase2985:

... you have rather high downstream attenuation

You have very high downstream attenuation (31dB) - i'm surprised that your VDSL works as well as it does.

A master filter may help - in my opinion they should be standard issue with all VDSL connections, but sadly, they are not.

Sideface

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1920906 17-Dec-2017 23:52

Based on your UAS it looks like your hella erroring on the upstream, which would cause periods of No data transfer.

Please DM me your account number/line number, I'll run some tests on my end. Based on the UAS, is possible your seeing RFI, however your error counters don't exactly lineup with what i'd expect to see.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

AliExpress

Shop now on AliExpress (affiliate link).

DjShadow

4222 posts

Uber Geek
+1 received by user: 1322

ID Verified

Trusted

Subscriber

#1920909 18-Dec-2017 00:15

Side question, how far away is fibre (UFB) for you?

hio77

'That VDSL Cat'
13036 posts

Uber Geek
+1 received by user: 3896

ID Verified

Trusted

Lizard Networks

Subscriber

#1921180 18-Dec-2017 11:22

Okay so looking into this one, OP is down quite a ROW, Likely a 100 pair bundle going into the location.

Speeds are within spec of the bulk of other customers in that area, Unfortunately is Exchange fed.

At best, looking at 1.5KM from Exchange, Likely further.

I've advised a move back to ADSL, If the problem continues. we have seen 11 DLM related resyncs Since the move to VDSL, as of yesterday this dropped down to a single non DLM related resync. So it may seem alot more stable as of now.

OP - forgot to mention in my DM, 07/04/2019 is when you will likely be looking a fibre :)

ddDLM was trying to train the connection, Peaking at a nice 21mbit down but obviously with far too many errors thus the retrain back down.

As with what goes with ddDLM, upstream was ever so slightly better on ADSL, however this is trending towards sitting comfortably back at 1.2mbit.

IMO, i don't agree with ddDLM being as aggressive as it has been on the line, but definitely is looking a bit happier now.

I'm further monitoring the line to look at errors and such.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

chewster

127 posts

Master Geek
+1 received by user: 77

Trusted

#1921187 18-Dec-2017 11:32

phatypus:

I don't know if I have a master filter. Is that something that Chorus would have installed during the VDSL install? What does it look like and I'll try take a photo of the cabinet in my house.

This is a master filter -> https://www.pbtech.co.nz/product/MODDNX001/DYNAMIX-XDSL-Master-Wired-in-filter-ADSLADSL2VDSLV

They're tiny, about 50mm * 10mm * 30mm

They go inside the ETP enclosure ie the white square plastic box on the wall outside your house that the phone line hits
