Hi geekzone peeps!

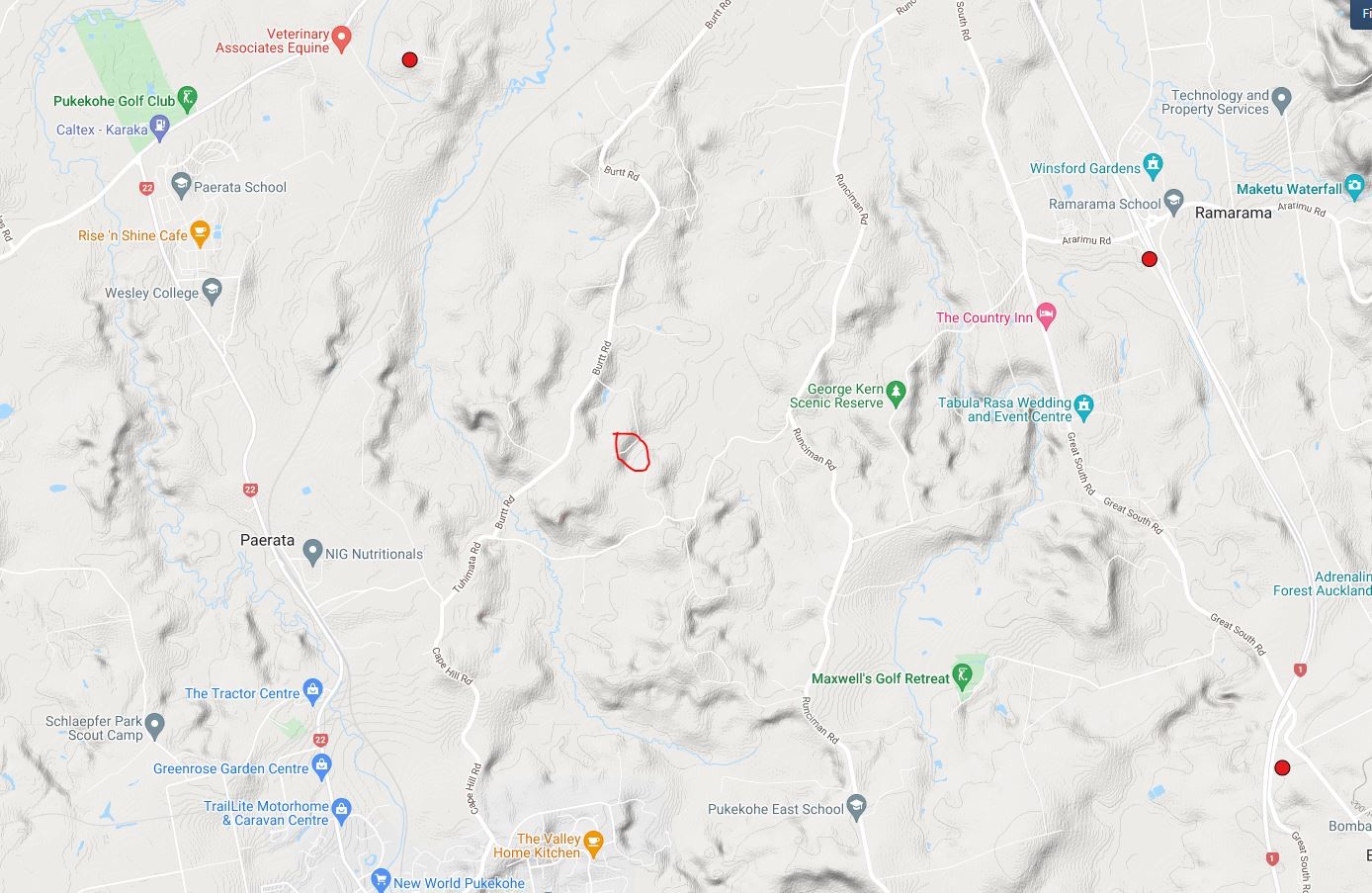

I live in rural South Auckland and I'm thinking about switching to 4g broadband as I can only currently get ADSL. My mobile reception here is pretty patchy at best as I'm in a little bit of a valley. I can see where the cell towers are in relation to where I live:









I did manage to get hold of a 4g modem (Teltonika RUT240) and a 7dbi omni-directional antenna (https://www.jaycar.co.nz/4g-7dbi-700-2700mhz-antenna-with-sma-connection-and-magnetic-mount/p/AR3344) to test. The modem gives 3 signal bars but I can only get maybe 4mbps down speed. It says signal strength is -69 dBm, RSRP -106 dBm, RSRQ -17dB, SINR -4.3 dB, connection type 4G (LTE) LTE BAND 28.



I'm wondering whether I should try with a directional antenna or am I just out of luck where I am situated? Curious to get some opinions.



Thanks!

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2 | 3
wratterus
1687 posts

Uber Geek
+1 received by user: 678


  #2880133 7-Mar-2022 10:44
Send private message

@coffeebaron will be able to offer great advice here.

Although I'd say a directional antenna should help significantly.



jbag

16 posts

Geek
+1 received by user: 1


  #2880134 7-Mar-2022 10:47
Send private message

Ahhh I remember coffeebaron from the old Vodafone forums!

Linux
12360 posts

Uber Geek
+1 received by user: 8650

Trusted
Lifetime subscriber

  #2880158 7-Mar-2022 10:48
Send private message

See this thread



https://www.geekzone.co.nz/forums.asp?forumid=42&topicid=284593



nztim
4069 posts

Uber Geek
+1 received by user: 2782

ID Verified
Trusted
TEAMnetwork
Subscriber

  #2880161 7-Mar-2022 11:02
Send private message

No Local WISP?












Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

sparkz25
750 posts

Ultimate Geek
+1 received by user: 284
Inactive user


  #2880176 7-Mar-2022 12:18
Send private message

I haven't got coverage out there, but you could try Wheronet, John has some gear up on the klondykes

coffeebaron
6319 posts

Uber Geek
+1 received by user: 3581

Trusted
Lifetime subscriber

  #2880200 7-Mar-2022 13:26
Send private message

Try locking 4G modem to Band 3 and see if you still get service. You probably want a better antenna setup though. Also can you get the PSI or CellID code from the modem?




Rural IT and Broadband support.



Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com






Shop now for Dyson appliances (affiliate link).
jbag

16 posts

Geek
+1 received by user: 1


  #2880952 8-Mar-2022 10:23
Send private message

Hey thanks everyone for the replies - sorry I didn't get notifications that there were replies!



I had a look at that other thread and have ordered a log periodic directional antenna albeit not one nearly as good as the ones mentioned. Am also on the lookout for a newer modem like the B818 that was mentioned. Am I correct though in my understanding that carrier aggregation would only make a difference if I was able to get signal from multiple cell towers? Sorry I'm quite a n00b here, it's all pretty new to me.

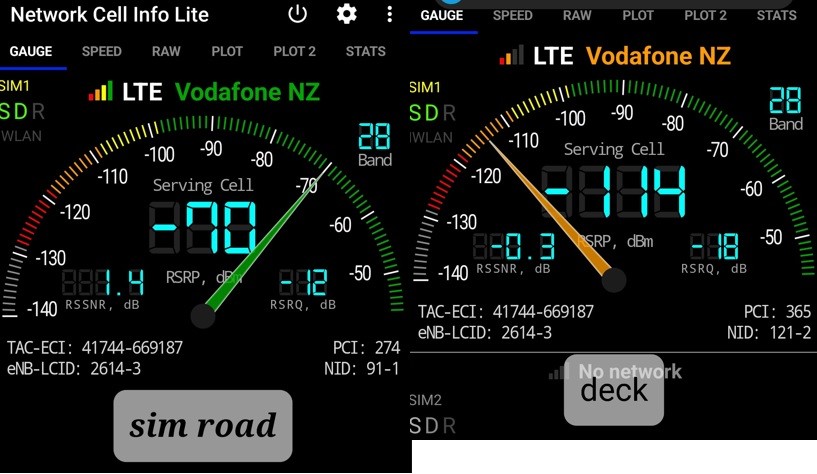

@coffeebaron I used network cell info to capture some of that info already. I was always guessing that my cell tower connection was likely the one on Sim Road. The image next to it is from my deck where I can get the best reception. I think based on what I understand the numbers show that this the cell tower connected from my deck is the one on Sim Road right?





Thanks heaps for everyone's help.

jbag

16 posts

Geek
+1 received by user: 1


  #2880954 8-Mar-2022 10:24
Send private message

@sparkz25 where abouts are you located?

coffeebaron
6319 posts

Uber Geek
+1 received by user: 3581

Trusted
Lifetime subscriber

  #2881222 8-Mar-2022 15:20
Send private message

Drury 274 and Opaheke 365












Rural IT and Broadband support.



Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

jbag

16 posts

Geek
+1 received by user: 1


  #2881228 8-Mar-2022 15:28
Send private message

Wait what? My mobile phone from my deck is connecting to Opaheke? That's situated way further away than Drury, Ramarama and Drury Off-Ramp!

coffeebaron
6319 posts

Uber Geek
+1 received by user: 3581

Trusted
Lifetime subscriber

  #2881302 8-Mar-2022 16:57
Send private message

Yep, signal travels in odd paths sometimes. It's probably just the way the valleys and hills flow around you. Probably a hill blocks the Ramarama site.




Rural IT and Broadband support.



Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com






Shop on-line at New World now for your groceries (affiliate link).
jbag

16 posts

Geek
+1 received by user: 1


  #2881304 8-Mar-2022 16:58
Send private message

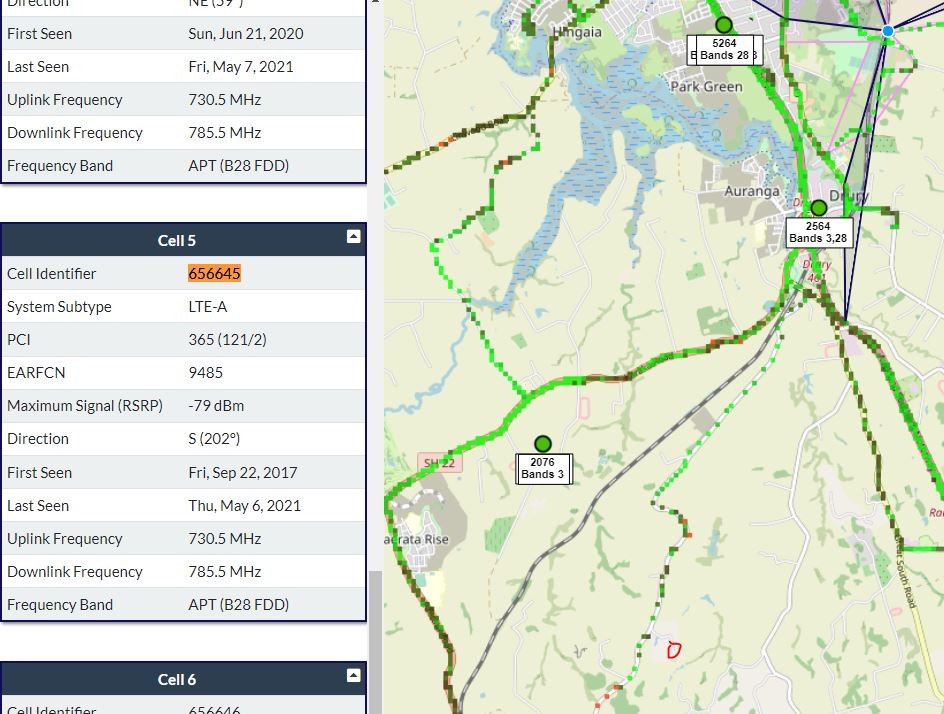

When I was testing the modem the Cell ID was 656645. I had a look on cellmapper and it looks like that is the Opaheke tower. So I guess when I get this directional antenna should I point it in that direction and also try select band 3?







coffeebaron
6319 posts

Uber Geek
+1 received by user: 3581

Trusted
Lifetime subscriber

  #2881313 8-Mar-2022 17:36
Send private message

Start there first, but also point around. Find the best B28 signal first, then play around with band locking. Ideally a CAT6 or higher device with CA would be best.




Rural IT and Broadband support.



Broadband troubleshooting and master filter installs.
Starlink installer - one month free: https://www.starlink.com/?referral=RC-32845-88860-71
Wi-Fi and networking
Cel-Fi supply and installer - boost your mobile phone coverage legally



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com

nztim
4069 posts

Uber Geek
+1 received by user: 2782

ID Verified
Trusted
TEAMnetwork
Subscriber

  #2881331 8-Mar-2022 18:29
Send private message

or talk to a WISP Wheronet?




Any views expressed on these forums are my own and don't necessarily reflect those of my employer.

sparkz25
750 posts

Ultimate Geek
+1 received by user: 284
Inactive user


  #2881406 8-Mar-2022 22:42
Send private message

jbag:



@sparkz25 where abouts are you located?









Waiuku, I got a few sites scattered around Otaua, Kariotahi and puni
