[TelstraClear] Time Capsule router not working with TCL Cable

Forums › Vodafone New Zealand › [TelstraClear] Time Capsule router not working with TCL Cable

sebastiannz

17 posts

Geek

Topic # 87805 7-Aug-2011 22:43

Hi guys,

I just bought a Time Capsule to replace my Linksys E2000. The E2000 was running fine but I wanted a wireless external HD, which the Time Capsule provided.

So I've set the Time Capsule up with all the same settings, as follows:

IP address: 121.73.247.68subnet 255.0.0.0gateway 121.73.247.1dns 203.97.78.43203.97.78.44
After doing all the setup and plugging the TCL internet cable into the WAN port, the Time Capsule light went green.

The problem is I have no internet connection!

I can ping the router (10.0.1.1) but that's it. No DNS server response and no web access. I've fiddled around with the settings for ages and have run out of ideas.

I'm kind of annoyed with Apple - this has definitely not 'just worked'.

As soon as I plug back in my E2000, everything works fine. So I'm pretty sure it's not a problem with TCL or the cable modem.

Anyone have any ideas?

1 | 2 | 3

17 posts

Geek

Reply # 503135 7-Aug-2011 22:46

BTW I have also updated the firmware, it is on 7.5.2. I can also connect wirelessly to the Time Capsule fine and it seems to be working OK apart from no internet. I'm wondering if it's broken?

tigercorp

621 posts

Ultimate Geek
+1 received by user: 54

Subscriber

Reply # 503143 7-Aug-2011 22:57

Can't help you with Time Capsule I'm afraid, but just so your aware - starting the same thread in different forums is generally considered not cool to do on ANY forum on the interweb.

Good luck with the problem.

phantomdb

519 posts

Ultimate Geek
+1 received by user: 83

Subscriber

Reply # 503145 7-Aug-2011 23:02

on your E2000 was it dishing out DHCP to the local network if so is time capsule doing the same with simaler info?
If so is there DNS and Gateway info in the dhcp setting

and this line subnet 255.0.0.0 probally should read 255.255.255.0

And finally, try restarting your cable modem incase its arp cache is still holding old info on the E2000.

[ SIGNATURE HERE ]

sebastiannz

17 posts

Geek

Reply # 503147 7-Aug-2011 23:04

E2000 did have DHCP dishing out IPs internally. It was using 192.168.1.x range. My Time Capsule is using 10.0.1.x range, so I'll try matching that.

I have tried resetting the cable modem a few times but it doesn't seem to do anything. IS there possibly a way to hard reset it?

sebastiannz

17 posts

Geek

Reply # 503148 7-Aug-2011 23:05

Oh and I'll change the subnet mask - it was originally 255.255.255.0 but I switched it to 255.0.0.0 as that is what the E2000 had and I was trying to match it exactly!

sebastiannz

17 posts

Geek

Reply # 503149 7-Aug-2011 23:06

tigercorp: Can't help you with Time Capsule I'm afraid, but just so your aware - starting the same thread in different forums is generally considered not cool to do on ANY forum on the interweb.

Good luck with the problem.

Sorry about that I'm new here and I didn't know which forum would be best for this possibly esoteric problem :(

sbiddle

27421 posts

Uber Geek
+1 received by user: 6868

Moderator

Trusted

Biddle Corp

Lifetime subscriber

Reply # 503174 8-Aug-2011 06:06

Subnet should be 255.255.255.0

It's also essential you reboot your cable modem, and on some occasions there have been people on here say they've had to leave it for 10 - 15 before reattaching another router. The ARP table can only have a single MAC address behind the modem.

freitasm

BDFL - Memuneh
62038 posts

Uber Geek
+1 received by user: 12653

Administrator

Trusted

Geekzone

Lifetime subscriber

Reply # 503189 8-Aug-2011 08:17

As posted by Steve. The modem needs to be rebooted. Better to turn it off for 15 minutes, because that's the time the nodes will hold an old MAC address in their tables.

And I have removed the duplicated thread.

Backblaze cloud backup (personal and business) | Geekzone broadband switch | Amazon (Geekzone aff) | MightyApe (Geekzone aff) |

My technology disclosure | Business Transformation | Enterprise Content Management | Customer Relationship Management | Sharesies investment fund

zoom23

10 posts

Wannabe Geek

Reply # 503555 8-Aug-2011 20:42

As a counter exampler, I have one of these. I entered the right numbers (The ones TC gave me). It 'just' worked.

sebastiannz

17 posts

Geek

Reply # 503748 9-Aug-2011 11:04

That's great - so maybe you can help me get mine working. Are there any settings you changed in Airport Utility that you think I might have got wrong? How did you set it up - did you go through the wizard or just do manual setup?

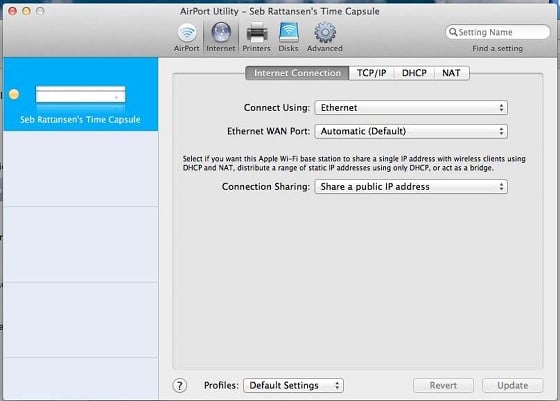

I've attached some pics so you can see what settings I put in. I've triple checked they are the same ones as Telstraclear gave me.

PS: I tried the 15 min reboot of the cable modem (20 mins to be safe actually) and still no luck.

freitasm

BDFL - Memuneh
62038 posts

Uber Geek
+1 received by user: 12653

Administrator

Trusted

Geekzone

Lifetime subscriber

Reply # 503750 9-Aug-2011 11:06

What do you get if you ping 202.175.128.164?

Backblaze cloud backup (personal and business) | Geekzone broadband switch | Amazon (Geekzone aff) | MightyApe (Geekzone aff) |

My technology disclosure | Business Transformation | Enterprise Content Management | Customer Relationship Management | Sharesies investment fund

sebastiannz

17 posts

Geek

Reply # 503756 9-Aug-2011 11:17

freitasm: What do you get if you ping 202.175.128.164?

I'm at work so can't try that at the moment - will try when I get home though.

sebastiannz

17 posts

Geek

Reply # 503758 9-Aug-2011 11:21

Dunnersfella

3467 posts

Uber Geek
+1 received by user: 517

Reply # 503776 9-Aug-2011 12:22

I'm a bit of a thicko with this sort of thing, but why have you selected your Connection Sharing to "Share a plublic IP address"?

sebastiannz

17 posts

Geek

Reply # 503822 9-Aug-2011 13:24

I think that is the option you are supposed to use if you want al the internal devices to be using the same IP externally. I think it is pretty much the default option. From memory, the other options are 'bridge' and assigning a range of internal IPs.

1 | 2 | 3
