Wannabe Geek


#138332 30-Dec-2013 17:38
Send private message

Hi, I'm no tech and a newbie to the forum thing but would appreciate a bit of help, so here goes....I have been using a SRP 527W for internet and VioP through WXC for some time  and I'm happy as with both WXC and the 527W...

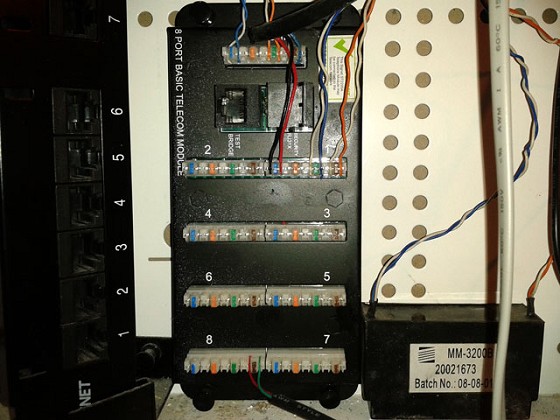

However, I have moved and have a different setup now, the phone line coming to the property goes directly to an '8 port Telecom Module'.
The 527W DSL port has an RJ 11 plugged into it and a couple of cores punched down on #8 panel out of the module, so the internet works totally fine...

My question is can I use an RJ 11 plug out of the back of the SRP Ph #1 socket outlet and punch down cores on to the module then patch from that to the 24 way patch board then out to the RJ 45 network outlets around the house (the phone connection is working, but at the moment I'm running the phone base station in the cabinet which is plugged directly into the #1 phone outlet of the SRP...must be a tidier way to hook this up ?)

Cheers Mike

Create new topic
5944 posts

Uber Geek


  #959192 30-Dec-2013 17:43
Send private message

You almost certainly can, but if you could post some photos it would make it easier to understand exactly what you currently have.

28967 posts

Uber Geek

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  #959195 30-Dec-2013 17:48
Send private message

As long as you don't exceed the REN value by plugging in too many phones you're fine.

From memory the REN of the SRP range is around 3, and each phone you have should have the REN value on the Telepermit sticker.










6 posts

Wannabe Geek


  #959223 30-Dec-2013 18:34
Send private message

Hey thanks !




6 posts

Wannabe Geek


  #959224 30-Dec-2013 18:35
Send private message


28967 posts

Uber Geek

Moderator
Trusted
Biddle Corp
Lifetime subscriber

  #959225 30-Dec-2013 18:35
Send private message

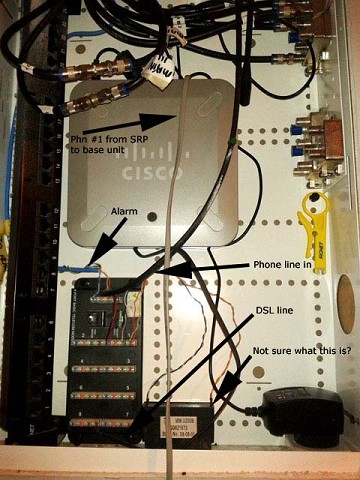

The device that you've labelled "unsure what this is" is your xDSL master filter.



6 posts

Wannabe Geek


  #959226 30-Dec-2013 18:35
Send private message




Last one...Cheers mike



6 posts

Wannabe Geek


  #959234 30-Dec-2013 19:19
Send private message

Yep the RN=0.5

Im using a couple of Uniden walk around phones...thanks for the ID on the not sure lable!

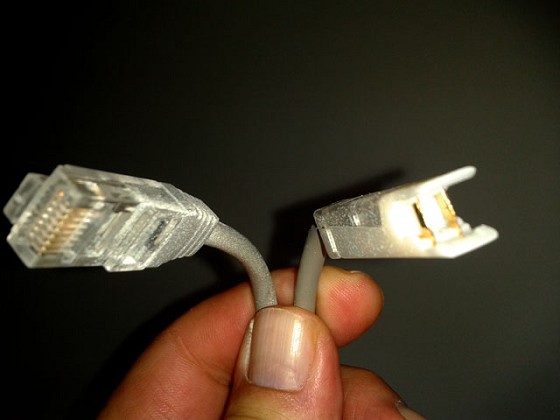

so any thoughts regarding getting the cable to the module....could I cut and strip back the cable from the SRP phn outlet 1 and punching it down on to the module patch panel... if so, how would I patch from the module to the 24 way panel...could I use the patch cable shown above? would appreciate a walk through!







833 posts

Ultimate Geek


  #959235 30-Dec-2013 19:23
Send private message

mikesnz:


Last one...Cheers mike


do you have a RJ11 Version of this patch cord ? (your photo is of a AT&T110 single pr to RJ45 Single pr patch cord for voice patching)

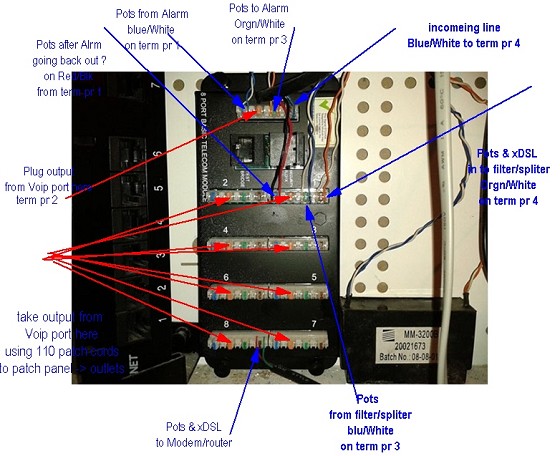

I hope this helps explain what is what and what to patch where? If not just ask.

If you where to use the standard incoming pots line then you would patch from terminal pr 1 to your 24 port patch panel.

5671 posts

Uber Geek

Trusted
Lifetime subscriber

  #959237 30-Dec-2013 19:29
Send private message

Any spare ports on the patch panel? If so, I'd just jumper 3 or 4 patch panel ports together on the blue pair and plug the VoIP port into one if those, then patch from there to where ever you want phones.




Chorus has spent $1.4 billion on making their xDSL broadband network faster and even more now as they are upgrading their rural Conklins. If your still stuck on ADSL or VDSL, why not spend $195 on a master filter install to make sure you are getting the most out of your connection?
I install - Naked DSL, DSL Master Splitters, VoIP, data cabling and general computer support for home and small business.



Cel-Fi supply and installer - boost your mobile phone coverage legally
Rural Broadband RBI installer for Ultimate Broadband and Full Flavour



Need help in Auckland, Waikato or BoP? Click my email button, or email me direct: [my user name] at geekzonemail dot com




6 posts

Wannabe Geek


  #959418 31-Dec-2013 07:59
Send private message

Hey thanks heaps for your time and suggestions...

Happy New year
