Incoming calls fails after ~1h

Forums › VoIP › Incoming calls fails after ~1h

smixxx

5 posts

Wannabe Geek

#171567 23-Apr-2015 03:35

Hello everyone,

I'm using Elastix 2.4 and with a server, 2 WANs and a freebox. The probleme is that incoming calls fails after ~1h and becomes busy, so I have to reboot the pbx server and then it works.

Trunk config:

defaultuser=3******
type=peer
disallow=all
nat=yes
canreinvite=no
qualify=yes
directmedia=yes
promiscredir=yes
qualifyfreq=20
allow=g722,alaw
host=keyyo.net
outboundproxy=keyyo.net
fromuser=3*******
remotesecret=******
secret=******
insecure=port,invite
transport=udp
context=from-trunk
usereason=yes
allowguest=no

thx!

sbiddle

30853 posts

Uber Geek

Retired Mod

Trusted

Biddle Corp

Lifetime subscriber

#1289920 23-Apr-2015 08:16

You probably have a registration time of 3600 seconds and once this times out i's not registering. Could be hundreds of causes but your firewall would be the most obvious.

smixxx

5 posts

Wannabe Geek

#1290393 23-Apr-2015 20:38

Thank you

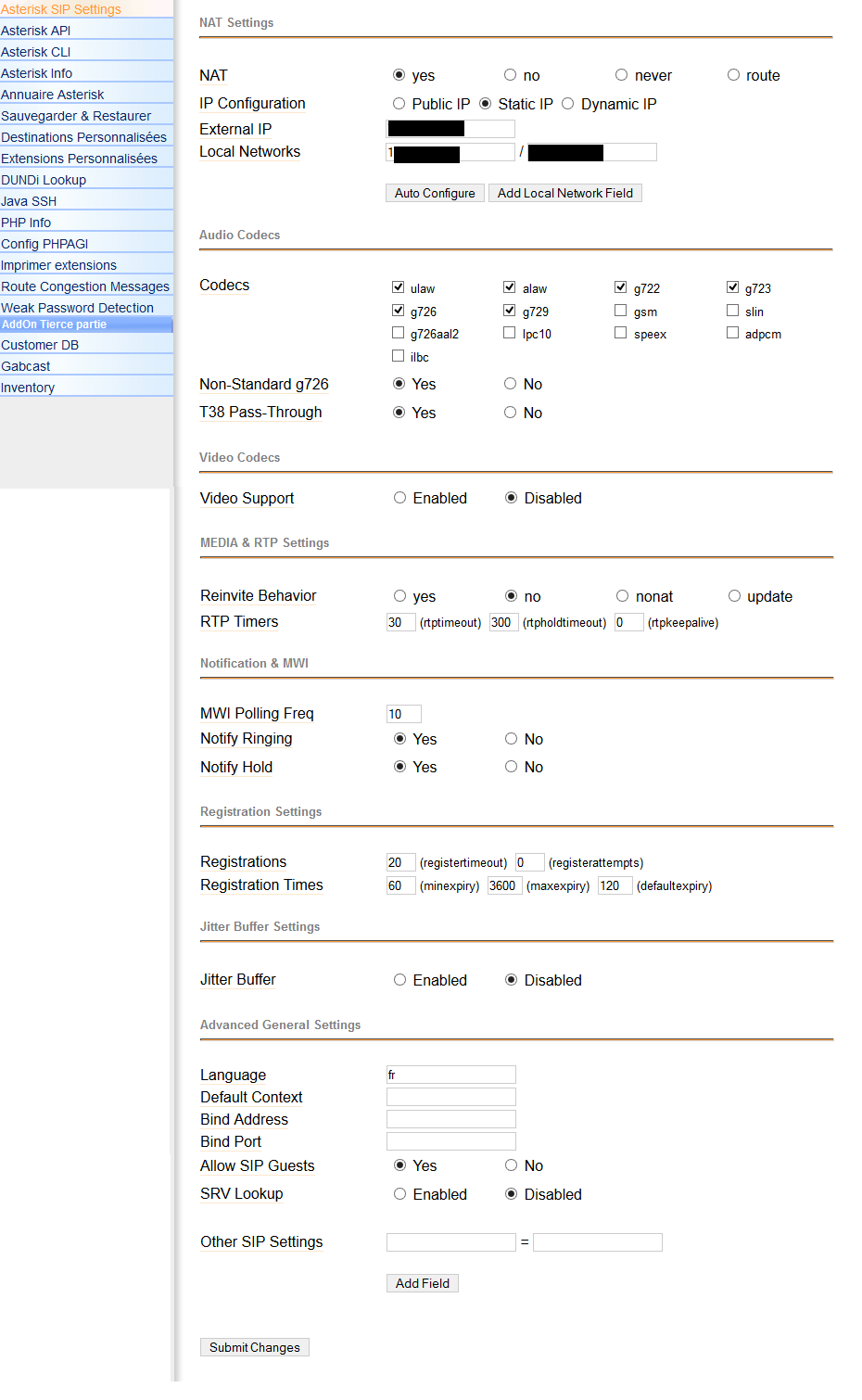

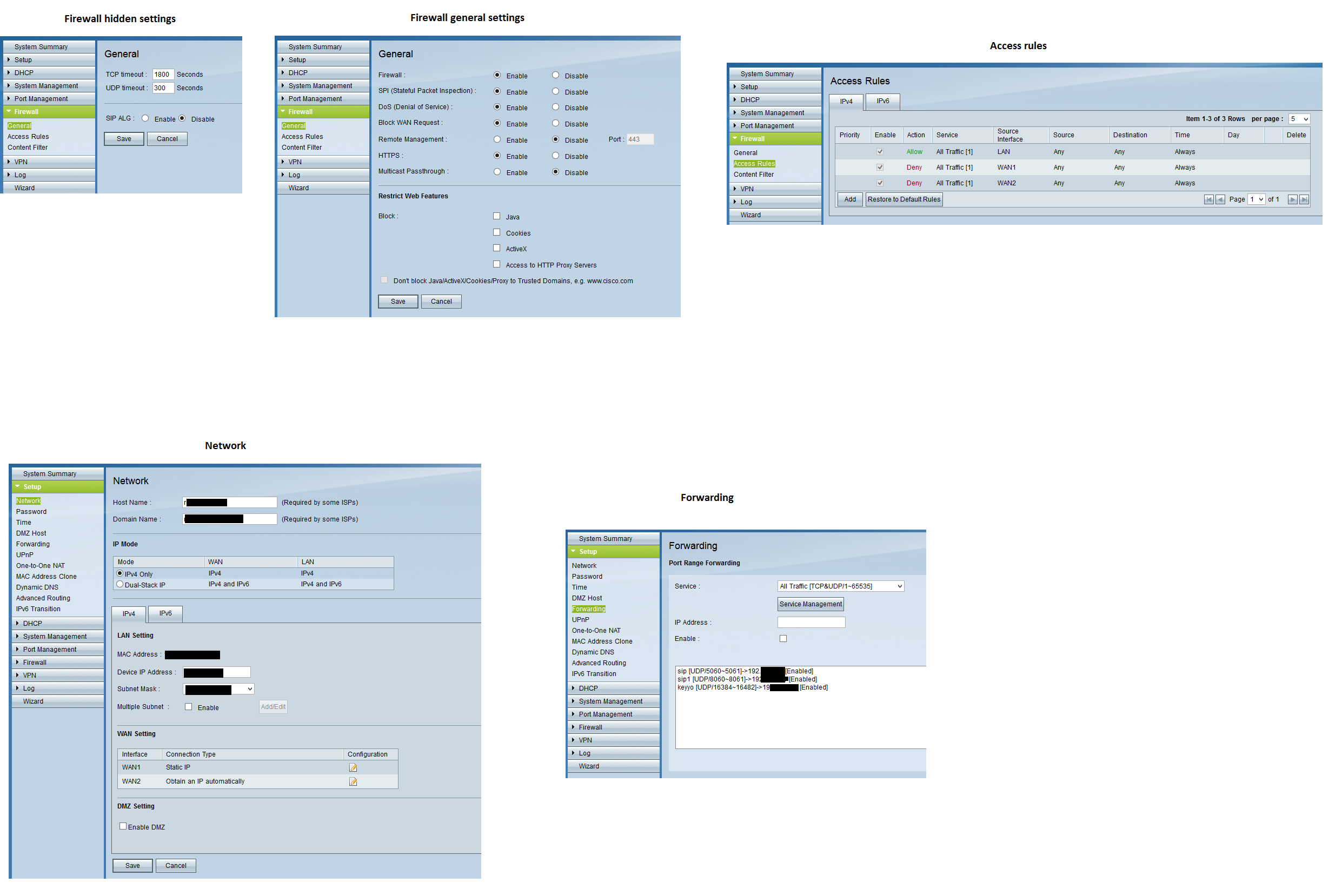

Here the firewall and Asterisk configurations i'm using, plz take a look maybe there is something wrong that i need to change.

smixxx

5 posts

Wannabe Geek

#1290514 24-Apr-2015 01:07

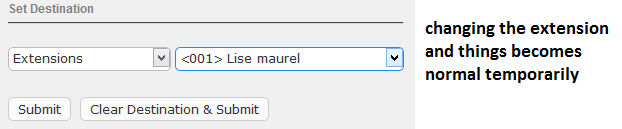

I forgot to mention that changing the extension also disable the fact that the number stay busy.

ubergeeknz

3344 posts

Uber Geek

Trusted

Vocus

#1290518 24-Apr-2015 01:30

Change your maxexpiry timer to 1800 and see what happens. I would bet your NAT session is running out.

You could also try using a non-standard port, like 6000, some routers interfere with SIP on port 5060 whether or not you have tried to turn the SIP ALG off.

If that's still not working use tshark or tcpdump and get a trace of what's happening.

smixxx

5 posts

Wannabe Geek

#1291061 24-Apr-2015 19:23

I tried and doesn't work :/

ubergeeknz

3344 posts

Uber Geek

Trusted

Vocus

#1291068 24-Apr-2015 19:31

smixxx: I tried and doesn't work :/

ubergeeknz: If that's still not working use tshark or tcpdump and get a trace of what's happening.

smixxx

5 posts

Wannabe Geek

#1291090 24-Apr-2015 20:11

ok ubergeeknz, I just noticed that making any changes on Elastix without rebooting the server everything back to normal temporarily.
Thank you,
