SRP521 provisioning on Vfx

Forums › VoIP › SRP521 provisioning on Vfx

amanzi

Amanzi
878 posts

Ultimate Geek
+1 received by user: 91

Trusted

Subscriber

Topic # 94916 21-Dec-2011 21:31

Hi all,

I got a new SRP521 today and I provisioned it successfully by following the setup video on the Xnet site. During the setup it did a firmware upgrade and everything seemed to be OK. But tonight I noticed that the phone line wasn't working correctly, so I decided to a factory reset and then re-provision it.

But the problem now is that after a factory reset, the setup wizard is different to the setup video. It doesn't prompt me to change the default password, and it also doesn't prompt me to enter the voice provisioning details.

So I don't know how to get to the screen where I can enter the provisioning details. If I log in with the cisco user account I don't get to see many of the admin screens, even if I press the Advanced link in the top right. I discovered that I can get to all the extra admin screens if I log in with the admin user account, but then I'm still not sure how to provision the VFX line.

Can anyone help?

Cheers.
Stuart.

1 | 2

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560449 21-Dec-2011 21:41

If you log in with the cisco account, then click advanced on the top right, do you get the menu across the top with "voice" as the 4th option from the left?

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560451 21-Dec-2011 21:44

Just another thought, I think there is two levels of factory reset - I think using the hardware reset button wipes everything, but there was a reset option in the webif that just reset the user settings, but left the provisioning as is...

What firmware is it running now?

amanzi

Amanzi
878 posts

Ultimate Geek
+1 received by user: 91

Trusted

Subscriber

Reply # 560460 21-Dec-2011 22:03

RunningMan: If you log in with the cisco account, then click advanced on the top right, do you get the menu across the top with "voice" as the 4th option from the left?

Yes, I can see the Voice menu but there are no provisioning settings in any of the Voice screens. If I log in with admin/admin then I can see a lot more options and settings that can be configured.

What firmware is it running now?

Here are the specs listed on the status page
Model: SRP521W, FE WAN, 802.11n ETSI, 2FXS/1FXO
Version ID: V04
Hardware Version: 4.0.0
Boot Version: 1.1.17 (Jan 4 2010 - 21:15:46)
Firmware Version: 1.01.23 (006) Jun 17 2011
Recovery Firmware: 1.01.20 (011)
Setup Wizard Version: 20101106.00

Just another thought, I think there is two levels of factory reset - I think using the hardware reset button wipes everything, but there was a reset option in the webif that just reset the user settings, but left the provisioning as is...

I've done a factory reset by holding down the reset button for 10 seconds, and I've also tried wiping the settings by logging in as admin and using the Factory Defaults menu under Administration.

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560467 21-Dec-2011 22:14

If you log in under the admin account, there should be a provisioning option under the "voice" tab.

It should just be a matter of pasting the provisioning URL https://prov.xport.co.nz/configs/default/default$MA.cfg in to the "profile rule" box, and a pop up menu to turn provision enable on.

Sorry it's a bit vague, I'm going from memory, because once it's provisioned, the admin account gets locked out so you can't change the voice settings, and I don't have a manual in front of me at the moment...

The 1.01.23 (006) Jun 17 2011 firmware is the current one that Xnet are rolling out, and it would be unlikely to have picked that up if the original provisioning hadn't worked OK.

freitasm

BDFL - Memuneh
61331 posts

Uber Geek
+1 received by user: 12077

Administrator

Trusted

Geekzone

Lifetime subscriber

Reply # 560470 21-Dec-2011 22:15

I have the same model (except hardware version for mine is 3.0.0) with same firmware.

If you can log in as Admin then you certainly have done a proper reset (which could also be achieved through Administration -> Factory Defaults).

I can't give you a screenshot since mine is already configured, but if you click in Voice there is a line to enter the config URL. It should be with the label Profile Rules and you should enter https://prov.xport.co.nz/configs/default/default$MA.cfg there.

It's certainly there on this firmware version.

Backblaze cloud backup (personal and business) | Geekzone broadband switch | Amazon (Geekzone aff) | MightyApe (Geekzone aff) |

My technology disclosure | Business Transformation | Enterprise Content Management | Customer Relationship Management

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560475 21-Dec-2011 22:19

If you have a look at the setup video for one of the older devices that didn't have the setup wizard, you'll probably get the idea...

freitasm

BDFL - Memuneh
61331 posts

Uber Geek
+1 received by user: 12077

Administrator

Trusted

Geekzone

Lifetime subscriber

Reply # 560476 21-Dec-2011 22:22

Yep, this is the thing: I never used the wizard in my devices.

Backblaze cloud backup (personal and business) | Geekzone broadband switch | Amazon (Geekzone aff) | MightyApe (Geekzone aff) |

My technology disclosure | Business Transformation | Enterprise Content Management | Customer Relationship Management

amanzi

Amanzi
878 posts

Ultimate Geek
+1 received by user: 91

Trusted

Subscriber

Reply # 560479 21-Dec-2011 22:27

Thanks to both of you I now have the phone line provisioned. I had found that section before but didn't think it was working. But I hadn't rebooted the device after setting it. Once it rebooted I can no longer log in with the admin account and the phone line is now working.

Only issue now is that my cisco user account still has the default password and I can't see how I can change it??

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560480 21-Dec-2011 22:28

freitasm: Yep, this is the thing: I never used the wizard in my devices.

Me neither, but once it picks up the provisioning settings, you can't get back to the voice settings again (for obvious reasons!).

From memory, you will only ever see the setup wizard if you log in using the cisco account, immediatly following a full reset. If you log in using the admin account first, then you won't get the wizard when you log in with the cisco account.

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560482 21-Dec-2011 22:32

amanzi: Only issue now is that my cisco user account still has the default password and I can't see how I can change it??

Log in to the cisco account.

Click advanced

Go to the administration menu - user list - then click on the pencil icon next to cisco

amanzi

Amanzi
878 posts

Ultimate Geek
+1 received by user: 91

Trusted

Subscriber

Reply # 560486 21-Dec-2011 22:44

RunningMan:
amanzi: Only issue now is that my cisco user account still has the default password and I can't see how I can change it??

Log in to the cisco account.

Click advanced

Go to the administration menu - user list - then click on the pencil icon next to cisco

I don't have that option available...

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560488 21-Dec-2011 22:49

Should look like this

amanzi

Amanzi
878 posts

Ultimate Geek
+1 received by user: 91

Trusted

Subscriber

Reply # 560489 21-Dec-2011 22:54

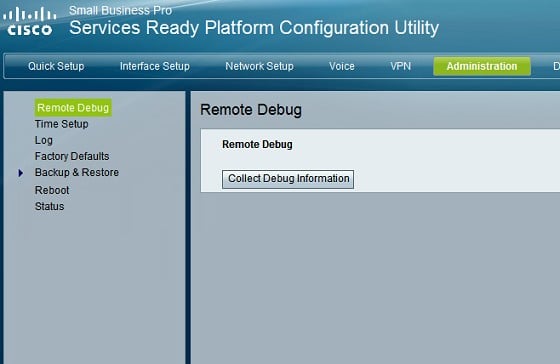

I get this:

RunningMan

5117 posts

Uber Geek
+1 received by user: 1644

Reply # 560491 21-Dec-2011 23:02

Interesting!

Mauricio - what do you see on yours? My screenshot was from a 527 not a 521, but I would have expected the only difference would have been the DSL setup.

AFAIK the visible menu options are dependant on the config from the provisioning from Xnet.

Perhaps move this topic to the Xnet forum, and maverick may be able to offer an insight?

maverick

3594 posts

Uber Geek
+1 received by user: 79

Trusted

WorldxChange

Reply # 560536 22-Dec-2011 06:05

Yes that is interesting , you should have the user list and have access to the password section for the cisco user.... obviously you don't from this screen shot, will have to see what we can find as everything looks correct at first glance and the test units here behave in this way.... a bit strange but will see what we find

Yes I am a employee of WxC (My Profile) ... but I do have my own opinions as well

https://www.facebook.com/wxccommunications
