In case anyone's hanging out for an update, hopefully I'll have time in the weekend to have a look at this. In the mean time, here's today's not-fix in something completely unrelated:

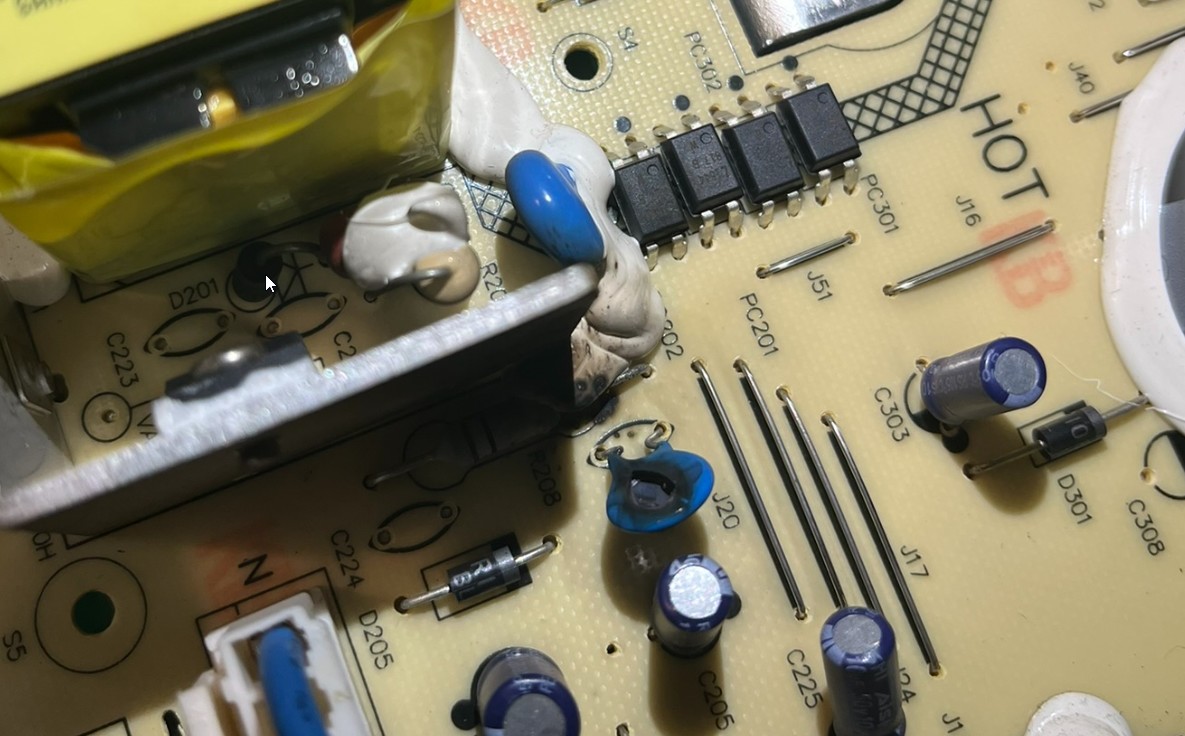

Blown MOV with further damage.

You're not on Atlantis anymore, Duncan Idaho.

RunningMan

8955 posts

Uber Geek

#3383359 12-Jun-2025 19:47

You can see where the smoke has leaked out. Just get some new smoke, refill it then patch the hole ;-)

loceff13

1065 posts

Uber Geek

#3383369 12-Jun-2025 20:00

They generally avoid this repair because it's prone to failure again in the future with a missing pad(especially one of the closest pads) but the customer always expects a 100% fix. Depends on switch design it might be able to be epoxied in place after a repair.

elpenguino

3422 posts

Uber Geek

#3383615 13-Jun-2025 12:04

loceff13:

They generally avoid this repair because it's prone to failure again in the future with a missing pad(especially one of the closest pads) but the customer always expects a 100% fix. Depends on switch design it might be able to be epoxied in place after a repair.

It's inherently a weak design because the button force is applied inline to the pads on the board instead of at 90 degrees. I can't see any strain relief on the mechanical system either so the electrical system takes all the load.

Probably ok in some cases such as well applied solder and users who use a light touch but once you get an imperfection in the assembly all bets are off and failure comes to visit.

Most of the posters in this thread are just like chimpanzees on MDMA, full of feelings of bonhomie, joy, and optimism. Fred99 8/4/21

Sharesies kids

Free kids accounts - trade shares and funds (NZ, US) with Sharesies (affiliate link).

MadEngineer

4278 posts

Uber Geek

Trusted

#3384872 16-Jun-2025 20:44

Do you want to post the power supply for me to test it?

One of the pads was ripped off unfortunately but I was able to clean back a bit of the trace and get some solder on it.

The little micro switches are horrible. They have a slight squishiness to them as you press before going click. This I suspect may result in one pushing it harder to make it work. Especially if you’re using the combo press of holding one down to then press the other for “PREF”
