I have  Motorola SX 709 two way radios which are about 6 years old but have lost the battery charger , the battery pack states it is  4.8V 700aMH Nickel-metal hydride but unable to find a charger for it as Jaycar says I need more information on it , I thought somebody on this forum may be able to help me source one as Im not sure about the electrical side of things

View this topic in a long page with up to 500 replies per page Create new topic
 1 | 2
3358 posts

Uber Geek


  # 1244930 23-Feb-2015 15:29
Send private message

They are just rechargable AAAs in series (4x 1.2v = 4.8) similar to unidens.

In theory a standard pack charger should do it as long as you keep an eye on the input rates.



80 posts

Master Geek


  # 1244960 23-Feb-2015 16:07
Send private message

Oblivian: They are just rechargable AAAs in series (4x 1.2v = 4.8) similar to unidens.

In theory a standard pack charger should do it as long as you keep an eye on the input rates.


How do you do that?







22524 posts

Uber Geek

Trusted
Subscriber

  # 1244987 23-Feb-2015 16:32
Send private message

If you get a hobby charger that should do what you need. Just set it to a low current because of the small batteries, and put it on the + and - terminals of the pack. Little rare earth magnets are great for that.

Otherwise check on ebay or aliexpress for aftermarket pack chargers, there are heaps for various radios.




Richard rich.ms

3358 posts

Uber Geek


  # 1244994 23-Feb-2015 16:43
Send private message

^^

Or check under the battery panel for standard battery contacts (you may find they are present but the sealed pack just skips touching them), my unidens take the pack, or 4 individual AAAs. So you could get some eneloops and a standard charger if the need arose



80 posts

Master Geek


  # 1245004 23-Feb-2015 17:04
Send private message

It actually comes with a charger cradle so you can do the two radios  together

22524 posts

Uber Geek

Trusted
Subscriber

  # 1245013 23-Feb-2015 17:17
Send private message

ok, well that makes it a little harder since you cant parallel or series up the 2 battery packs if they are at different charge levels and treat it as a single 8 cell pack.

Best bet is to put the model into ebay and see what you can get for $20ish in that case.




Richard rich.ms



80 posts

Master Geek


  # 1245015 23-Feb-2015 17:25
Send private message

Thanks, I'll try that on ebay first but thanks for the replies , I can always put separate batteries in it but didn't think it would be much of a problem getting a charger.... I was wrong







22524 posts

Uber Geek

Trusted
Subscriber

  # 1245021 23-Feb-2015 17:53
Send private message

nicad and nimh are a pain to charge quickly and properly, thats why most things are going to lithium now where a simple charge control IC makes it charge quickly and safely.





Richard rich.ms



80 posts

Master Geek


  # 1245023 23-Feb-2015 17:55
Send private message

richms: nicad and nimh are a pain to charge quickly and properly, thats why most things are going to lithium now where a simple charge control IC makes it charge quickly and safely.


Interesting thanks

3358 posts

Uber Geek


  # 1245101 23-Feb-2015 19:29
Send private message

Back the truck up.

Do you need a charger to do the cells, or do you HAVE the cradle, and NOT the power pack for the cradle?

Cause the way it reads, you DON'T have the cradles/pack

If that's the case, the required input will be on the base of it, and you get a power pack to match. And then the little image should point out the if centre pole is positive, and the size is how wide/long the hole it goes into is.



80 posts

Master Geek


  # 1245321 24-Feb-2015 07:07
Send private message

I do have the cradle but nothing relevant on the bottom



80 posts

Master Geek


  # 1245323 24-Feb-2015 07:08
Send private message

I meant to add  no power pack

15231 posts

Uber Geek

Trusted
Subscriber

  # 1245329 24-Feb-2015 07:38
Send private message

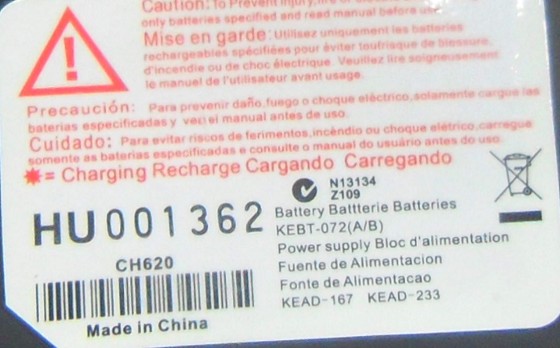

What does the sticker say? It may take a standard power supply and do the battery charging itself, or the charging may be in the plug pack.



80 posts

Master Geek


  # 1245346 24-Feb-2015 07:52
Send private message


BDFL - Memuneh
64673 posts

Uber Geek

Administrator
Trusted
Geekzone
Lifetime subscriber

  # 1245347 24-Feb-2015 07:52
Send private message

I have a pair of Motorola radios and a cradle (different shape but similar sticker). The cradle sticker doesn't say anything but the power adapter to the wall outputs 9v 200mA - ( + )

Actually the sticker says KEBT-06 on mine.
