A curiosity search on Google:

comparison of physical volume of semiconductor used in an OC71 transistor vs PIC16F18114

An introductory AI result:

The physical volume of semiconductor material in a single 1950s OC71 transistor is roughly 1,000 to 10,000 times larger than the entire silicon die of a modern PIC16F18114 microcontroller, even though the PIC16F18114 contains millions of times more functionality.

Similar comparisons can be made with an OA91 diode and a BC109 transistor

Interesting links as a follow up:

Youtube video on The Construction of the Mullard OC71 Transistor:

https://www.youtube.com/watch?v=fxg6nC2m9L8&t=144s

IEEE Spectrum: The State of the Transistor in 3 Charts (includes transistors in processors)

https://spectrum.ieee.org/transistor-density

Youtube video: How are Microchips Made? Branch Education.

https://www.youtube.com/watch?v=dX9CGRZwD-w&t=1078s

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.

SepticSceptic

2263 posts

Uber Geek
+1 received by user: 779

Trusted

#3457806 1-Feb-2026 22:40

But you can't scrape off the black paint and turn the PIC into a phototransistor ... 😄

You could on an OC71.

I probably have one kicking around somewhere. Together with some AC127, etc.

Might even have some DTL logic chips....

Yeah bit of a hoarder..

Gordy7

gordy7
2001 posts

Uber Geek
+1 received by user: 505

ID Verified

Lifetime subscriber

#3457811 1-Feb-2026 23:45

SepticSceptic:

But you can't scrape off the black paint and turn the PIC into a phototransistor ... 😄

You could on an OC71.

I probably have one kicking around somewhere. Together with some AC127, etc.

Might even have some DTL logic chips....

Yeah bit of a hoarder..

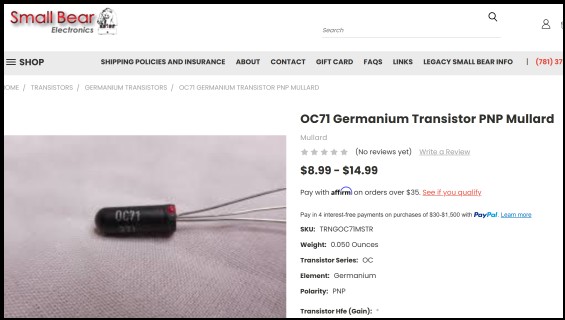

Yes... I remember using an OC71 as a photo transistor... using the sun and a mirror on a speaker to an OC71 in a crude audio link...

Still available 😀

I am somewhat in awe with the capabilities of the PIC chips which you can get for about $1.

Gordy

My first ever AM radio network connection was with a 1MHz AM crystal(OA91) radio receiver.

SepticSceptic

2263 posts

Uber Geek
+1 received by user: 779

Trusted

#3458140 2-Feb-2026 21:48

Yeah, with you on that.

And so readily available for the masses, and now so easy to use.

A couple of decades ago, what is in the PICs and Pi's was a 8031 or 6805 based controller on a circuit board with glue logic and rs232 terminal, and stuff all memory.

Been perusing some old cc-ink mags, I am so pleased we have come a long way to make microprocessors so readily available.

Even at 0.07 cents for a decent but basic 8 bit banger,in small quantities
