VDSL Performance & Tuning

Forums › New Zealand Broadband › VDSL Performance & Tuning

1 | ... | 161 | 162 | 163 | 164 | 165 | 166 | 167 | 168 | 169 | 170 | 171 | ... | 285

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#914926 14-Oct-2013 16:49

the .22 firmware

84.05.22

ftp://service.avm.de/Downgrade/FRITZ!Box%20Fon%20WLAN%207390/english/FRITZ.Box_Fon_WLAN_7390.en-de-es-it-fr.84.05.22.image

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Paul1977

5039 posts

Uber Geek

#914931 14-Oct-2013 16:59

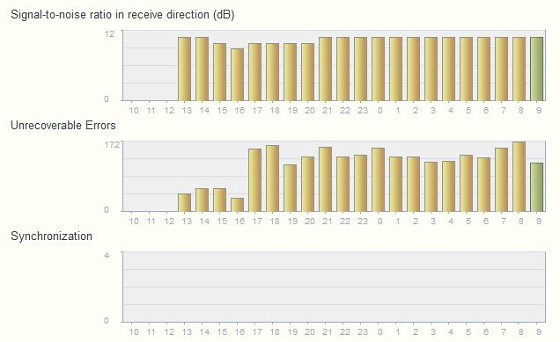

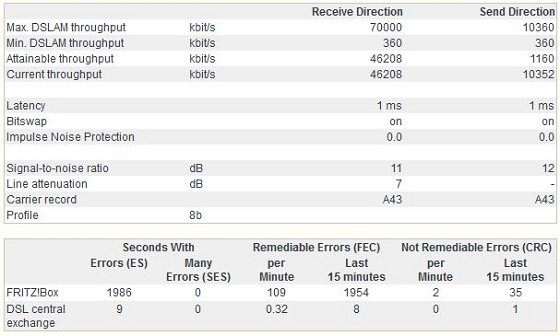

hio77: that sawtooth at 200 is pretty impressive.. crosstalk ild say.

at 7db attenuation, its border line for what we can figure, but a shot at it none the less.

error rate looks pretty good for a 10db SNR too.

I'm not sure why it's dipped to 10db, it is set at the standard of 12. I haven't done any tweaking.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#914932 14-Oct-2013 17:01

Paul1977:
hio77: that sawtooth at 200 is pretty impressive.. crosstalk ild say.

at 7db attenuation, its border line for what we can figure, but a shot at it none the less.

error rate looks pretty good for a 10db SNR too.

I'm not sure why it's dipped to 10db, it is set at the standard of 12. I haven't done any tweaking.

well then, that could be a sign of it testing for 17a, DLM does do odd things like that, as far as we can gather... assumed you were tweaking

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Paul1977

5039 posts

Uber Geek

#914934 14-Oct-2013 17:02

hio77:well then, that could be a sign of it testing for 17a...

That would be nice!

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#914937 14-Oct-2013 17:07

Paul1977:
hio77:well then, that could be a sign of it testing for 17a...

That would be nice!

if only 17a was manually set purely off a attenuation figure eh?

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#915052 14-Oct-2013 21:21

making progress...

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

Paul1977

5039 posts

Uber Geek

#915250 15-Oct-2013 09:56

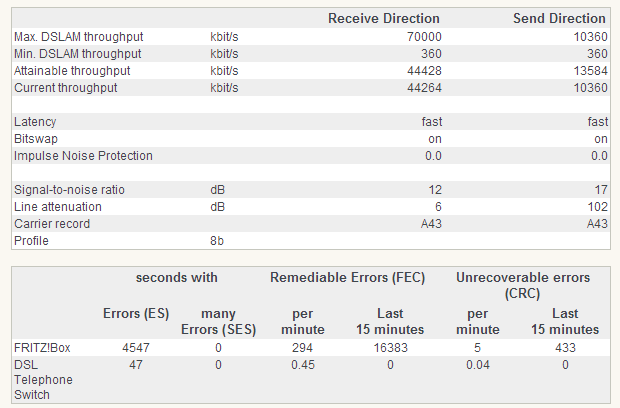

Hmmm.... errors have settled quite high since my last resync, not too high I hope. But it's the fastest sync I've ever had!

Cloud spending continues to surge globally, but most organisations haven’t made the changes necessary to maximise the value and cost-efficiency benefits of their cloud investments. Download the whitepaper From Overspend to Advantage now.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#915259 15-Oct-2013 10:17

still not settled in...

a downgrade is on the cards for today.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek

Trusted

#915274 15-Oct-2013 10:40

Sadly SNR tweaking (even via Telnet) doesn't work for the 7340 on .51 FW :(

Love of all phones, computers and gadgets

stevehodge

393 posts

Ultimate Geek

#915276 15-Oct-2013 10:42

HiTM4N: Sadly SNR tweaking (even via Telnet) doesn't work for the 7340 on .51 FW :(

Pretty easy solution. I can't see any reason to be running .51 TBH.

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#915288 15-Oct-2013 11:03

stevehodge:
HiTM4N: Sadly SNR tweaking (even via Telnet) doesn't work for the 7340 on .51 FW :(

Pretty easy solution. I can't see any reason to be running .51 TBH.

the pretterier graphs? the stats that you cant hover over to see exact values?

sarcasm aside, i dont see why snap even ship with .51 anymore considering they advise against it.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

HiTM4N

256 posts

Ultimate Geek

Trusted

#915319 15-Oct-2013 12:09

hio77:
stevehodge:
HiTM4N: Sadly SNR tweaking (even via Telnet) doesn't work for the 7340 on .51 FW :(

Pretty easy solution. I can't see any reason to be running .51 TBH.

the pretterier graphs? the stats that you cant hover over to see exact values?

sarcasm aside, i dont see why snap even ship with .51 anymore considering they advise against it.

Built some 'freetz' images back on .51 that I'm testing.

If everything works out will rebase them on .22

If anyone wants to give freetz a go, PM me. However I am building for 7340 and naked VDSL. If anyone with a 7390 wants to try too, then I will need a tester as I cant test without a device.

But thats all very off topic

Love of all phones, computers and gadgets

hio77

12999 posts

Uber Geek

ID Verified

Trusted

Lizard Networks

#915322 15-Oct-2013 12:11

I wouldnt say fretz is off topic at all.. it has some pretty handy modules in it which I could see many here making use of.

#include <std_disclaimer>

Any comments made are personal opinion and do not reflect directly on the position my current or past employers may have.

sidefx

3711 posts

Uber Geek

Trusted

#915378 15-Oct-2013 13:16

Have you got bridging working with the fritzbox using freetz?

"I was born not knowing and have had only a little time to change that here and there." | Octopus Energy | Sharesies
- Richard Feynman

HiTM4N

256 posts

Ultimate Geek

Trusted

#915393 15-Oct-2013 13:17

sidefx: Have you got bridging working with the fritzbox using freetz?

Not yet, but that was my main reason for looking into Freetz. Don't have much experience with bridge-utils though

Love of all phones, computers and gadgets
